A large rectangular black fuel tank with a matte finish, shown from an angled perspective. The tank features six welded metal mounting brackets on its top edges and two metal lifting eyes on the sides. On the top surface, there is a small label with product information along with various fittings, including two brass fuel connectors, a black and blue capped vent, and a sensor or wiring connection. The tank has clean, sharp edges and a sturdy, industrial design
A white 3D model rendering of the Aquasport 275 2001 Fuel Tank with dimensions and features labeled. The tank is rectangular with slightly chamfered edges on one side and has multiple welded metal mounting brackets along the top edges. The dimensions are 53 1/4 inches in length, 35 1/2 inches in width, and 25 3/4 inches in height. On top of the tank are various fittings including brass fuel connectors, a black capped vent, and a sensor or wiring connection
A black rectangular fuel tank viewed from an angled top front perspective. The tank has a flat top surface with multiple welded mounting tabs around the edges and two circular lifting rings on each side near the top corners. Several fittings and connectors are attached near one end of the top surface, including a white and black pipe connector with a blue tip, brass fittings, a sensor or wiring connector, and a small white cap. The tank’s sides are smooth with visible weld seams along the edges
A black rectangular marine fuel tank viewed from the front angle with the narrow front face facing forward. The tank has a flat top surface with multiple welded mounting tabs along the edges. A single circular lifting ring is visible centered on the front narrow face. On the top surface, near the back, several fuel fittings and connectors are mounted, including a white plastic pipe with a blue tip, brass fittings, and a sensor with black wiring
A black rectangular marine fuel tank is shown from a front-left angle with the longer side facing forward. The tank has a flat top surface featuring several welded mounting brackets along the edges. Two circular lifting rings are visible, one on the left side edge and one near the back on the right. The top surface has various fittings and connectors, including a white plastic pipe with a blue tip, brass fittings, and a sensor with black wiring. The bottom edges of the tank are rounded
Label on a black metal fuel tank with Welding World Inc. logo and contact information. Part number WW316250, customer QB 2762. Manufactured for Aquasport 275 Fuel Tank, manufactured on 04/05/2023. Capacity 188 gallons, thickness 0.190 inches. Made from aluminum 5052-H-32. Serial number 2023259. Recommended for gasoline. Maximum test pressure 6 psi / 34.5 kpa, tested under 33 CFR § 183.510 (a). Meets ISO 8846 and 10088 specifications. Certification logos for ABYC and NMMA
A large rectangular black fuel tank with a matte finish, shown from an angled perspective. The tank features six welded metal mounting brackets on its top edges and two metal lifting eyes on the sides. On the top surface, there is a small label with product information along with various fittings, including two brass fuel connectors, a black and blue capped vent, and a sensor or wiring connection. The tank has clean, sharp edges and a sturdy, industrial design
A white 3D model rendering of the Aquasport 275 2001 Fuel Tank with dimensions and features labeled. The tank is rectangular with slightly chamfered edges on one side and has multiple welded metal mounting brackets along the top edges. The dimensions are 53 1/4 inches in length, 35 1/2 inches in width, and 25 3/4 inches in height. On top of the tank are various fittings including brass fuel connectors, a black capped vent, and a sensor or wiring connection
A black rectangular fuel tank viewed from an angled top front perspective. The tank has a flat top surface with multiple welded mounting tabs around the edges and two circular lifting rings on each side near the top corners. Several fittings and connectors are attached near one end of the top surface, including a white and black pipe connector with a blue tip, brass fittings, a sensor or wiring connector, and a small white cap. The tank’s sides are smooth with visible weld seams along the edges
A black rectangular marine fuel tank viewed from the front angle with the narrow front face facing forward. The tank has a flat top surface with multiple welded mounting tabs along the edges. A single circular lifting ring is visible centered on the front narrow face. On the top surface, near the back, several fuel fittings and connectors are mounted, including a white plastic pipe with a blue tip, brass fittings, and a sensor with black wiring
A black rectangular marine fuel tank is shown from a front-left angle with the longer side facing forward. The tank has a flat top surface featuring several welded mounting brackets along the edges. Two circular lifting rings are visible, one on the left side edge and one near the back on the right. The top surface has various fittings and connectors, including a white plastic pipe with a blue tip, brass fittings, and a sensor with black wiring. The bottom edges of the tank are rounded
Label on a black metal fuel tank with Welding World Inc. logo and contact information. Part number WW316250, customer QB 2762. Manufactured for Aquasport 275 Fuel Tank, manufactured on 04/05/2023. Capacity 188 gallons, thickness 0.190 inches. Made from aluminum 5052-H-32. Serial number 2023259. Recommended for gasoline. Maximum test pressure 6 psi / 34.5 kpa, tested under 33 CFR § 183.510 (a). Meets ISO 8846 and 10088 specifications. Certification logos for ABYC and NMMA

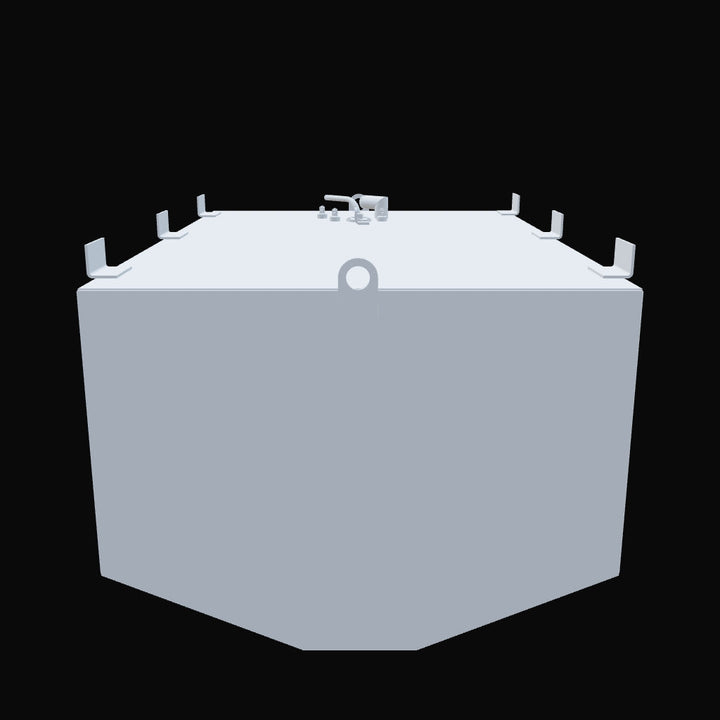

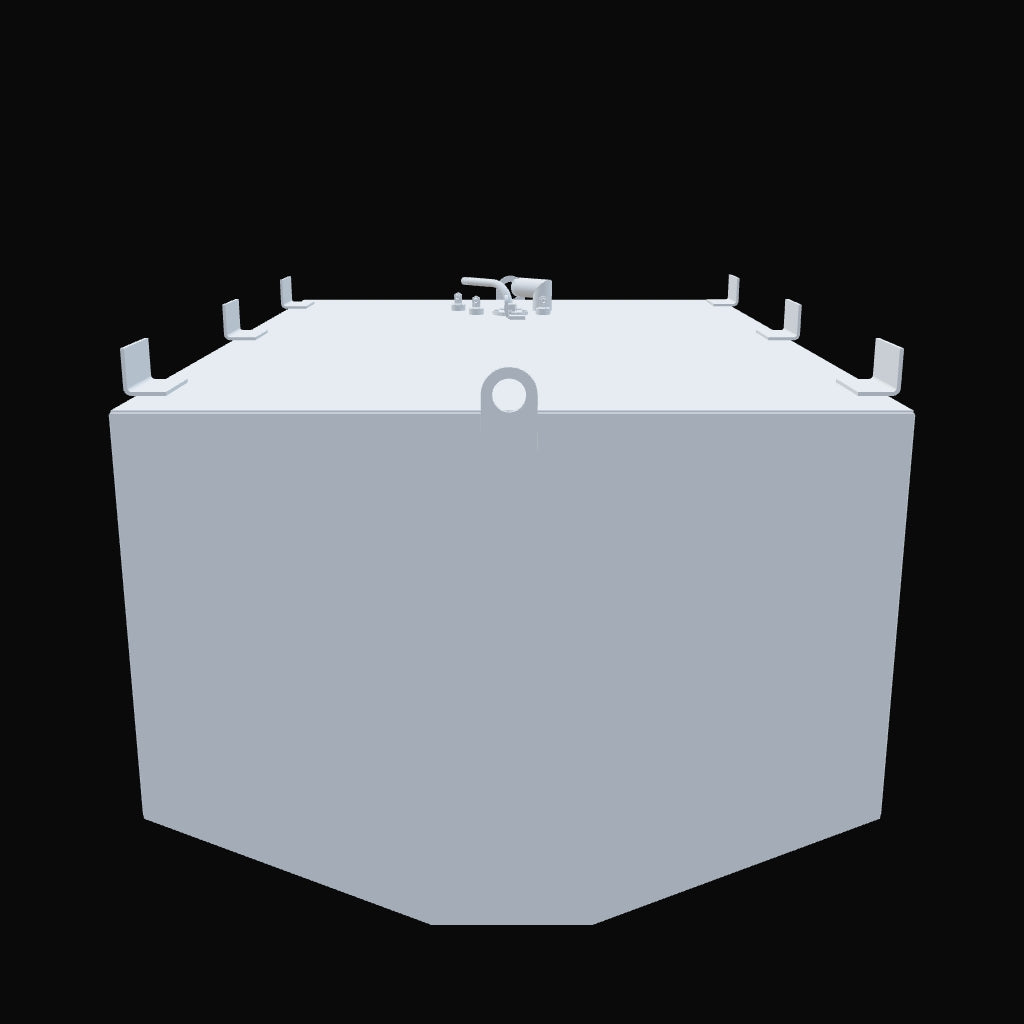

A 3D model rendering of a rectangular fuel tank shown from the front side. The tank is light gray in color with a smooth surface and has a slightly tapered bottom edge that narrows to a flat angled base. Along the top edges of the tank are multiple welded mounting brackets extending upward. The tank features various fittings and components on the top surface, including two pipe connectors, a sensor or wiring connector, and a circular lifting eye ring centered near the front edge.

Aquasport 275 2001 - 191 gallon Fuel Tank

$ 2,694.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.

  • IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 1-2 work weeks. The finished tank pickup window is also 1-2 work weeks, so make sure you will be able to take delivery of your finished tank within that timeframe.

  • Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.

  • .190 thickness Alcoa® 5052 H32 Series aluminum construction.

  • Hand welded GTAW (TIG) welded to exceed ASME / ASW D3.7:2004 standards.

  • Sherwin Williams® TarGard® Epoxy painted for the best marine environment protection.

  • KUS® (ex-WEMA USA®) reed switch sender with NBR float fuel level.

 NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!

Fabrication lead time (before shipping): 1-2 work weeks.

Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.

Return Policy: No refunds are accepted, as all of our products are made to order. Our policy is strictly limited to the repair or replacement of qualifying defective or damaged goods. Please note that shipping costs are non-refundable.

Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
