A black, rectangular fuel tank with a slightly irregular shape, possibly for a Hydra-Sports Vector 29' (2005) OEM replacement, is positioned against a black and grey checkered background. Various metallic fittings and a small white label are visible on its top surface
A 3D rendering of a rectangular, light-grey fuel tank for a Hydra-Sports Vector 29' 2005, with dimensions of 83.5 inches long, 41.25 inches wide, and varying heights of 22.5 inches and 21.25 inches due to a sloped top. The tank has a nominal capacity of 290 gallons and features several fittings on its top surface
A rectangular, black fuel tank with a reflective surface is angled against a black and grey checkered background. Various metallic fittings, including two brass-colored connectors and a white and blue pipe, are visible on its top surface, along with a small white label. A raised black strip runs along the back edge of the top
A black, rectangular fuel tank with a slightly textured surface and a dark, reflective strip along its top edge, is shown against a black and grey checkered background. Various metallic and plastic fittings are visible on the top surface
A black, rectangular fuel tank with a textured surface, shown against a black and grey checkered background. Various metallic and plastic fittings, including a white and blue tube and brass-colored connectors, are visible on its top surface, along with a small white label. A black strip runs along the top edges, creating a lip
A white label on a black fuel tank, indicating it's a 290-gallon fuel tank for a Hydrasport Vector 29', manufactured by Welding World Inc. on 08/23/21. The label specifies part number WW-T-250, material Alum. 5052-H-32 with .190 thickness, serial number 202181, recommended for gasoline, with a maximum test pressure of 9 psi / 34.5 kpa. It also states compliance with ISO 8846 and 10088 specifications and certifications by ABYC and NMMA, along with a warning about fuel leaks. Various metal fittings
A black, rectangular fuel tank with a slightly irregular shape, possibly for a Hydra-Sports Vector 29' (2005) OEM replacement, is positioned against a black and grey checkered background. Various metallic fittings and a small white label are visible on its top surface
A 3D rendering of a rectangular, light-grey fuel tank for a Hydra-Sports Vector 29' 2005, with dimensions of 83.5 inches long, 41.25 inches wide, and varying heights of 22.5 inches and 21.25 inches due to a sloped top. The tank has a nominal capacity of 290 gallons and features several fittings on its top surface
A rectangular, black fuel tank with a reflective surface is angled against a black and grey checkered background. Various metallic fittings, including two brass-colored connectors and a white and blue pipe, are visible on its top surface, along with a small white label. A raised black strip runs along the back edge of the top
A black, rectangular fuel tank with a slightly textured surface and a dark, reflective strip along its top edge, is shown against a black and grey checkered background. Various metallic and plastic fittings are visible on the top surface
A black, rectangular fuel tank with a textured surface, shown against a black and grey checkered background. Various metallic and plastic fittings, including a white and blue tube and brass-colored connectors, are visible on its top surface, along with a small white label. A black strip runs along the top edges, creating a lip
A white label on a black fuel tank, indicating it's a 290-gallon fuel tank for a Hydrasport Vector 29', manufactured by Welding World Inc. on 08/23/21. The label specifies part number WW-T-250, material Alum. 5052-H-32 with .190 thickness, serial number 202181, recommended for gasoline, with a maximum test pressure of 9 psi / 34.5 kpa. It also states compliance with ISO 8846 and 10088 specifications and certifications by ABYC and NMMA, along with a warning about fuel leaks. Various metal fittings

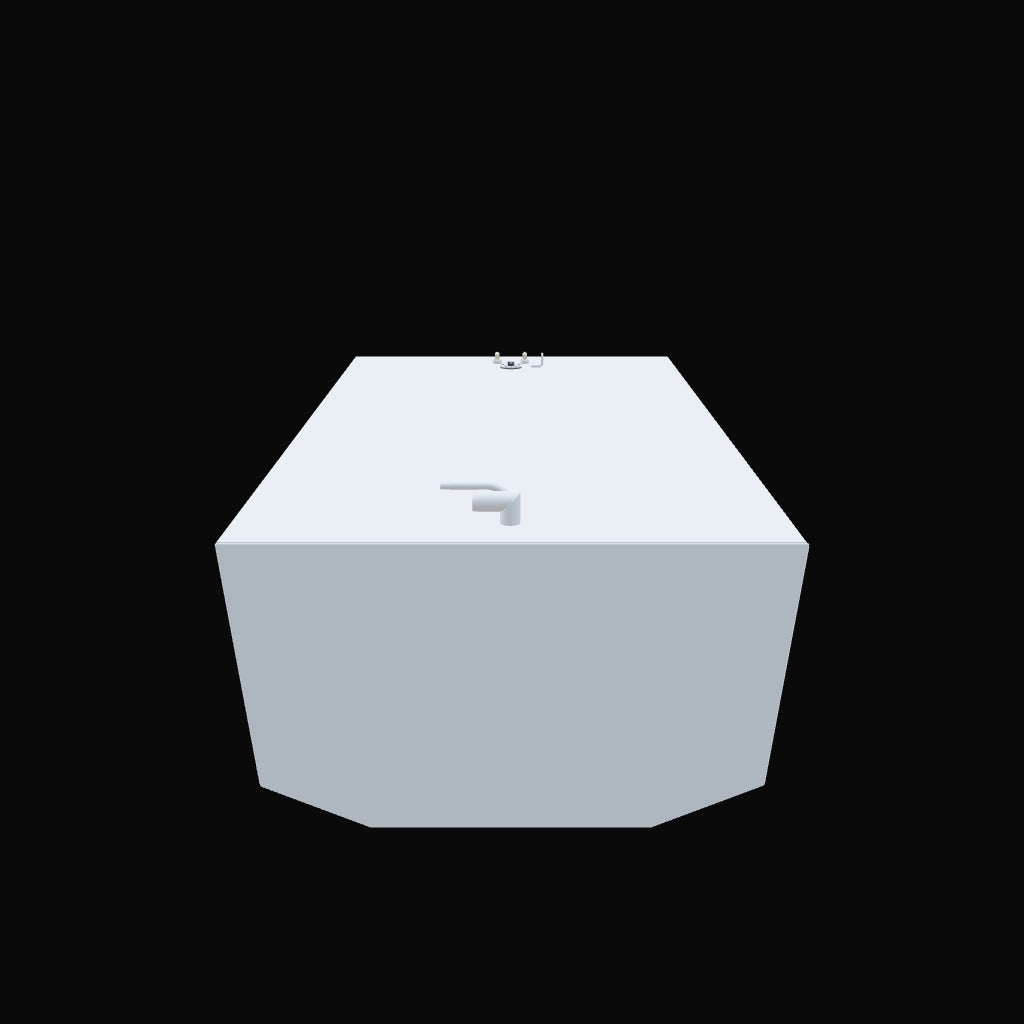

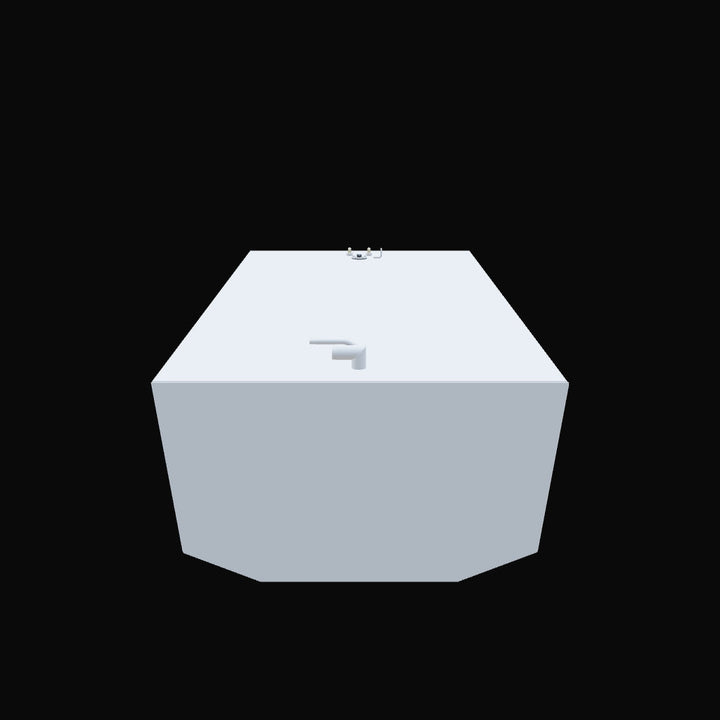

A light gray, rectangular fuel tank with an irregular hexagonal base, featuring various fittings on its top surface, including a white L-shaped pipe and a circular component with several small white knobs, all against a black background

Hydra-Sports Vector 29' - 2005 OEM Replacement Fuel Tank

$ 3,699.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.

  • IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 1-2 work weeks. The finished tank pickup window is also 1-2 work weeks, so make sure you will be able to take delivery of your finished tank within that timeframe.

  • Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.

  • .190 thickness Alcoa® 5052 H32 Series aluminum construction.

  • Hand welded GTAW (TIG) welded to exceed ASME / ASW D3.7:2004 standards.

  • Sherwin Williams® TarGard® Epoxy painted for the best marine environment protection.

  • KUS® (ex-WEMA USA®) reed switch sender with NBR float fuel level.

 NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!

Fabrication lead time (before shipping): 1-2 work weeks.

Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.

Return Policy: No refunds are accepted, as all of our products are made to order. Our policy is strictly limited to the repair or replacement of qualifying defective or damaged goods. Please note that shipping costs are non-refundable..

Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
