200-gallon aluminum belly fuel tank designed for the Ocean Master 33 center console boat. Rectangular in shape and finished in matte black, the tank features dual top-mounted fittings for fuel supply and return lines, positioned for optimized routing within the hull cavity. Built from .190″ 5052-H32 marine-grade aluminum, the unit is fabricated to meet ABYC and U.S. Coast Guard compliance standards. Compact footprint and flat geometry support direct OEM replacement and balanced weight distribution.
Schematic rendering of a 200-gallon aluminum belly fuel tank designed for the Ocean Master 33 center console. The tank measures 96″ in length, 36″ in width, and 15″ in height, with a low-profile rectangular footprint for hull integration. Topside fittings are positioned for optimized fuel delivery and return line routing, ensuring compatibility with OEM specifications. Built to ABYC and Coast Guard standards, the tank features robust .190″ 5052-H32 aluminum construction and layout geometry suited for center
200-gallon aluminum belly fuel tank for the Ocean Master 33, finished in matte black and designed for under-deck installation. Top-mounted hardware includes dual brass return fittings, a capped shutoff valve with blue handle, an electrical sender unit with an attached black wire, and a centrally placed compliance label. The tank's rectangular profile, clean top geometry, and isolated background confirm readiness for OEM integration, system routing, and visual inspection
200-gallon aluminum belly fuel tank for the Ocean Master 33, shown with a black matte finish and rectangular profile. Top-mounted features include a capped shutoff valve with a blue handle near the front edge and dual brass fittings positioned toward the rear. Centered on the top surface is a white compliance label confirming .190″ 5052-H32 marine-grade aluminum construction, ABYC/NMMA standards adherence, and 9 psi test certification under 33 CFR § 183.510(a). Layout supports OEM integration, balanced
200-gallon aluminum belly fuel tank with a matte black finish, custom-built for the Ocean Master 33 center console. The top surface hosts a blue-handled shutoff valve, dual brass return fittings, and a centrally mounted electrical sender unit with black harness wiring. A white certification label confirms .190″ 5052-H32 marine-grade aluminum construction and compliance with ABYC and U.S. Coast Guard fuel system standards. Clean geometry and balanced hardware layout support seamless OEM replacement
Certification label for the 200-gallon aluminum belly fuel tank designed for the Ocean Master 33 center console. Issued by Welding World Inc. (Part #WW-T-250, Serial #2022048), the label confirms the tank is constructed from .190″ 5052-H32 marine-grade aluminum and rated for gasoline containment. It meets 33 CFR § 183.510(a) with a maximum test pressure of 9 psi, and complies with ISO 8846 and ISO 10088 specifications. Additional endorsements include ABYC and NMMA membership. Printed warnings emphasize
200-gallon aluminum belly fuel tank designed for the Ocean Master 33 center console boat. Rectangular in shape and finished in matte black, the tank features dual top-mounted fittings for fuel supply and return lines, positioned for optimized routing within the hull cavity. Built from .190″ 5052-H32 marine-grade aluminum, the unit is fabricated to meet ABYC and U.S. Coast Guard compliance standards. Compact footprint and flat geometry support direct OEM replacement and balanced weight distribution.
Schematic rendering of a 200-gallon aluminum belly fuel tank designed for the Ocean Master 33 center console. The tank measures 96″ in length, 36″ in width, and 15″ in height, with a low-profile rectangular footprint for hull integration. Topside fittings are positioned for optimized fuel delivery and return line routing, ensuring compatibility with OEM specifications. Built to ABYC and Coast Guard standards, the tank features robust .190″ 5052-H32 aluminum construction and layout geometry suited for center

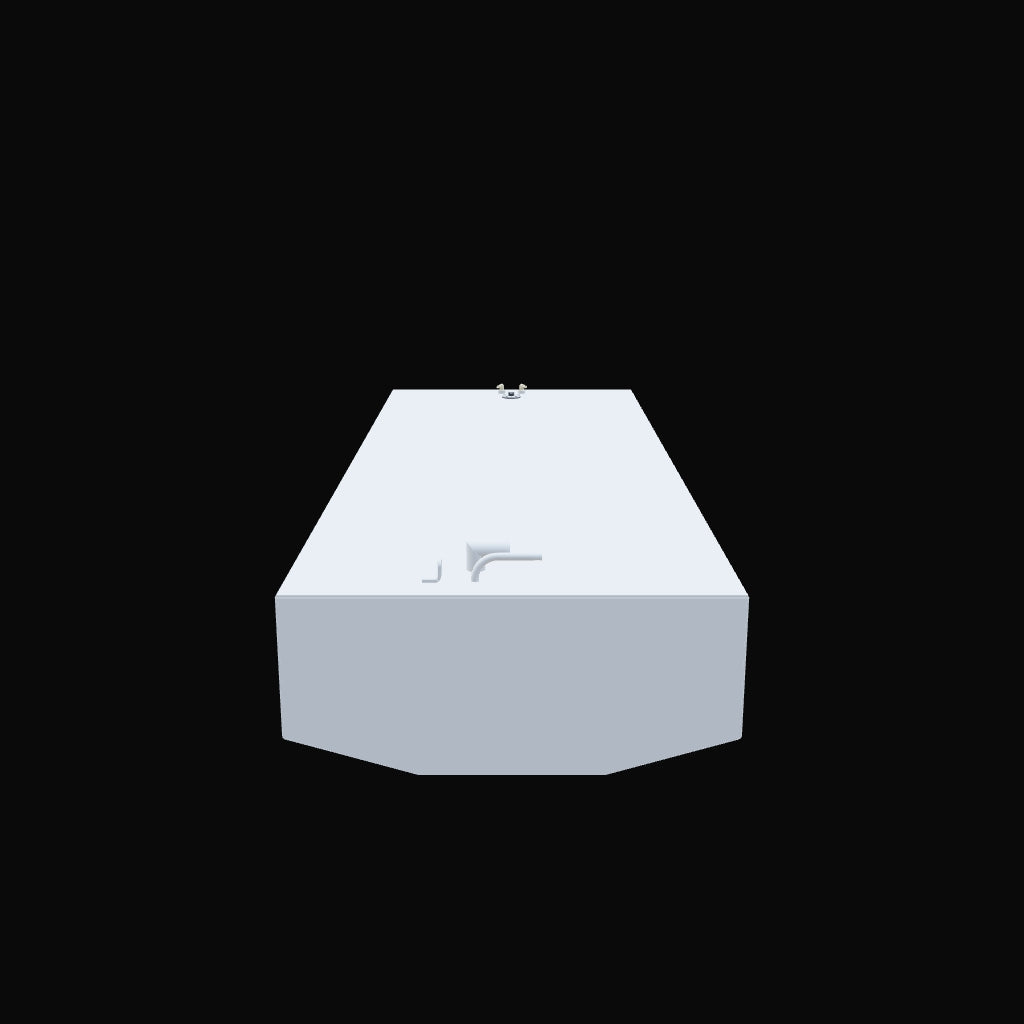

Simplified 3D model of a 200-gallon belly fuel tank engineered for the Ocean Master 33. The black-background rendering showcases a rectangular design with a tapered front edge and dual top-mounted hardware ports at the rear. Clean contours and visible geometry highlight space allocation, hull alignment, and routing considerations. This visual reference supports conceptual layout planning and OEM cavity integration
200-gallon aluminum belly fuel tank for the Ocean Master 33, finished in matte black and designed for under-deck installation. Top-mounted hardware includes dual brass return fittings, a capped shutoff valve with blue handle, an electrical sender unit with an attached black wire, and a centrally placed compliance label. The tank's rectangular profile, clean top geometry, and isolated background confirm readiness for OEM integration, system routing, and visual inspection
200-gallon aluminum belly fuel tank for the Ocean Master 33, shown with a black matte finish and rectangular profile. Top-mounted features include a capped shutoff valve with a blue handle near the front edge and dual brass fittings positioned toward the rear. Centered on the top surface is a white compliance label confirming .190″ 5052-H32 marine-grade aluminum construction, ABYC/NMMA standards adherence, and 9 psi test certification under 33 CFR § 183.510(a). Layout supports OEM integration, balanced
200-gallon aluminum belly fuel tank with a matte black finish, custom-built for the Ocean Master 33 center console. The top surface hosts a blue-handled shutoff valve, dual brass return fittings, and a centrally mounted electrical sender unit with black harness wiring. A white certification label confirms .190″ 5052-H32 marine-grade aluminum construction and compliance with ABYC and U.S. Coast Guard fuel system standards. Clean geometry and balanced hardware layout support seamless OEM replacement
Certification label for the 200-gallon aluminum belly fuel tank designed for the Ocean Master 33 center console. Issued by Welding World Inc. (Part #WW-T-250, Serial #2022048), the label confirms the tank is constructed from .190″ 5052-H32 marine-grade aluminum and rated for gasoline containment. It meets 33 CFR § 183.510(a) with a maximum test pressure of 9 psi, and complies with ISO 8846 and ISO 10088 specifications. Additional endorsements include ABYC and NMMA membership. Printed warnings emphasize

Ocean Master 33 - 200 gal. OEM Replacement Belly Fuel Tank

$ 2,800.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.

  • IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 2 work weeks. The finished tank pickup window is also 2 work weeks, so make sure you will be able to take delivery of your finished tank within that timeframe.

  • Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.

  • .190 thickness Alcoa® 5052 H32 Series aluminum construction.

  • Hand welded GTAW (TIG) welded to exceed ASME / ASW D3.7:2004 standards.

  • Sherwin Williams® TarGard® Epoxy painted for the best marine environment protection.

  • KUS® (ex-WEMA USA®) reed switch sender with NBR float fuel level.

 NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!

Fabrication lead time (before shipping): 2 work weeks.

Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.



Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
