3/8" Thick 6.125" OD Round Aluminum Countersunk Pad | 3 Countersunk Holes + Center Vent | Marine Grade 6061-T6
Part Number: 1011
6.125" OD Round Countersunk Pad with Center Weld Vent — 25/64" Holes

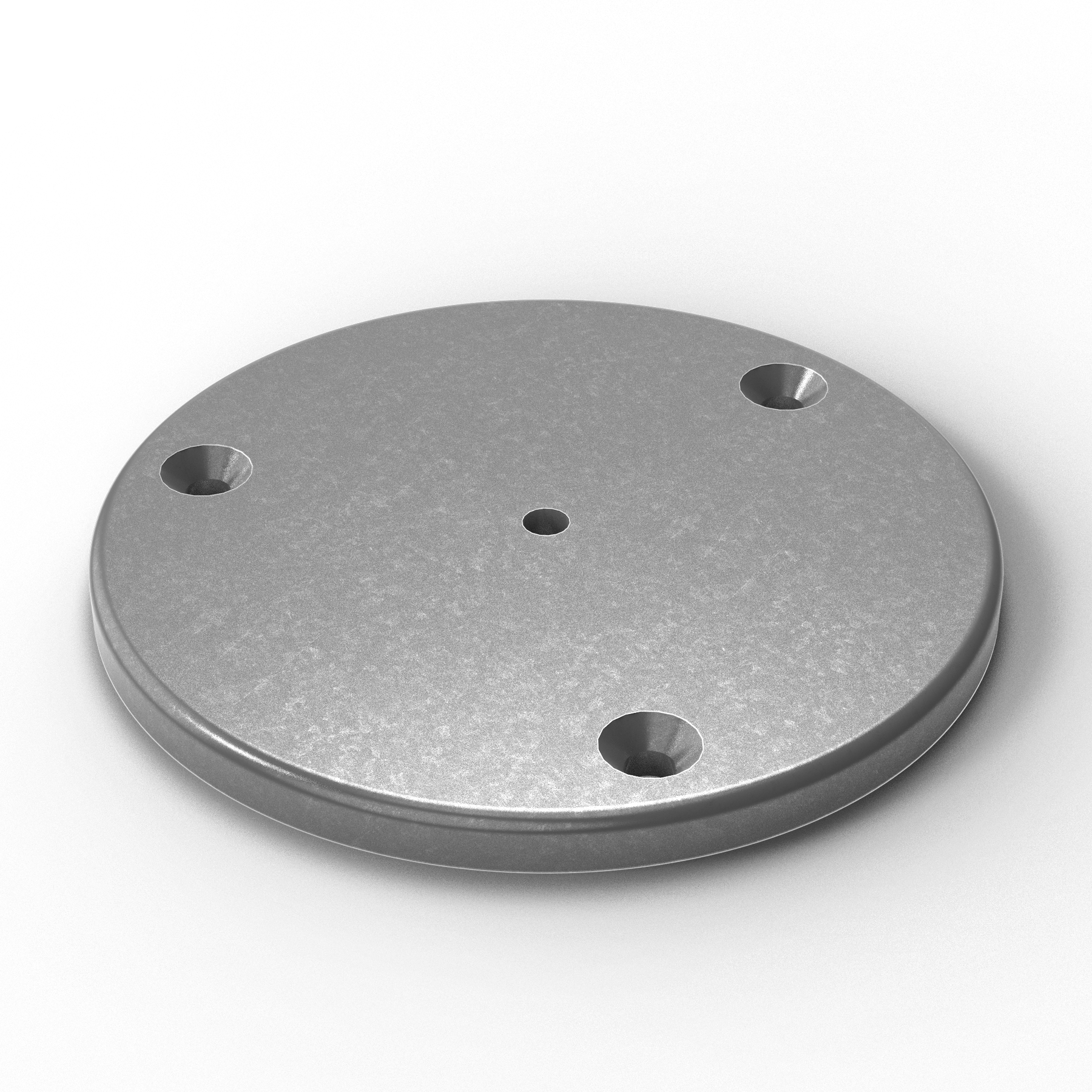

Precision CNC-machined 6061-T6 aluminum round countersunk pad with three mounting holes and a center vent. Designed for flush-mount fastening on fiberglass pedestal surfaces in saltwater marine environments. Three countersunk outer holes allow countersunk head screws to sit flush with the pad surface, while the center vent provides weld gas release during installation. The 25/64" mounting holes are sized for 3/8" fasteners. Commonly used on top or through the side of a deck pedestal, as well as through the fiberglass skin of a hardtop or T-top.
| Material | Marine Grade 6061-T6 Aluminum |
| Outside Diameter | 6.125" (156 mm) |
| Thickness | 3/8" (0.375") |

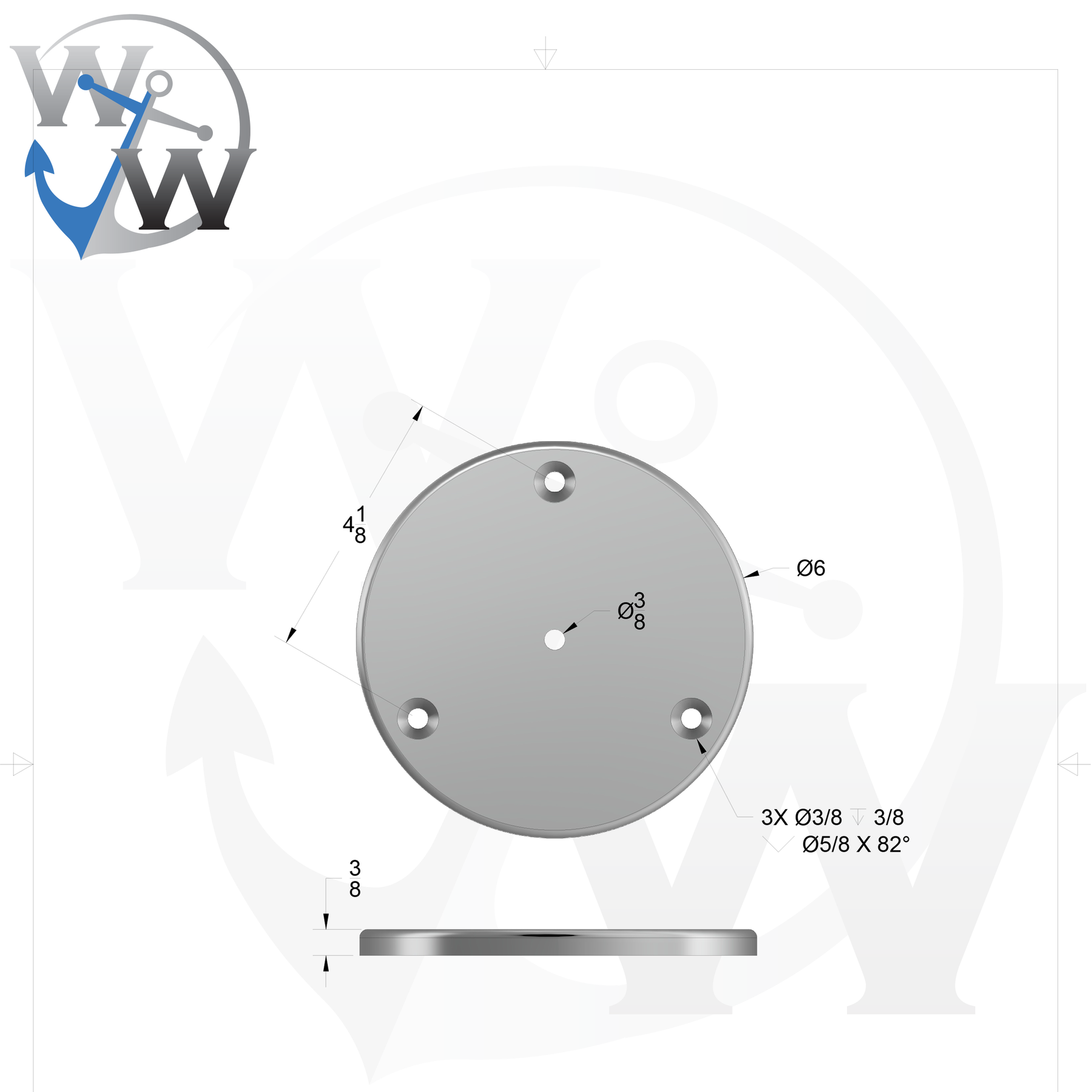

| Mounting Holes | 3 countersunk (25/64" dia. for 3/8" fasteners) |
| Center | 1 vent hole (weld gas release) |
| Shape | Round |
| Finish | Matte — tumbled, deburred, paint/powder coat ready |
| Weight | 1.06 lb |
Common Applications
T-tops, tuna towers, hard tops, radar arches, leaning posts, grab bars, bow rails, outrigger mounts, rod holders — commonly used on top or through the side of a deck pedestal, as well as through the fiberglass skin of a hardtop or T-top.
Frequently Asked Questions
What does "countersunk" mean for this pad?
Countersunk means the mounting holes are chamfered so countersunk head screws sit flush with the pad surface — no protruding screw heads that could snag lines or cause injury.
What is the center vent hole for?
The center vent hole allows trapped air and gases to escape during welding, preventing blow-through and ensuring a clean, full-penetration weld.
Can this pad be used on a fiberglass deck?
Yes — this pad is designed for fiberglass pedestal installations. The countersunk holes accommodate countersunk head screws, and the pad distributes fastener loads over a wider surface area to prevent deck damage.
What size fasteners do I need?
The three countersunk holes are 25/64" diameter, sized for 3/8" fasteners. Use 3/8"-16 stainless countersunk head screws for best results.
