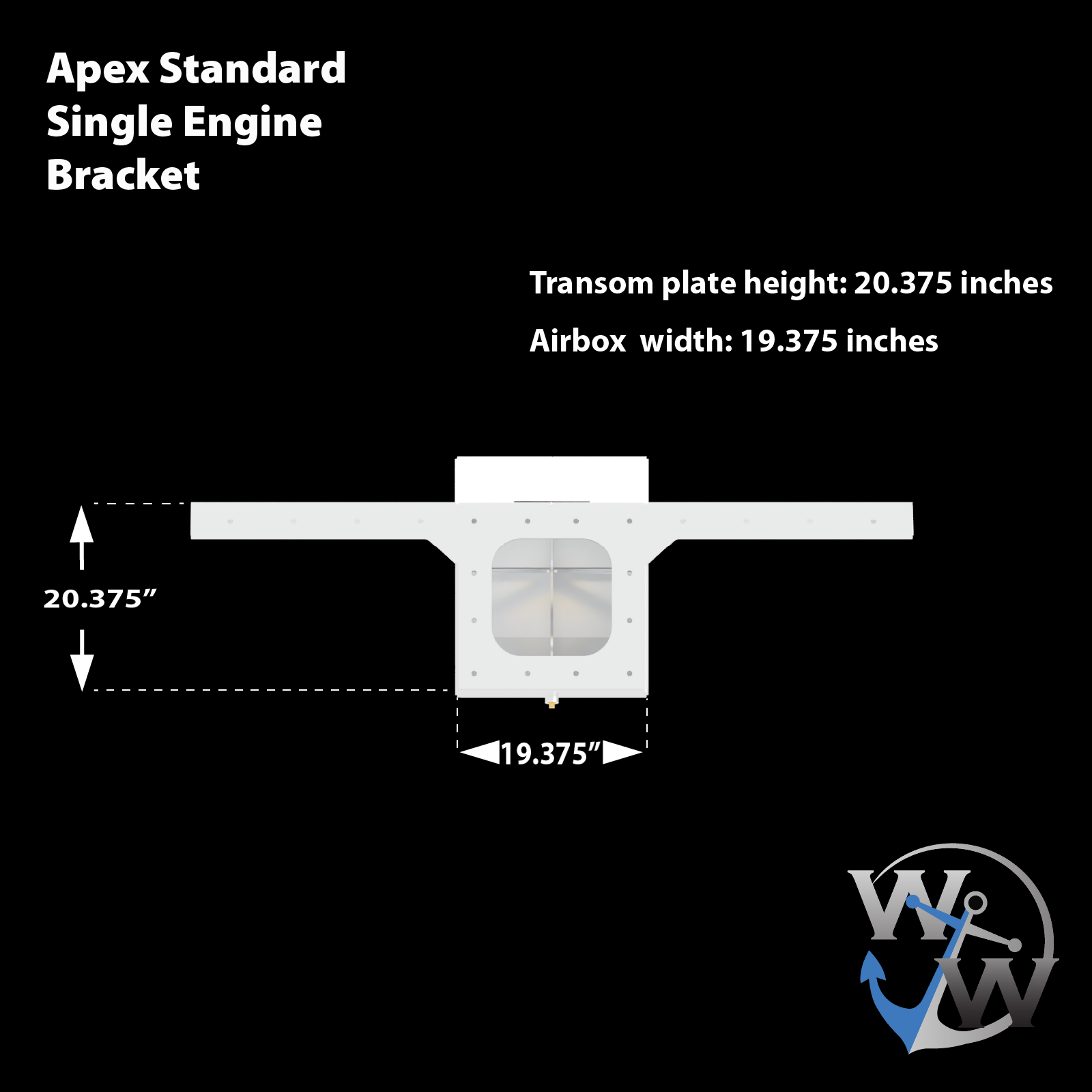

.....make this into a alt textDiagram of the Apex Standard Single Engine Bracket, featuring a transom plate height of 20.375 inches and an airbox width of 19.375 inches. The bracket is shown in a simplified white silhouette against a black background, with measurement indicators for clarity

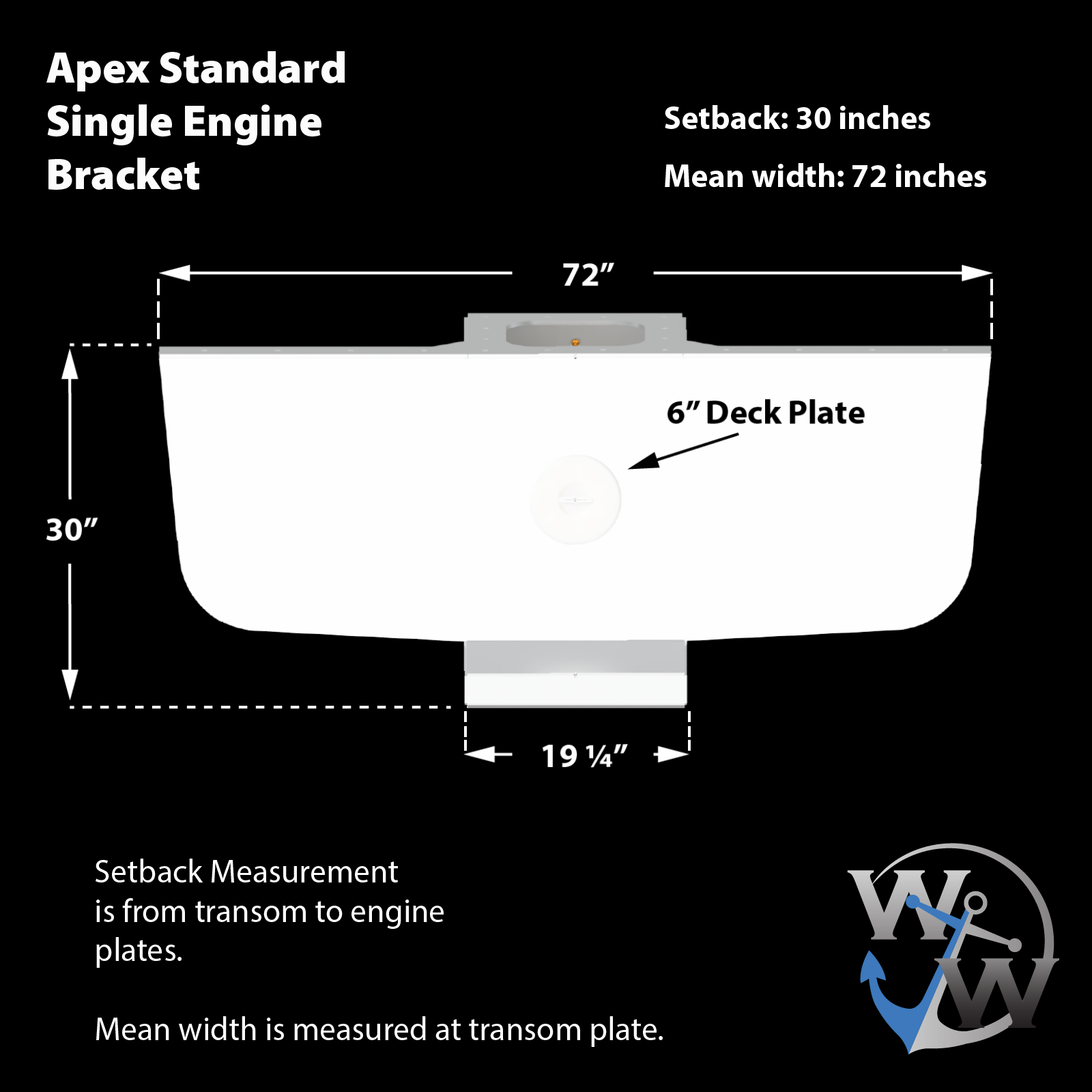

Diagram of the Apex Standard Single Engine 16° Transom Bracket, featuring dimensions: 72 inches mean width, 30 inches setback, and 30 inches height. A 6-inch deck plate is indicated, with a note that the setback measurement is from the transom to the engine plates, and the mean width is measured at the transom plate

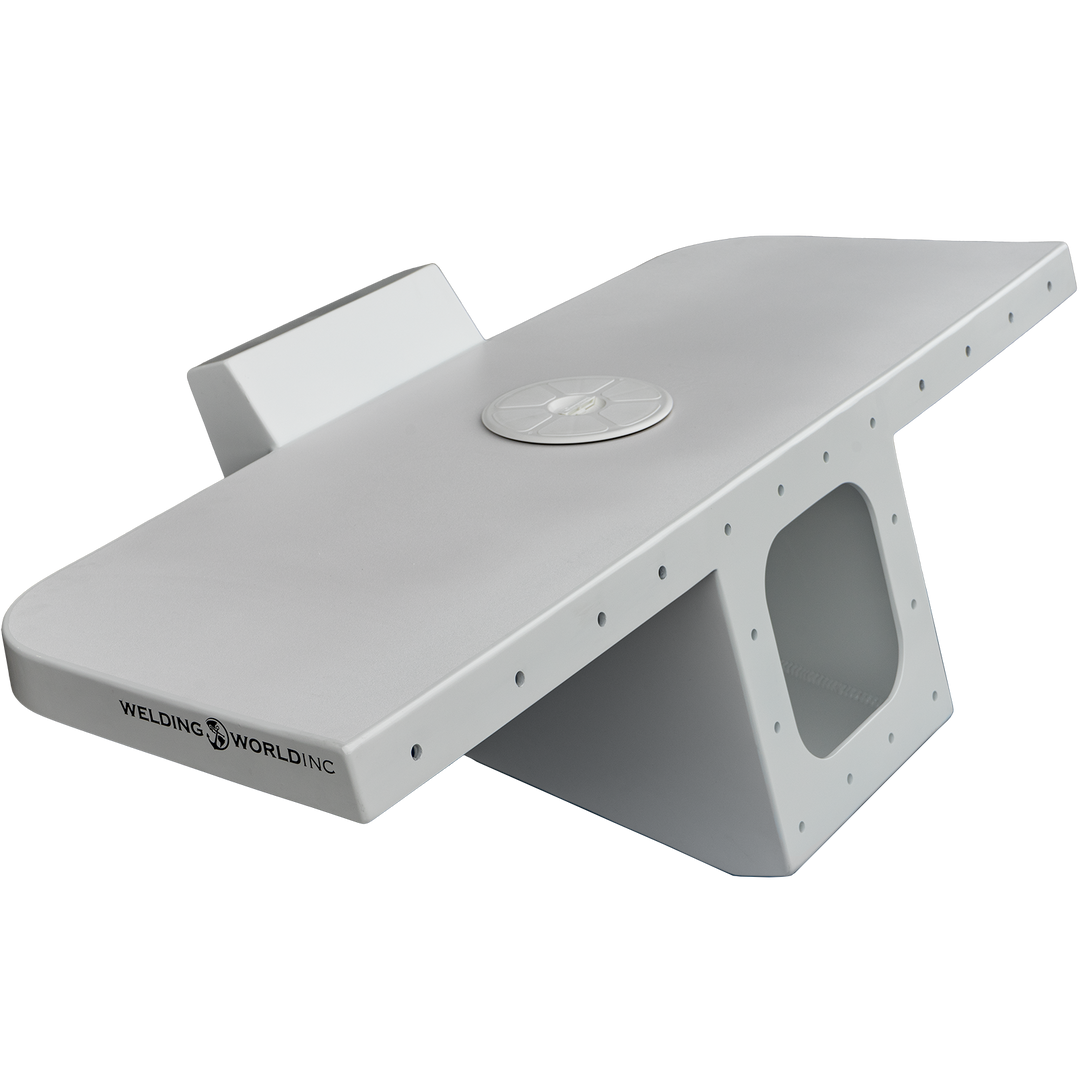

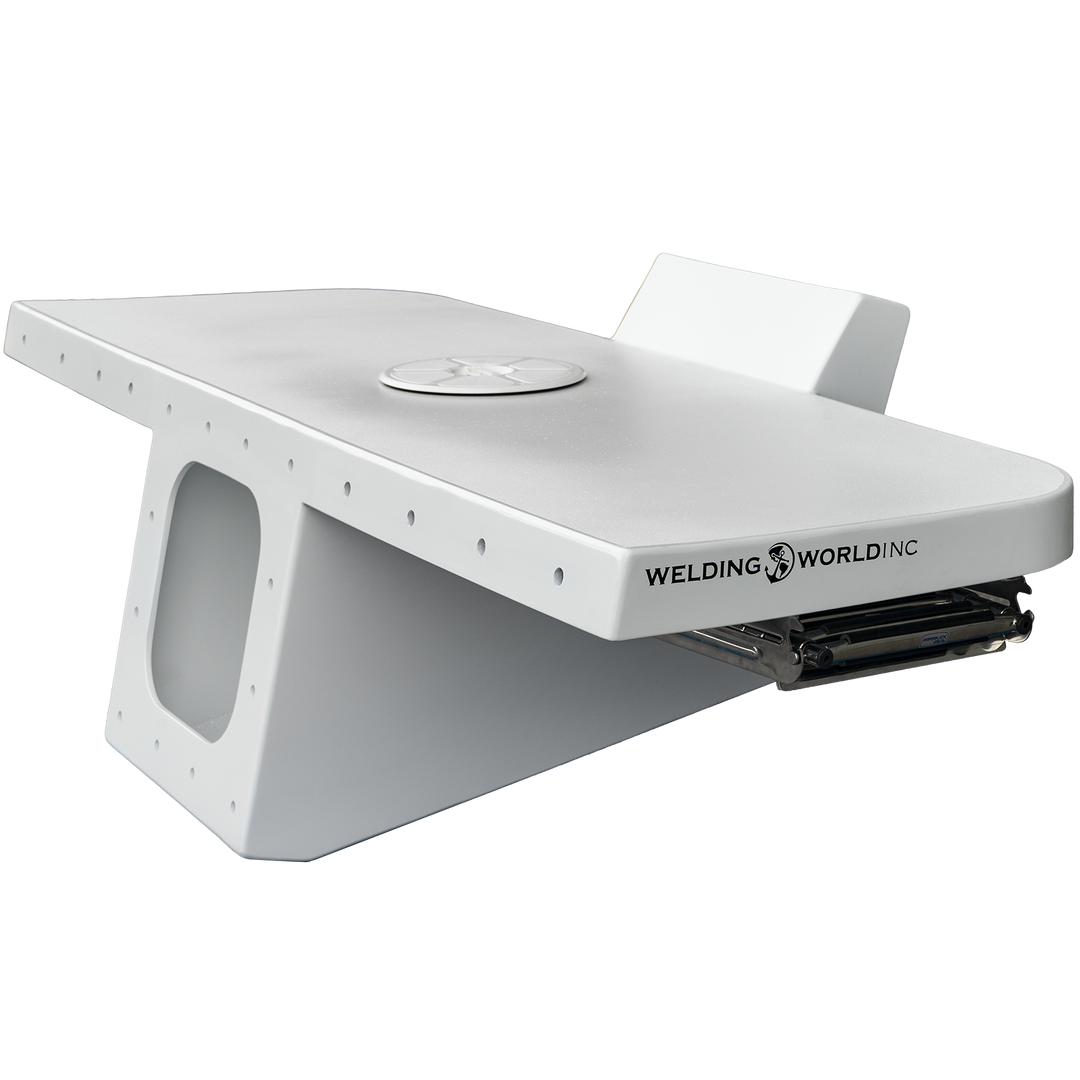

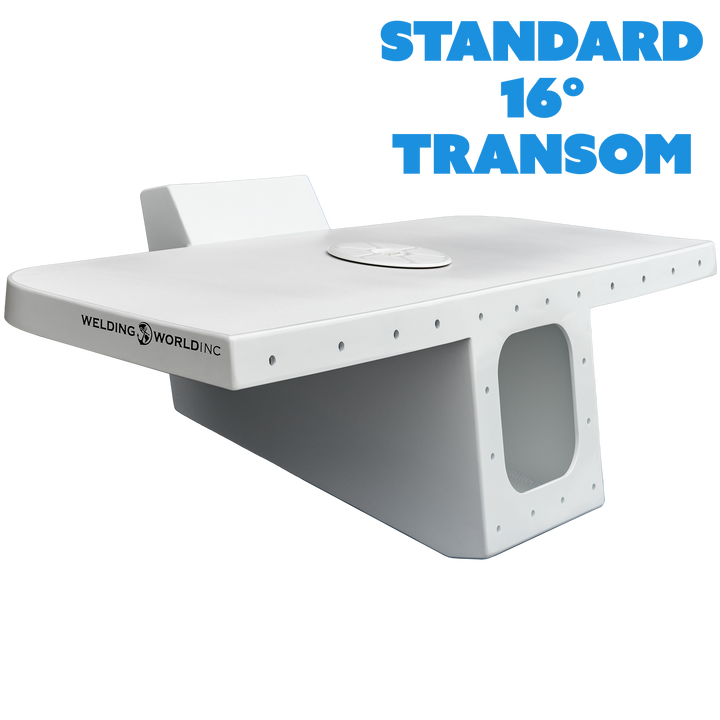

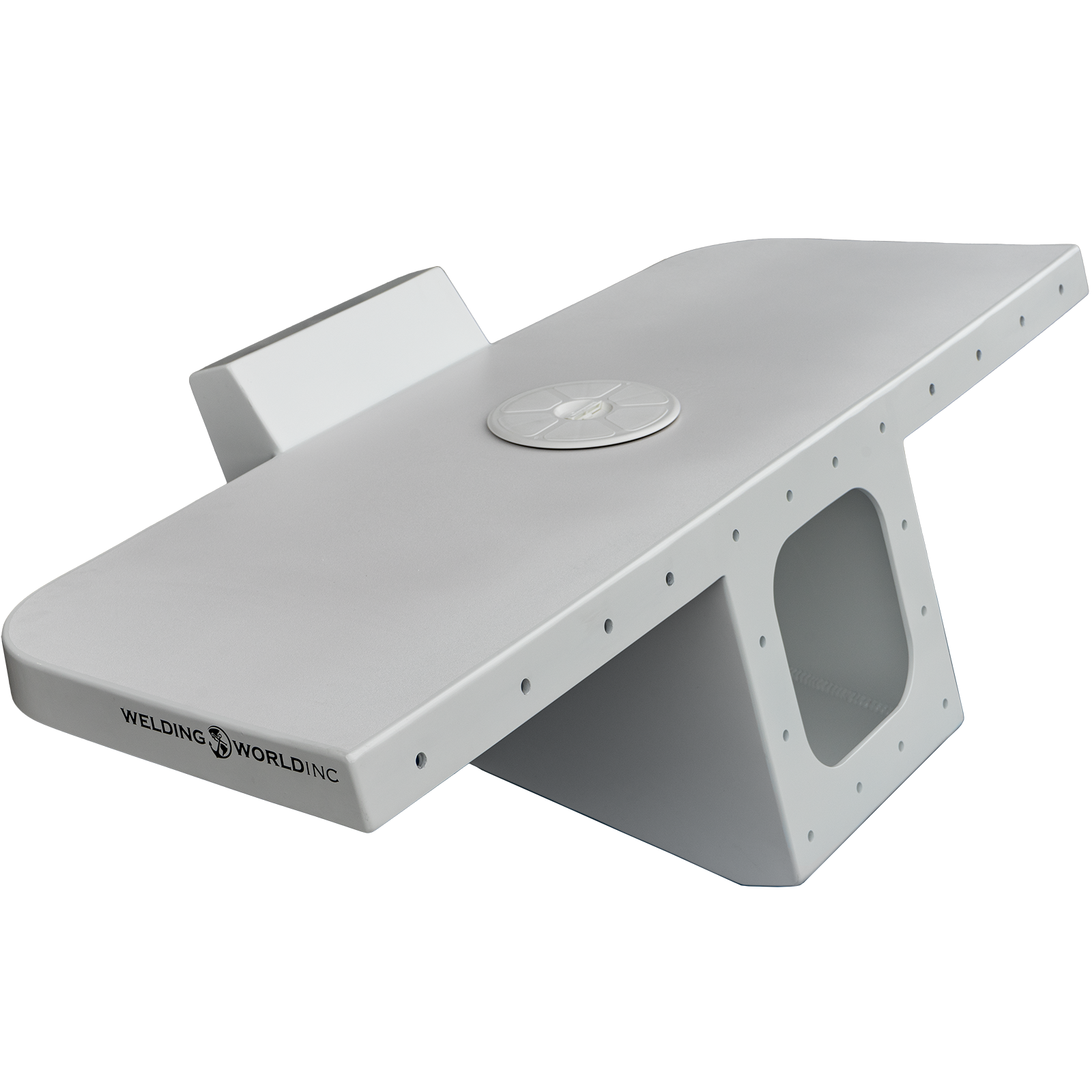

A white Apex Single Engine 16° Transom Bracket with a circular cutout and a rectangular opening, featuring the logo "WELDING WORLD INC" on the side. The bracket has a sleek design and is shown against a transparent background

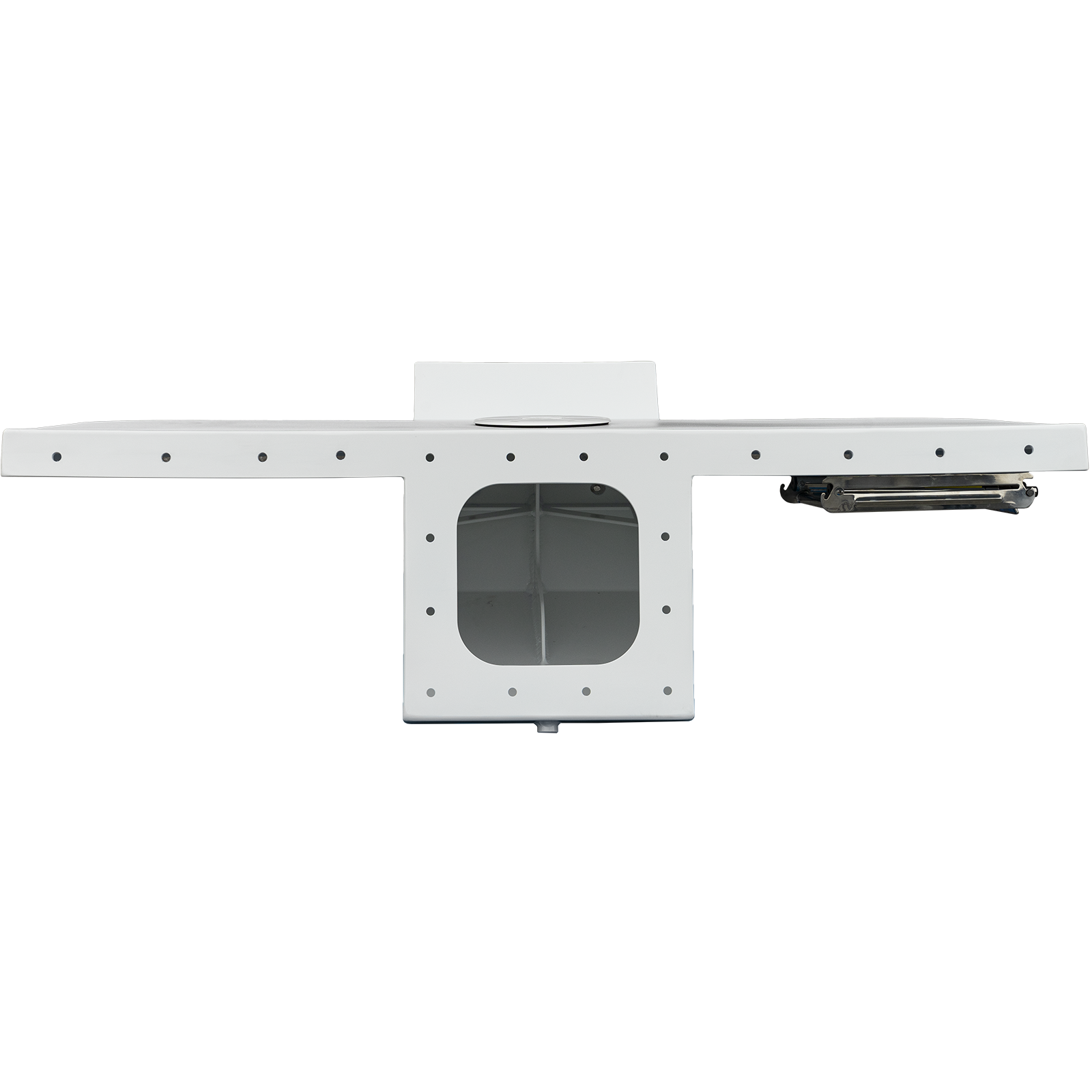

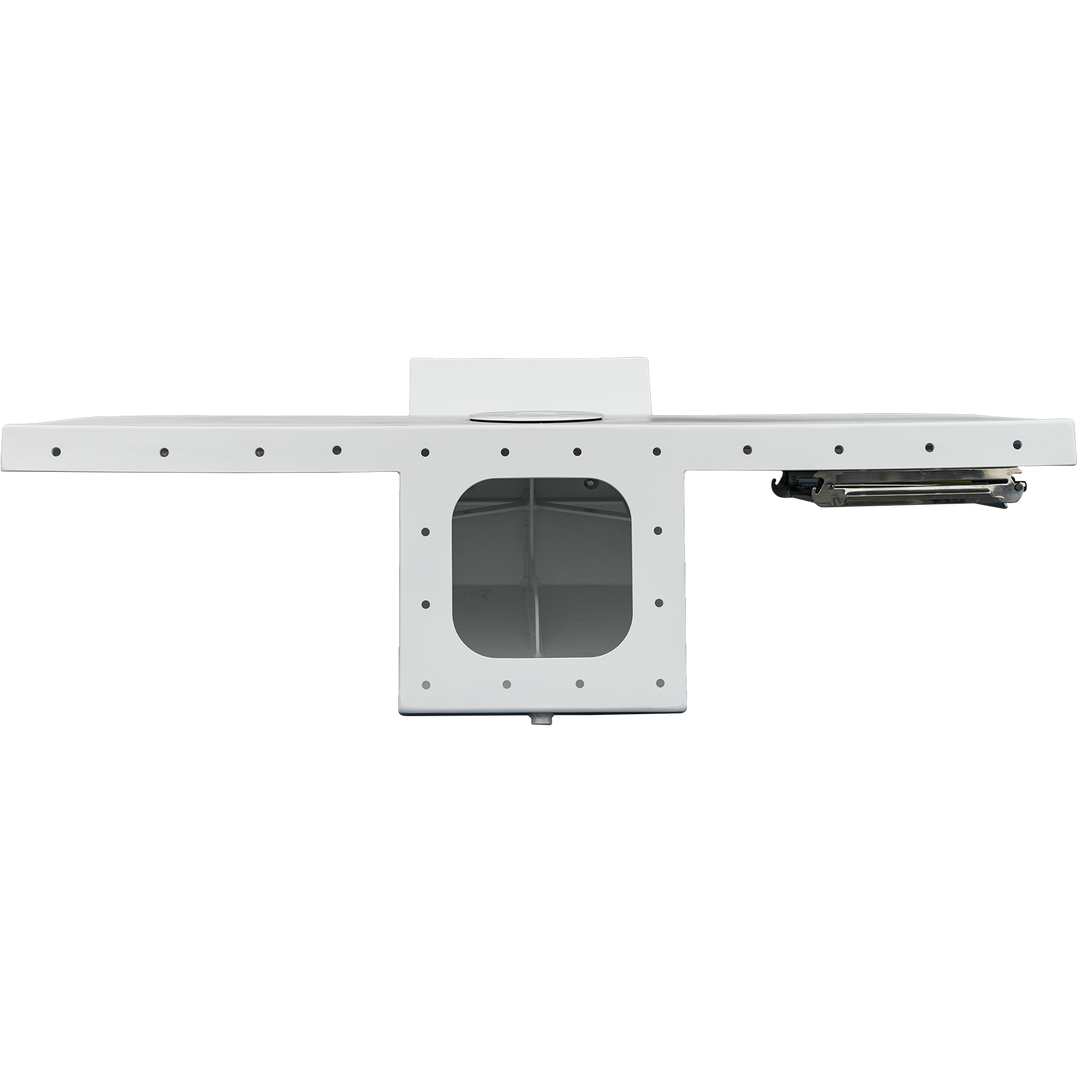

A top view of a Standard Apex Single Engine 16° Transom Bracket, featuring a rectangular cutout in the center and multiple holes along the edges for mounting. The bracket is predominantly white and includes a side attachment. The background is transparent

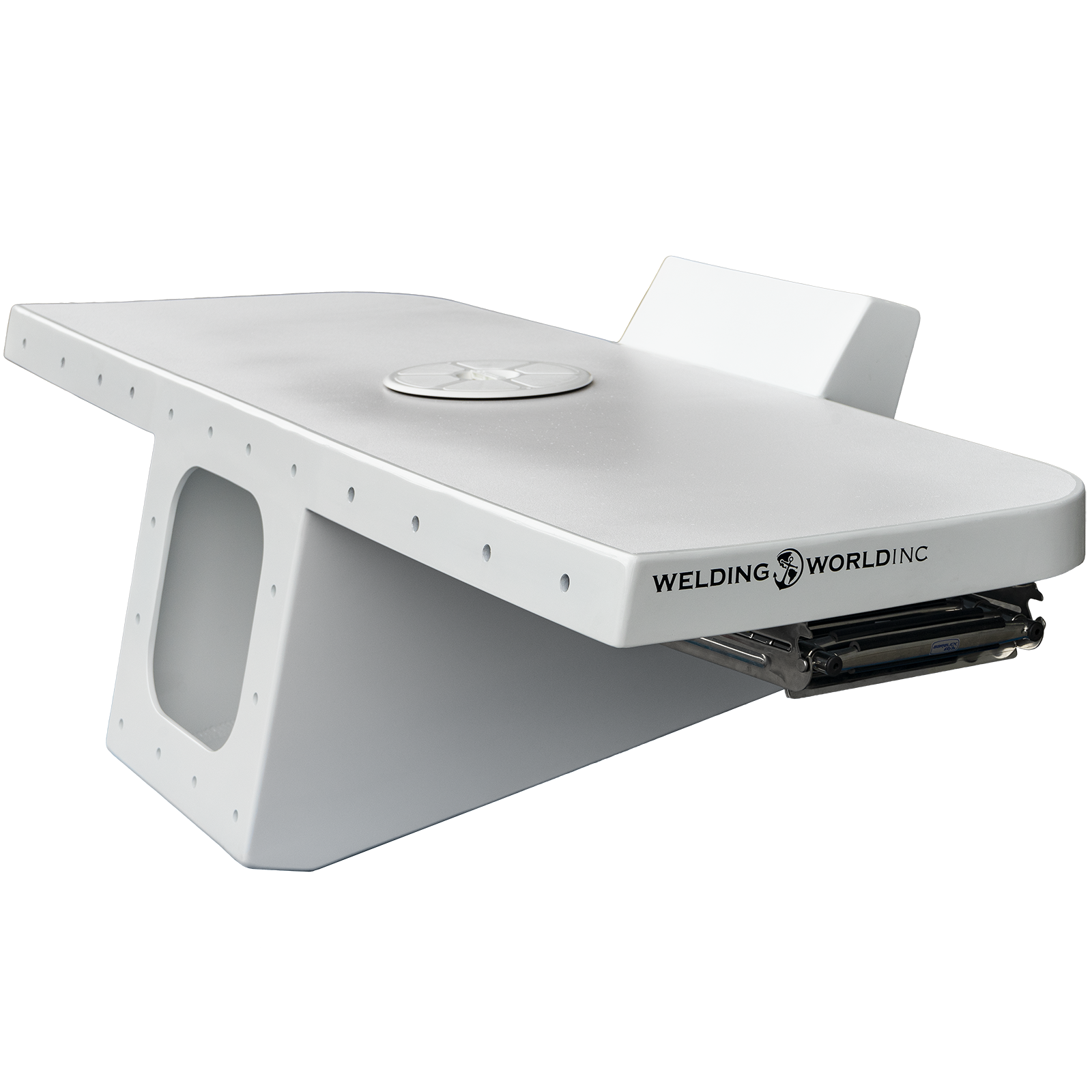

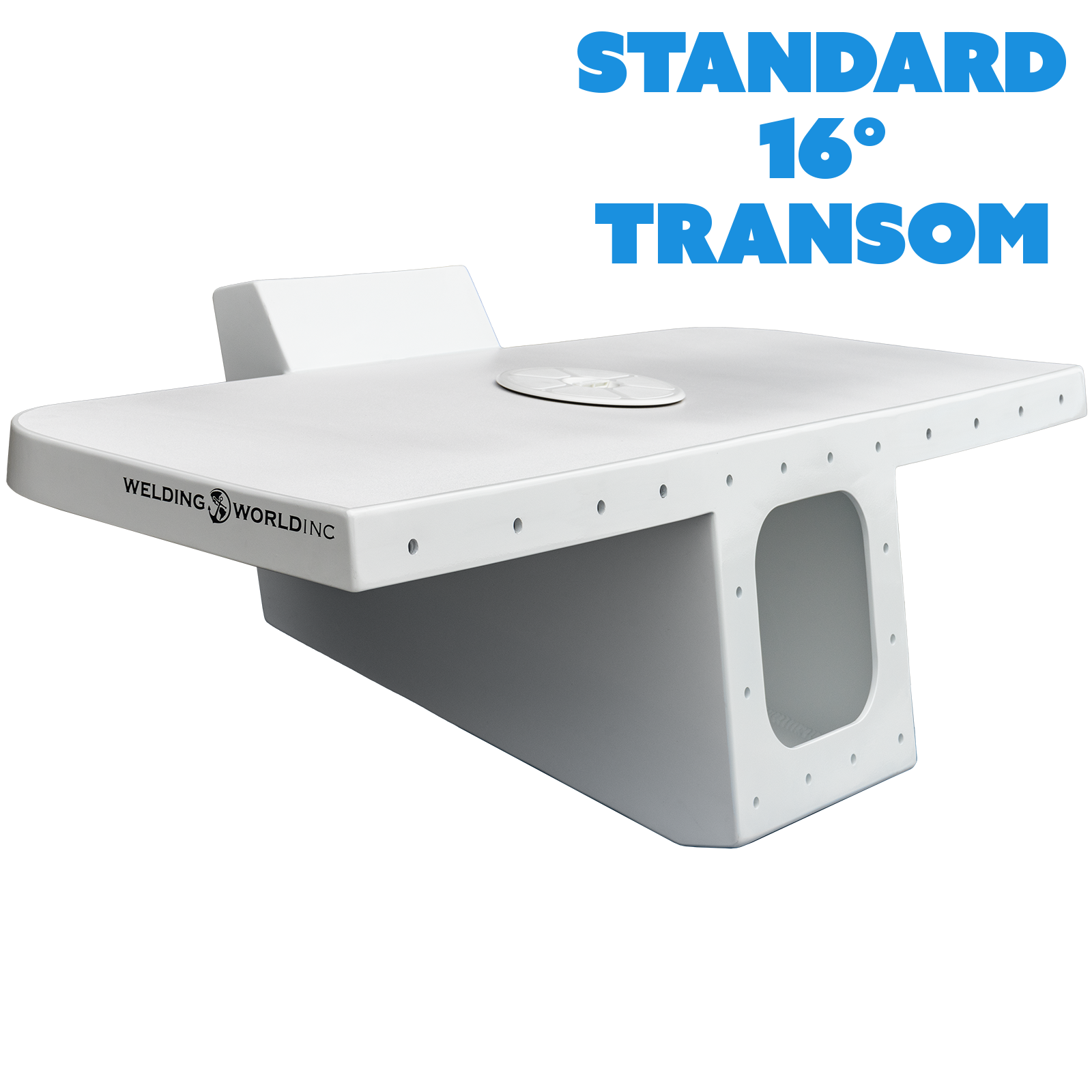

A white Apex Single Engine 16° Transom Bracket with a sleek design, featuring the logo "WELDING WORLD INC" prominently displayed on the side. The bracket has a smooth surface and a cutout for mounting, showcasing its sturdy construction

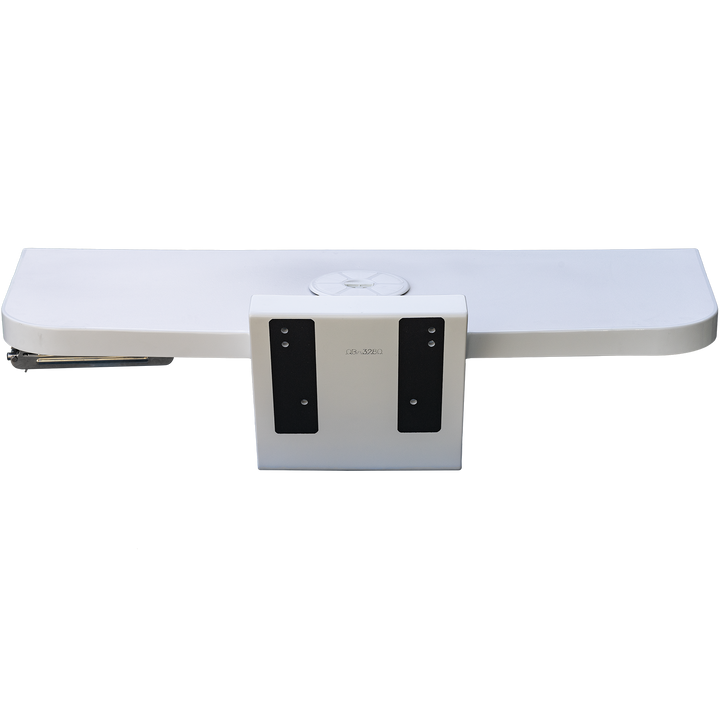

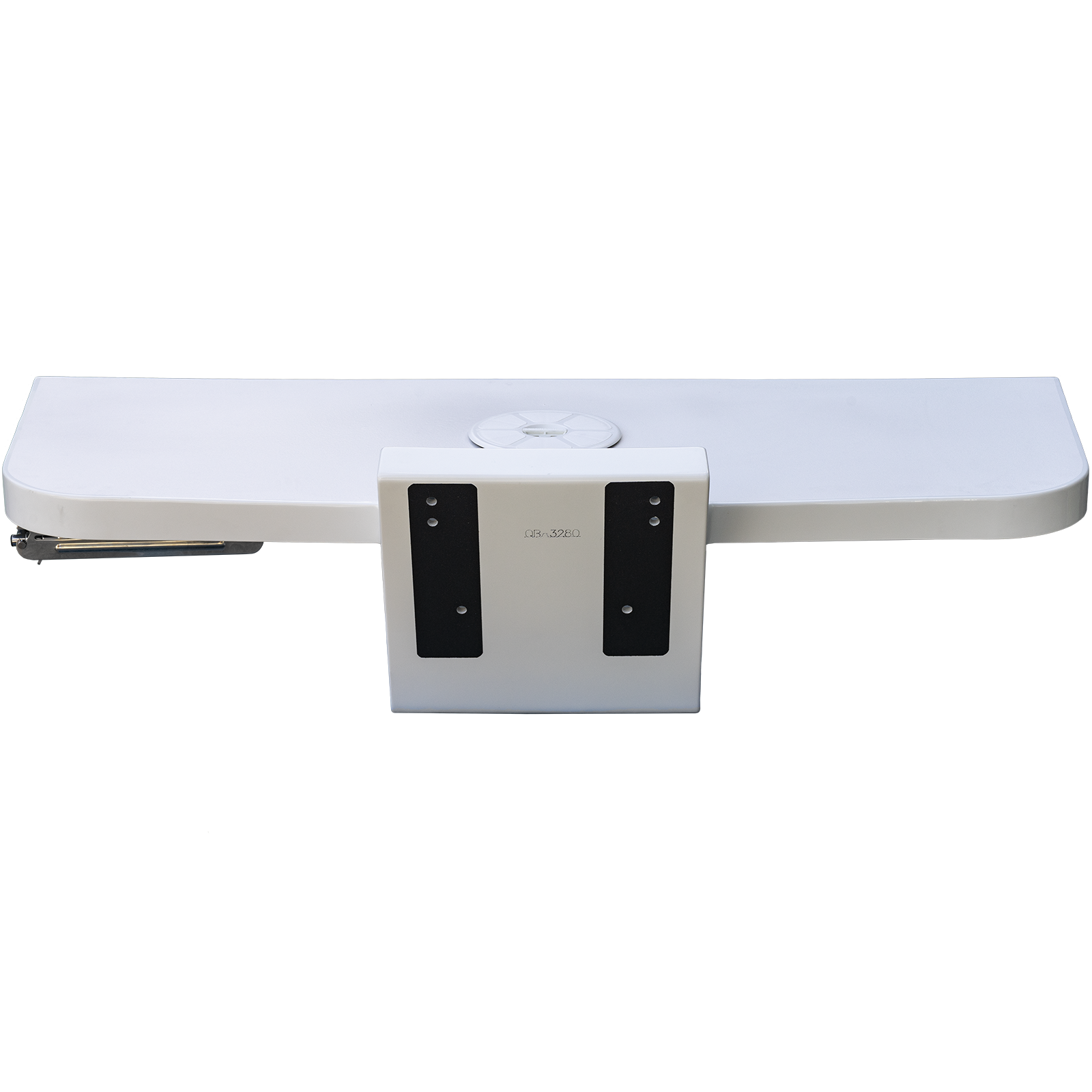

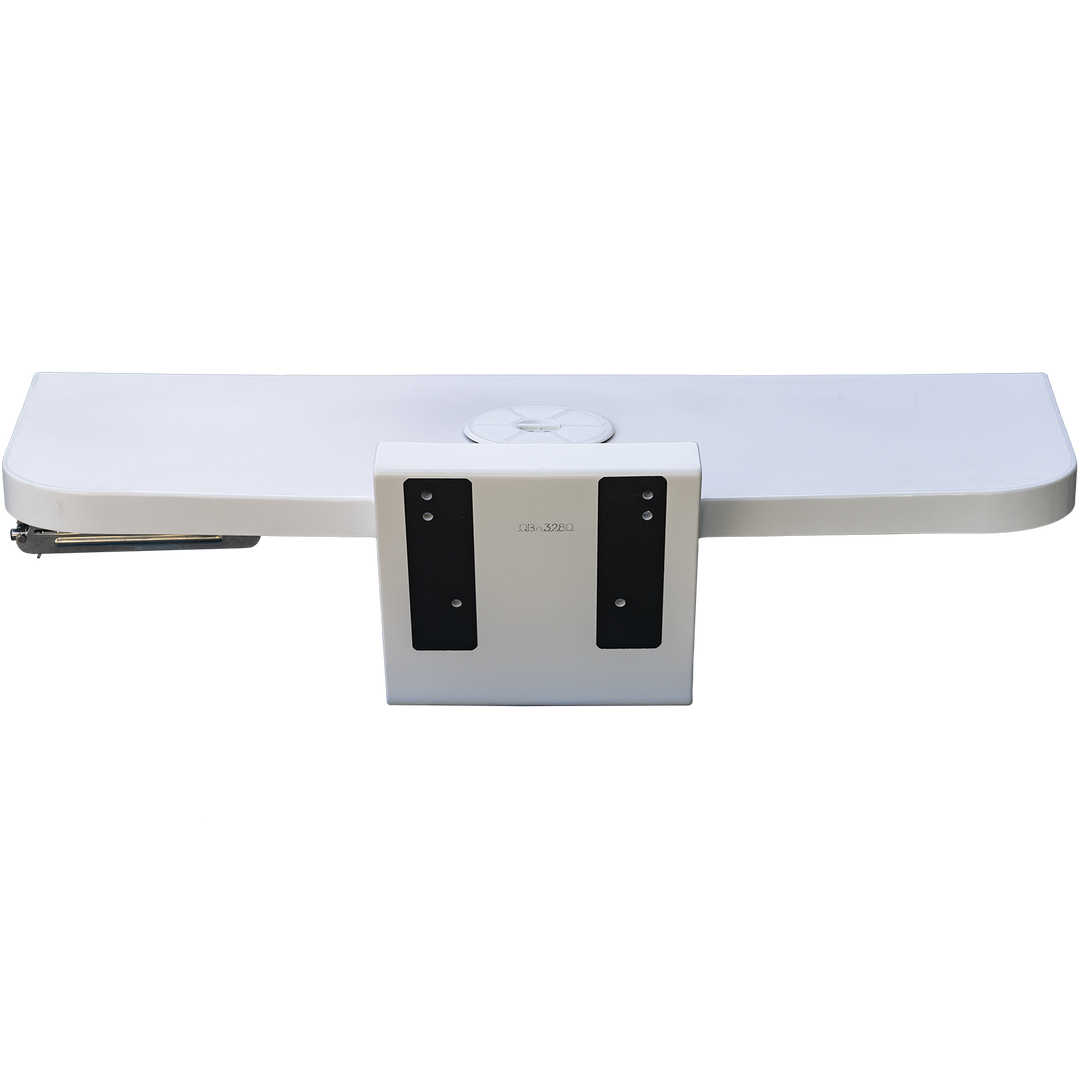

A standard Apex single engine 16° transom bracket, featuring a white body with two black mounting plates attached. The bracket is designed for marine applications, providing support for a single outboard motor

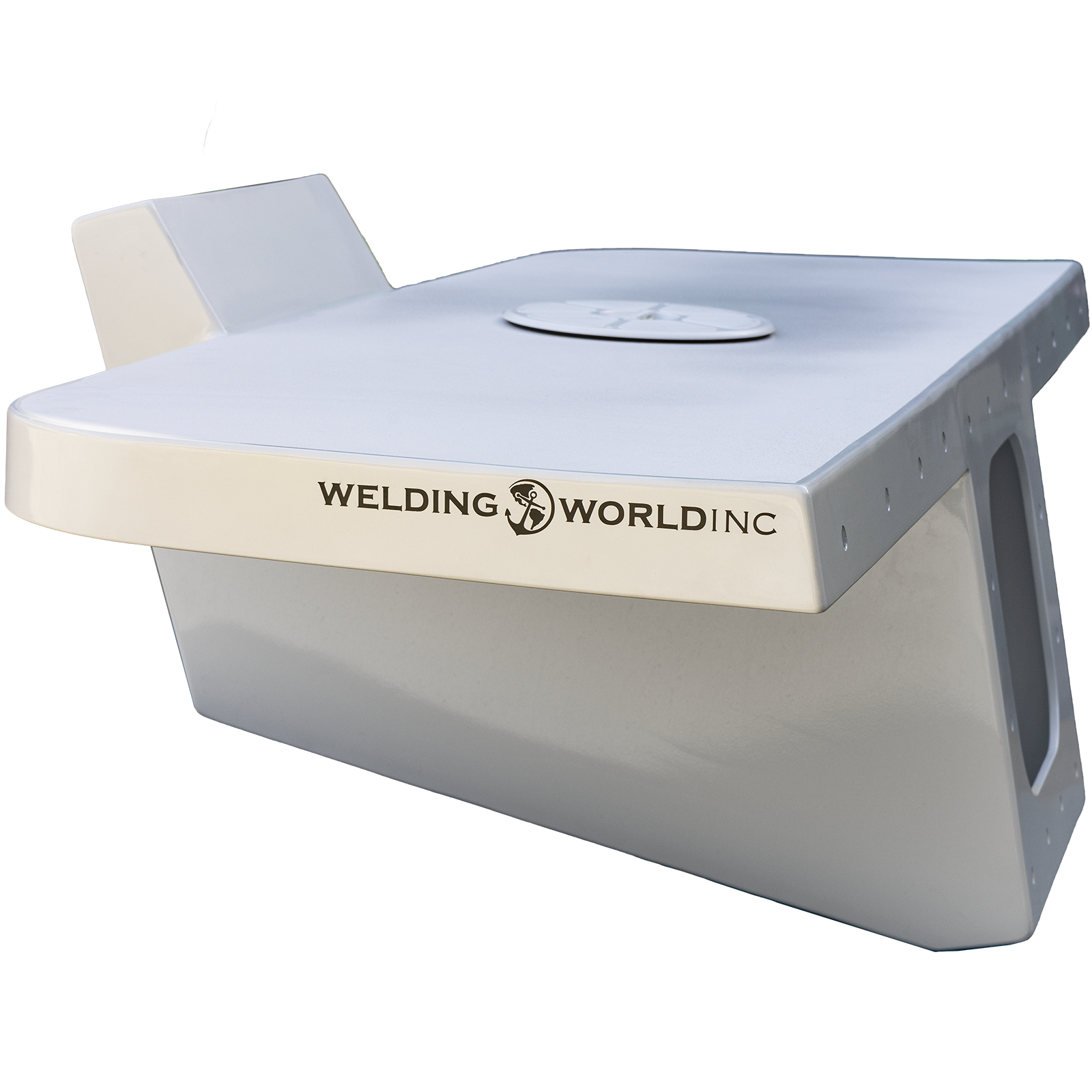

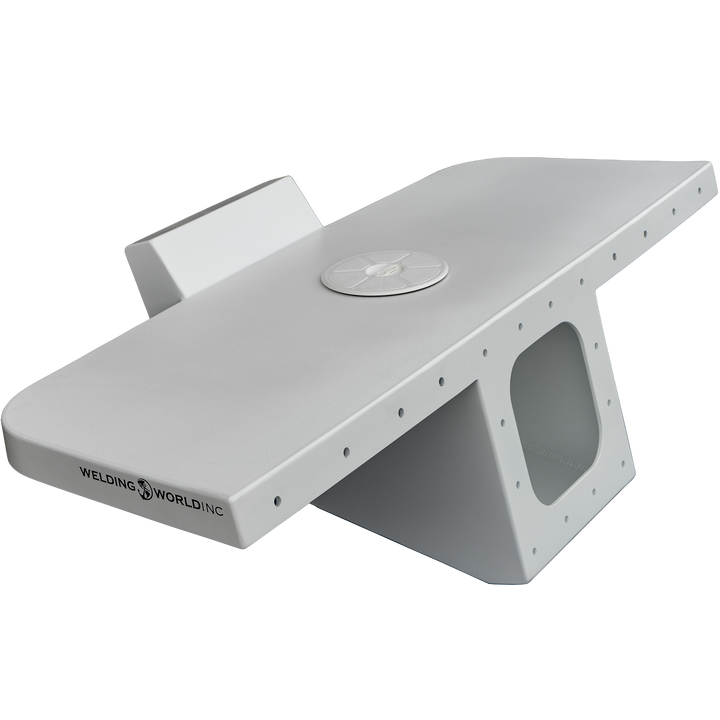

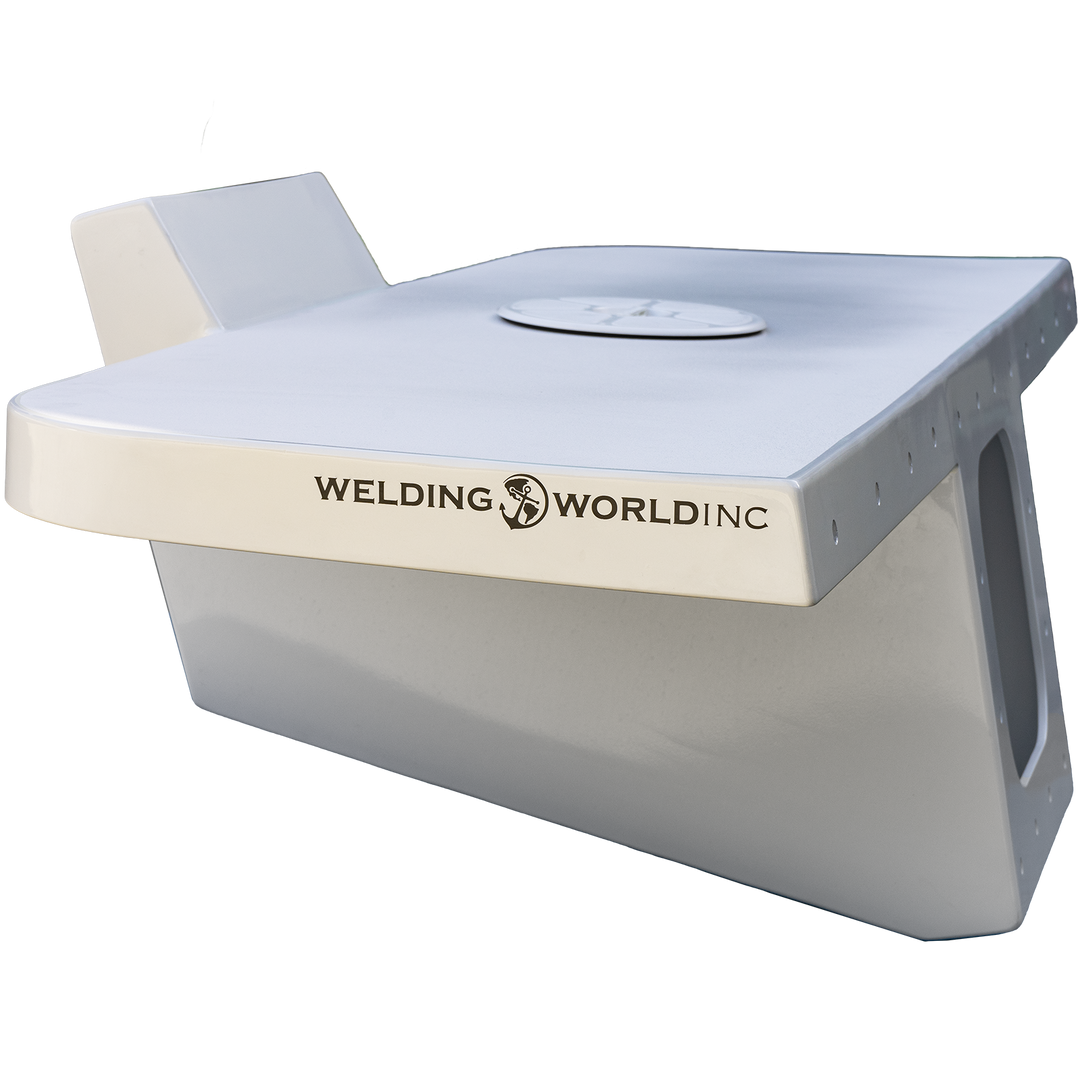

A white Apex Single Engine 16° Transom Bracket with the logo "WELDING WORLD INC" displayed on the side, featuring a flat top and a slanted design for mounting on a boat. The background is transparent

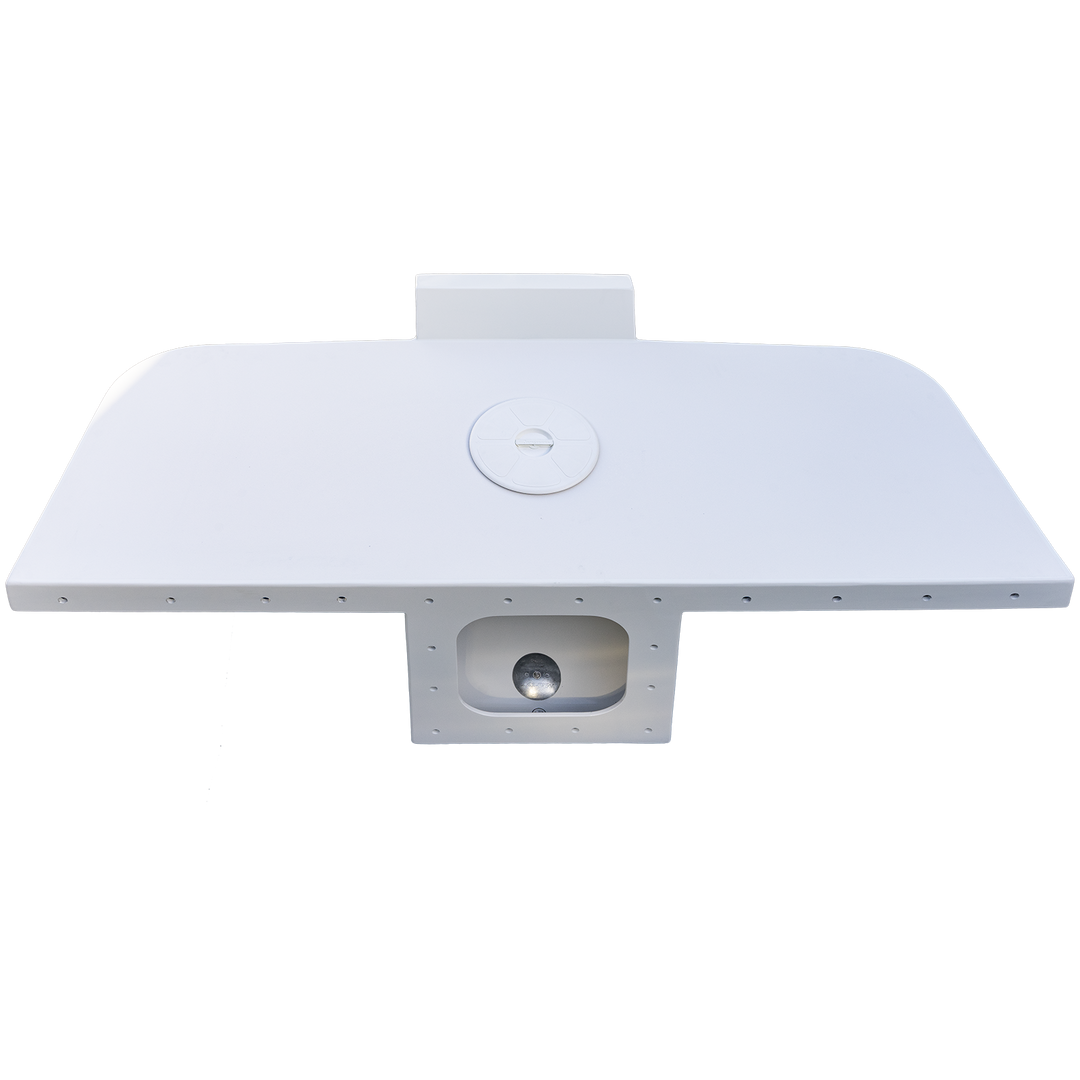

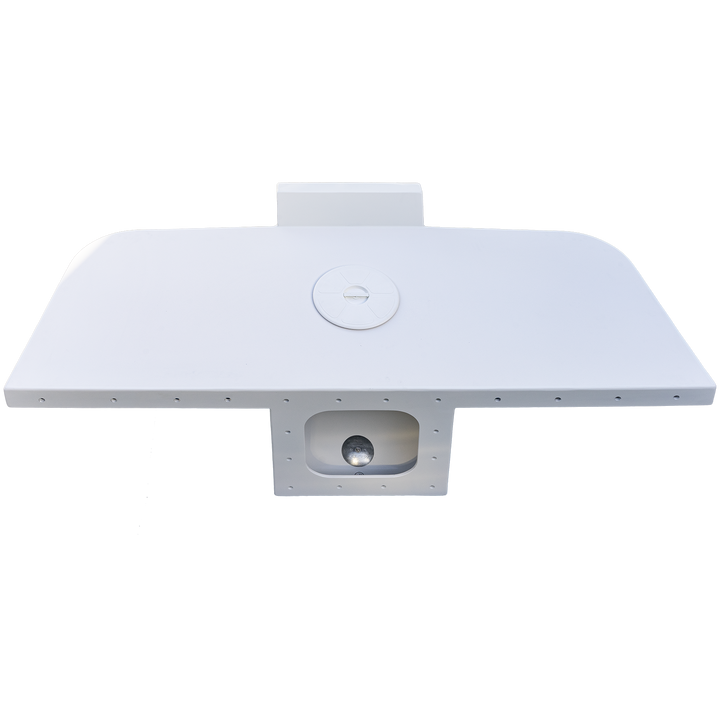

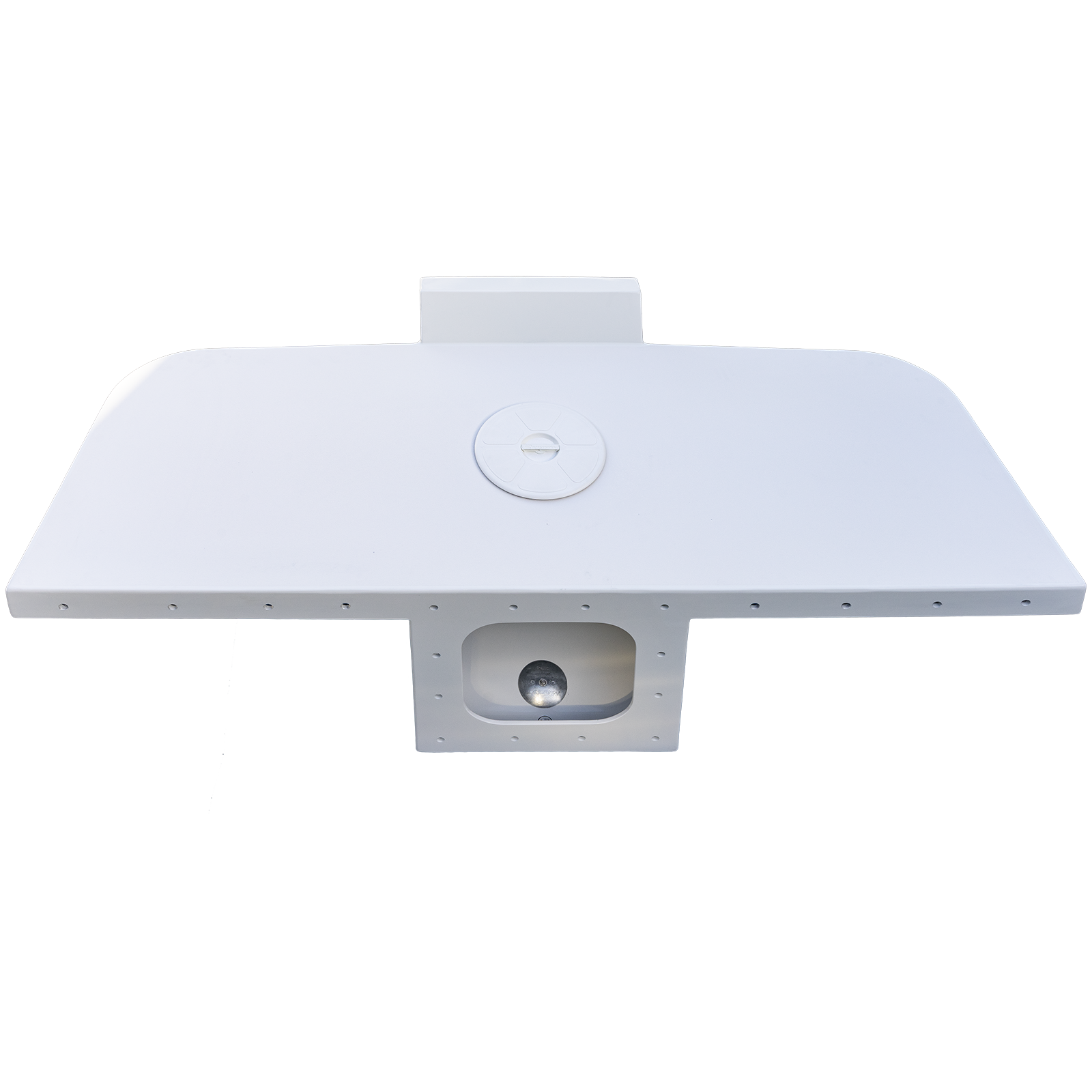

A top view of a Standard Apex Single Engine 16° Transom Bracket, featuring a smooth white surface with a circular access port in the center and multiple mounting holes along the edges. The bracket is designed for marine applications, providing support for a single engine installation

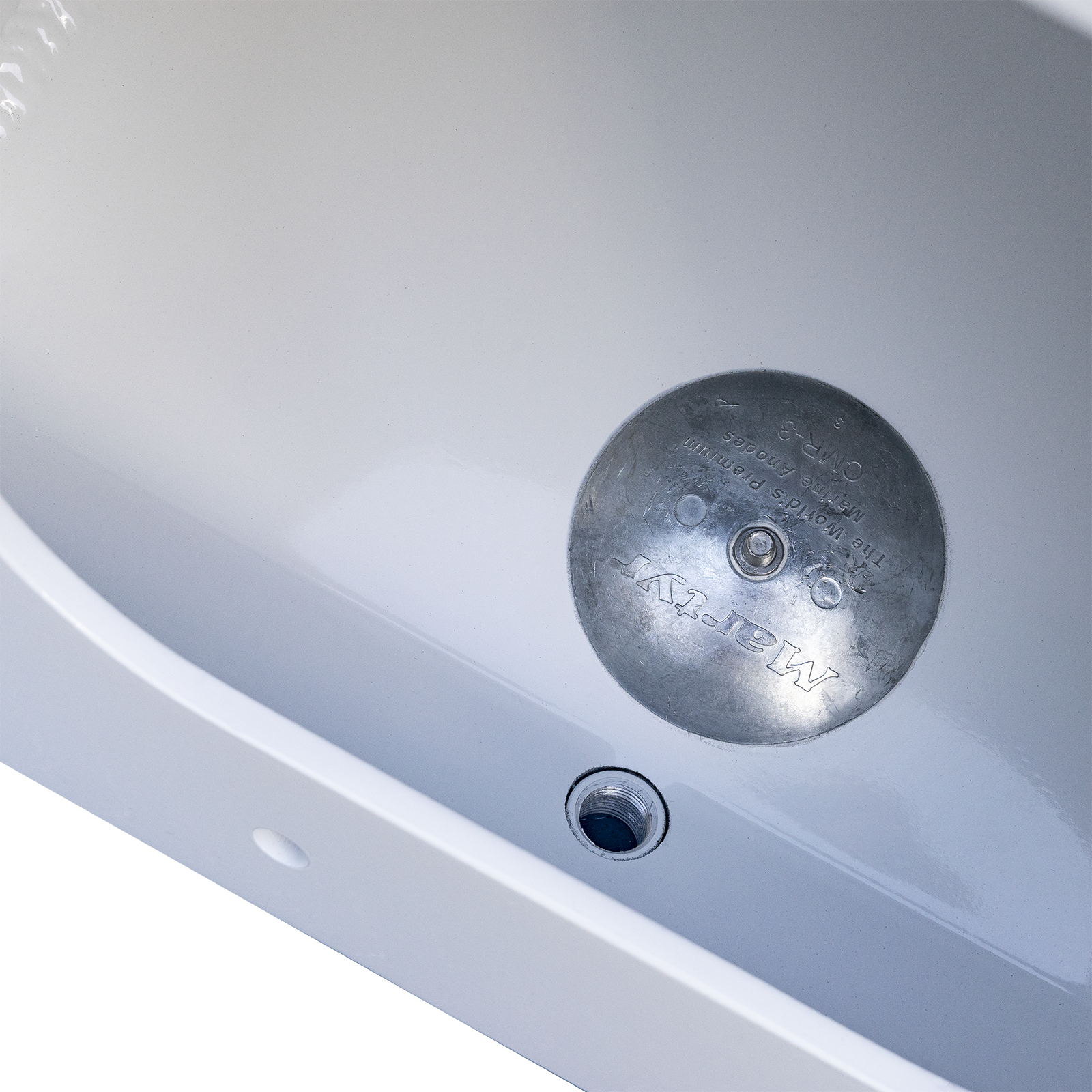

A close-up view of a white Apex single engine transom bracket with a 16° angle. The bracket features a circular metal plate in the center, engraved with the brand name "Apex," and a small drainage hole at the bottom. The background is transparent

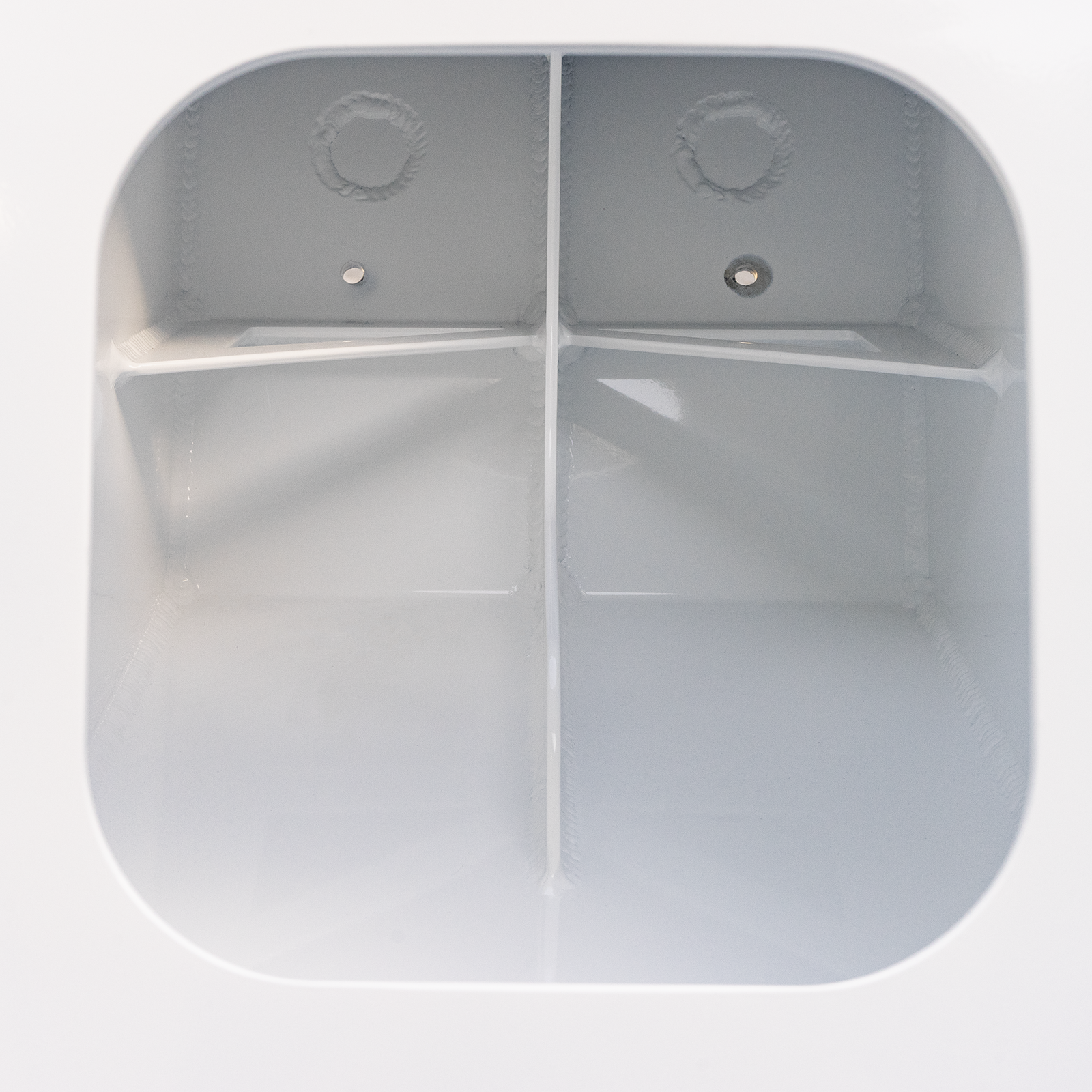

A close-up view of a Standard Apex Single Engine 16° Transom Bracket, featuring a smooth, white interior with two compartments separated by a vertical divider, each with a circular hole at the top

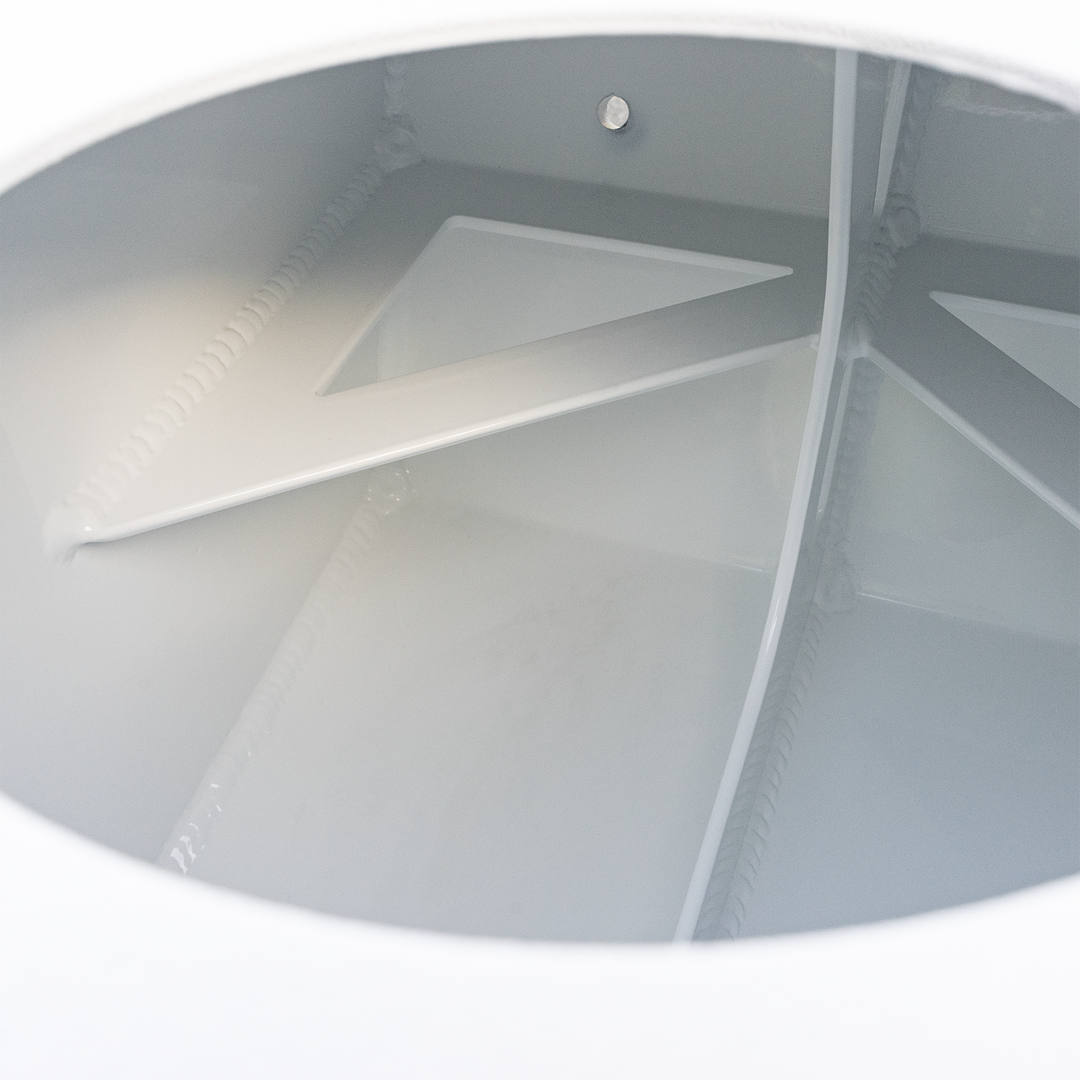

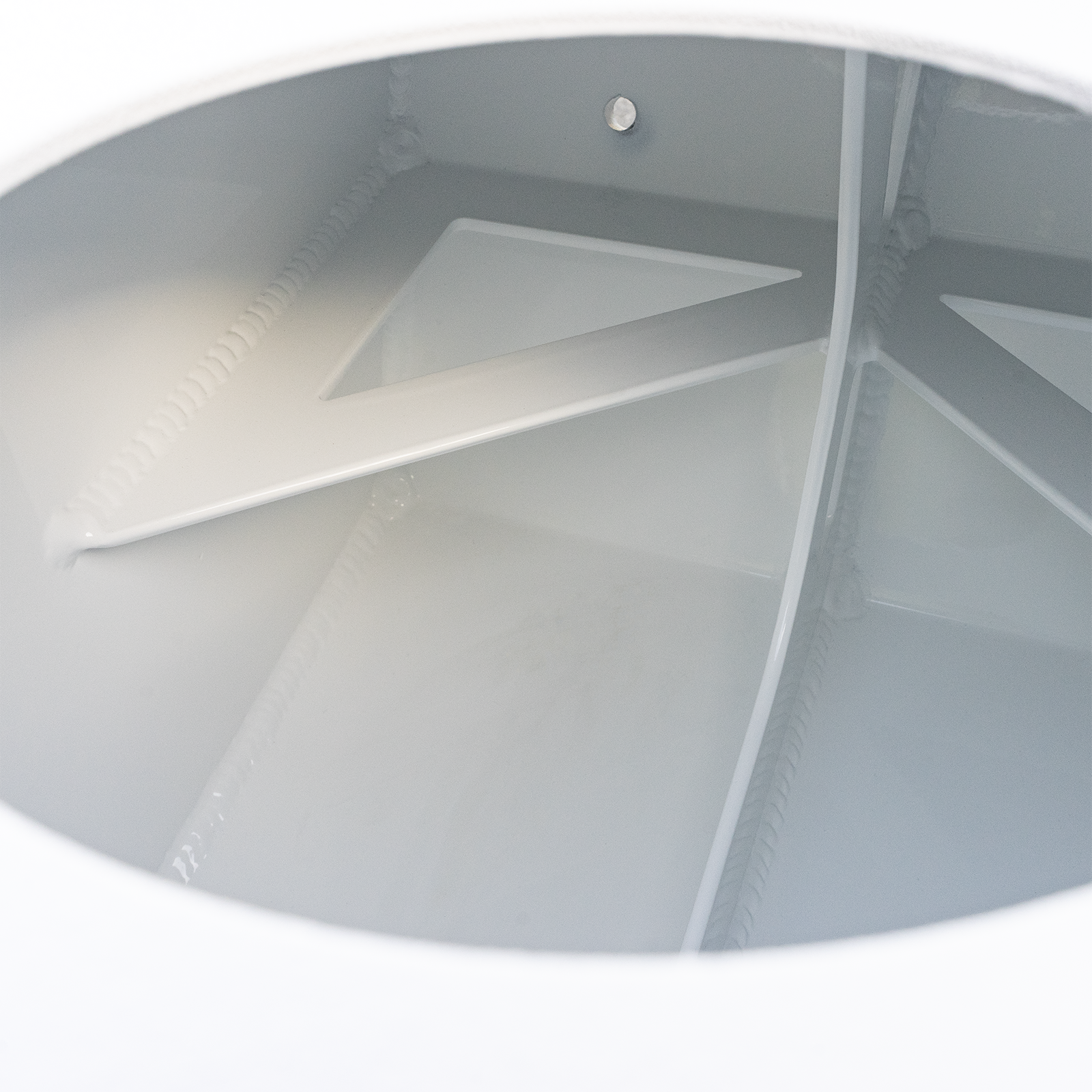

Interior view of a Standard Apex Single Engine 16° Transom Bracket, showcasing the smooth, white surface and structural supports within the bracket

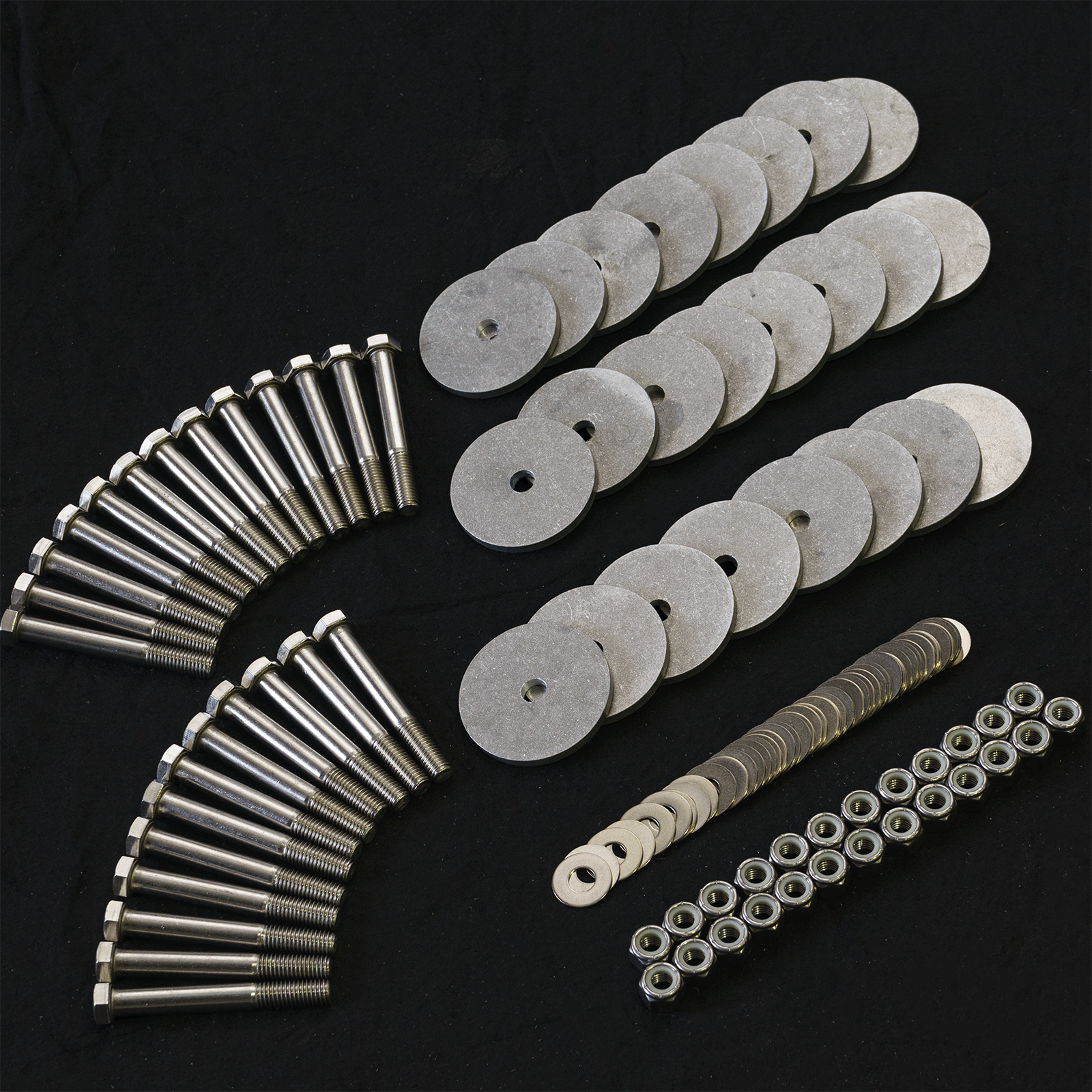

A collection of hardware components for a Standard Apex Single Engine 16° Transom Bracket, including multiple metal washers, bolts, and nuts arranged neatly on a black background
A white Apex single engine 16° transom bracket, featuring a flat surface with rounded edges, a circular cutout in the center, and a vertical support at the back. The bracket is designed for mounting a single engine on a boat

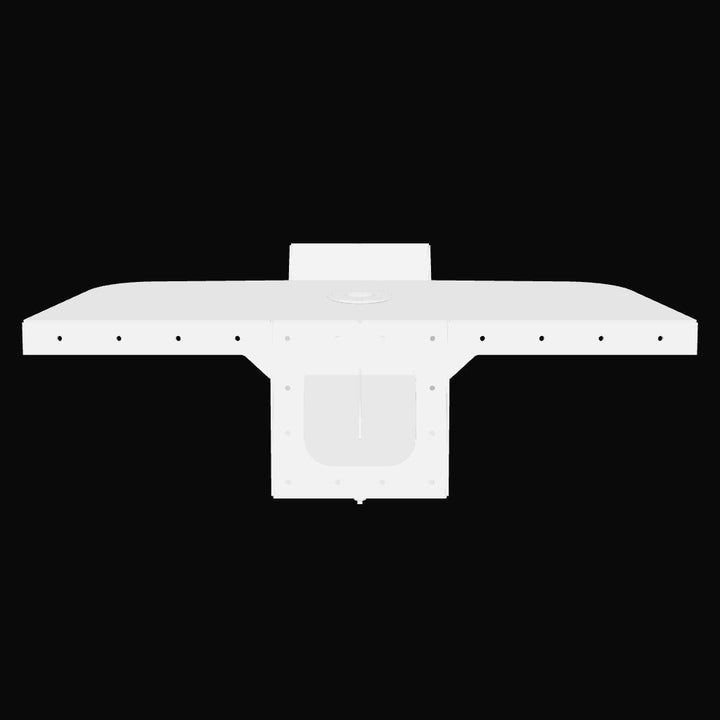

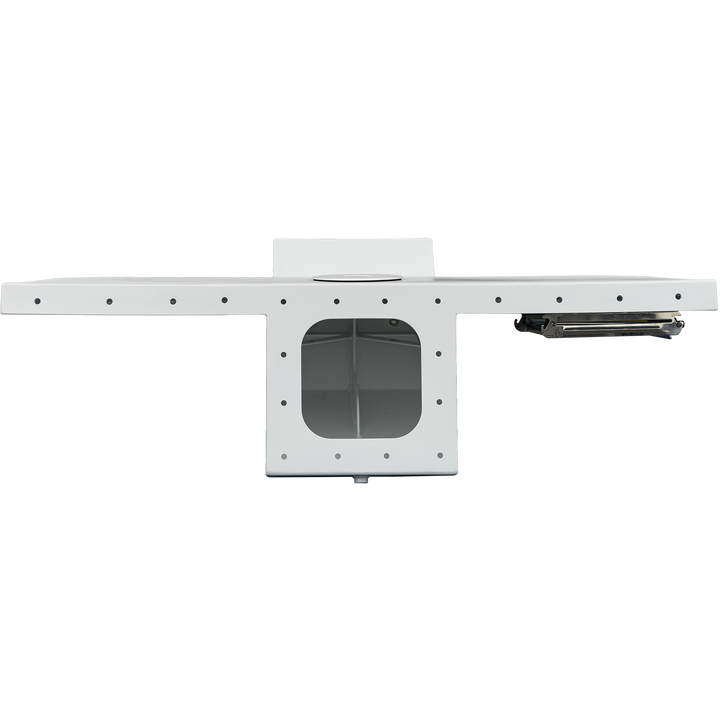

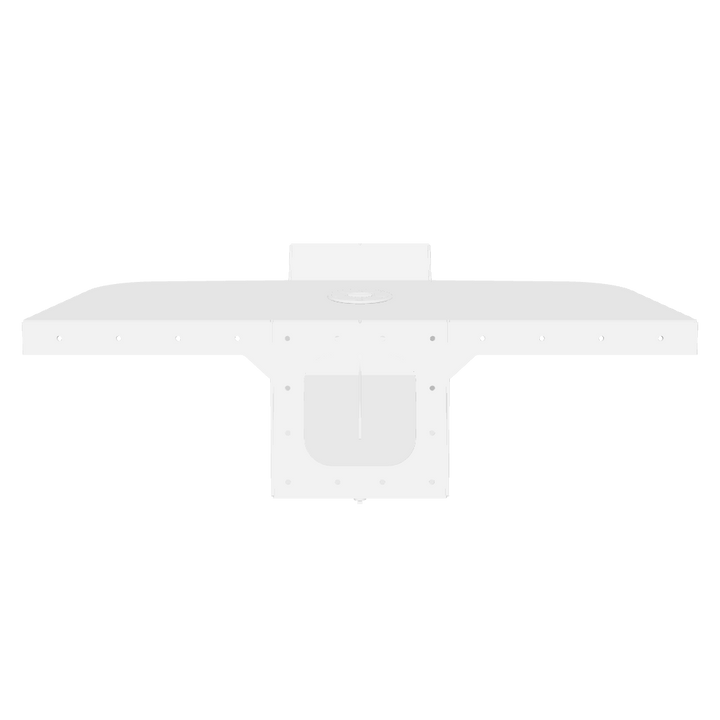

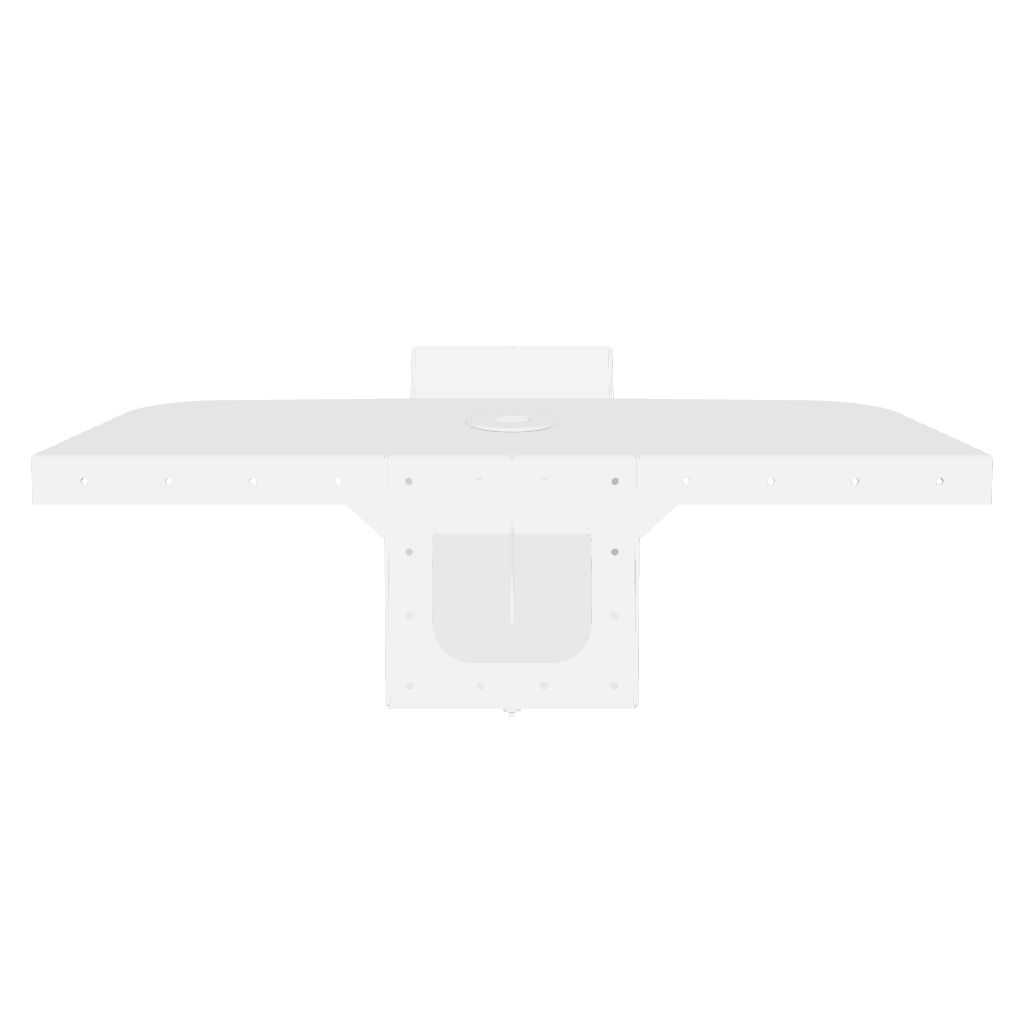

A white Standard Apex Single Engine 16° Transom Bracket displayed against a black background, featuring a central mounting plate and two angled side wings for enhanced stability and support

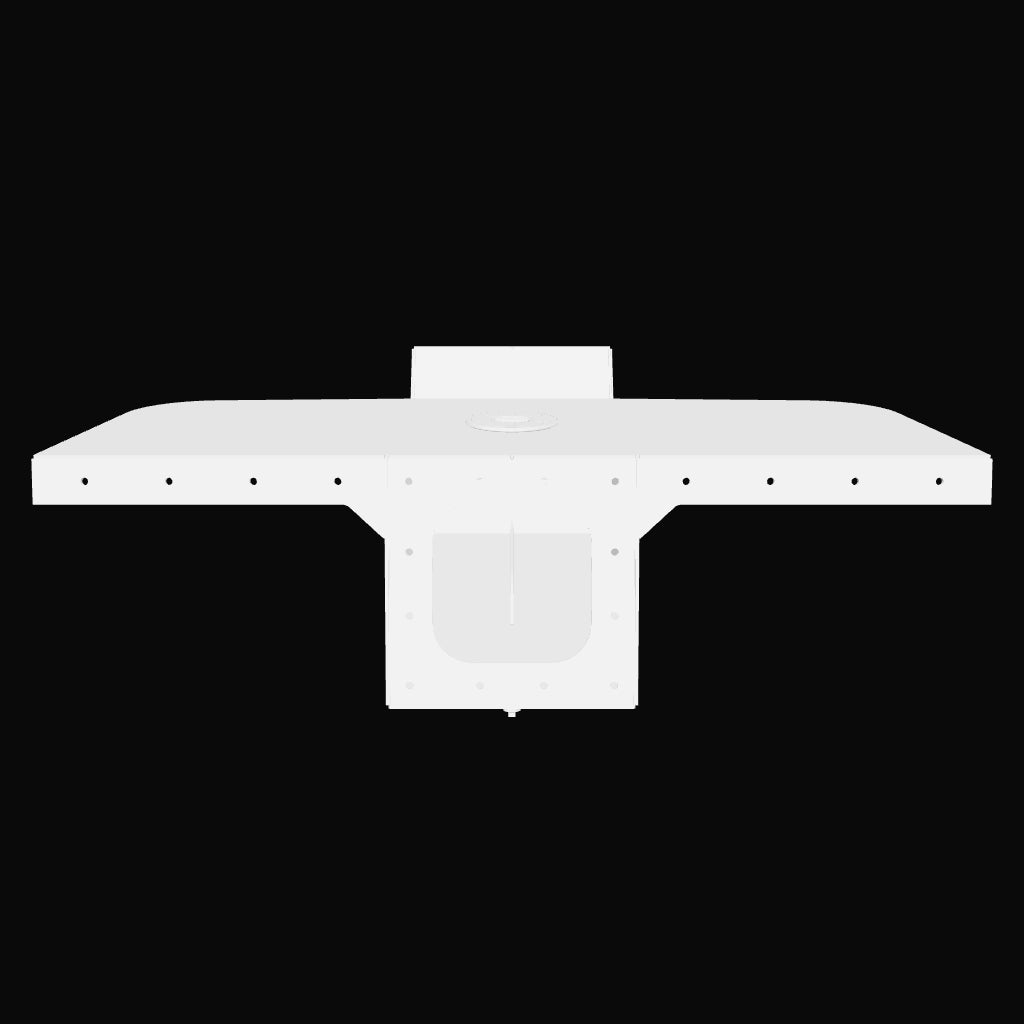

A 3D rendering of a Standard Apex Single Engine 16° Transom Bracket, showcasing its structural design with a rectangular base, support beams, and a circular cutout, all presented against a black background

Standard Apex Single Engine 16° Transom Bracket

Regular price$ 2,899.00
/

  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.

You could safely say that an outboard engine bracket is the ultimate add-on for almost any outboard equipped boat. Almost all of the boat styles out there can benefit from an engine bracket but most especially those that put a premium on a substantial increment in speed and fuel range without having to replace costly outboard engines.


You can benefit from also having an overall better handling boat and one that can shoot out of the hole usually in half the time it used to take with the old engine placement as well as cruising dryer and at a flatter angle. It will also make your boat safer offering a way lower platform from which to push yourself up to the deck when in the water as well as the ideal place where to affix a swim ladder.


Our fabricators have been putting together engine brackets almost since they become a thing in deep-V offshore racing boats, whose roots can be followed back to our base in sunny Miami, arguably the US cradle of the class. We learned the ropes at the elbow of the greats back when Thunder Alley (NE 188th St.) was a barren expanse and three large warehouses where the fastest and meanest boats in the world were hand-built, and have maintained, through different iterations, an uninterrupted presence in the Southern Florida boating scene ever since.


And there’s nothing small-time about our outboard engine bracket products as our stuff is sold as OEM to most of all Miami-based boat manufacturers and we have type certifications from the NMMA and the ABYC. If you have outboard engine bracket questions don’t hesitate and do contact us for a no-compromise consultation.



Note: Please be advised that all of our brackets are made to order and ship via expensive LTL freight so we won't accept returns. Check your boat's measurements carefully and make sure your order perfectly reflects what you want.



Highlights:

  • This standard bracket's design is optimized for 16-degree transom angles.
  • All of the standard bracket models are typically in stock and ship faster than the custom models. Average door-to-door transit times to the contiguous US should be within the 3 weeks time frame. This item ships freight only, and we can only ship it to commercial addresses for this reason.
  • All-aluminum construction using 0.250 thick cold-formed Alcoa 5052 H32 series sheets and schedule 40 6061-T6 series aluminum tubing for our standard rounded wrap-around edge design.
  • Exclusive dual-electrostatic powdered-coatings: primer + gloss powder coating for the ultimate in marine environment protection. We first apply an electrostatic primer coat, oven-cure it, and then apply a thick, high mil powder coating for the final external coating. No other competitor in the market goes that far to ensure your new bracket's appearance and durability.
  • Sand textured, anti-slip treatment to the platform's top surface to ensure traction and safety when wet.

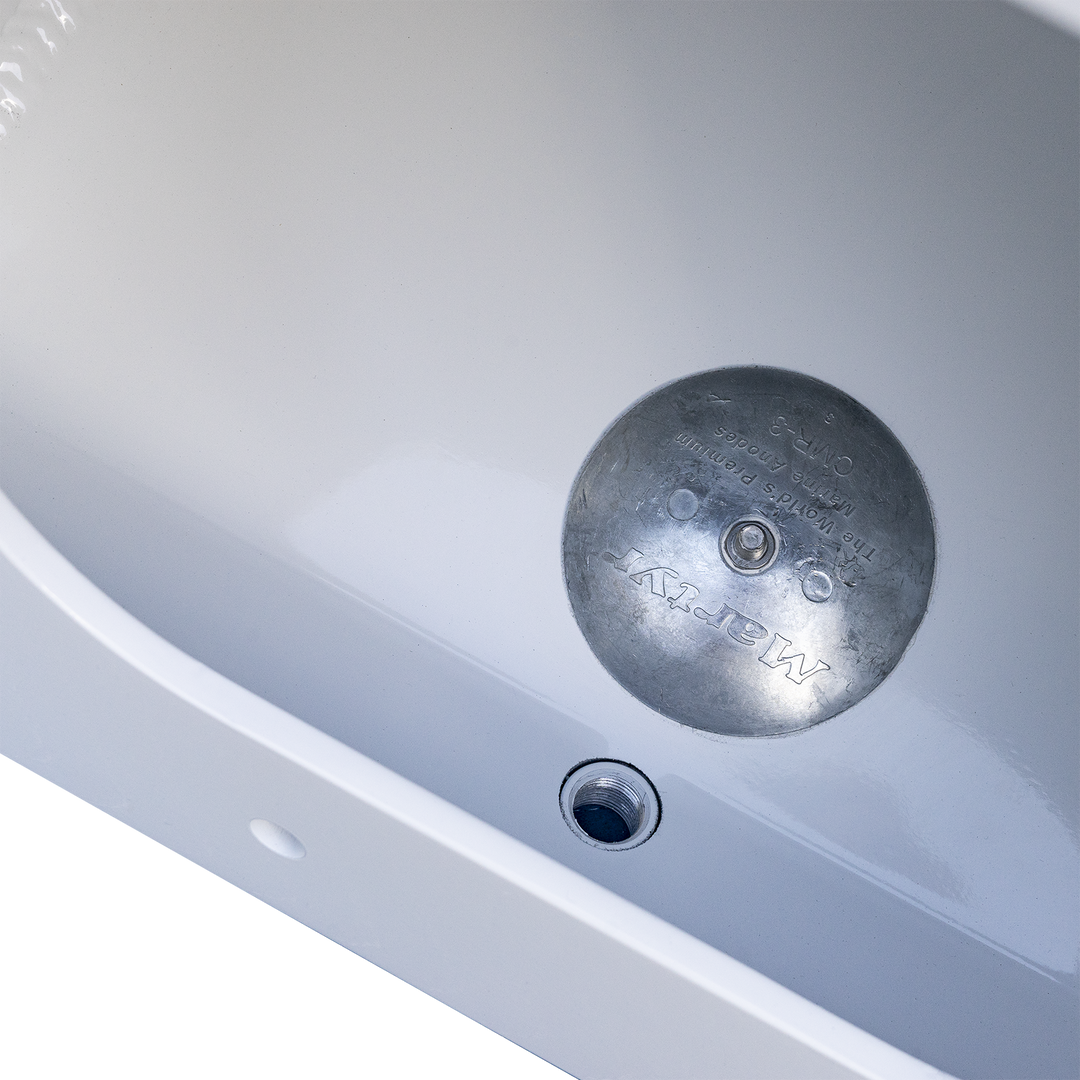

  • Standard 1 x 3.75 inch saltwater specific sacrificial anodes (zincs).
  • Large volume flotation box.
  • Includes all mounting aluminum backing plates, SS screws and SS nuts.
  • 3-year limited warranty.

Manufacturing & Delivery Timeframe: All of our engine brackets are professionally fabricated to order. The standard lead time for manufacturing is 3-4 weeks. Following production, please allow an additional 5-8 days for shipping. The total estimated time from placing your order to delivery at your door is typically between 4 and 5 weeks. Please note that manufacturing may be completed sooner depending on seasonal demand.

Return Policy: No refunds are accepted, as all of our products are made to order. Our policy is strictly limited to the repair or replacement of qualifying defective or damaged goods. Please note that shipping costs are non-refundable.

Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
