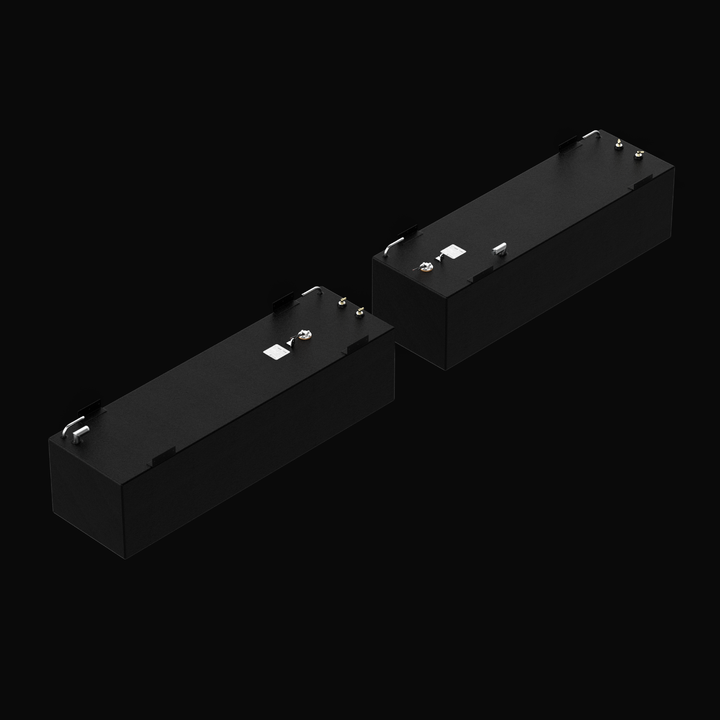

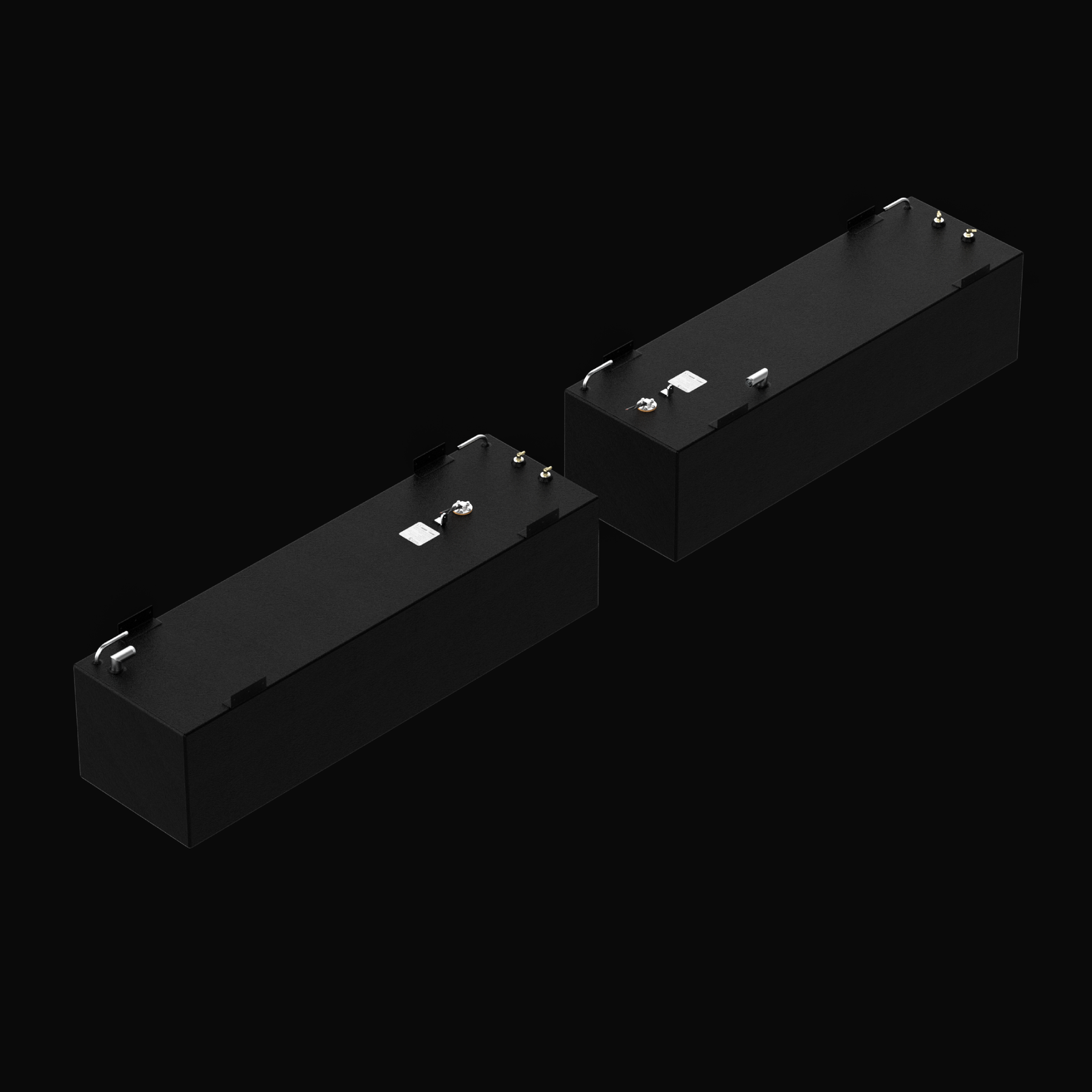

A high-angle isometric perspective rendering of a matching black dual-tank setup, detailing a Sea Vee 29 OEM replacement marine fuel tank combo system. Both long-range rectangular fuel cells are masterfully constructed from heavy-gauge marine-grade 5052-H32 aluminum and completely encapsulated in a durable, textured black TarGard epoxy coating for maximum corrosion resistance. The upper decks feature factory-installed hardware including a 90-degree fuel fill pipe on the forward unit, dual brass fuel pickup

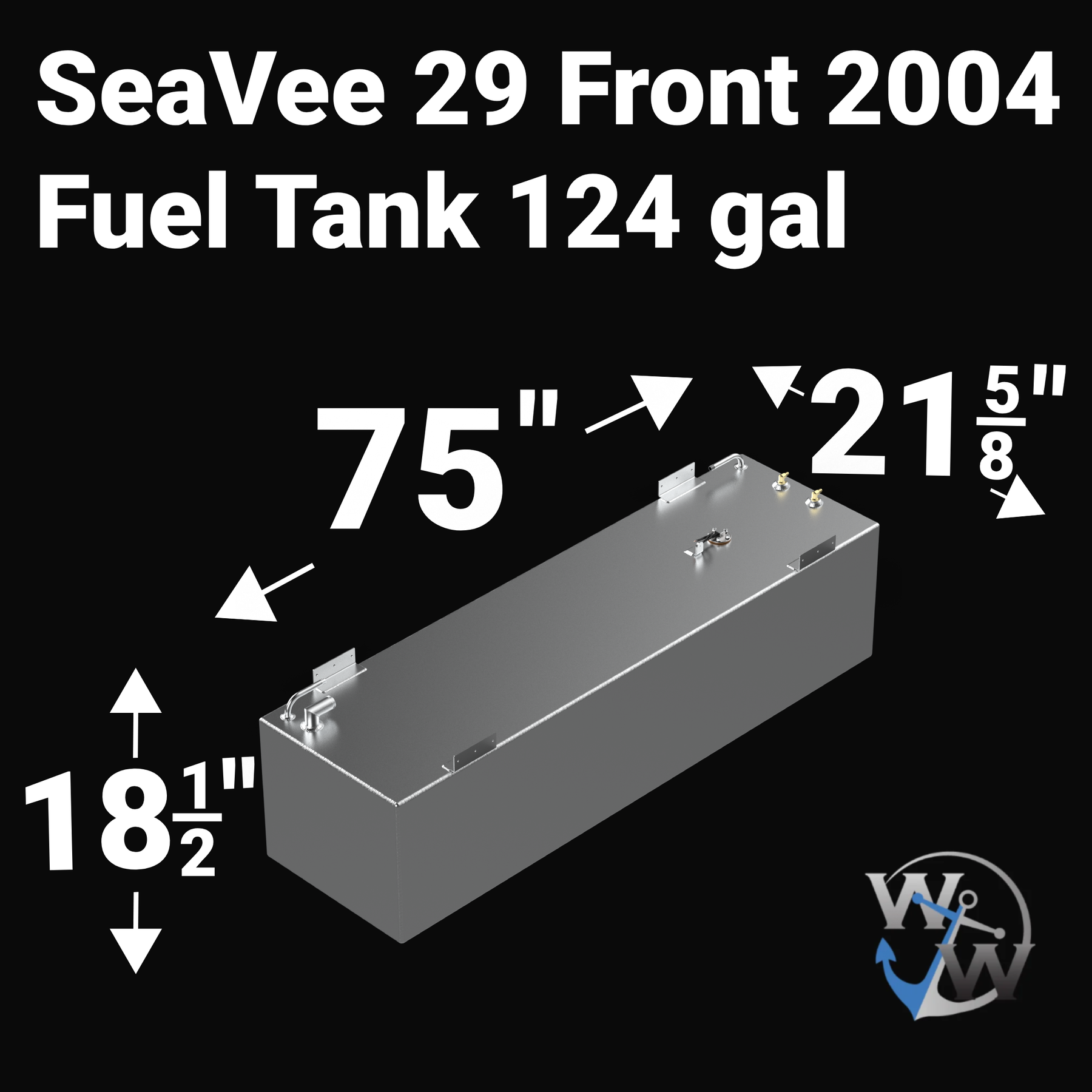

Dimensional technical diagram for a raw aluminum Sea Vee 29 Front 2004 replacement marine fuel tank featuring a 124-gallon capacity. The graphic displays precise technical specifications with measurements of 75" length, 21-5/8" width, and 18-1/2" height, illustrating the long rectangular design with specialized mounting brackets. The top deck displays an unsealed variant layout complete with brass fuel pickups, a center sending unit mount, and a forward 90-degree fuel fill neck assembly. Precision-engineere

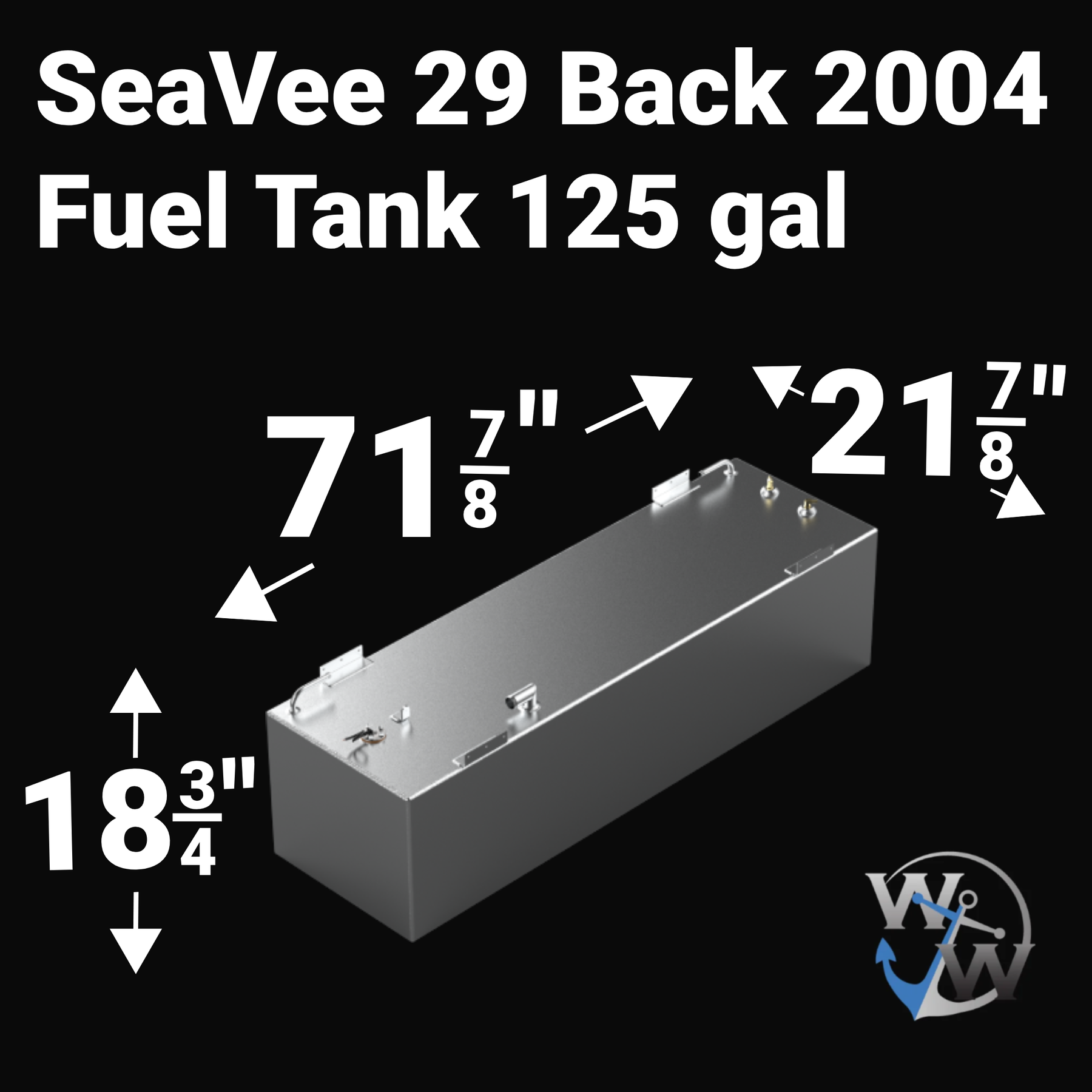

Dimensional technical diagram for a raw aluminum Sea Vee 29 Back 2004 replacement marine fuel tank featuring a 125-gallon capacity. The graphic displays precise technical specifications with measurements of 71-7/8" length, 21-7/8" width, and 18-3/4" height, illustrating the long rectangular design equipped with heavy-duty mounting tabs. The top deck displays an unsealed variant layout complete with brass fuel pickups, an electronic sending unit mount, a grounding tab, and an integrated fuel fill pipe assemb

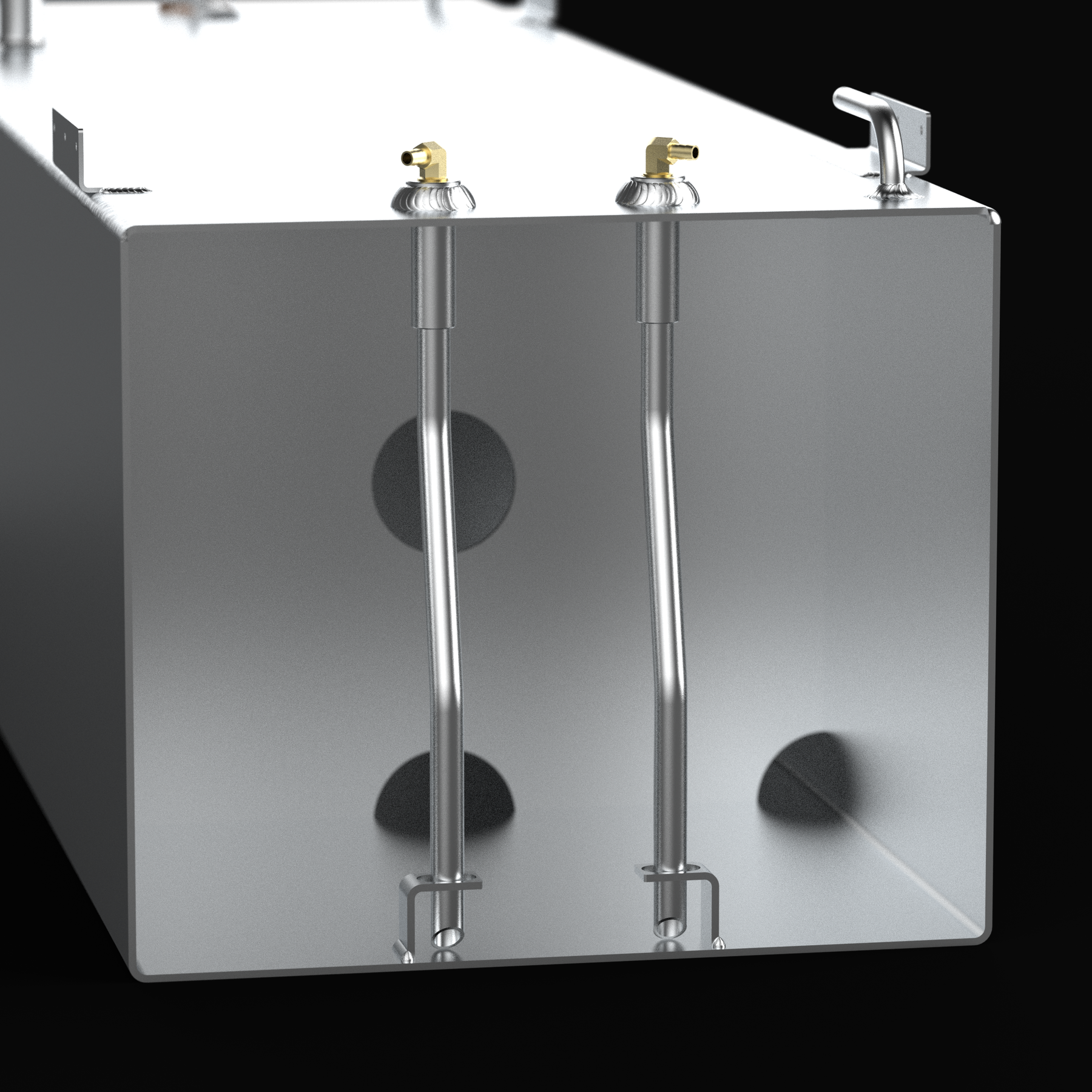

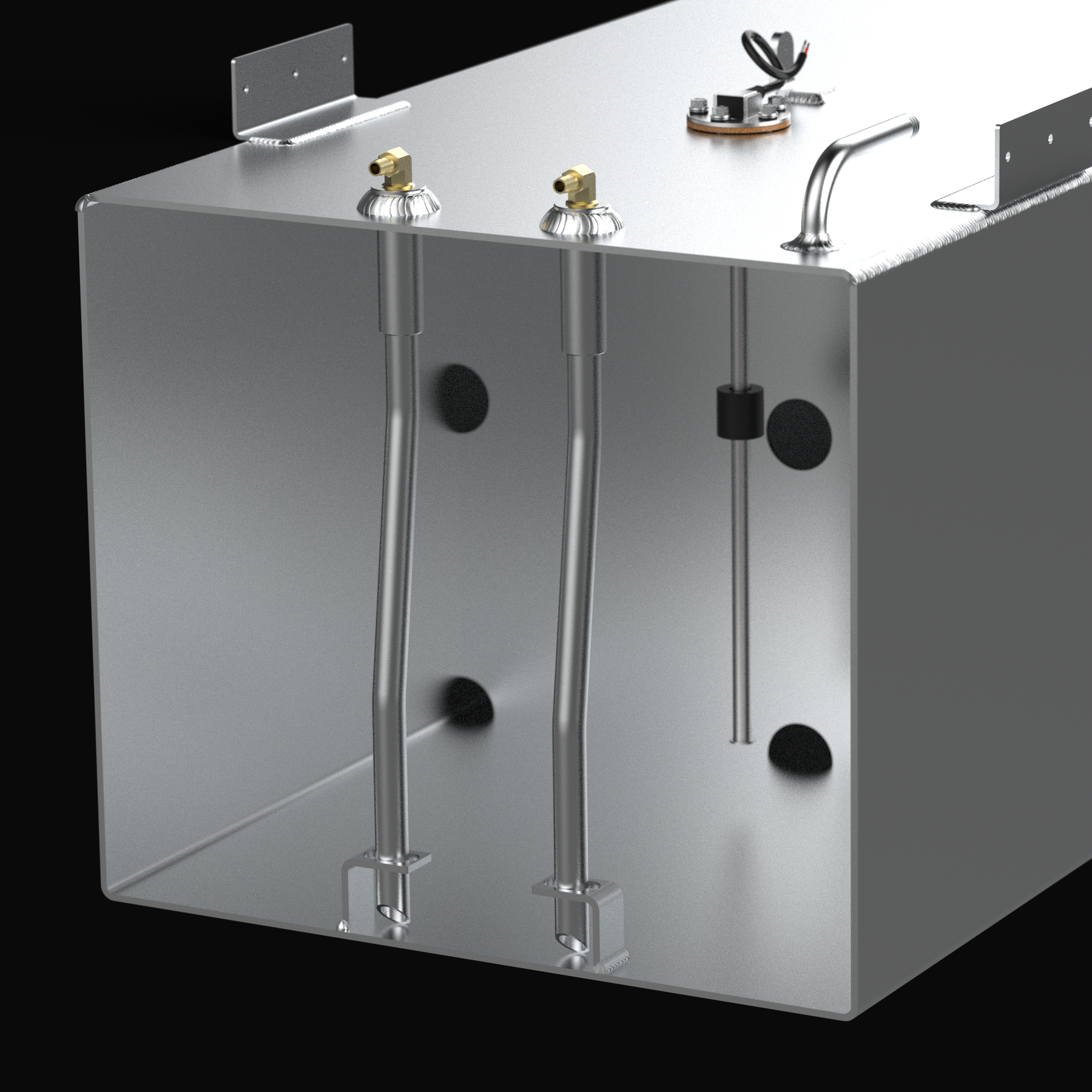

A close-up technical cross-section 3D rendering of a rectangular marine aluminum fuel tank cutaway view, detailing the internal plumbing and dual-pickup component architecture. The image focuses on the inner chamber of a flat-bottom tank fabricated from raw marine-grade 5052-H32 aluminum, highlighting internal structural baffles with circular flow-through holes. The internal assembly clearly details dual straight aluminum pickup tubes extending down to bottom-mounted anti-slosh foot brackets, which connect

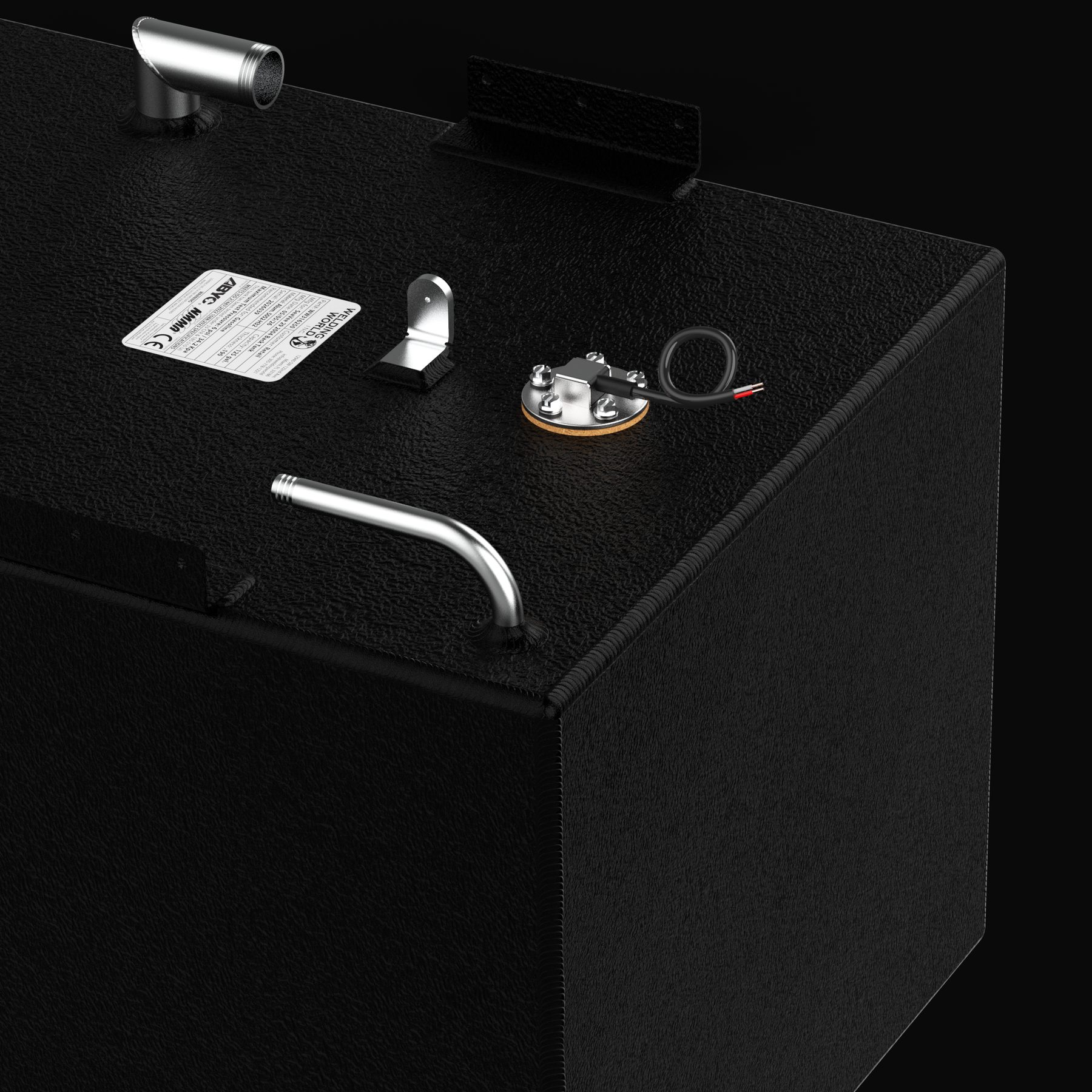

Close-up technical detail view of the top-deck fittings and certification plate on a custom marine aluminum fuel tank system. The image highlights a pre-installed electronic fuel level sending unit with wire leads, a welded grounding tab, a 90-degree aluminum vent line connection, and a heavy-duty fuel fill pipe fitting. The components are mounted on a heavy-gauge marine-grade 5052-H32 aluminum tank, fully encapsulated in a textured, anti-corrosive black TarGard epoxy coating. An official Welding World comp

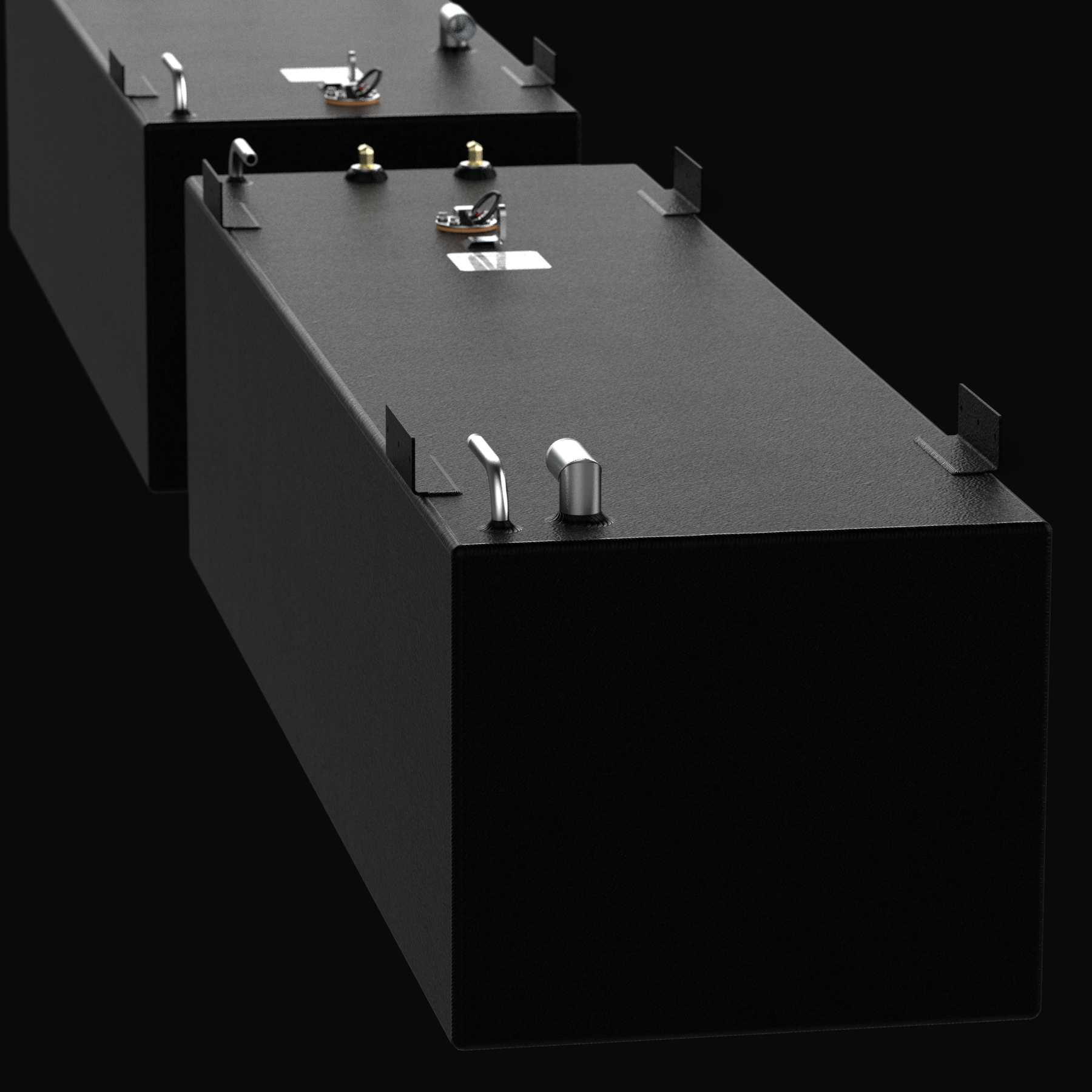

A low-angle inline perspective rendering of a black dual-tank fuel setup, showcasing a Sea Vee 29 OEM replacement marine fuel tank combo system. This view highlights both the front and back rectangular fuel cells positioned in a linear arrangement, masterfully constructed from heavy-gauge marine-grade 5052-H32 aluminum and fully encapsulated in a textured black TarGard epoxy coating for maximum corrosion resistance. The upper decks feature pre-installed marine hardware including a 90-degree fuel fill pipe,

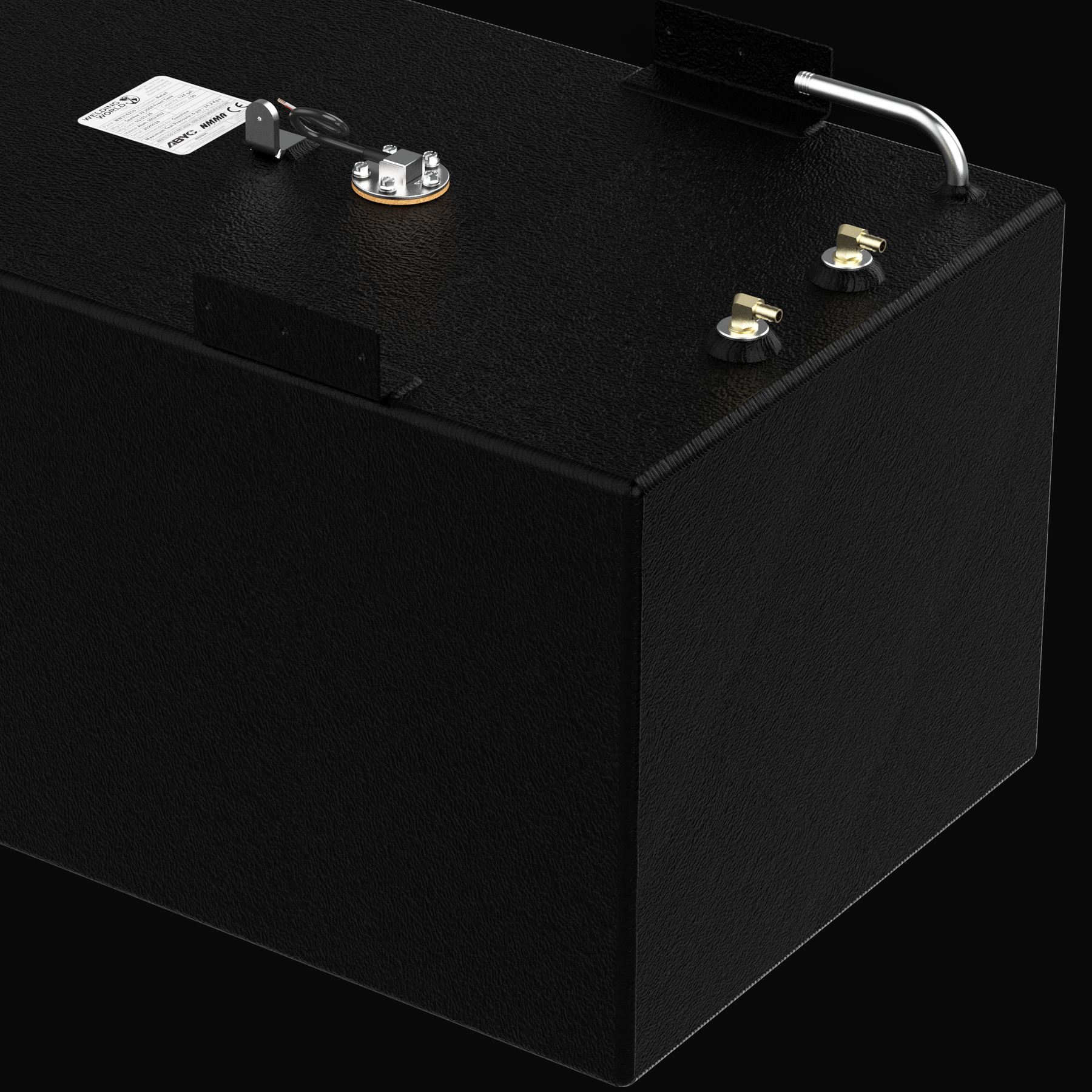

Close-up technical detail view of the aft deck hardware configuration on a custom marine aluminum fuel tank system. The image focuses on dual pre-installed brass 90-degree fuel pickup elbows and a 90-degree aluminum vent line connection, positioned next to heavy-duty welded mounting brackets. The upper deck is masterfully constructed from heavy-gauge marine-grade 5052-H32 aluminum and fully sealed in a protective, textured black TarGard epoxy coating. An electronic fuel level sending unit with wired connect
A technical cross-section 3D rendering of a rectangular marine aluminum fuel tank cutaway view, detailing the internal plumbing and sending unit architecture. The image focuses on the inner chamber of a flat-bottom tank fabricated from raw marine-grade 5052-H32 aluminum, highlighting structural internal baffles with circular flow-through holes. The internal assembly details dual aluminum pickup tubes with bottom-mounted anti-slosh foot brackets connecting to top-deck brass 90-degree fuel pickup elbows, alon

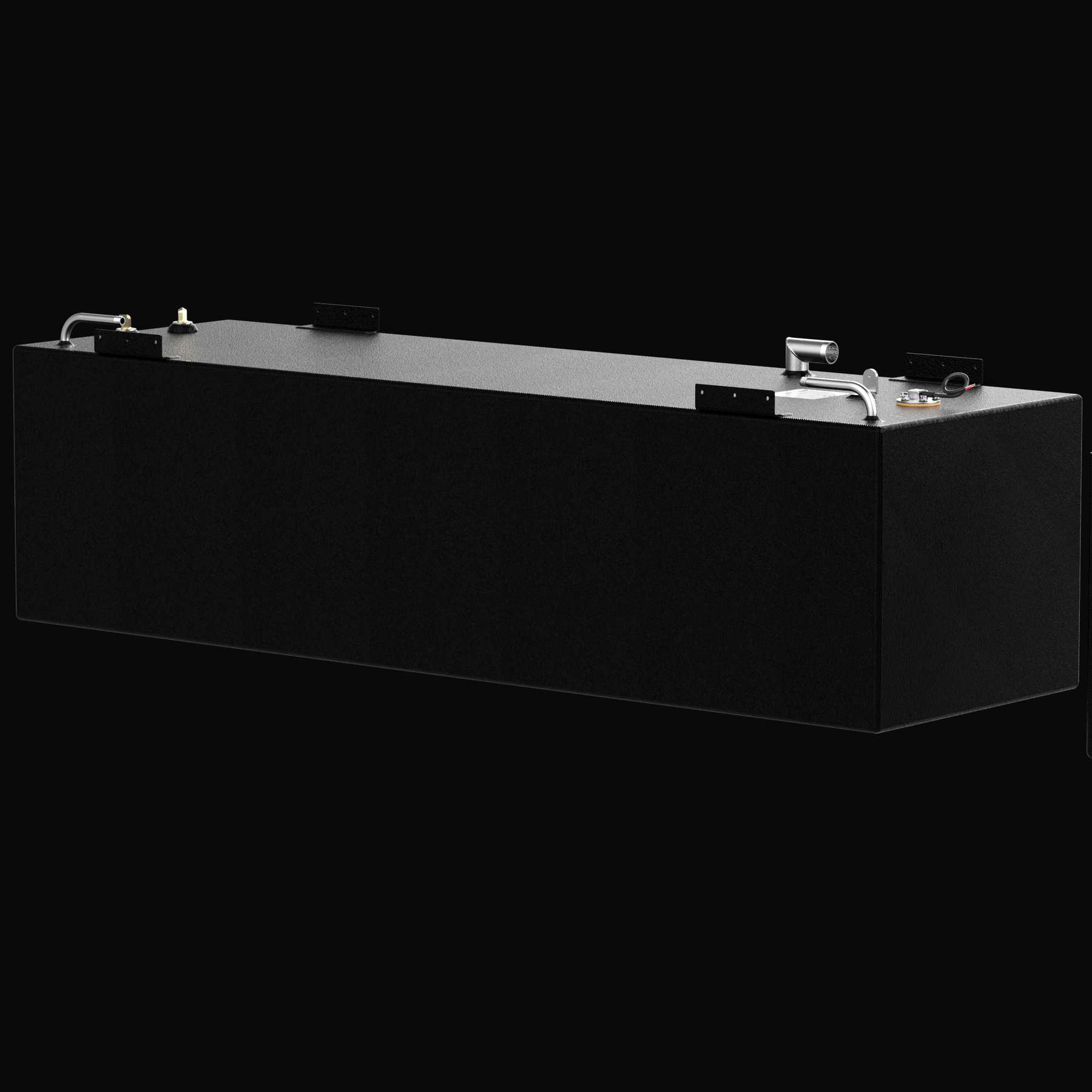

A three-quarter high-angle perspective view of a single rectangular black tank unit, detailing a Sea Vee 29 OEM replacement marine fuel tank. Masterfully constructed from heavy-gauge marine-grade 5052-H32 aluminum, the tank is completely encapsulated in a durable, textured black TarGard epoxy coating for superior corrosion protection. The clean rectangular design highlights robust mounting brackets welded along the top edges for secure installation within the vessel's hull cavity. The upper deck features pr

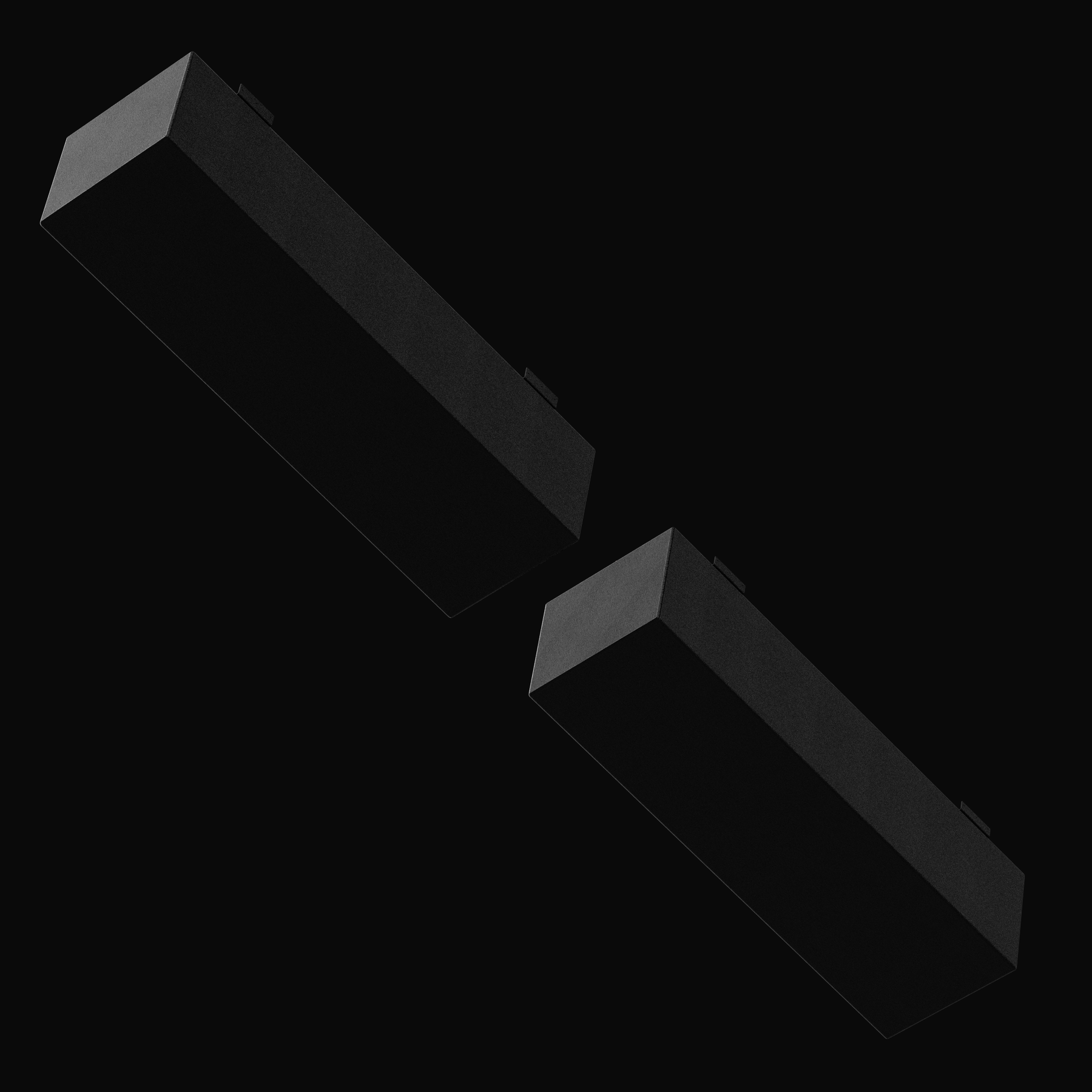

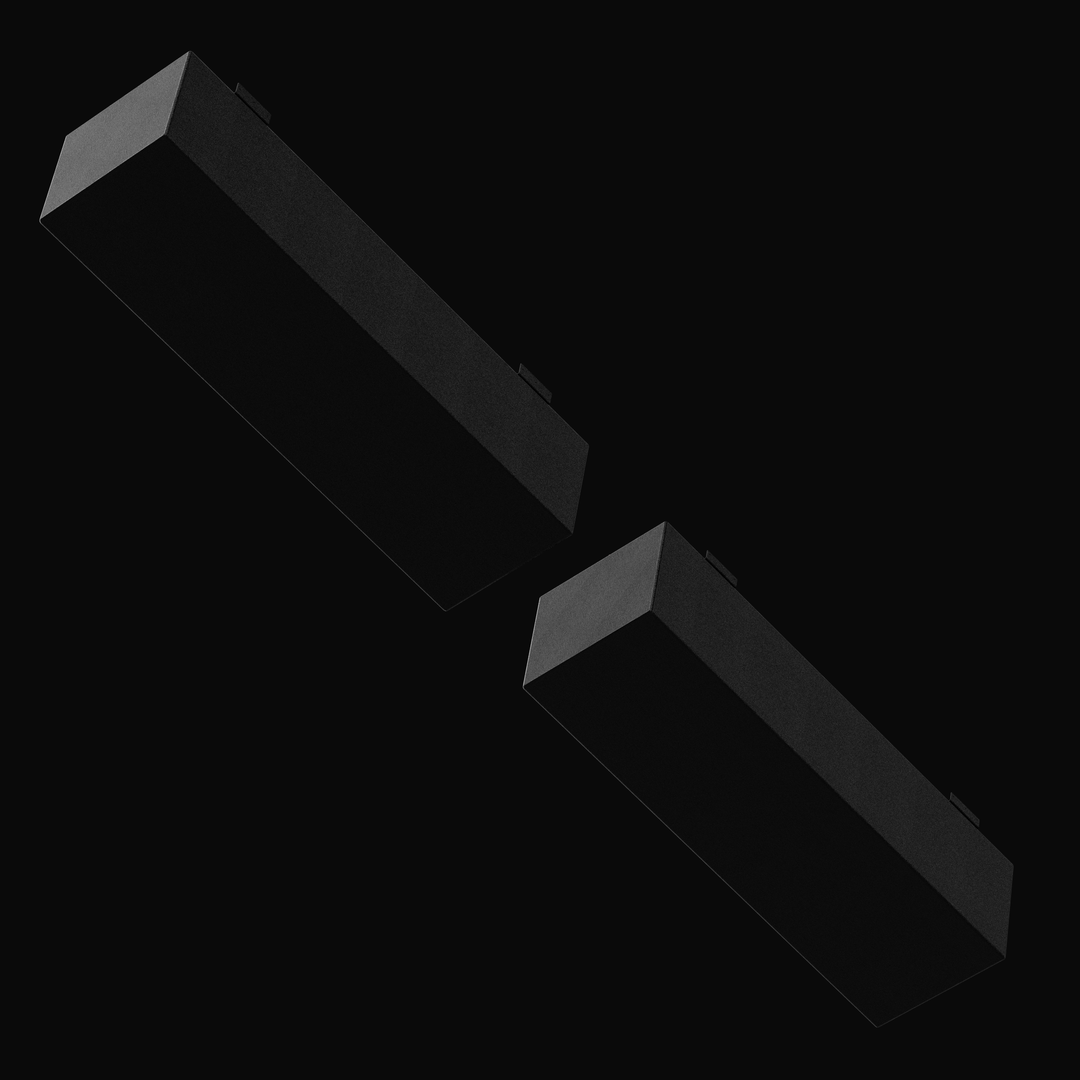

A low-angle worm's-eye perspective 3D rendering of a black dual-tank setup from underneath, showcasing the bottom structure of a Sea Vee 29 OEM replacement marine fuel tank combo system. Both long-range rectangular fuel cells are masterfully fabricated from heavy-gauge marine-grade 5052-H32 aluminum and fully encapsulated in a protective, textured black TarGard epoxy coating for maximum corrosion resistance in wet bilge environments. This dramatic underbelly view highlights the seamless, continuous TIG weld

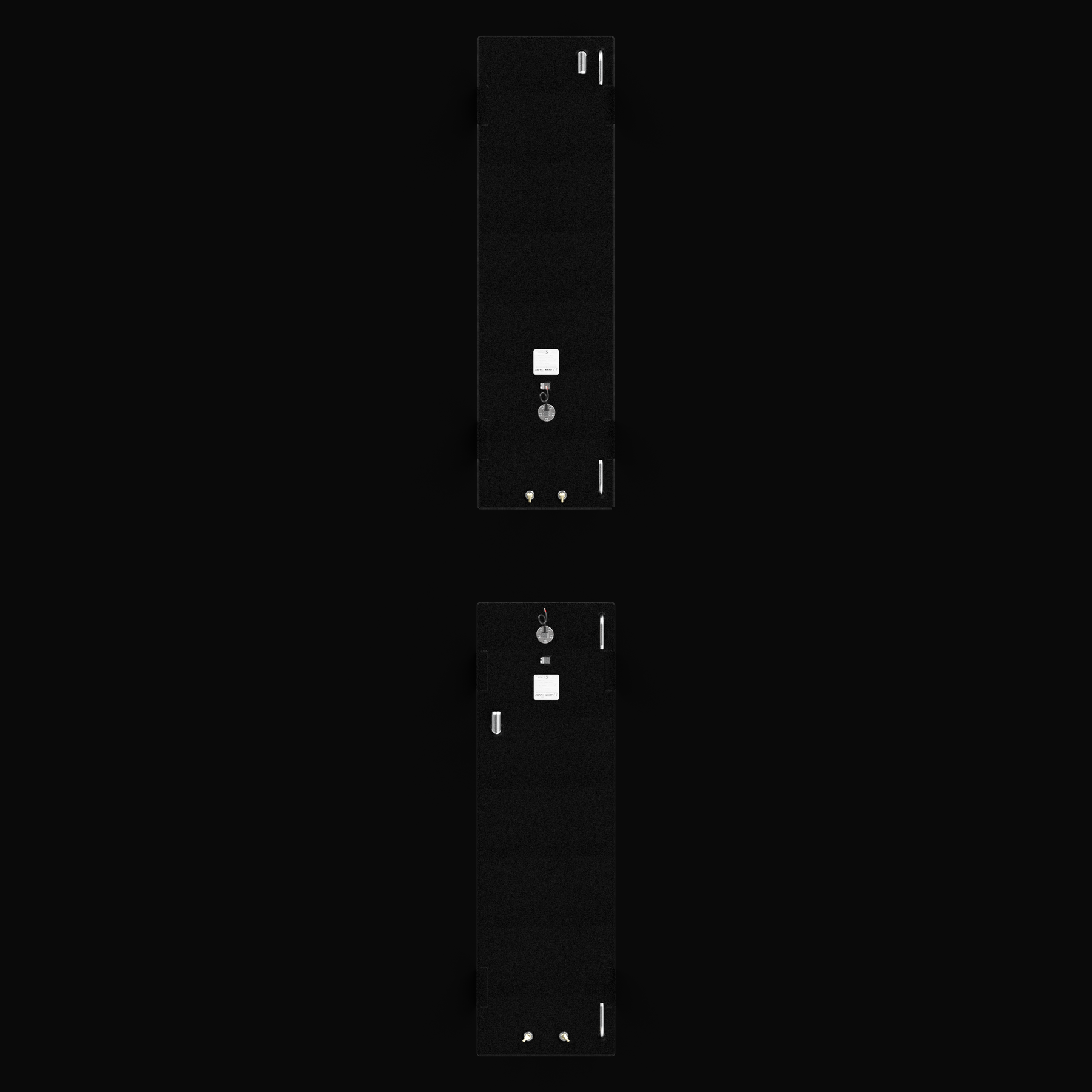

A full top-down aerial layout view of a matching black dual-tank configuration, detailing the technical component arrangement for a Sea Vee 29 OEM replacement marine fuel tank combo system. This bird's-eye blueprint perspective highlights the long, symmetrical rectangular profiles of both the front and back fuel cells, masterfully fabricated from heavy-gauge marine-grade 5052-H32 aluminum and fully sealed in a protective black TarGard epoxy coating. The layout showcases the linear alignment of top-deck hard

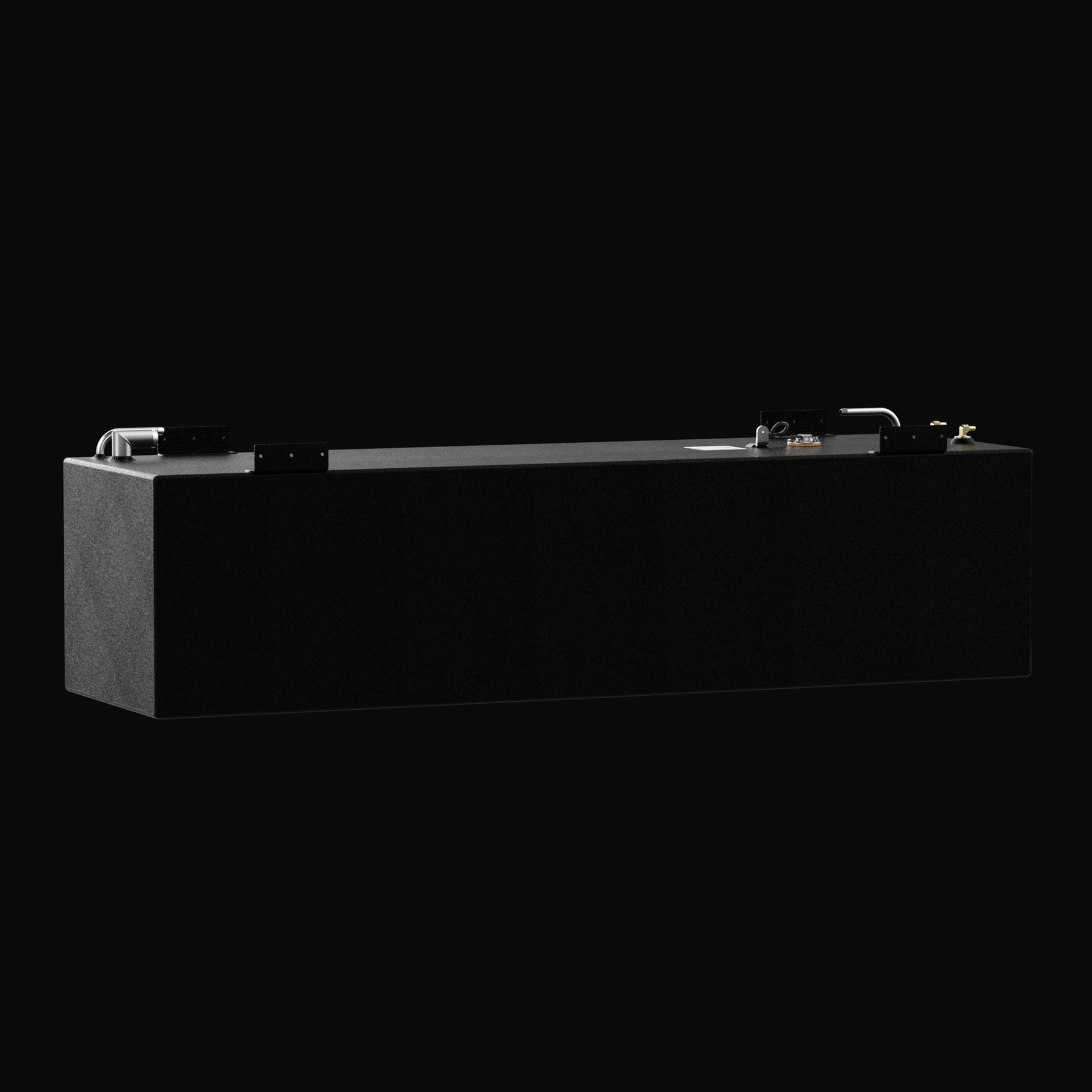

A straight-on side elevation profile view of a black rectangular tank unit, detailing a Sea Vee 29 OEM replacement marine fuel tank. Masterfully constructed from heavy-gauge marine-grade 5052-H32 aluminum, the tank is completely encapsulated in a durable, textured black TarGard epoxy coating for superior corrosion protection. The clean horizontal profile highlights the flat-bottom geometry and multiple robust mounting brackets welded along the top edges to secure the unit within the vessel's center console

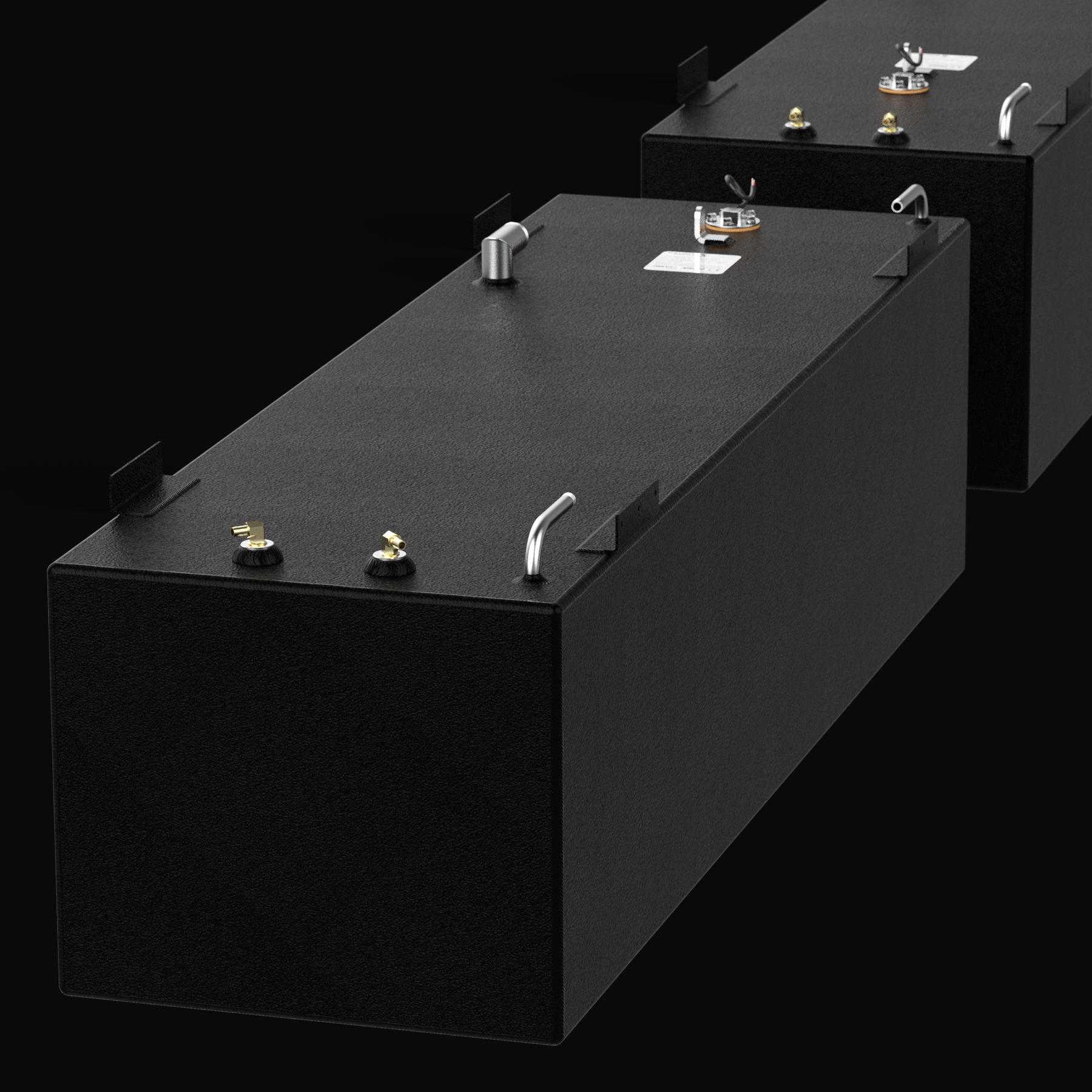

A high-angle perspective rendering of a matching black dual-tank system from a rear corner angle, highlighting the component alignment on a Sea Vee 29 OEM replacement marine fuel tank combo system. Both long-range rectangular fuel cells are masterfully fabricated from heavy-gauge marine-grade 5052-H32 aluminum and fully encapsulated in a textured black TarGard epoxy coating for maximum corrosion resistance in wet bilge environments. The upper decks feature pre-aligned factory hardware, including dual brass
A high-angle isometric perspective rendering of a matching black dual-tank setup, detailing a Sea Vee 29 OEM replacement marine fuel tank combo system. Both long-range rectangular fuel cells are masterfully constructed from heavy-gauge marine-grade 5052-H32 aluminum and completely encapsulated in a durable, textured black TarGard epoxy coating for maximum corrosion resistance. The upper decks feature factory-installed hardware including a 90-degree fuel fill pipe on the forward unit, dual brass fuel pickup
Dimensional technical diagram for a raw aluminum Sea Vee 29 Front 2004 replacement marine fuel tank featuring a 124-gallon capacity. The graphic displays precise technical specifications with measurements of 75" length, 21-5/8" width, and 18-1/2" height, illustrating the long rectangular design with specialized mounting brackets. The top deck displays an unsealed variant layout complete with brass fuel pickups, a center sending unit mount, and a forward 90-degree fuel fill neck assembly. Precision-engineere
Dimensional technical diagram for a raw aluminum Sea Vee 29 Back 2004 replacement marine fuel tank featuring a 125-gallon capacity. The graphic displays precise technical specifications with measurements of 71-7/8" length, 21-7/8" width, and 18-3/4" height, illustrating the long rectangular design equipped with heavy-duty mounting tabs. The top deck displays an unsealed variant layout complete with brass fuel pickups, an electronic sending unit mount, a grounding tab, and an integrated fuel fill pipe assemb
A close-up technical cross-section 3D rendering of a rectangular marine aluminum fuel tank cutaway view, detailing the internal plumbing and dual-pickup component architecture. The image focuses on the inner chamber of a flat-bottom tank fabricated from raw marine-grade 5052-H32 aluminum, highlighting internal structural baffles with circular flow-through holes. The internal assembly clearly details dual straight aluminum pickup tubes extending down to bottom-mounted anti-slosh foot brackets, which connect
Close-up technical detail view of the top-deck fittings and certification plate on a custom marine aluminum fuel tank system. The image highlights a pre-installed electronic fuel level sending unit with wire leads, a welded grounding tab, a 90-degree aluminum vent line connection, and a heavy-duty fuel fill pipe fitting. The components are mounted on a heavy-gauge marine-grade 5052-H32 aluminum tank, fully encapsulated in a textured, anti-corrosive black TarGard epoxy coating. An official Welding World comp
A low-angle inline perspective rendering of a black dual-tank fuel setup, showcasing a Sea Vee 29 OEM replacement marine fuel tank combo system. This view highlights both the front and back rectangular fuel cells positioned in a linear arrangement, masterfully constructed from heavy-gauge marine-grade 5052-H32 aluminum and fully encapsulated in a textured black TarGard epoxy coating for maximum corrosion resistance. The upper decks feature pre-installed marine hardware including a 90-degree fuel fill pipe,
Close-up technical detail view of the aft deck hardware configuration on a custom marine aluminum fuel tank system. The image focuses on dual pre-installed brass 90-degree fuel pickup elbows and a 90-degree aluminum vent line connection, positioned next to heavy-duty welded mounting brackets. The upper deck is masterfully constructed from heavy-gauge marine-grade 5052-H32 aluminum and fully sealed in a protective, textured black TarGard epoxy coating. An electronic fuel level sending unit with wired connect
A technical cross-section 3D rendering of a rectangular marine aluminum fuel tank cutaway view, detailing the internal plumbing and sending unit architecture. The image focuses on the inner chamber of a flat-bottom tank fabricated from raw marine-grade 5052-H32 aluminum, highlighting structural internal baffles with circular flow-through holes. The internal assembly details dual aluminum pickup tubes with bottom-mounted anti-slosh foot brackets connecting to top-deck brass 90-degree fuel pickup elbows, alon
A three-quarter high-angle perspective view of a single rectangular black tank unit, detailing a Sea Vee 29 OEM replacement marine fuel tank. Masterfully constructed from heavy-gauge marine-grade 5052-H32 aluminum, the tank is completely encapsulated in a durable, textured black TarGard epoxy coating for superior corrosion protection. The clean rectangular design highlights robust mounting brackets welded along the top edges for secure installation within the vessel's hull cavity. The upper deck features pr
A low-angle worm's-eye perspective 3D rendering of a black dual-tank setup from underneath, showcasing the bottom structure of a Sea Vee 29 OEM replacement marine fuel tank combo system. Both long-range rectangular fuel cells are masterfully fabricated from heavy-gauge marine-grade 5052-H32 aluminum and fully encapsulated in a protective, textured black TarGard epoxy coating for maximum corrosion resistance in wet bilge environments. This dramatic underbelly view highlights the seamless, continuous TIG weld
A full top-down aerial layout view of a matching black dual-tank configuration, detailing the technical component arrangement for a Sea Vee 29 OEM replacement marine fuel tank combo system. This bird's-eye blueprint perspective highlights the long, symmetrical rectangular profiles of both the front and back fuel cells, masterfully fabricated from heavy-gauge marine-grade 5052-H32 aluminum and fully sealed in a protective black TarGard epoxy coating. The layout showcases the linear alignment of top-deck hard
A straight-on side elevation profile view of a black rectangular tank unit, detailing a Sea Vee 29 OEM replacement marine fuel tank. Masterfully constructed from heavy-gauge marine-grade 5052-H32 aluminum, the tank is completely encapsulated in a durable, textured black TarGard epoxy coating for superior corrosion protection. The clean horizontal profile highlights the flat-bottom geometry and multiple robust mounting brackets welded along the top edges to secure the unit within the vessel's center console
A high-angle perspective rendering of a matching black dual-tank system from a rear corner angle, highlighting the component alignment on a Sea Vee 29 OEM replacement marine fuel tank combo system. Both long-range rectangular fuel cells are masterfully fabricated from heavy-gauge marine-grade 5052-H32 aluminum and fully encapsulated in a textured black TarGard epoxy coating for maximum corrosion resistance in wet bilge environments. The upper decks feature pre-aligned factory hardware, including dual brass

Sea Vee 29 Fuel Tank (2-tank combo) | 2004 OEM Replacement

$ 4,200.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 9:00 a.m. to 4:00 p.m. if in any doubt.

Optimize the long-range offshore capabilities and structural integrity of your center console with this precision-fabricated Sea Vee 29 OEM Replacement Fuel Tank Combo,Front Tank 124 gal and Back Tank 125 gal, meticulously engineered to match 2004 factory hull configurations. This high-performance dual-tank system is masterfully constructed from heavy-gauge, marine-grade 5052-H32 aluminum, providing maximum resistance against severe bilge environments and the relentless pounding of open ocean waters. Built directly from original factory design templates, the combo kit guarantees a 100% drop-in fit that seats flawlessly within your vessel’s longitudinal stringer grid and integrated floor framing. Each fuel cell is fully encapsulated in a specialized, corrosion-resistant black TarGard epoxy coating and comes equipped with pre-aligned stainless steel fuel fills, dual brass pickup elbows, and electronic fuel level sending units. Manufactured in strict accordance with NMMA, ABYC, and USCG standards, this robust fuel management setup ensures uncompromised safety, exact factory alignment, and reliable fuel delivery for your extended blue-water angling and cruising runs.





  • Guaranteed to Fit Your Sea Vee
    Every tank is engineered using OEM drawings and/or reverse-engineered from an original unit to ensure a precise, 100% guaranteed fit.



  • Fully Certified Manufacturing
    Our tanks are built by an NMMA-type certified manufacturer and produced in accordance with all ABYC standards.



  • USCG Compliant & Pressure Tested
    Each tank meets all USCG requirements and is individually pressure-tested in house. All federal regulations are followed throughout our manufacturing process to ensure maximum safety and reliability.



  • .190-Thickness 5052 H32 Aluminum Construction
    Built from premium marine-grade 5052 H32 aluminum at .190 thickness for exceptional strength and long-term durability.



  • Complete, Ready-to-Install System
    Each tank comes fully equipped with all required components — including the sender, fittings, and hardware.



  • Precision Hand-Welded Construction
    Every tank is hand-crafted using GTAW (TIG) welding, exceeding ASME and AWS D3.7:2004 standards for marine aluminum fabrication.



  • Sherwin-Williams® TarGard® Epoxy Coating
    Finished with Sherwin-Williams® TarGard® Epoxy to provide added protection against corrosion and harsh marine environments, extending the overall life of the tank.



  • KUS® (formerly WEMA USA®) Reed-Switch Fuel Level Sender
    Features a high-quality KUS® reed-switch sender with an NBR float, providing accurate and reliable fuel-level measurement.



Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.



IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 1-2 work weeks. The finished tank pickup window is also 1-2 work weeks, so make sure you will be able to take delivery of your finished tank within that timeframe.



NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!



Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.



Return Policy: No refunds are accepted, as all of our products are made to order. Our policy is strictly limited to the repair or replacement of qualifying defective or damaged goods. Please note that shipping costs are non-refundable.



Fabrication lead time (before shipping): 1-2 work weeks.

Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
