3D rendering of a set of three fuel tanks for a Hoog 23' 1989 boat, totaling 93 gallons. The tanks are finished in matte black and vary in size. Each tank features angled front edges and multiple metallic fittings for fuel fill, vent, and sending units positioned on the top surface near one edge
3D rendering of a rectangular fuel tank for a Hoog 23' 1989 boat with a capacity of 93 gallons. The tank is 93 inches long, 30 ½ inches wide, and 12 inches high. It is matte black with a silver top and has multiple fittings, including fuel fill, vent, and sending unit on the top surface near one end
3D rendering of a white rectangular center fuel tank for a Chris Craft 33' 1986 boat. The tank has a smooth finish and features several fittings on the top surface near one end, including a fuel fill, vent, sending unit, and mounting brackets
3D rendering of a long, narrow matte black fuel tank. The tank features fittings on the top surface including a vent, fuel fill, sending unit, and mounting brackets positioned near both ends.
3D rendering of a long, rectangular matte black fuel tank with fittings on the top surface including a vent, fuel fill, sending unit, and mounting brackets. The tank is solid with no visible dimensions shown
3D rendering of a matte black rectangular fuel tank viewed from the side, with three fittings on top: a vent, a mounting bracket, and a brass fuel fill cap. The tank is solid black with no visible dimensions.
3D rendering of a set of three fuel tanks for a Hoog 23' 1989 boat, totaling 93 gallons. The tanks are finished in matte black and vary in size. Each tank features angled front edges and multiple metallic fittings for fuel fill, vent, and sending units positioned on the top surface near one edge
3D rendering of a rectangular fuel tank for a Hoog 23' 1989 boat with a capacity of 93 gallons. The tank is 93 inches long, 30 ½ inches wide, and 12 inches high. It is matte black with a silver top and has multiple fittings, including fuel fill, vent, and sending unit on the top surface near one end
3D rendering of a white rectangular center fuel tank for a Chris Craft 33' 1986 boat. The tank has a smooth finish and features several fittings on the top surface near one end, including a fuel fill, vent, sending unit, and mounting brackets
3D rendering of a long, narrow matte black fuel tank. The tank features fittings on the top surface including a vent, fuel fill, sending unit, and mounting brackets positioned near both ends.
3D rendering of a long, rectangular matte black fuel tank with fittings on the top surface including a vent, fuel fill, sending unit, and mounting brackets. The tank is solid with no visible dimensions shown
3D rendering of a matte black rectangular fuel tank viewed from the side, with three fittings on top: a vent, a mounting bracket, and a brass fuel fill cap. The tank is solid black with no visible dimensions.

Hoog 23' 1989 Fuel Tanks 93 gal

$ 1,700.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.

  • IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 2 work weeks. The finished tank pickup window is also 2 work weeks, so make sure you will be able to take delivery of your finished tank within that timeframe.

  • Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.

  • .190 thickness Alcoa® 5052 H32 Series aluminum construction.

  • Hand welded GTAW (TIG) welded to exceed ASME / ASW D3.7:2004 standards.

  • Sherwin Williams® TarGard® Epoxy painted for the best marine environment protection.

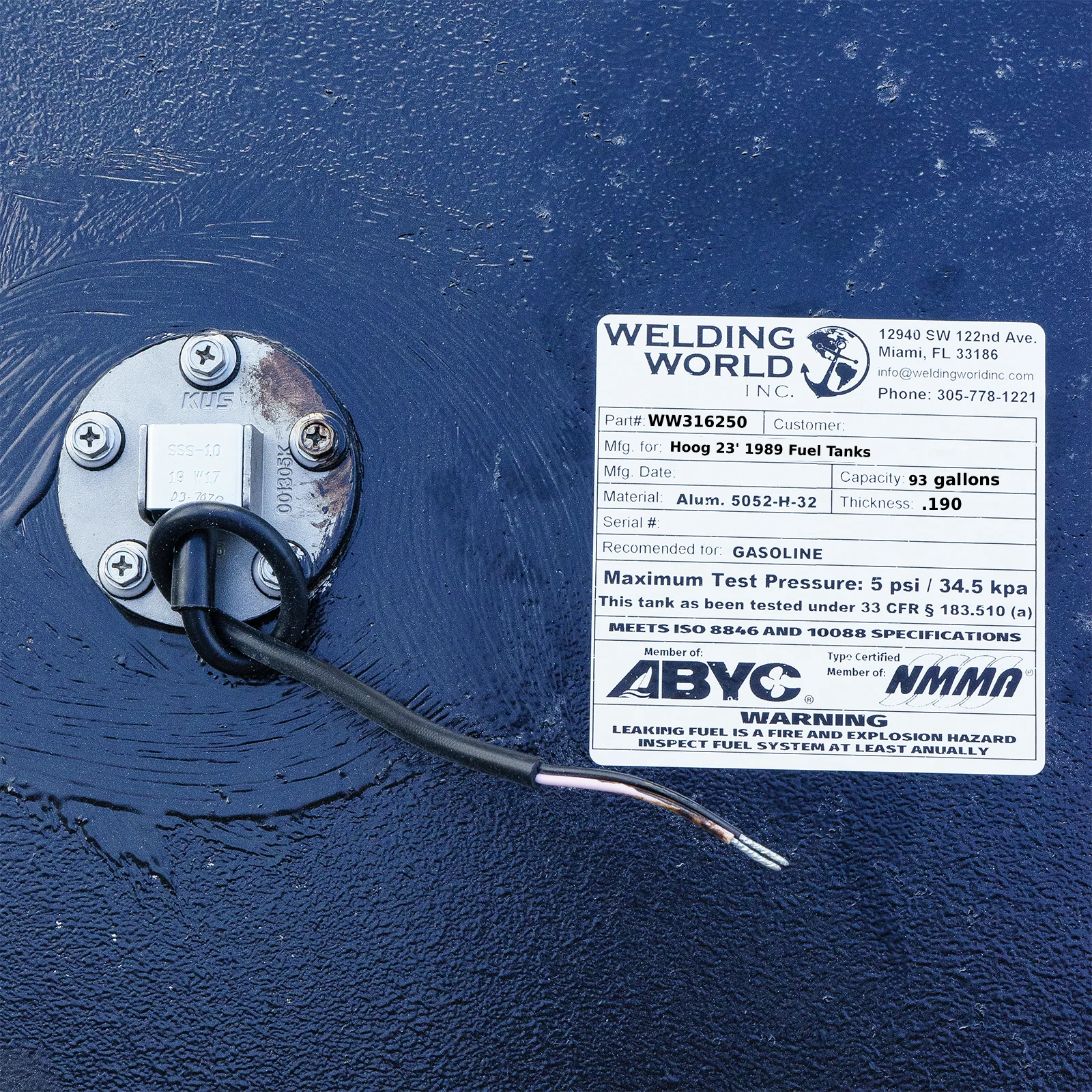

  • KUS® (ex-WEMA USA®) reed switch sender with NBR float fuel level.

 NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!

Fabrication lead time (before shipping): 2 work weeks.

Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.



Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
