Two rectangular black fuel tanks, viewed from an elevated angle against a checkered background. Both tanks feature various metallic fittings and pipes on their top surfaces, including a white and blue pipe, and a circular gauge with wires. The tank in the foreground has a more prominent view of the white and blue pipe, while the tank in the background prominently displays the circular gauge and other smaller fittings
Grady-White F26 Tigercat 1999 Saddle Fuel Tank, 91 gallons gross (2x). The image shows a light grey, rectangular fuel tank with dimensions: 58 inches long, 23 inches wide, and 16 inches high. The top surface displays various fittings, including two golden-colored valves, a circular gauge, and an L-shaped pipe. A "W W" logo with an anchor is visible in the bottom right corner
Two rectangular, black fuel tanks, each with various pipe connections and fittings on their top surfaces, are positioned on a black and grey checkered background. The tanks appear to be made of metal with a slightly glossy finish
Two sleek, rectangular black fuel tanks, each equipped with various pipe connections, gauges, and fittings on their top surfaces, are positioned at an angle against a black and grey checkered background. The tanks appear to have a glossy finish
Two rectangular black fuel tanks are positioned side-by-side with a gap between them, against a black and grey checkered background. Both tanks feature various fittings and connections on their top surfaces, including white and blue pipes, and circular gauges with wires
A close-up of a white product label from "WELDING WORLD INC." on a black, textured surface. The label details a fuel tank for Grady White, Part# WW-T-250, manufactured on 11/11/2021, with a capacity of 91 gallons, made from Alum. 5052-H-32 with a thickness of .190, Serial # 2021426. It is recommended for Gasoline and has a maximum test pressure of 9 psi / 34.5 kpa. The label also states it meets ISO 8846 and 10088 specifications and is a member of ABYC and NMMA, with a warning about leaking fuel
Two rectangular black fuel tanks, viewed from an elevated angle against a checkered background. Both tanks feature various metallic fittings and pipes on their top surfaces, including a white and blue pipe, and a circular gauge with wires. The tank in the foreground has a more prominent view of the white and blue pipe, while the tank in the background prominently displays the circular gauge and other smaller fittings
Grady-White F26 Tigercat 1999 Saddle Fuel Tank, 91 gallons gross (2x). The image shows a light grey, rectangular fuel tank with dimensions: 58 inches long, 23 inches wide, and 16 inches high. The top surface displays various fittings, including two golden-colored valves, a circular gauge, and an L-shaped pipe. A "W W" logo with an anchor is visible in the bottom right corner
Two rectangular, black fuel tanks, each with various pipe connections and fittings on their top surfaces, are positioned on a black and grey checkered background. The tanks appear to be made of metal with a slightly glossy finish
Two sleek, rectangular black fuel tanks, each equipped with various pipe connections, gauges, and fittings on their top surfaces, are positioned at an angle against a black and grey checkered background. The tanks appear to have a glossy finish
Two rectangular black fuel tanks are positioned side-by-side with a gap between them, against a black and grey checkered background. Both tanks feature various fittings and connections on their top surfaces, including white and blue pipes, and circular gauges with wires
A close-up of a white product label from "WELDING WORLD INC." on a black, textured surface. The label details a fuel tank for Grady White, Part# WW-T-250, manufactured on 11/11/2021, with a capacity of 91 gallons, made from Alum. 5052-H-32 with a thickness of .190, Serial # 2021426. It is recommended for Gasoline and has a maximum test pressure of 9 psi / 34.5 kpa. The label also states it meets ISO 8846 and 10088 specifications and is a member of ABYC and NMMA, with a warning about leaking fuel

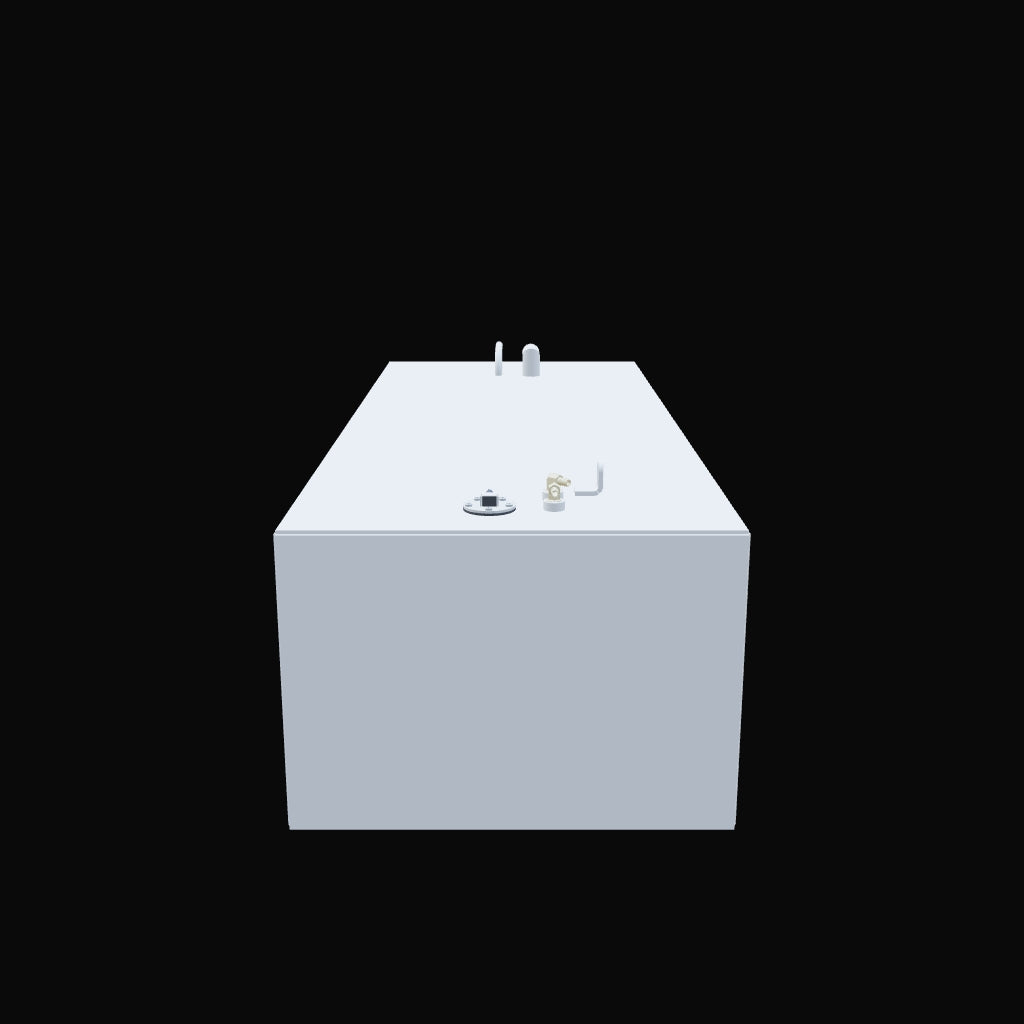

A light grey, rectangular fuel tank with various connections and fittings on its top surface, including a circular gauge, a golden-colored valve, and an L-shaped pipe. The tank is rendered against a solid black background

Grady-White F26 Tigercat 1999 OEM Replacement Saddle Fuel Tank Combo Kit (2 x 91 gal.)

$ 2,600.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.

  • IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 1-2 work weeks. The finished tank pickup window is also 1-2 work weeks, so make sure you will be able to take delivery of your finished tank within that timeframe.

  • Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.

  • .190 thickness Alcoa® 5052 H32 Series aluminum construction.

  • Hand welded GTAW (TIG) welded to exceed ASME / ASW D3.7:2004 standards.

  • Sherwin Williams® TarGard® Epoxy painted for the best marine environment protection.

  • KUS® (ex-WEMA USA®) reed switch sender with NBR float fuel level.

 NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!

Fabrication lead time (before shipping): 1-2 work weeks.

Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.

Return Policy: No refunds are accepted, as all of our products are made to order. Our policy is strictly limited to the repair or replacement of qualifying defective or damaged goods. Please note that shipping costs are non-refundable..

Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
