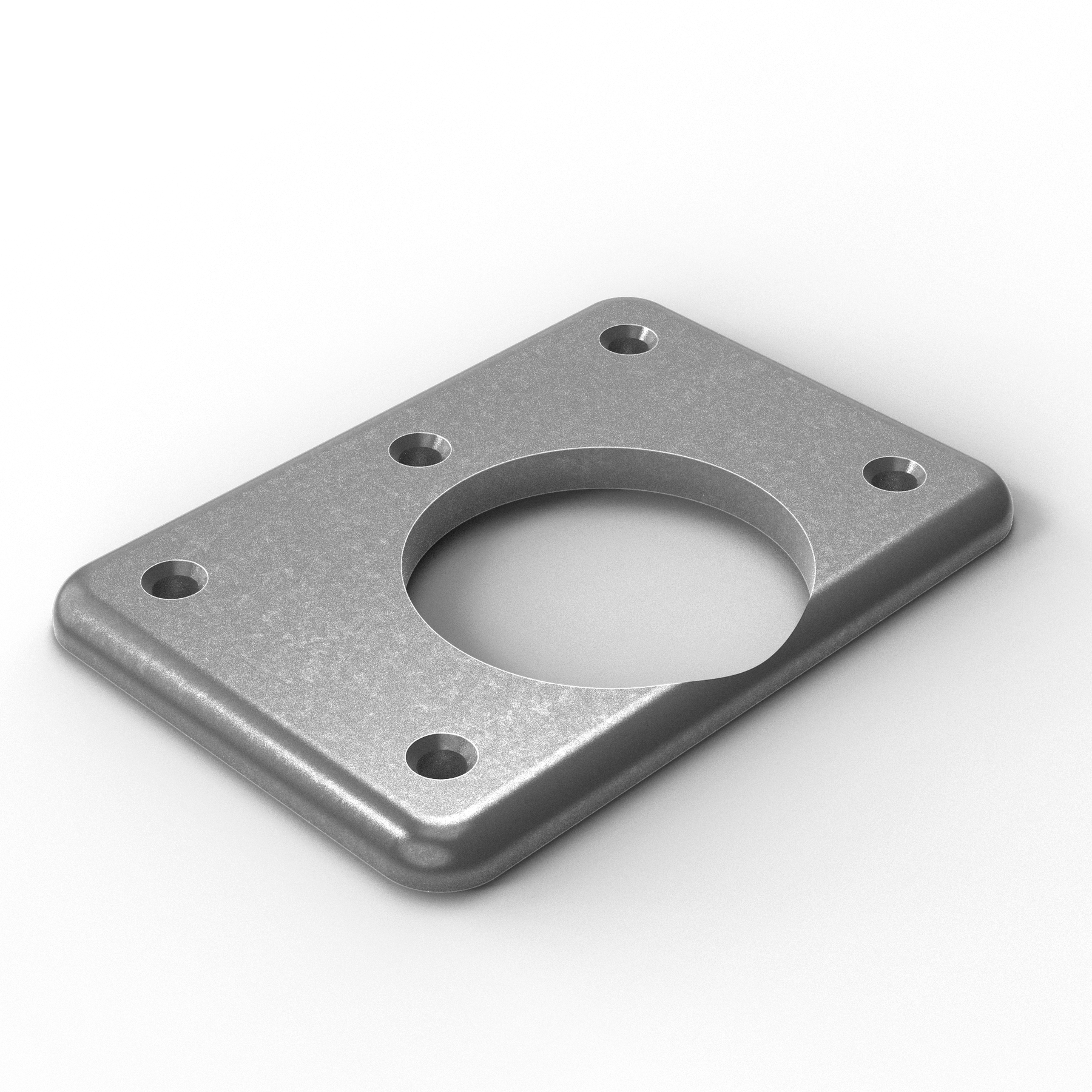

0014-R 3/8" Thick 6.25" x 4.375" Rectangular Aluminum Countersunk Pad - ISO View

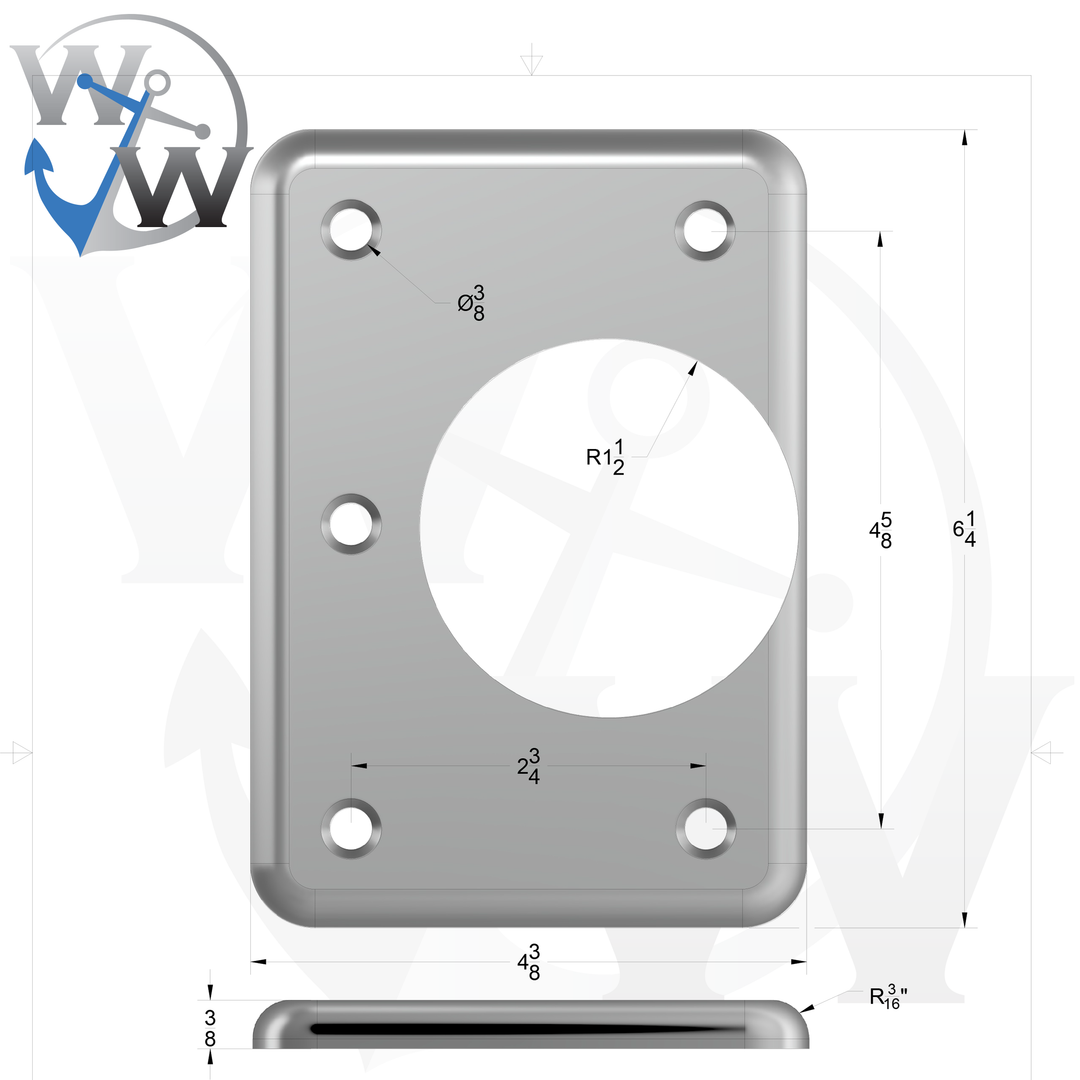

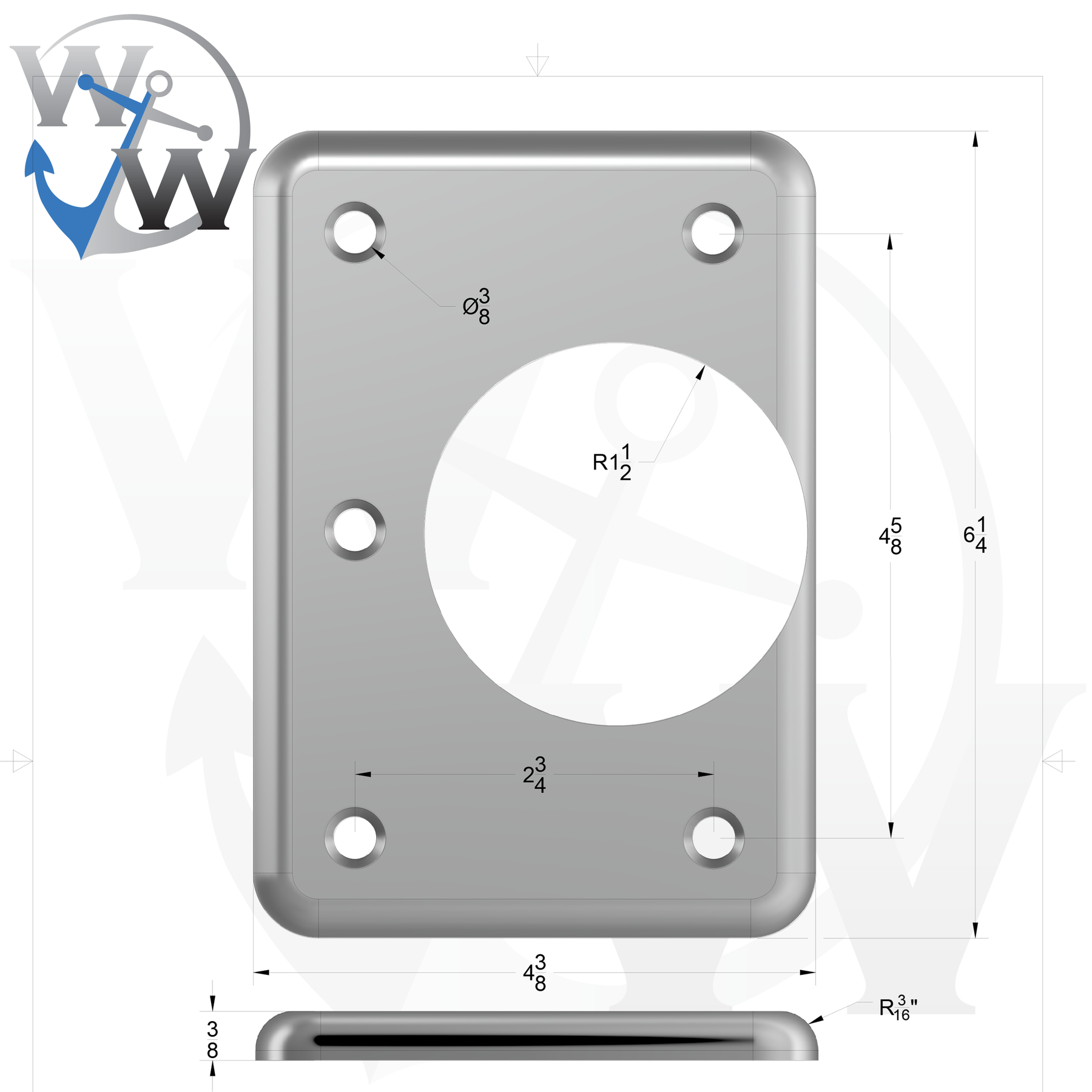

0014-R 3/8" Thick 6.25" x 4.375" Rectangular Aluminum Countersunk Pad - Spec Sheet Drawing

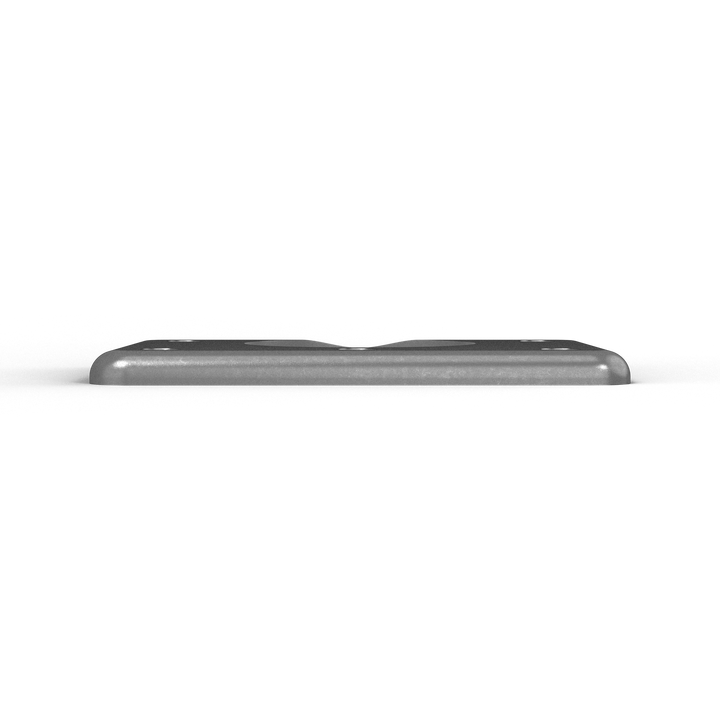

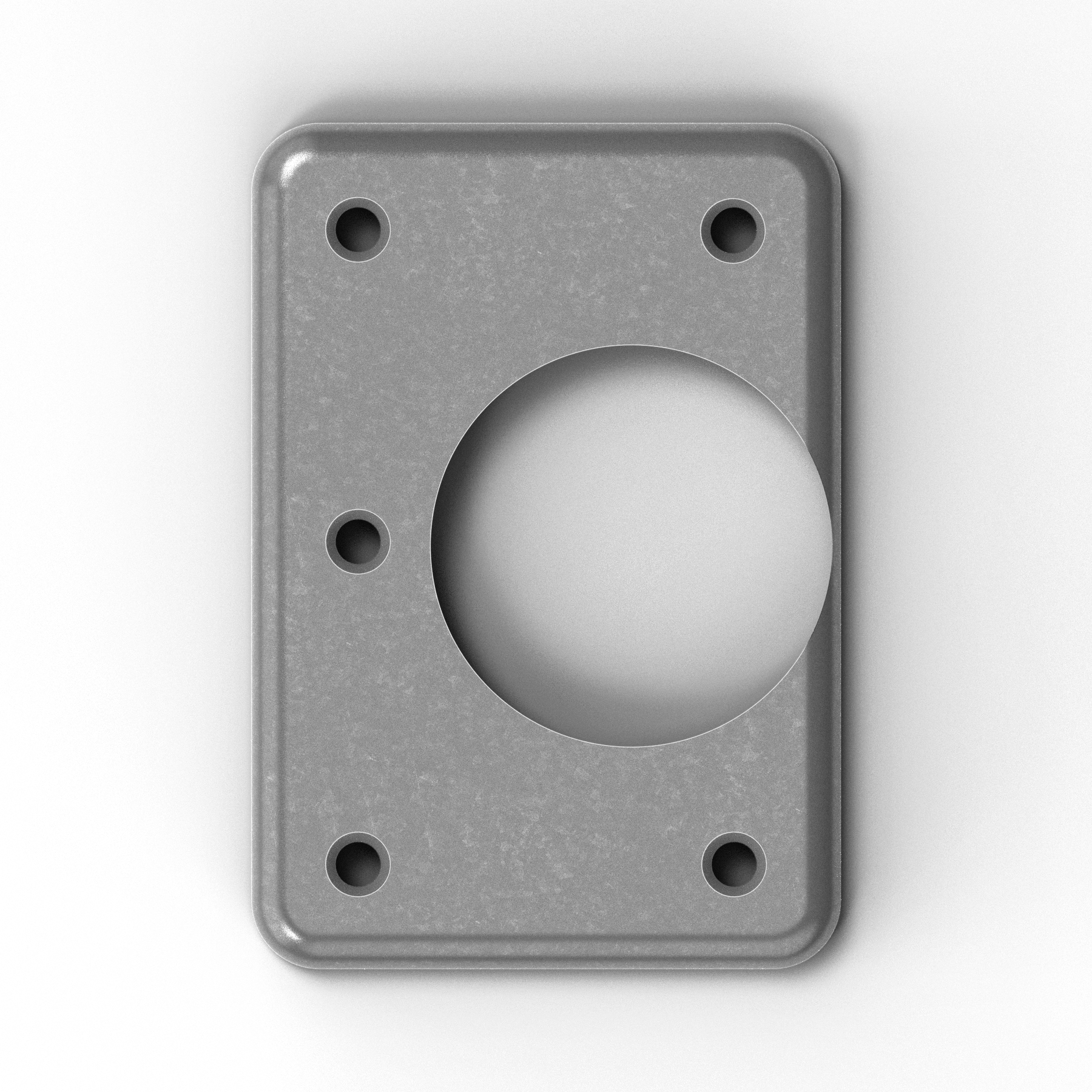

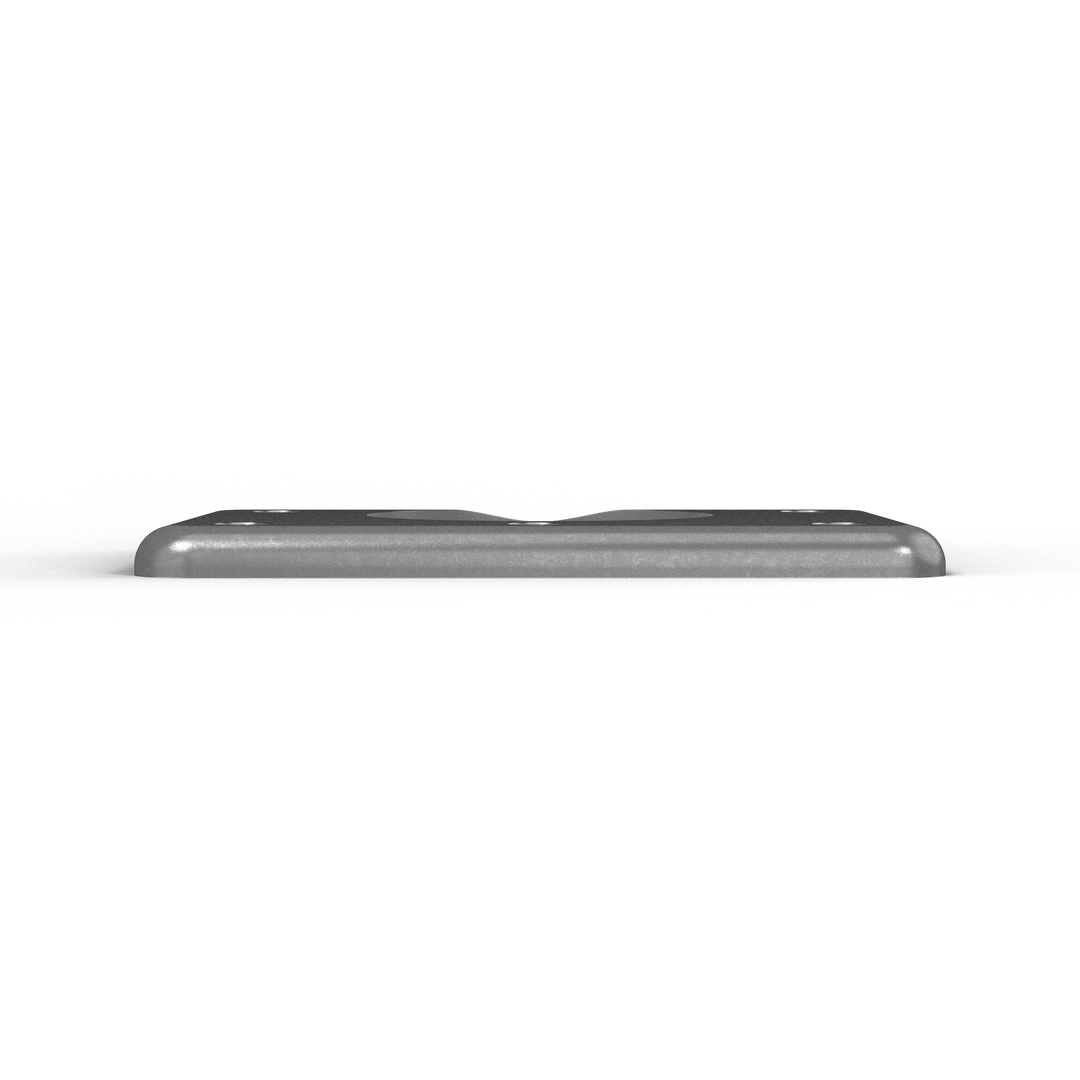

0014-R 3/8" Thick 6.25" x 4.375" Rectangular Aluminum Countersunk Pad - Top View

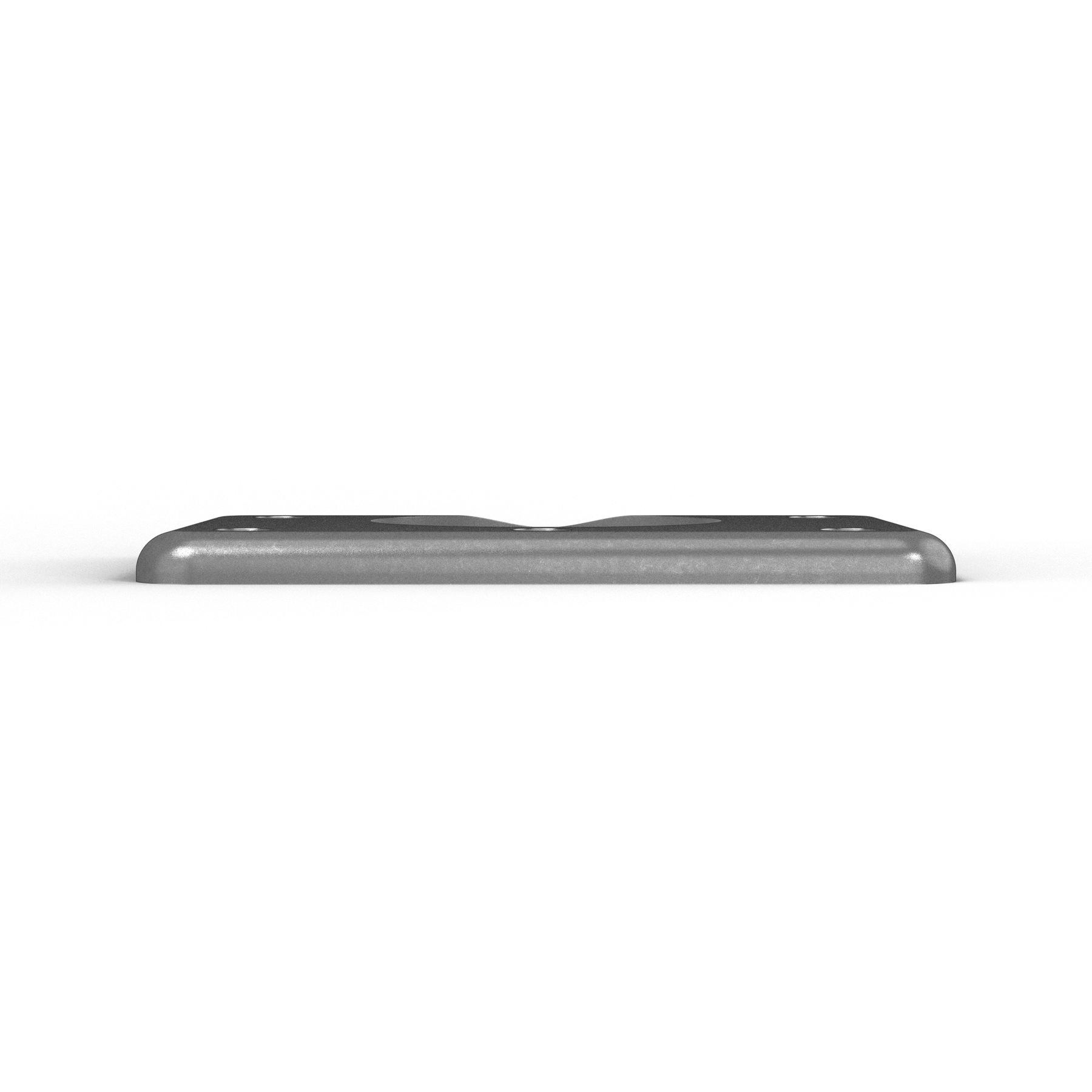

0014-R 3/8" Thick 6.25" x 4.375" Rectangular Aluminum Countersunk Pad - Side Profile
0014-R 3/8" Thick 6.25" x 4.375" Rectangular Aluminum Countersunk Pad - ISO View
0014-R 3/8" Thick 6.25" x 4.375" Rectangular Aluminum Countersunk Pad - Spec Sheet Drawing
0014-R 3/8" Thick 6.25" x 4.375" Rectangular Aluminum Countersunk Pad - Top View
0014-R 3/8" Thick 6.25" x 4.375" Rectangular Aluminum Countersunk Pad - Side Profile
0014-R 3/8" Thick 6.25" x 4.375" Rectangular Aluminum Countersunk Pad - Interactive 3D Model

3/8" Thick 6.25" x 4.375" Rectangular Aluminum Countersunk Pad | 3" Center Vent | Right Hand | Marine Grade 6061-T6

Part Number: 0014-R

$ 23.00
/

6.25" x 4.375" Rectangular Aluminum Countersunk Pad — Right hand use.

CNC-machined rectangular countersunk pad with 3" center vent, designed for routing a 3" round pipe through deck surfaces while providing secure flush-mount fastening in marine environments. Countersunk holes allow screw heads to sit flush for a clean, professional finish.

Key Specifications

  • Material: Marine Grade 6061-T6 Aluminum.
  • Outer Dimensions: 6.25" x 4.375".
  • Thickness: 0.375" (3/8").
  • Center Vent: 3" diameter pass-through for round pipe.
  • Mounting Holes: 4 countersunk 5/16" holes.
  • Shape: Rectangular with radii corners.
  • Orientation: Right hand use.

Finish: Matte. Lightly tumbled for deburring. Paint/powder coat ready.

Applications: T-tops, tuna towers, hard tops, radar arches, leaning posts, grab bars, bow rails, outrigger mounts, rod holders.

Marine-grade 6061-T6 aluminum — suitable for saltwater environments per ABYC standards.

Trust Welding World, Inc. for your marine hardware — precision-cut aluminum components for professional marine fabrication.

Shipping: 1–2 work days.

  • Local pickup available
  • One Business Day Shipping
  • Call us Mon.-Fri. 9:00 a.m. to 4:00 p.m. if in any doubt.

Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
