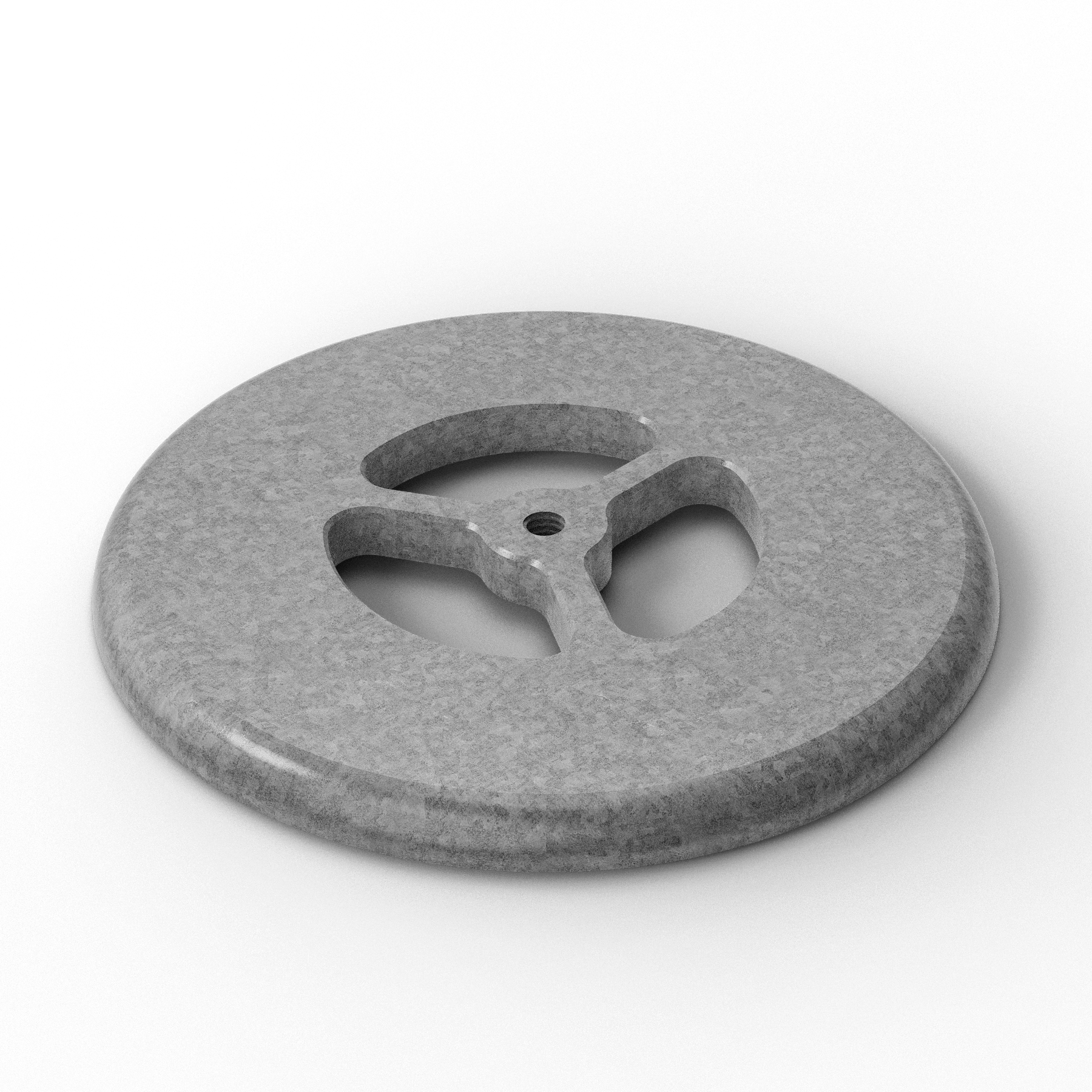

0013 3/8" Thick 6" OD Round Aluminum S-Pad - ISO View

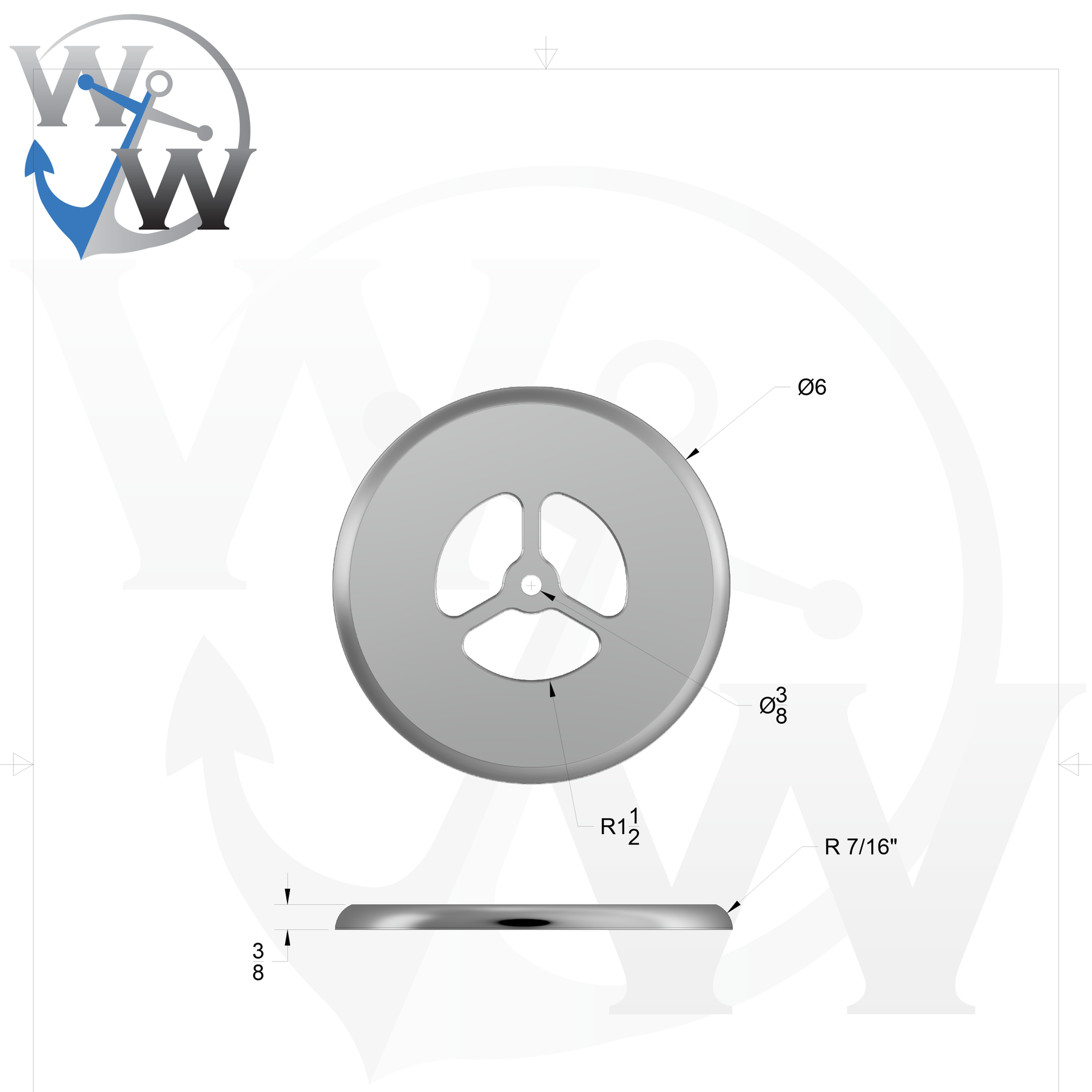

0013 3/8" Thick 6" OD Round Aluminum S-Pad - Spec Sheet Drawing

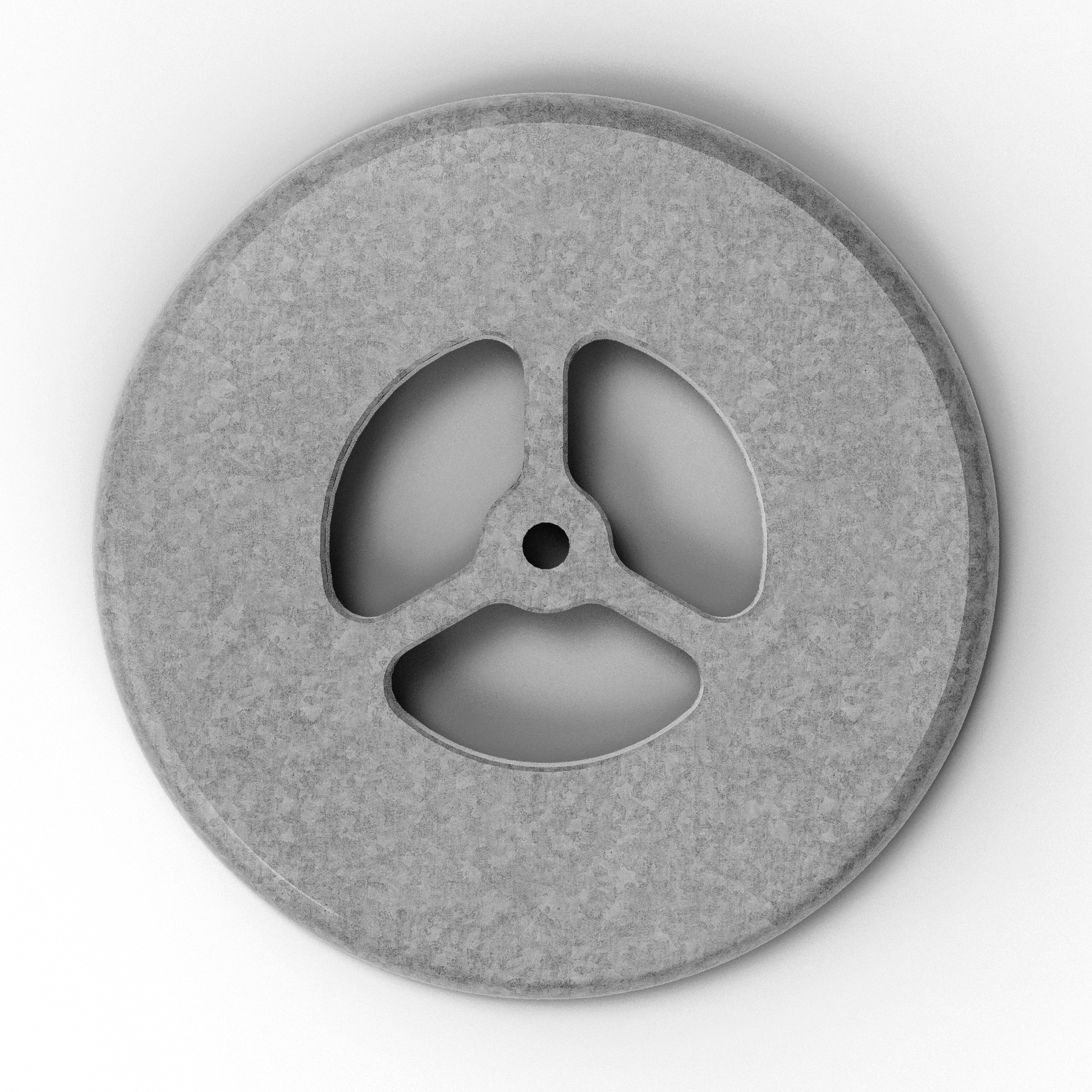

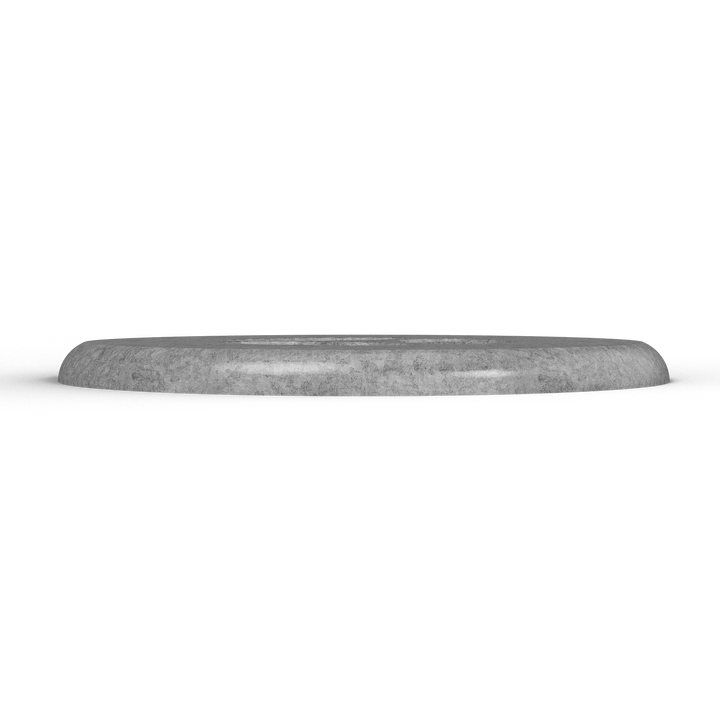

0013 3/8" Thick 6" OD Round Aluminum S-Pad - Top View

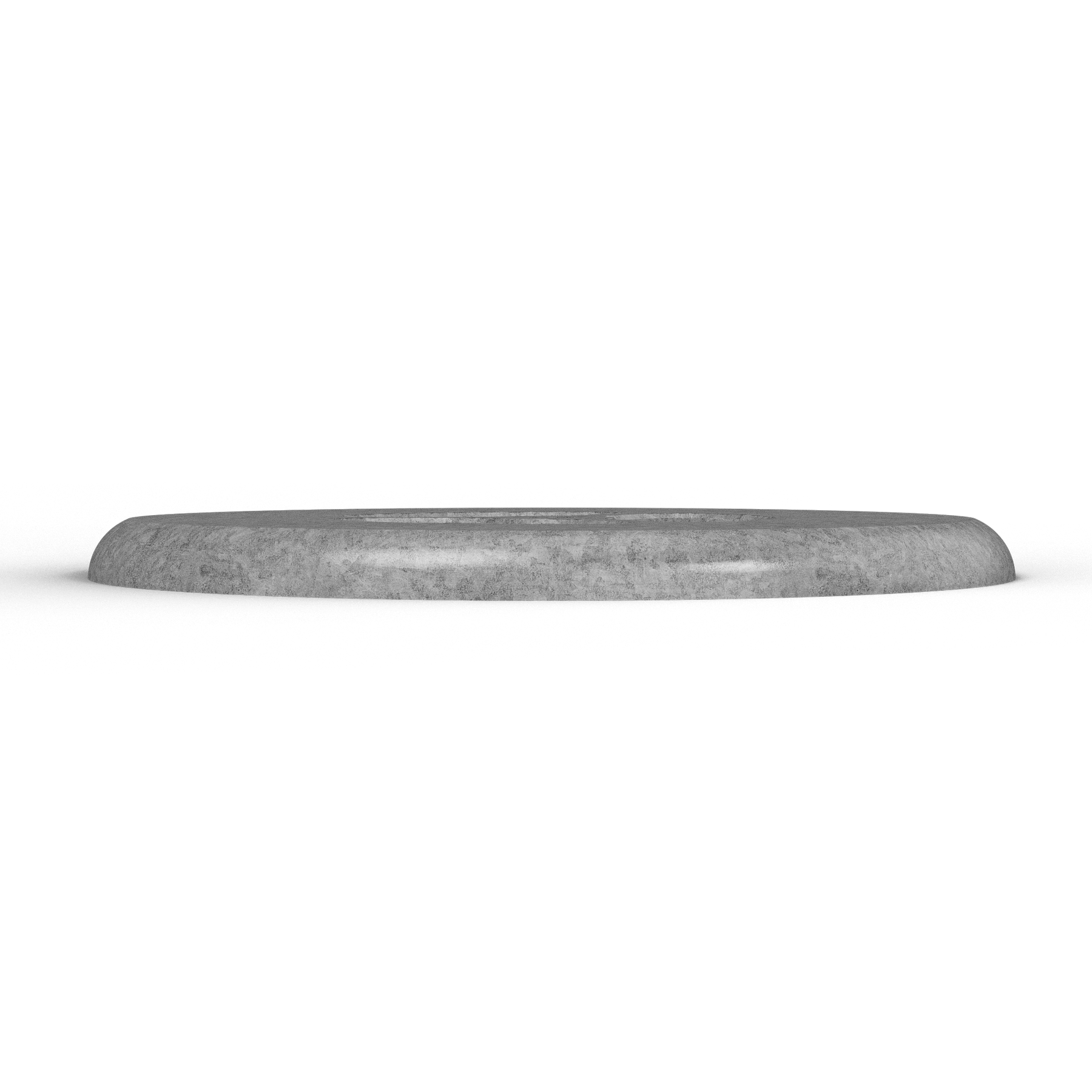

0013 3/8" Thick 6" OD Round Aluminum S-Pad - Side Profile

3/8" Thick 6" OD Round Aluminum S-Pad | 1-Hole Pattern | Marine Grade 6061-T6

Part Number: 0013

Regular price$ 26.00
/

CNC-machined round S-Pad designed for passing hoses and cables through deck surfaces in marine environments. The center hole allows hose and cable routing while maintaining a center screw point for secure mounting.

Key Specifications:

  • Outside Diameter: 6"
  • Thickness: 3/8" (0.375").
  • Center Hole: Pass-through pattern with threaded center (5/16"-18 UNC).
  • Material: 6061-T6 Aluminum.
  • Weight: 0.80 lb.

Finish: Matte. Lightly tumbled for deburring. Paint/powder coat ready.

Applications:T-tops, tuna towers, hard tops, radar arches, leaning posts, grab bars, bow rails, outrigger mounts, rod holders.

Marine-grade 6061-T6 aluminum — suitable for saltwater environments per ABYC standards.
