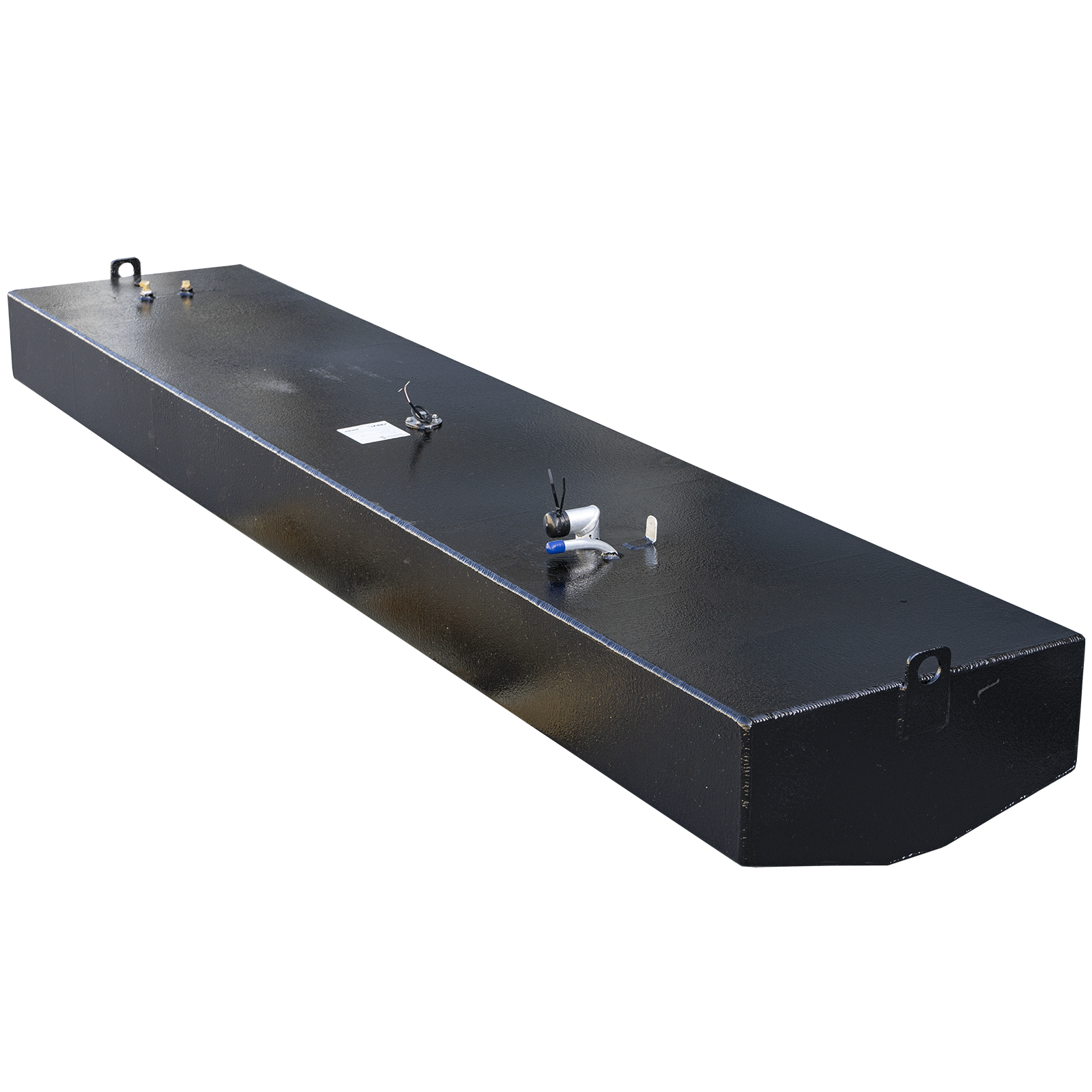

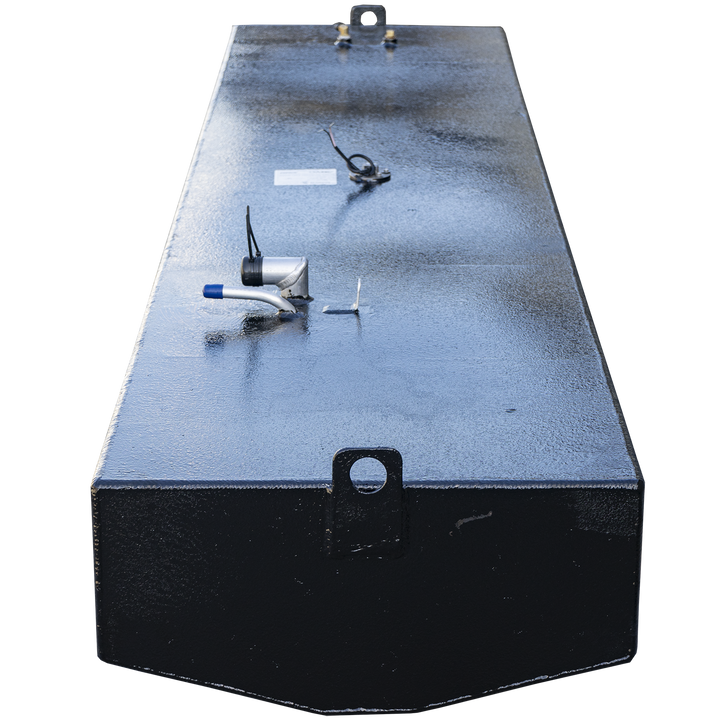

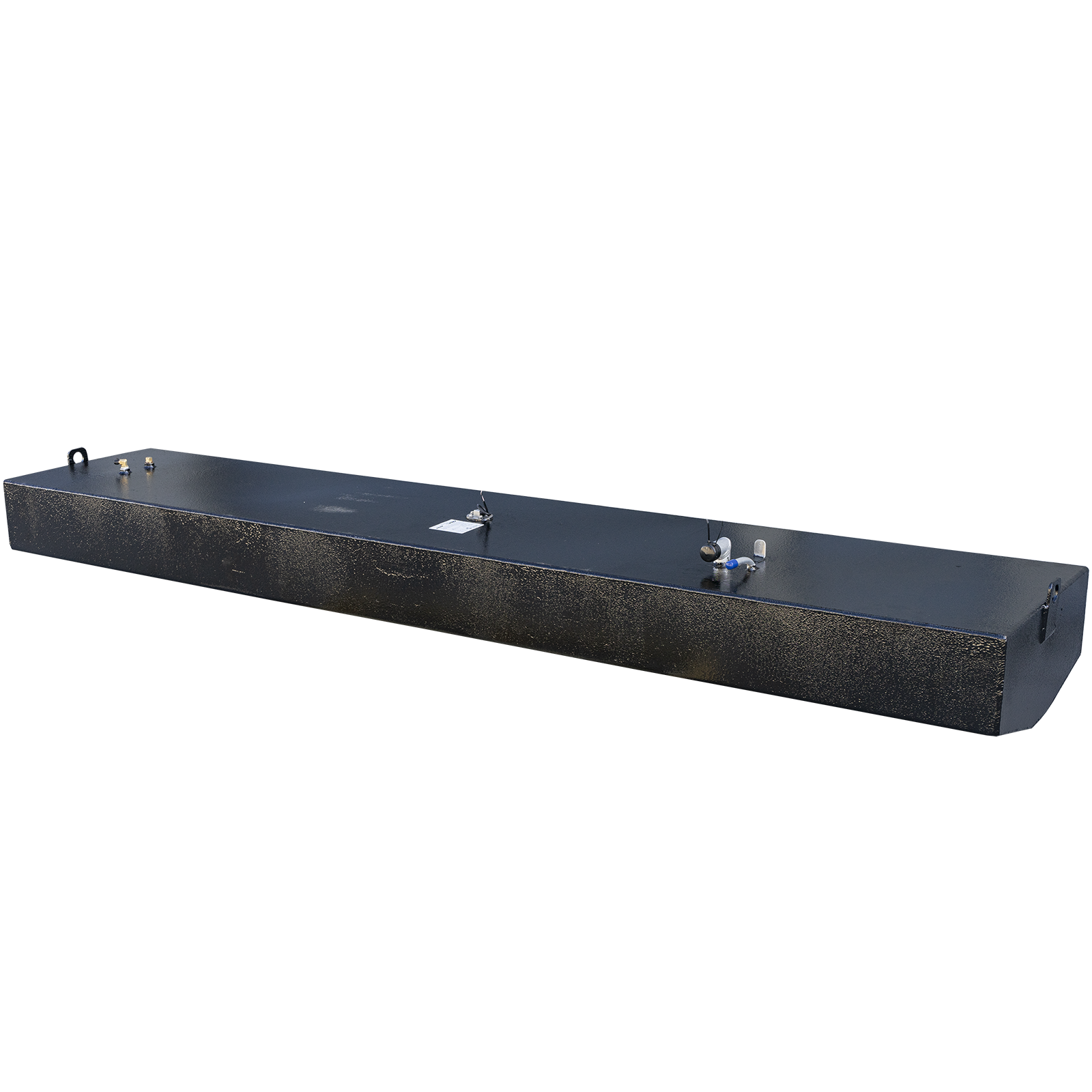

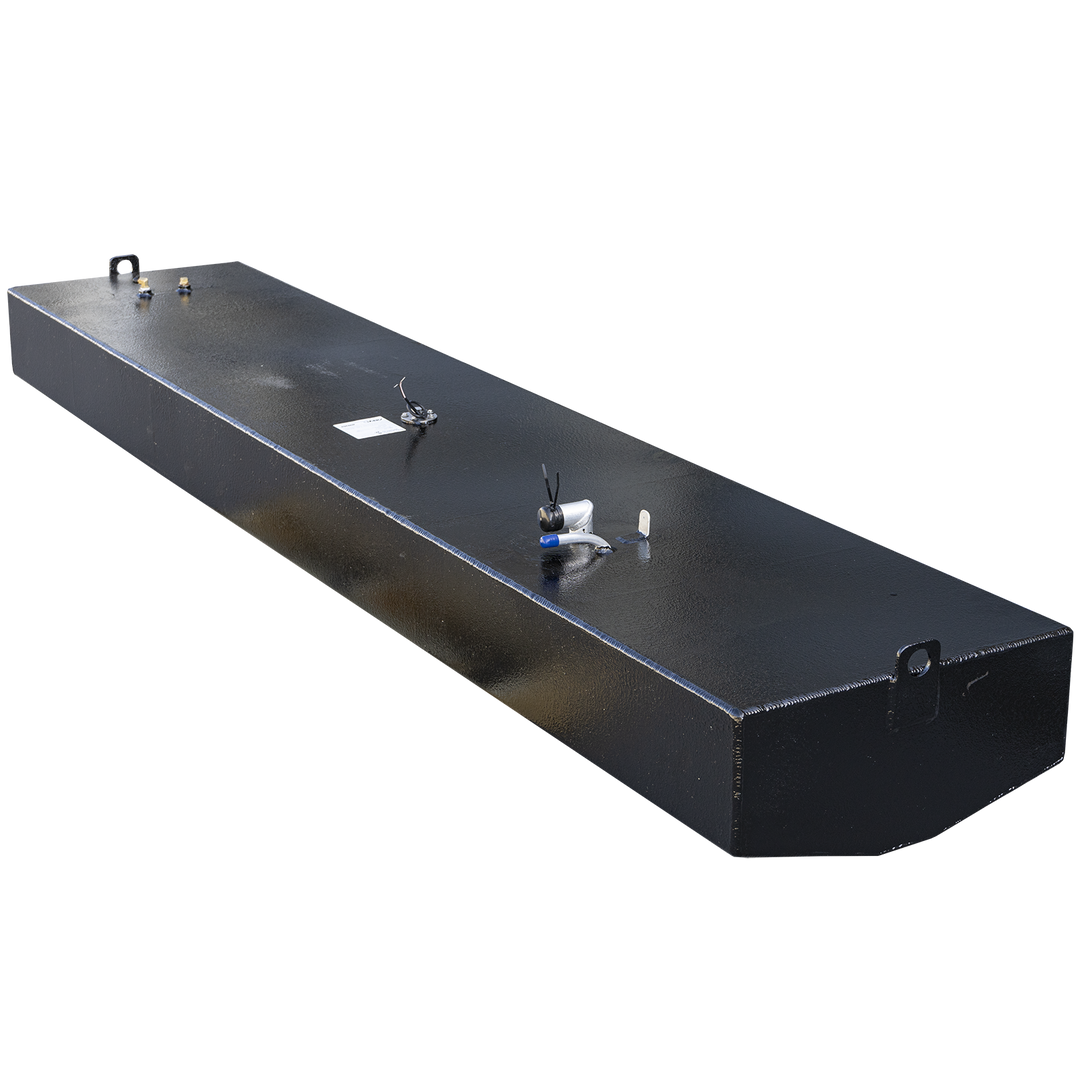

117-gallon gross capacity belly fuel tank for the 1995 Boston Whaler Outrage 21'. The matte black aluminum tank features a rectangular profile with a capped blue-handled shutoff valve positioned near the front edge, a central cylindrical sender unit with attached wiring, and a rear-mounted brass return fitting. A white certification label confirms .190″ 5052-H32 marine-grade aluminum construction and 9 psi test rating under 33 CFR § 183.510(a)

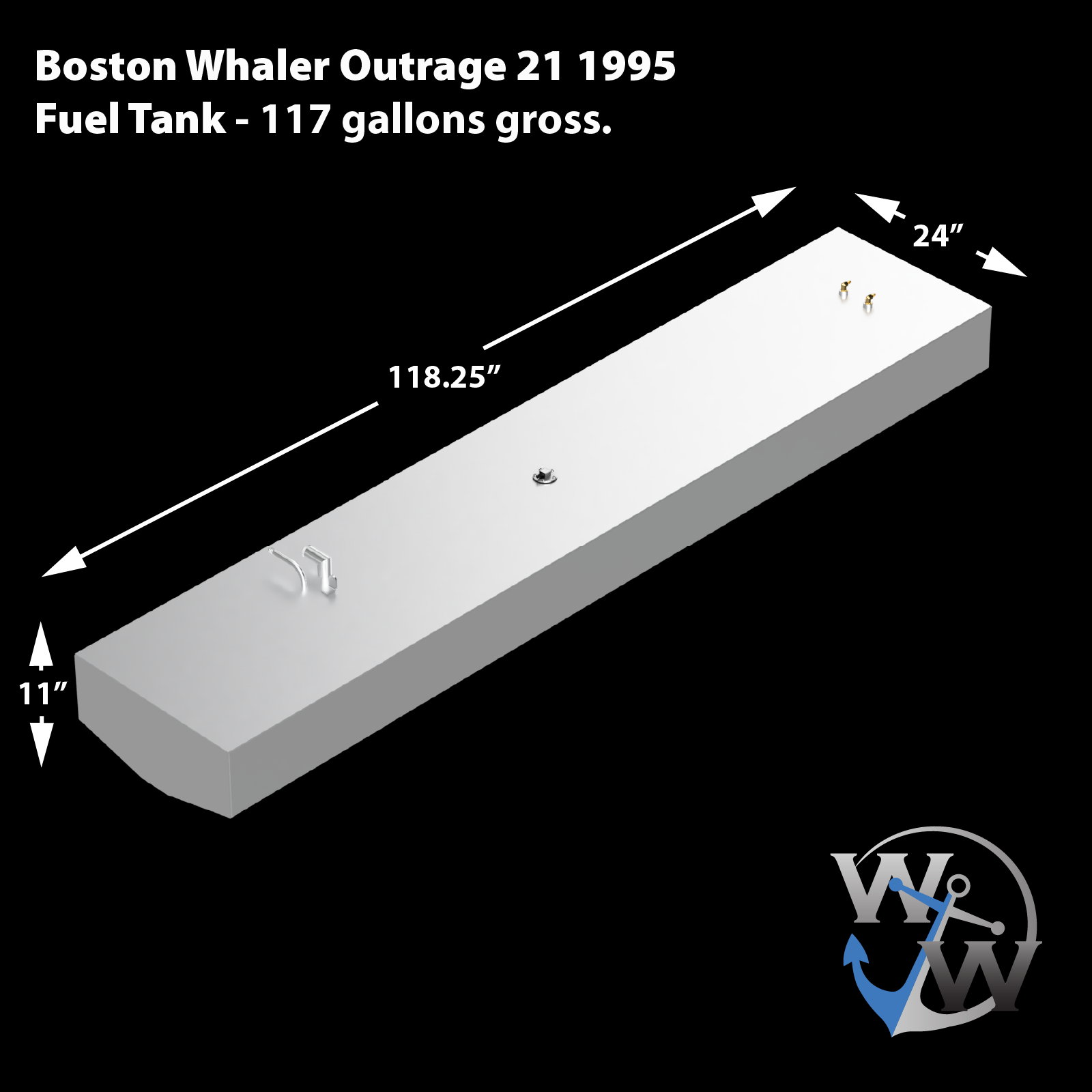

Schematic drawing of a 117-gallon gross capacity aluminum belly fuel tank tailored for the 1995 Boston Whaler Outrage 21' center console. The tank is dimensioned at 118.25″ (L) × 24″ (W) × 11″ (H) and shown in a 3D perspective view with clearly marked fittings and top-mounted hardware. Its streamlined rectangular profile is suited for underdeck installation, aiding weight balance and OEM-cavity fit. A “Whaler Wear” logo in the bottom right corner affirms the tank’s design origin and authenticity

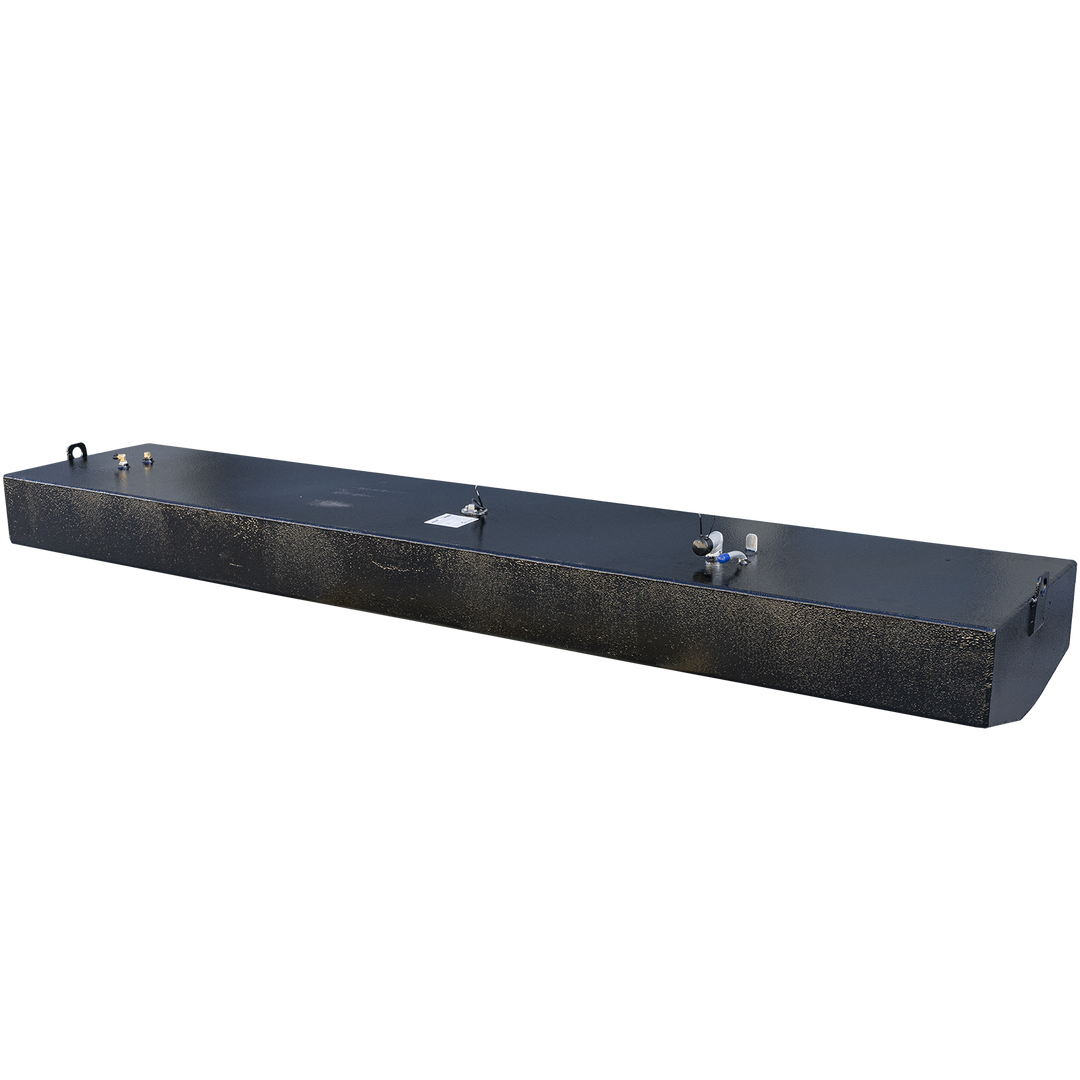

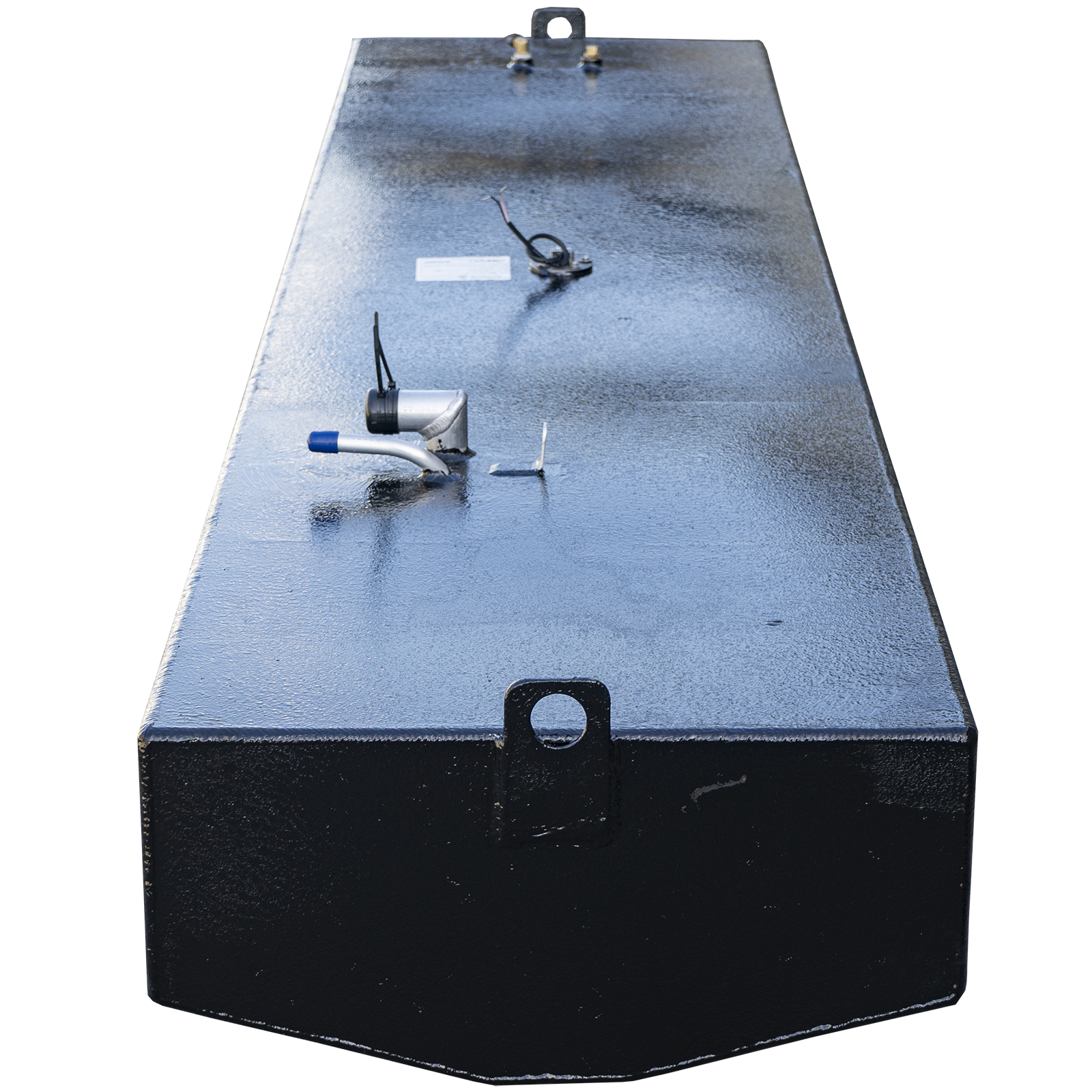

117-gallon gross capacity aluminum belly fuel tank designed for the 1995 Boston Whaler Outrage 21' center console. The tank features a matte black finish with a flat top surface, front-positioned blue-handled capped shutoff valve, a centrally mounted cylindrical sensor unit with attached wiring, and a rear-mounted dual brass return fitting. A white compliance label confirms .190″ 5052-H32 marine-grade aluminum construction, 9 psi test pressure rating under 33 CFR § 183.510(a), and adherence to ABYC and NMMA

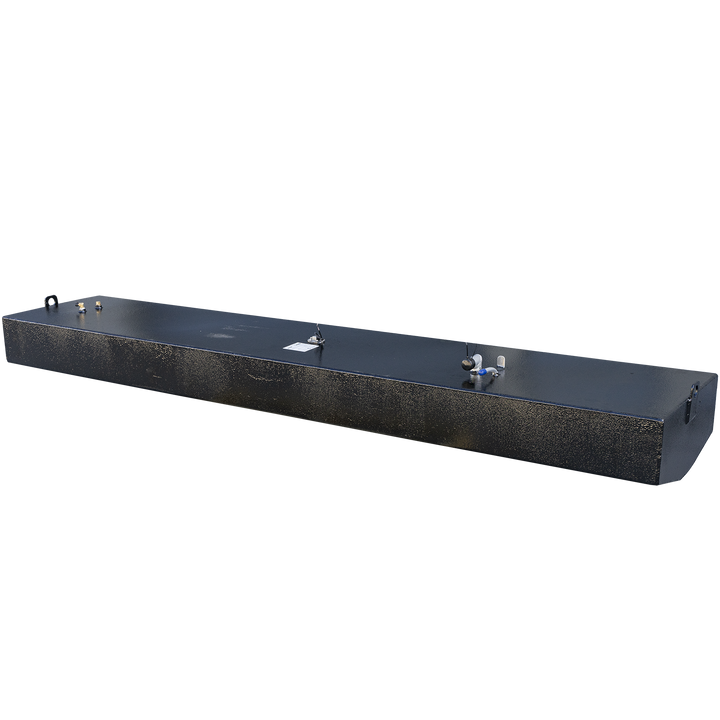

117-gallon gross capacity aluminum belly fuel tank designed for the 1995 Boston Whaler Outrage 21' center console. The tank is rendered with a matte black finish, rectangular layout, and isolated transparent background for visual clarity. Key top-side components include a capped blue-handled shutoff valve near the forward edge, a centrally mounted cylindrical sensor unit with black harness wiring, and a rear dual brass return fitting. The layout supports factory-aligned underdeck installation

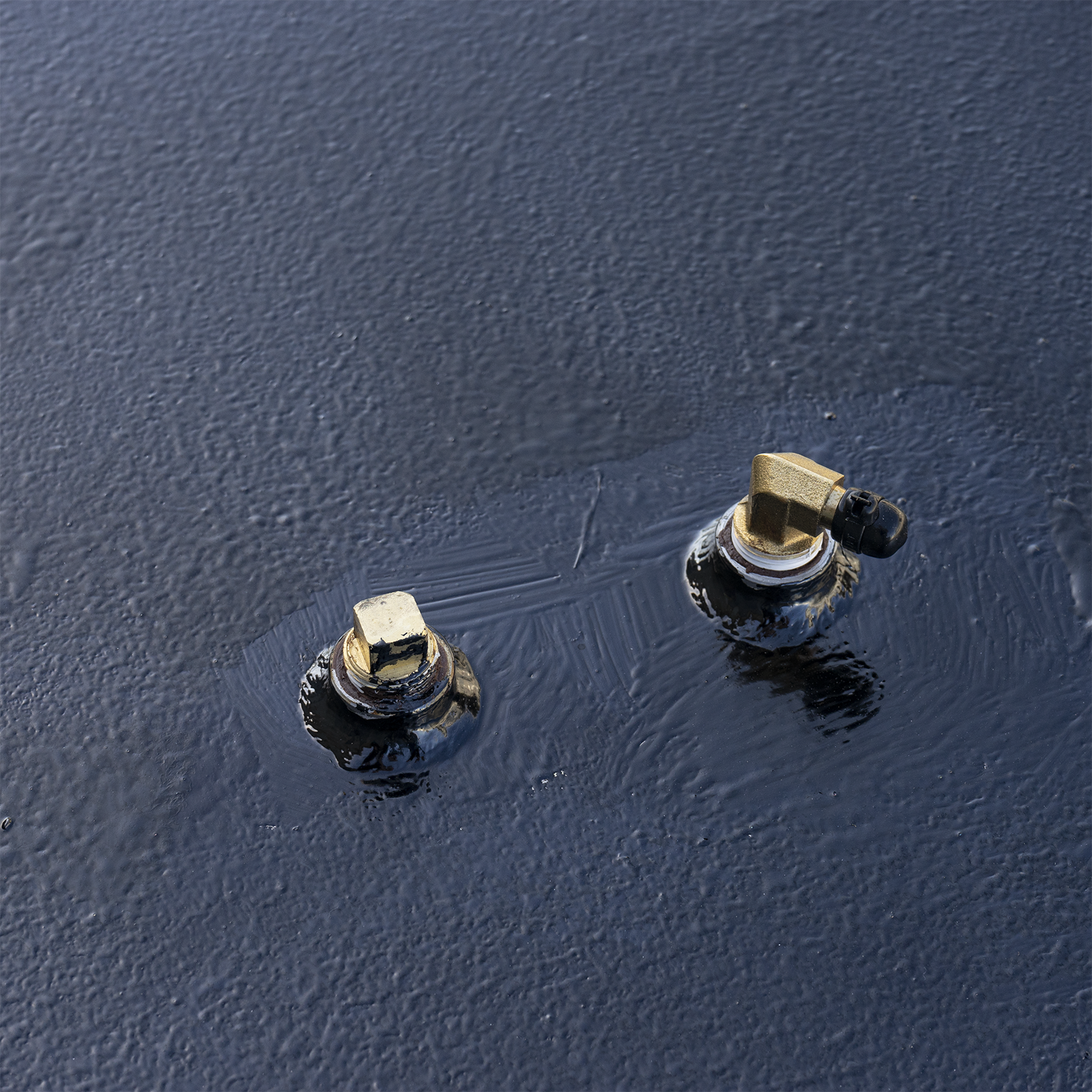

Detail view of the top-mounted components on a 117-gallon belly fuel tank for the 1995 Boston Whaler Outrage 21'. The image shows dual hex-head bolts embedded in a glossy black sealed surface, possibly indicating bonding or corrosion-resistant treatment. One bolt includes an attached brass or plated fitting, likely part of the fuel return or grounding path. The surrounding surface shows uneven application of the sealant, reinforcing its use in moisture resistance or dielectric isolation

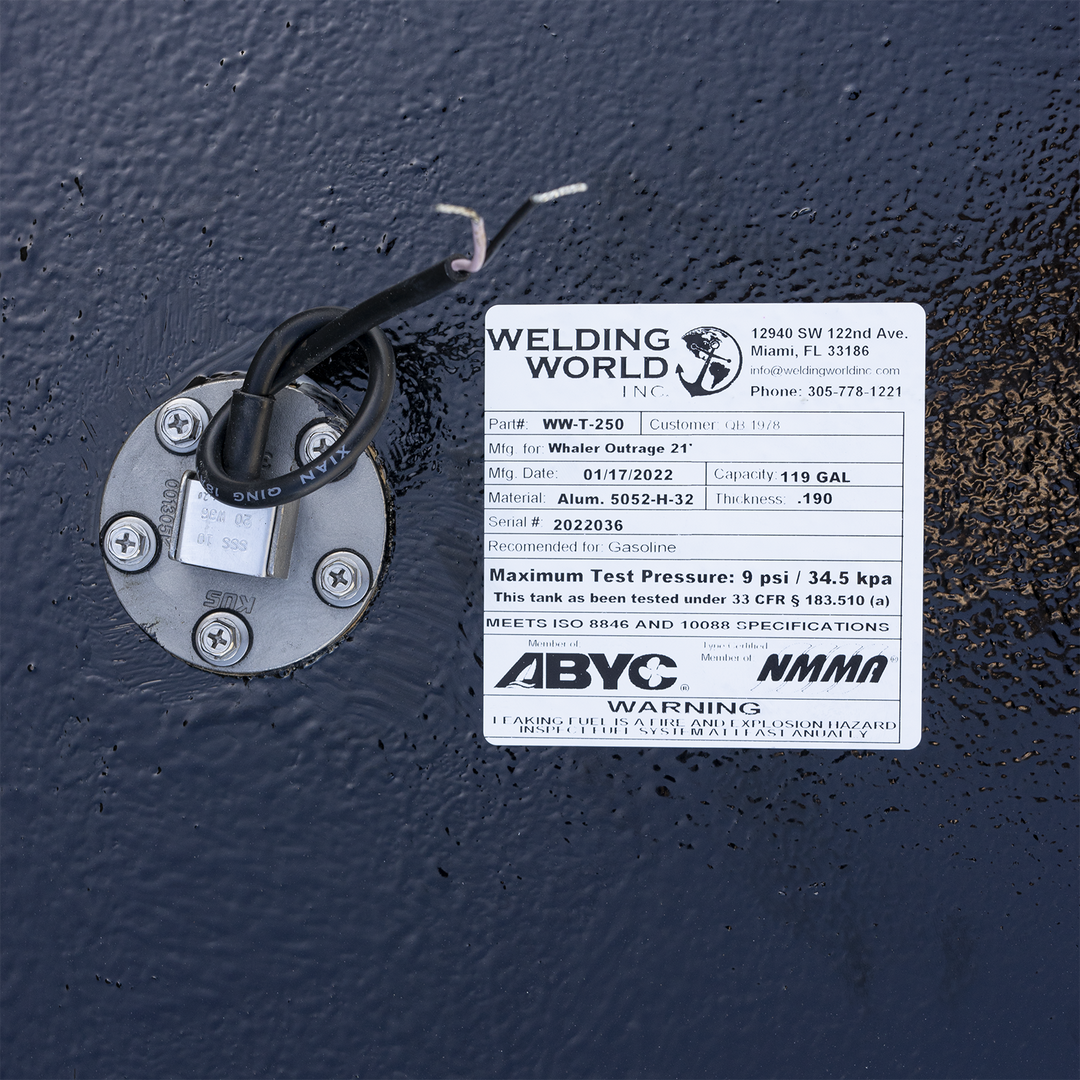

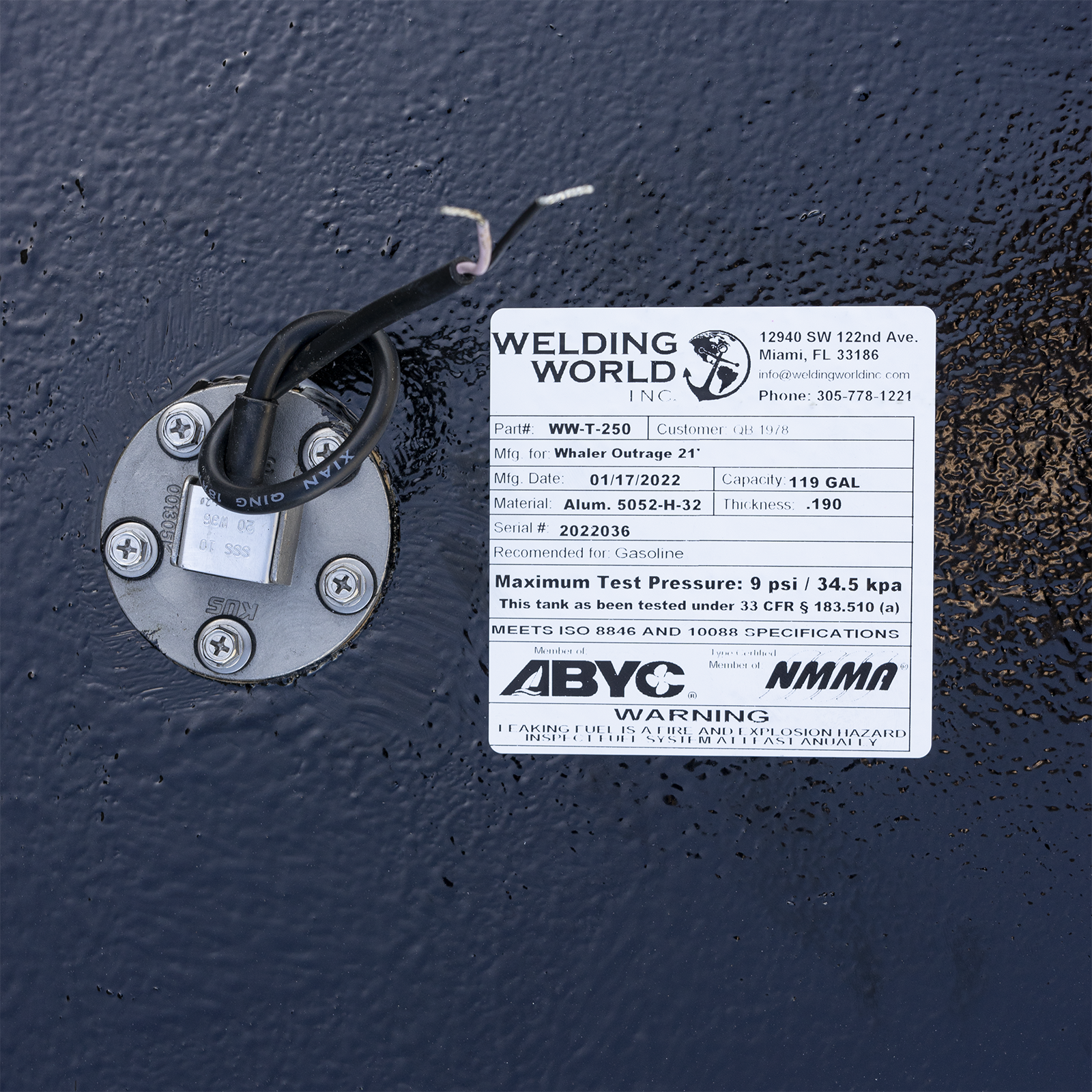

Certification label for the 117-gallon aluminum belly fuel tank installed in the 1995 Boston Whaler Outrage 21' center console. Issued by Welding World Inc. (Part #WW-T-250, Serial #2022036), the label confirms .190″ 5052-H32 marine-grade aluminum construction and gasoline compatibility. It specifies a 9 psi maximum test pressure in accordance with 33 CFR § 183.510(a), and cites compliance with ISO 8846 and ISO 10088 standards. Additional markings note ABYC and NMMA certifications. A printed warning stresse
117-gallon gross capacity belly fuel tank for the 1995 Boston Whaler Outrage 21'. The matte black aluminum tank features a rectangular profile with a capped blue-handled shutoff valve positioned near the front edge, a central cylindrical sender unit with attached wiring, and a rear-mounted brass return fitting. A white certification label confirms .190″ 5052-H32 marine-grade aluminum construction and 9 psi test rating under 33 CFR § 183.510(a)
Schematic drawing of a 117-gallon gross capacity aluminum belly fuel tank tailored for the 1995 Boston Whaler Outrage 21' center console. The tank is dimensioned at 118.25″ (L) × 24″ (W) × 11″ (H) and shown in a 3D perspective view with clearly marked fittings and top-mounted hardware. Its streamlined rectangular profile is suited for underdeck installation, aiding weight balance and OEM-cavity fit. A “Whaler Wear” logo in the bottom right corner affirms the tank’s design origin and authenticity
Rendered model of a 117-gallon aluminum belly fuel tank designed for the 1995 Boston Whaler Outrage 21' center console. The white tank features a rectangular layout with distinct top-mounted hardware: two small cylindrical fittings toward the rear, a central circular component, and a front-mounted funnel-shaped fitting with a rectangular base. The clean, black background emphasizes form and proportions for use in CAD validation, installation planning, and OEM cavity fitting
117-gallon gross capacity aluminum belly fuel tank designed for the 1995 Boston Whaler Outrage 21' center console. The tank features a matte black finish with a flat top surface, front-positioned blue-handled capped shutoff valve, a centrally mounted cylindrical sensor unit with attached wiring, and a rear-mounted dual brass return fitting. A white compliance label confirms .190″ 5052-H32 marine-grade aluminum construction, 9 psi test pressure rating under 33 CFR § 183.510(a), and adherence to ABYC and NMMA
117-gallon gross capacity aluminum belly fuel tank designed for the 1995 Boston Whaler Outrage 21' center console. The tank is rendered with a matte black finish, rectangular layout, and isolated transparent background for visual clarity. Key top-side components include a capped blue-handled shutoff valve near the forward edge, a centrally mounted cylindrical sensor unit with black harness wiring, and a rear dual brass return fitting. The layout supports factory-aligned underdeck installation
Detail view of the top-mounted components on a 117-gallon belly fuel tank for the 1995 Boston Whaler Outrage 21'. The image shows dual hex-head bolts embedded in a glossy black sealed surface, possibly indicating bonding or corrosion-resistant treatment. One bolt includes an attached brass or plated fitting, likely part of the fuel return or grounding path. The surrounding surface shows uneven application of the sealant, reinforcing its use in moisture resistance or dielectric isolation
Certification label for the 117-gallon aluminum belly fuel tank installed in the 1995 Boston Whaler Outrage 21' center console. Issued by Welding World Inc. (Part #WW-T-250, Serial #2022036), the label confirms .190″ 5052-H32 marine-grade aluminum construction and gasoline compatibility. It specifies a 9 psi maximum test pressure in accordance with 33 CFR § 183.510(a), and cites compliance with ISO 8846 and ISO 10088 standards. Additional markings note ABYC and NMMA certifications. A printed warning stresse

Boston Whaler Outrage 21' 1995 - 117 gal. gross OEM replacement belly fuel tank

$ 2,200.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.

  • IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 2 work weeks. The finished tank pickup window is also 2 work weeks, so make sure you will be able to take delivery of your finished tank within that timeframe.

  • Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.

  • .190 thickness Alcoa® 5052 H32 Series aluminum construction.

  • Hand welded GTAW (TIG) welded to exceed ASME / ASW D3.7:2004 standards.

  • Sherwin Williams® TarGard® Epoxy painted for the best marine environment protection.

  • KUS® (ex-WEMA USA®) reed switch sender with NBR float fuel level.

 NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!

Fabrication lead time (before shipping): 2 work weeks.

Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.



Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
