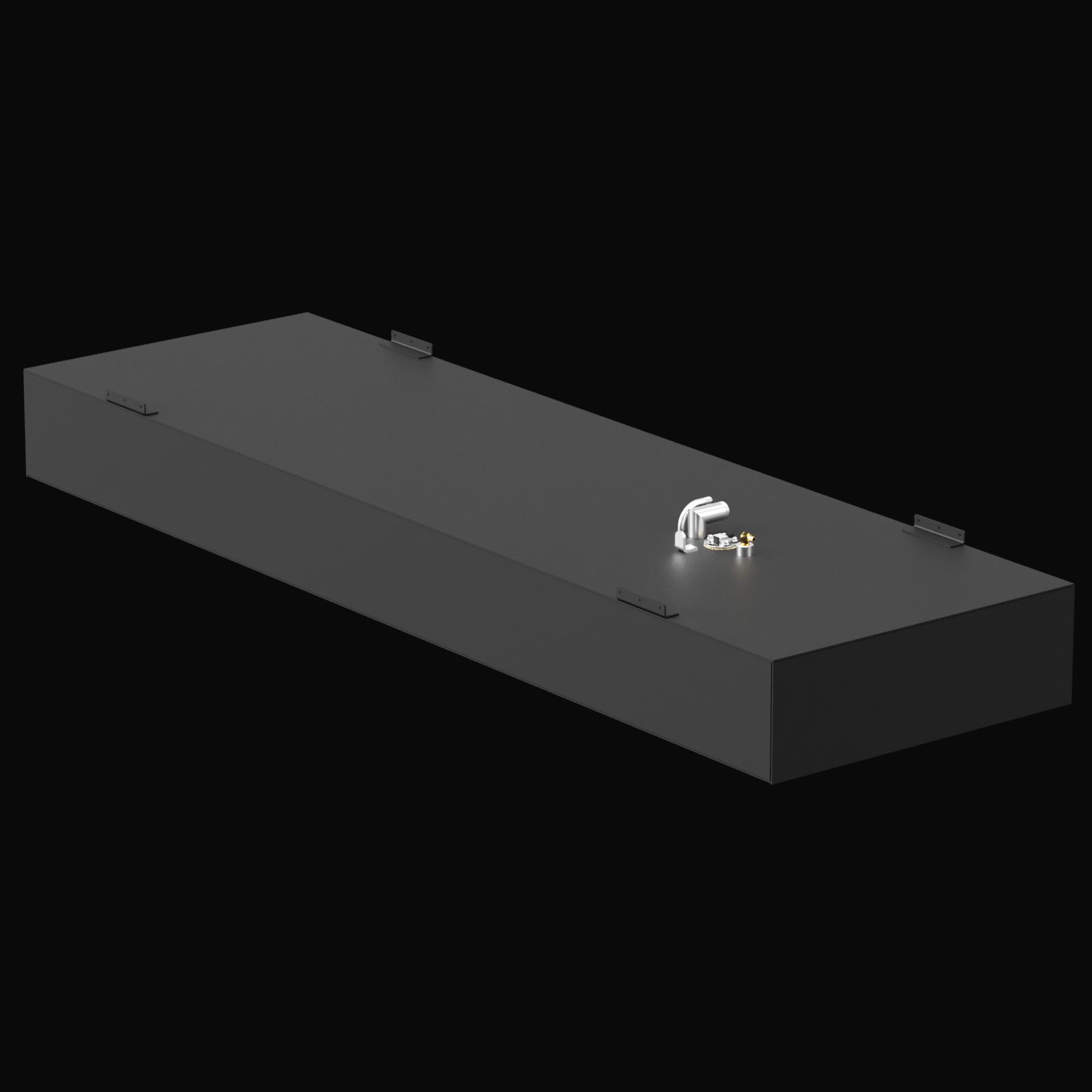

Isometric top-front view of a 120-gallon black rectangular fuel tank labeled “C.Haw245FuelTank,” featuring metal mounting brackets on the sides and a fuel fitting assembly mounted on the top surface.

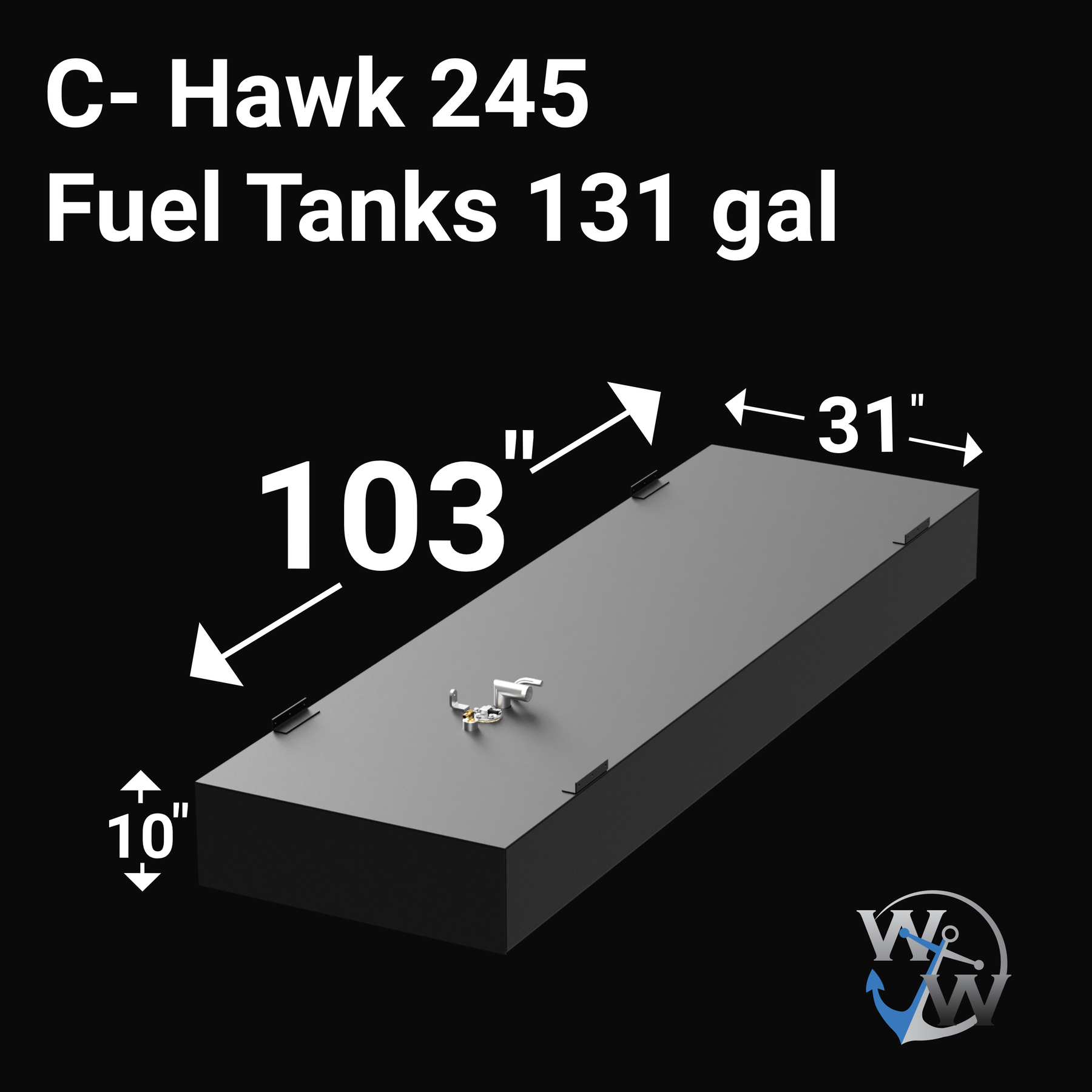

Isometric top-front view of a C-Hawk 245 fuel tank with labeled dimensions: 103 inches in length, 31 inches in width, and 10 inches in height. The tank is black with metal mounting tabs and a central fuel fitting assembly on top. Text at the top reads “C-Hawk 245 Fuel Tanks 131 gal,” and the Welding World logo appears in the bottom-right corner.

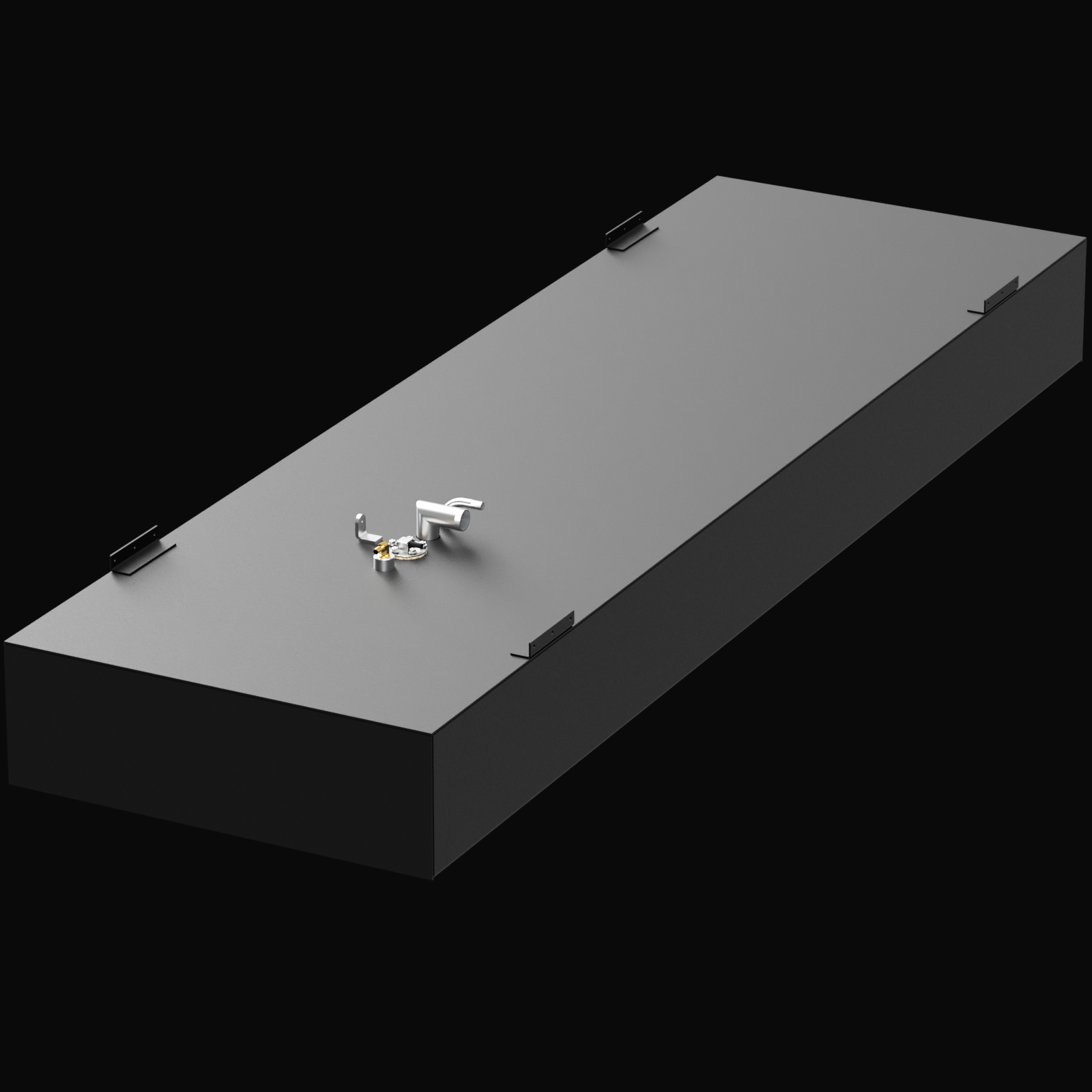

Isometric top-rear view of a black rectangular marine fuel tank featuring six mounting tabs along the sides and a top-mounted fuel fitting assembly with multiple connectors. The tank has a clean, industrial design and appears to be fabricated from metal.

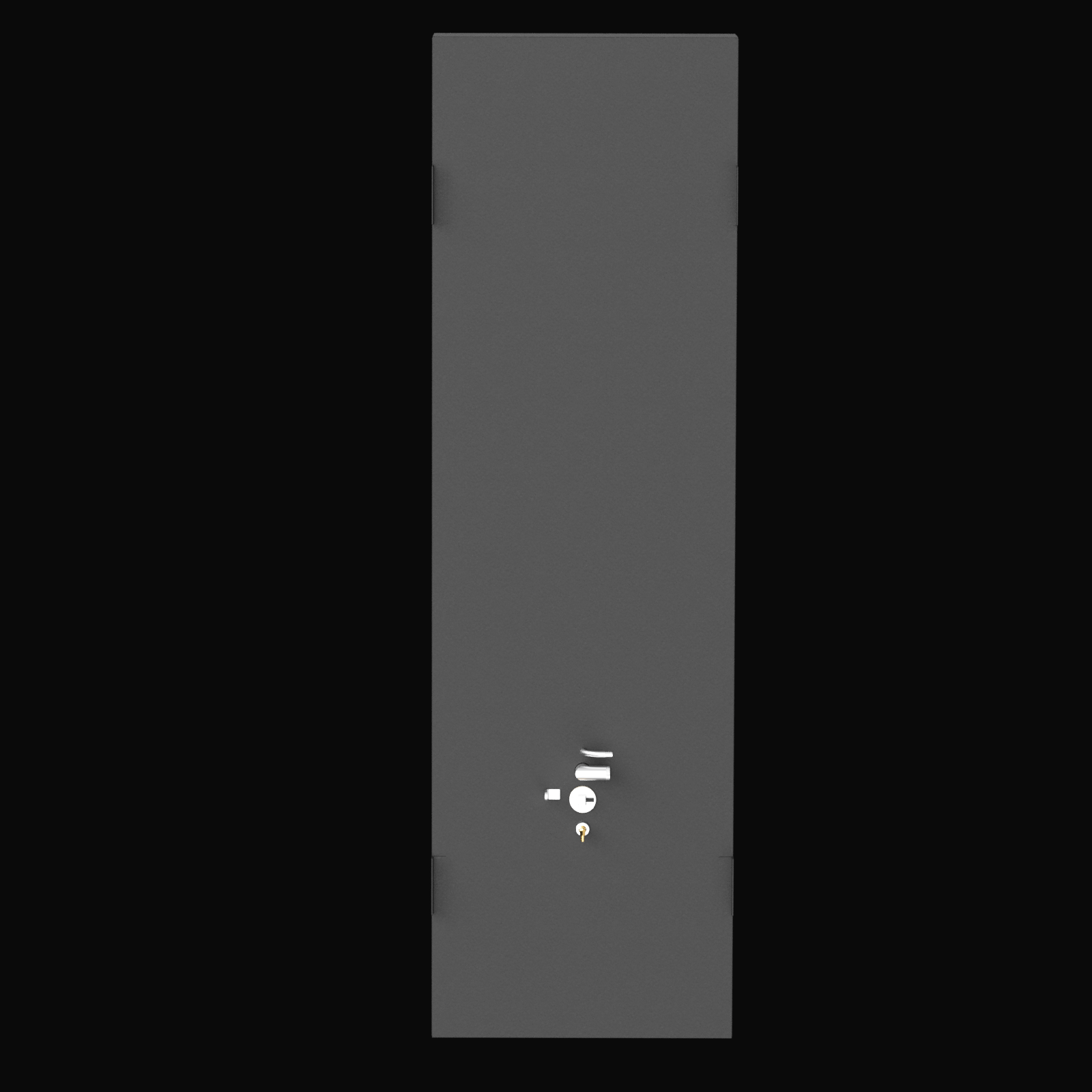

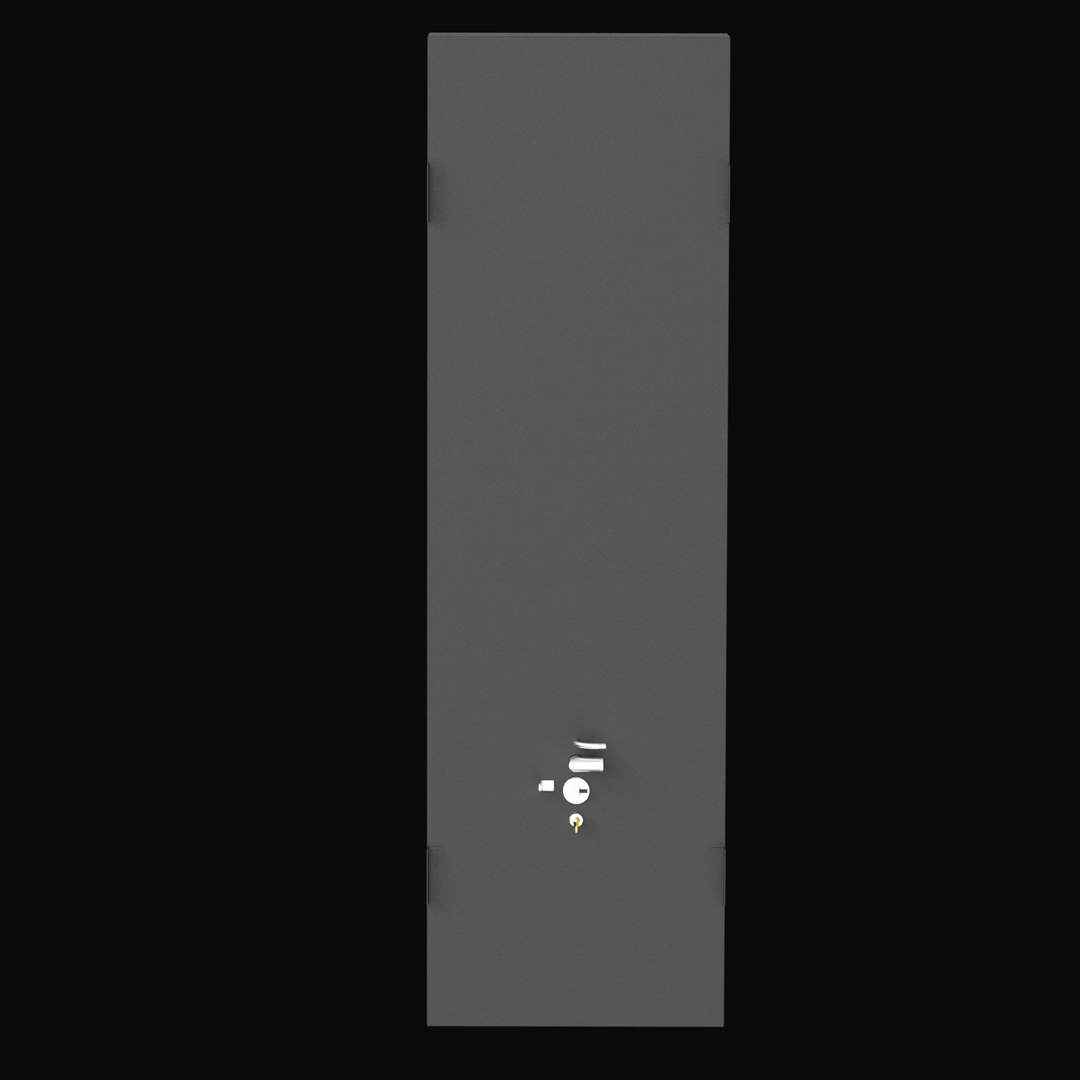

Top-down orthographic view of a black rectangular marine fuel tank showing a cluster of fuel fittings positioned off-center. The tank features side mounting tabs, and the fittings include multiple metal connectors and a brass drain or valve.

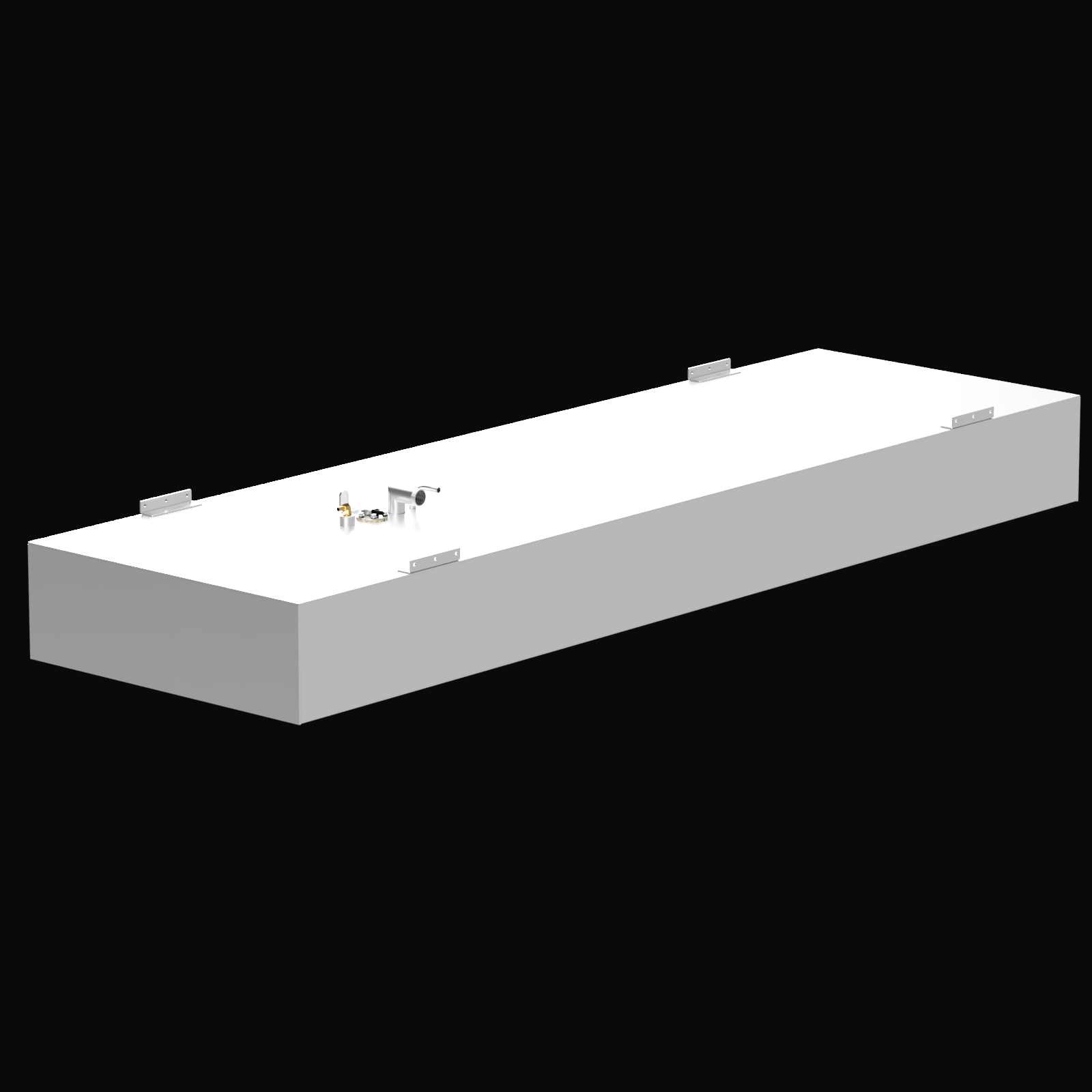

Isometric top-front view of a white rectangular marine fuel tank with six mounting tabs along the sides and a top-mounted fitting assembly that includes metal connectors and a brass valve. The tank has a clean finish and industrial design suitable for marine applications.
Straight-on front view of a black rectangular marine fuel tank, showcasing the top-mounted fuel fitting assembly in the center. The fittings include a metallic elbow connector with a visible brass valve and surrounding support components. Mounting tabs are visible along the tank’s upper edge.
Isometric top-front view of a 120-gallon black rectangular fuel tank labeled “C.Haw245FuelTank,” featuring metal mounting brackets on the sides and a fuel fitting assembly mounted on the top surface.
Isometric top-front view of a C-Hawk 245 fuel tank with labeled dimensions: 103 inches in length, 31 inches in width, and 10 inches in height. The tank is black with metal mounting tabs and a central fuel fitting assembly on top. Text at the top reads “C-Hawk 245 Fuel Tanks 131 gal,” and the Welding World logo appears in the bottom-right corner.
Isometric top-rear view of a black rectangular marine fuel tank featuring six mounting tabs along the sides and a top-mounted fuel fitting assembly with multiple connectors. The tank has a clean, industrial design and appears to be fabricated from metal.
Top-down orthographic view of a black rectangular marine fuel tank showing a cluster of fuel fittings positioned off-center. The tank features side mounting tabs, and the fittings include multiple metal connectors and a brass drain or valve.
Isometric top-front view of a white rectangular marine fuel tank with six mounting tabs along the sides and a top-mounted fitting assembly that includes metal connectors and a brass valve. The tank has a clean finish and industrial design suitable for marine applications.
Straight-on front view of a black rectangular marine fuel tank, showcasing the top-mounted fuel fitting assembly in the center. The fittings include a metallic elbow connector with a visible brass valve and surrounding support components. Mounting tabs are visible along the tank’s upper edge.

C-Hawk 245 Fuel Tanks 131 gal

$ 2,200.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.

  • IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 2 work weeks. The finished tank pickup window is also 2 work weeks, so make sure you will be able to take delivery of your finished tank within that timeframe.

  • Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.

  • .190 thickness Alcoa® 5052 H32 Series aluminum construction.

  • Hand welded GTAW (TIG) welded to exceed ASME / ASW D3.7:2004 standards.

  • Sherwin Williams® TarGard® Epoxy painted for the best marine environment protection.

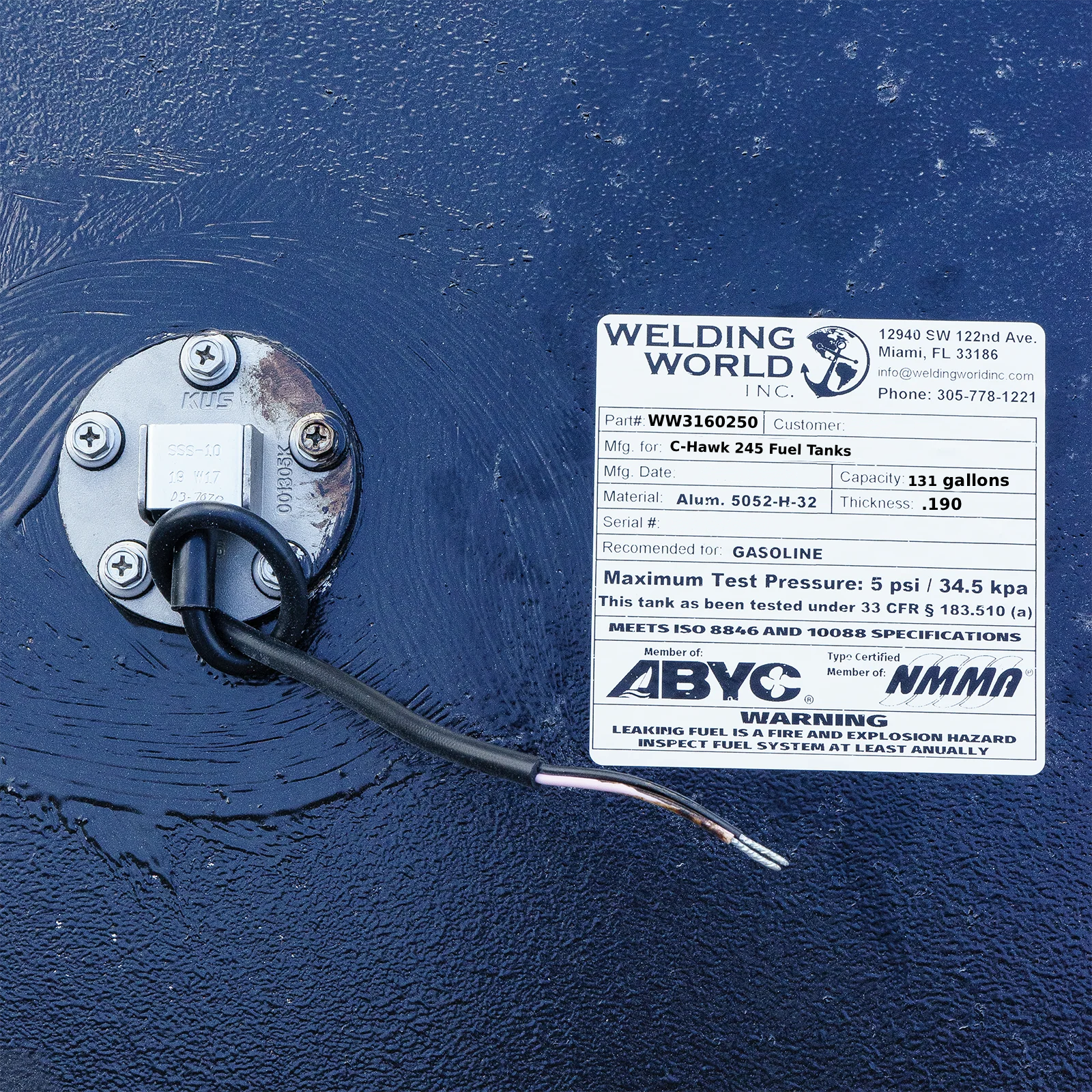

  • KUS® (ex-WEMA USA®) reed switch sender with NBR float fuel level.

 NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!

Fabrication lead time (before shipping): 2 work weeks.

Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.



Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
