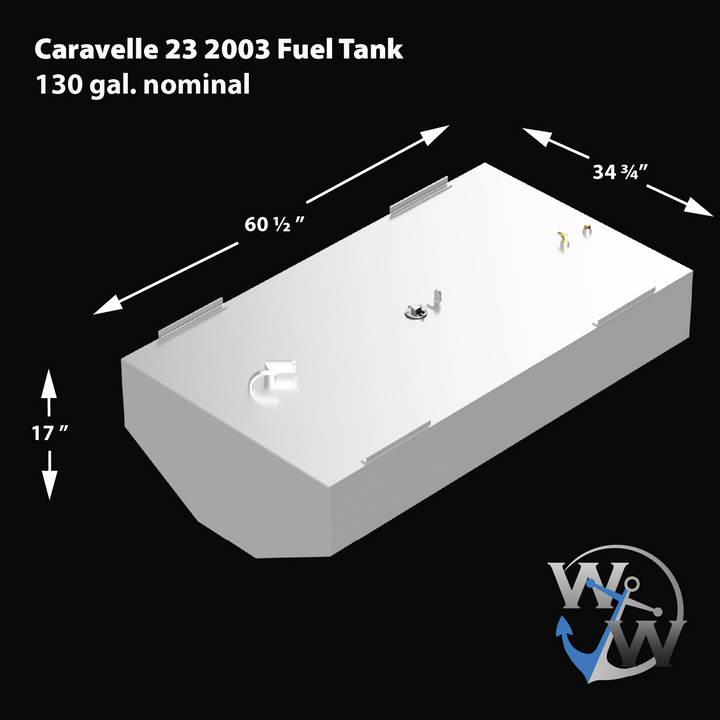

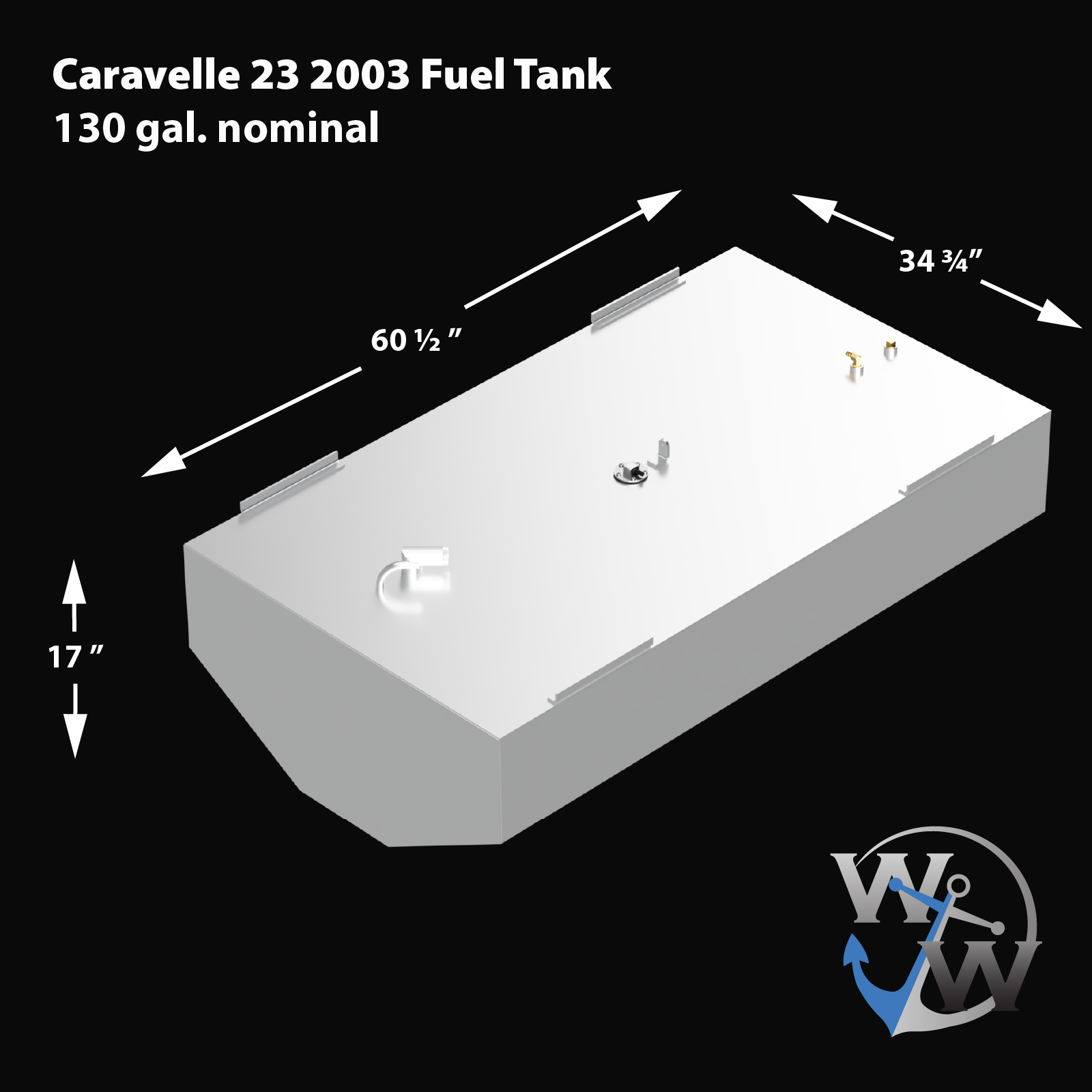

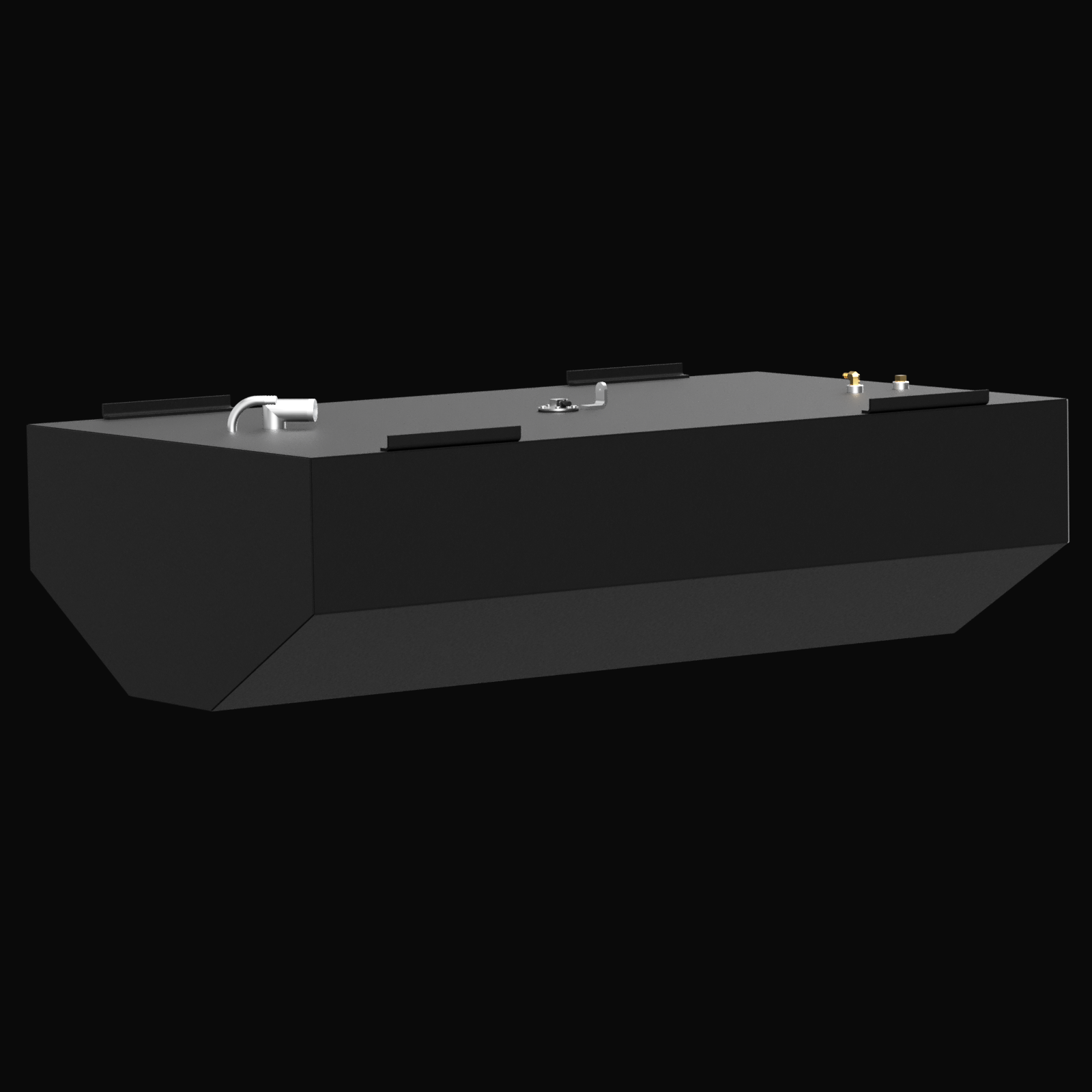

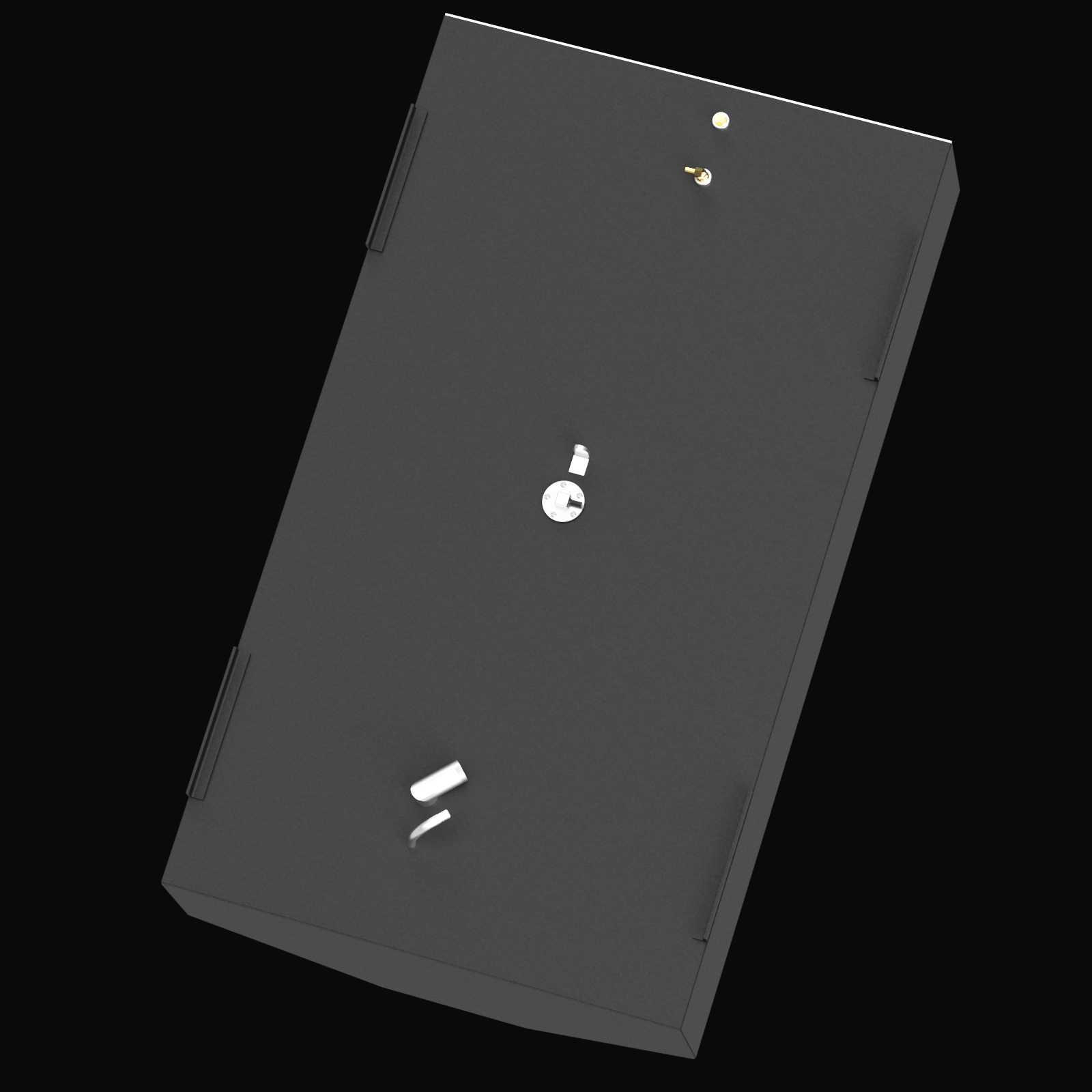

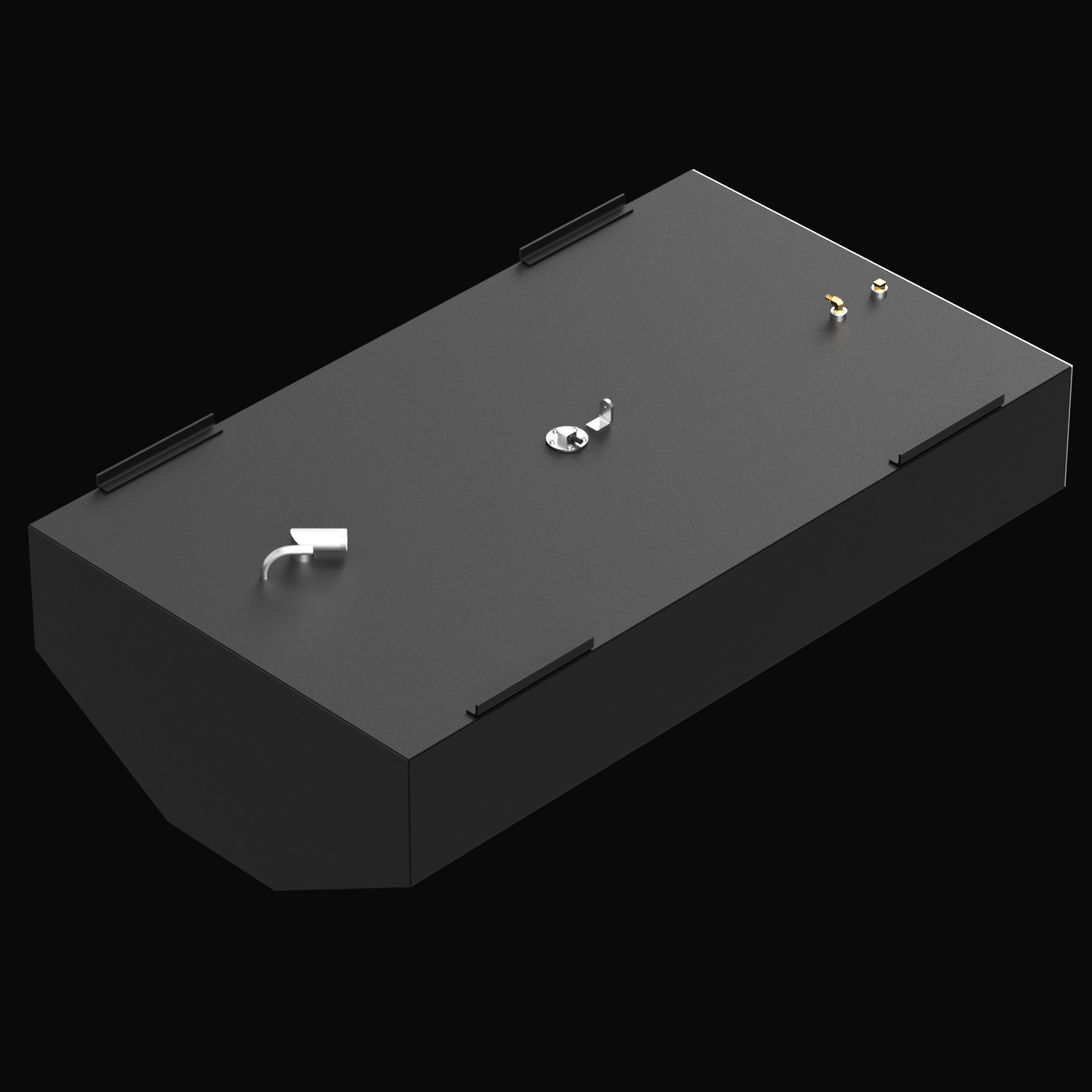

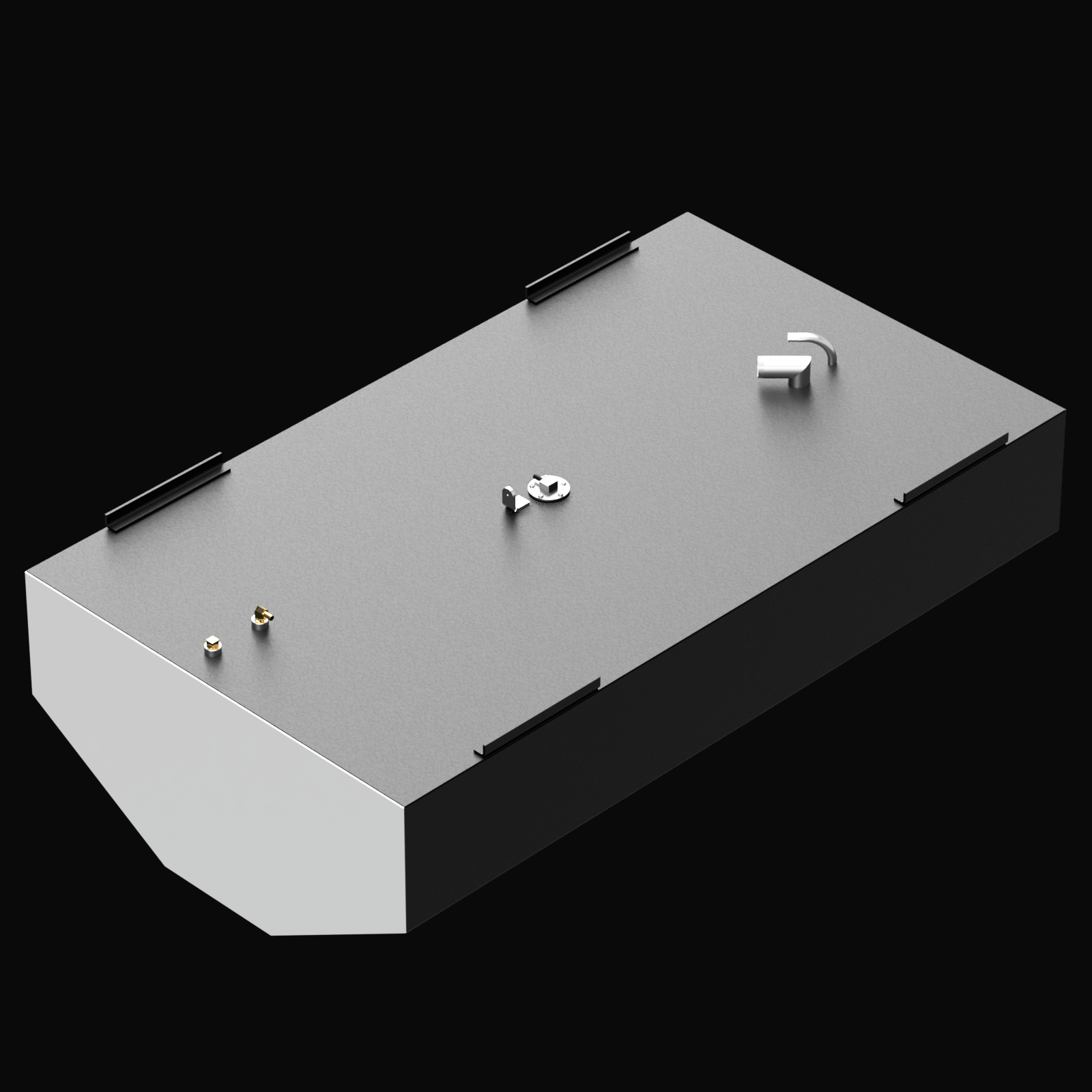

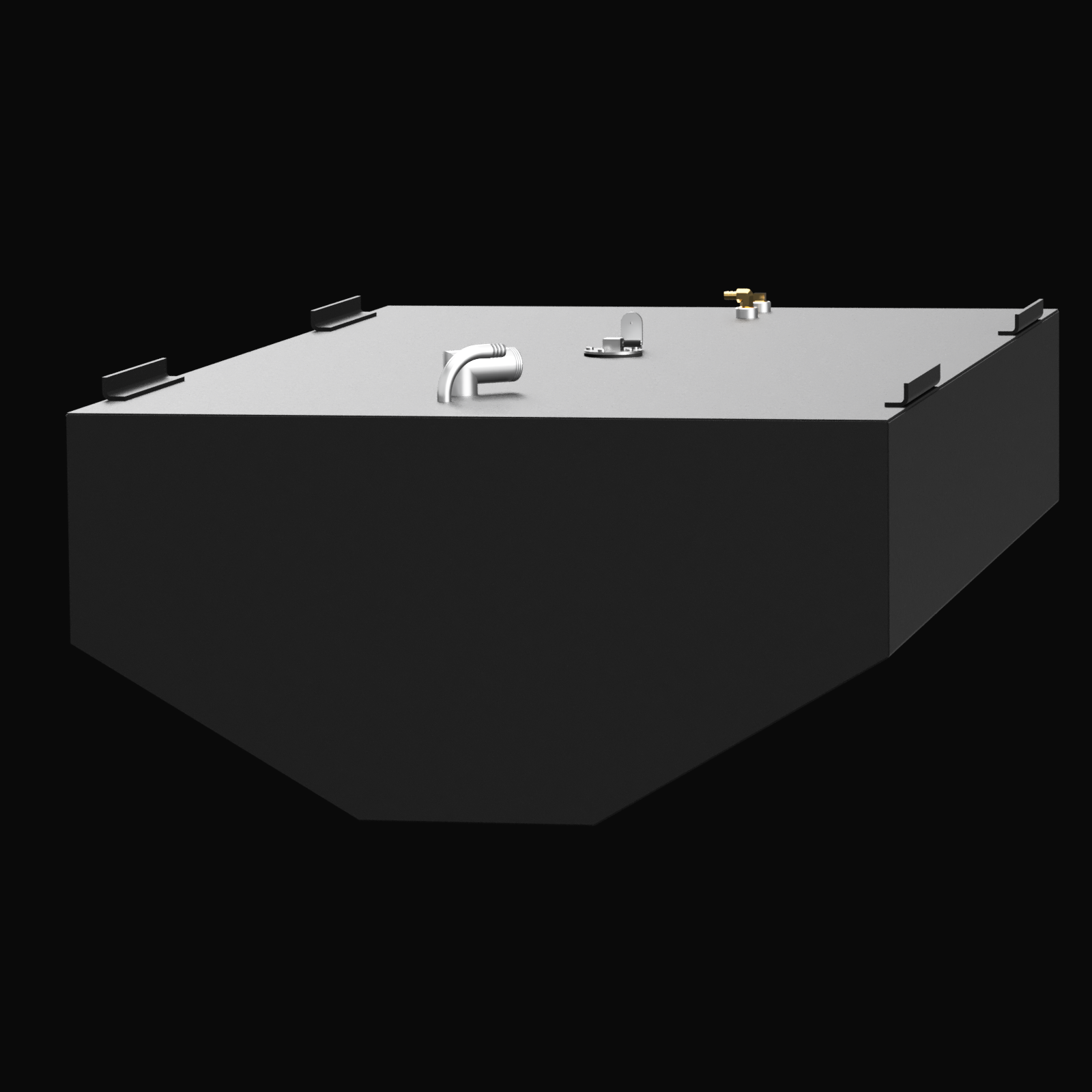

Caravelle 23 2003 - 130 gal. nominal. OEM Replacement Fuel Tank
Caravelle 23 2003 - 130 gal. nominal. OEM Replacement Fuel Tank
Caravelle 23 2003 - 130 gal. nominal. OEM Replacement Fuel Tank
Caravelle 23 2003 - 130 gal. nominal. OEM Replacement Fuel Tank
Caravelle 23 2003 - 130 gal. nominal. OEM Replacement Fuel Tank
Caravelle 23 2003 - 130 gal. nominal. OEM Replacement Fuel Tank
Caravelle 23 2003 - 130 gal. nominal. OEM Replacement Fuel Tank
Caravelle 23 2003 - 130 gal. nominal. OEM Replacement Fuel Tank
Caravelle 23 2003 - 130 gal. nominal. OEM Replacement Fuel Tank
Caravelle 23 2003 - 130 gal. nominal. OEM Replacement Fuel Tank
Caravelle 23 2003 - 130 gal. nominal. OEM Replacement Fuel Tank
Caravelle 23 2003 - 130 gal. nominal. OEM Replacement Fuel Tank

Caravelle 23 2003 - 130 gal. nominal. OEM Replacement Fuel Tank

$ 1,842.00
/
  • IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 2 workweeks. The finished tank pickup window is also 2 workweeks, so make sure you will be able to take delivery of your finished tank within that timeframe.

      • Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.

        • .125 thickness Alcoa® 5052 H32 Series aluminum construction.

          • Hand welded GTAW (TIG) welded to exceed ASME / ASW D3.7:2004 standards.

            • Sherwin Williams® TarGard® Epoxy painted for the best marine environment protection.

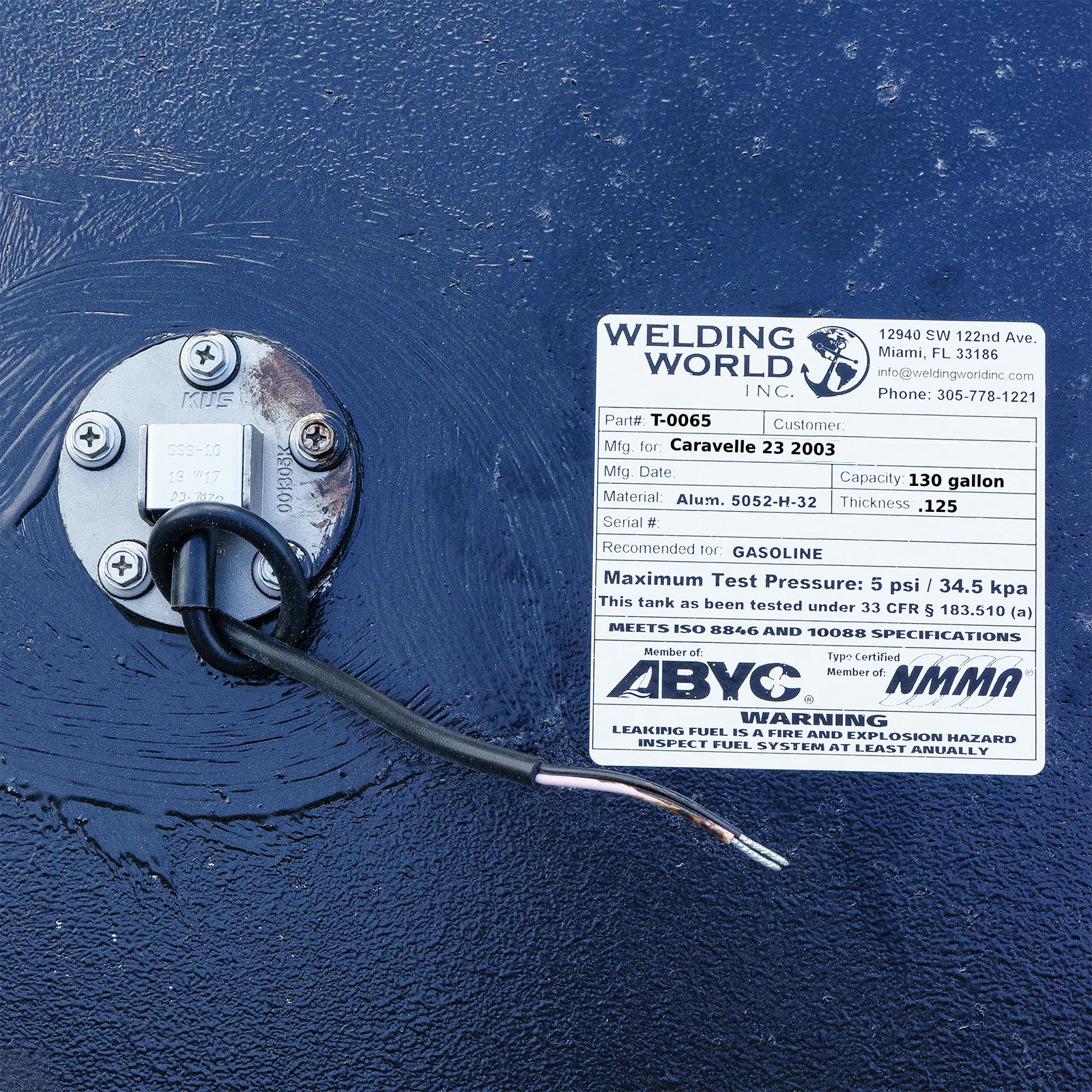

                • KUS® (ex-WEMA USA®) reed switch sender with NBR float fuel level.

                  NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!

                  Fabrication lead time (before shipping): 2 workweeks.

                  Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.
