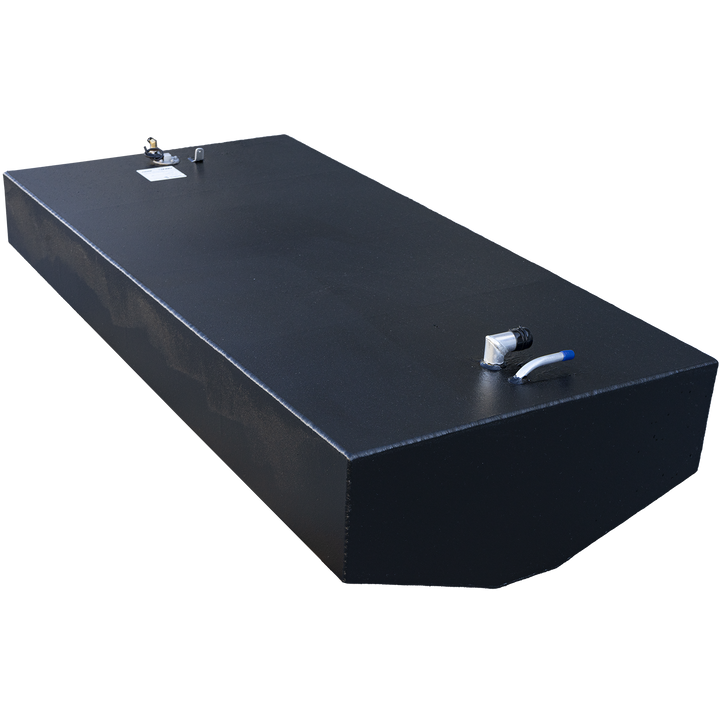

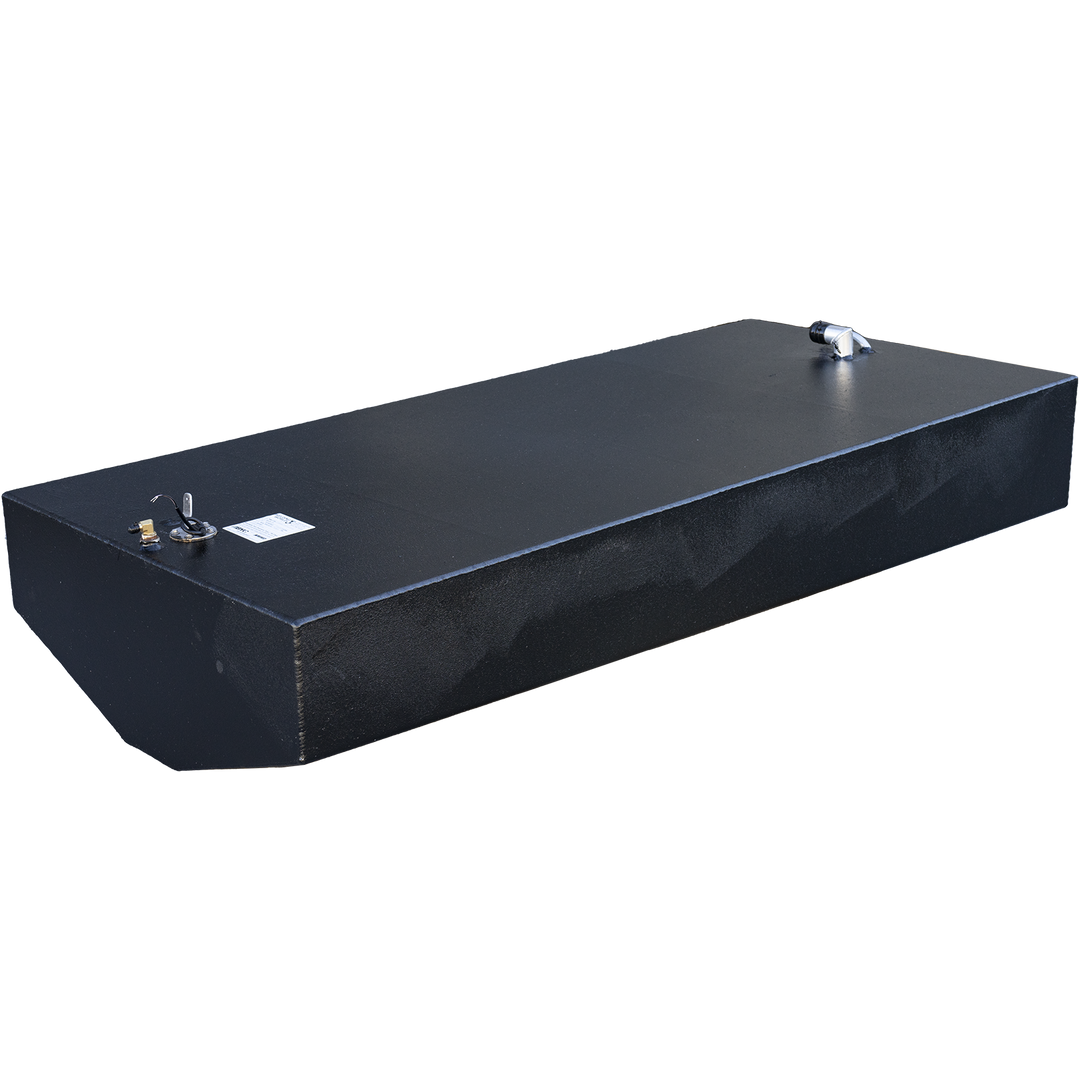

117-gallon aluminum belly fuel tank designed for the 2005 Edgewater 23 center console. The tank features a matte black finish and rectangular profile with a flat top surface. Topside hardware includes a blue-handled shutoff valve, dual brass return fittings, and a central electrical sender unit with attached harness wiring. A compliance label confirms .190″ 5052-H32 marine-grade aluminum construction and 9 psi test certification under 33 CFR § 183.510(a). Layout supports balanced weight distribution

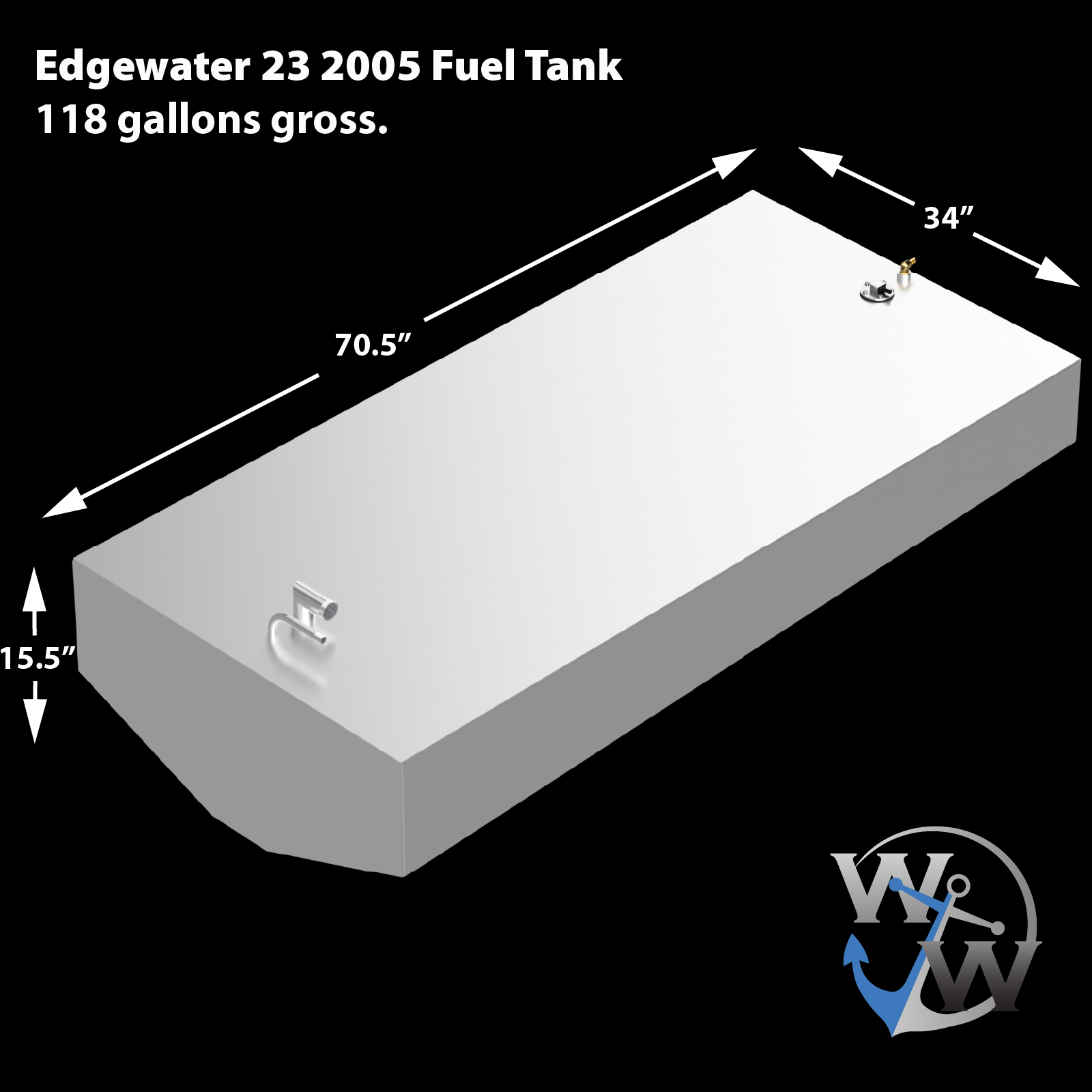

Diagram of a 117-gallon aluminum belly fuel tank engineered for the 2005 Edgewater 23 center console. Tank dimensions are specified as 70.5″ (L) × 34″ (W) × 15.5″ (H), supporting a low-profile installation within the hull. The drawing shows key top-mounted hardware locations, including fittings for fuel supply and return. Fabricated from .190″ 5052-H32 marine-grade aluminum, the design adheres to ABYC and USCG fuel system standards. A lower-right emblem from Welding World Inc. confirms OEM specification

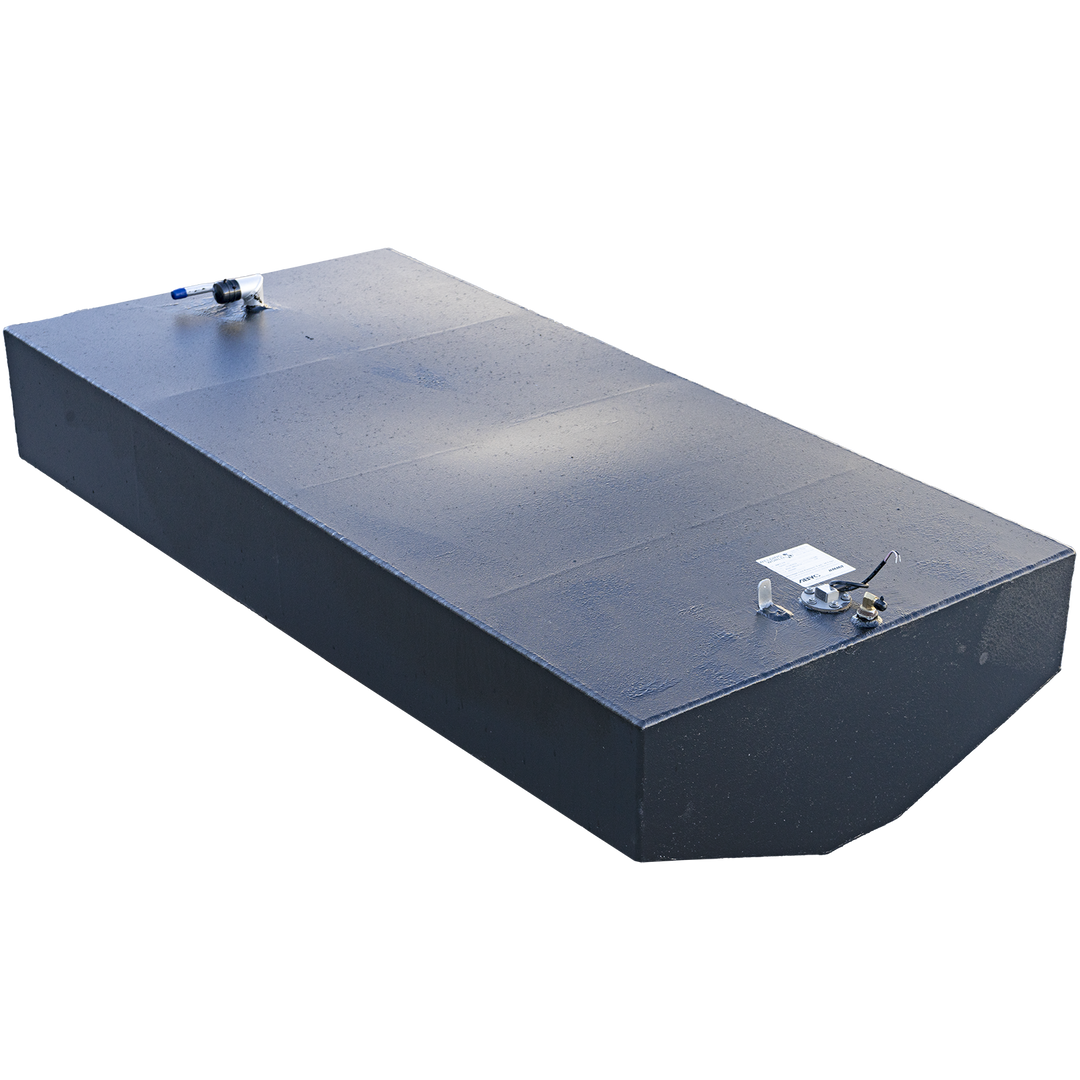

117-gallon aluminum belly fuel tank engineered for the 2005 Edgewater 23 center console. The tank’s matte black surface hosts a capped blue-handled shutoff valve at the front left, a central cylindrical sensor unit with attached black wiring, and a dual-threaded brass fitting near the rear. A white compliance label located near the rear hardware confirms construction from .190″ 5052-H32 marine-grade aluminum and certification under ABYC and USCG regulations. Layout supports factory-aligned installation

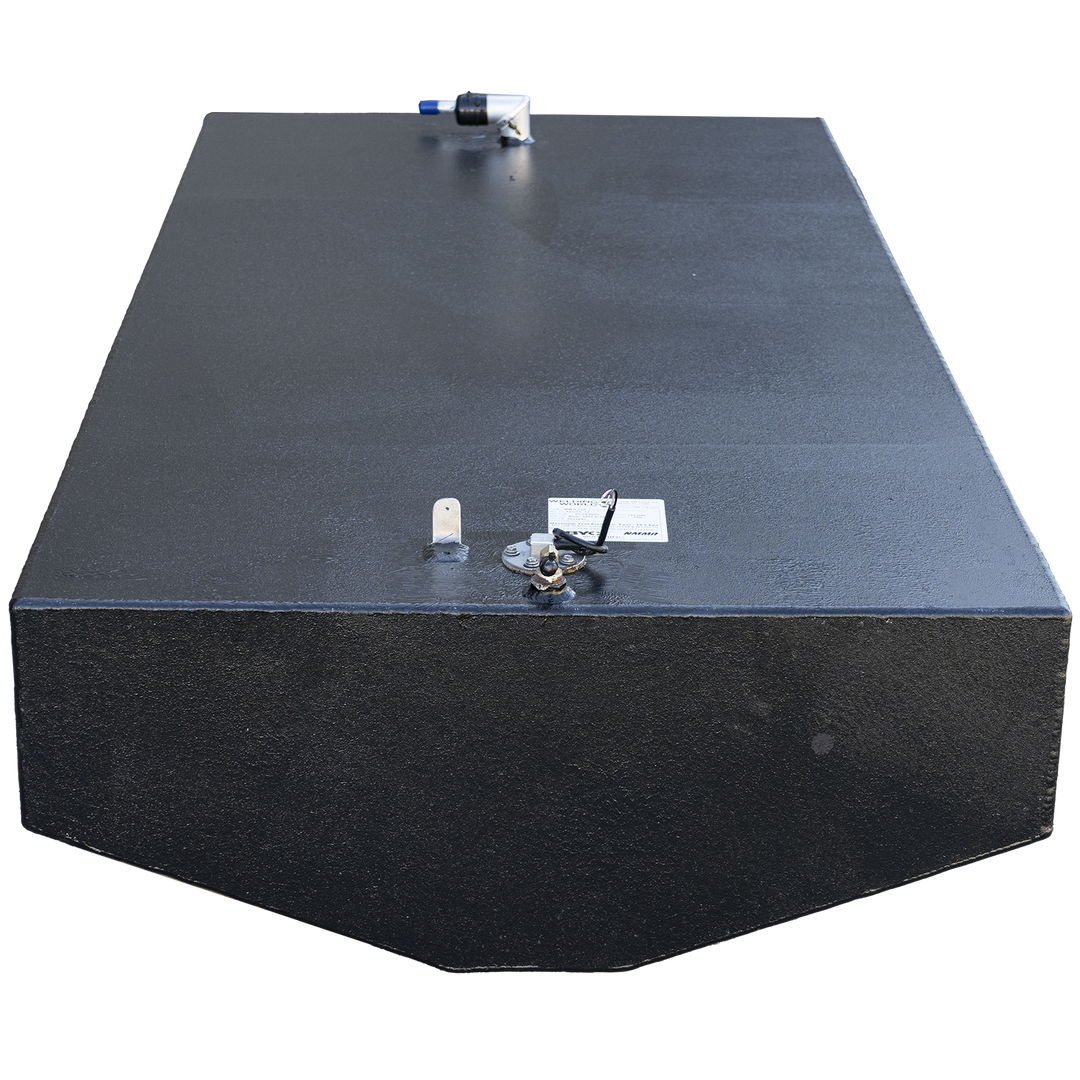

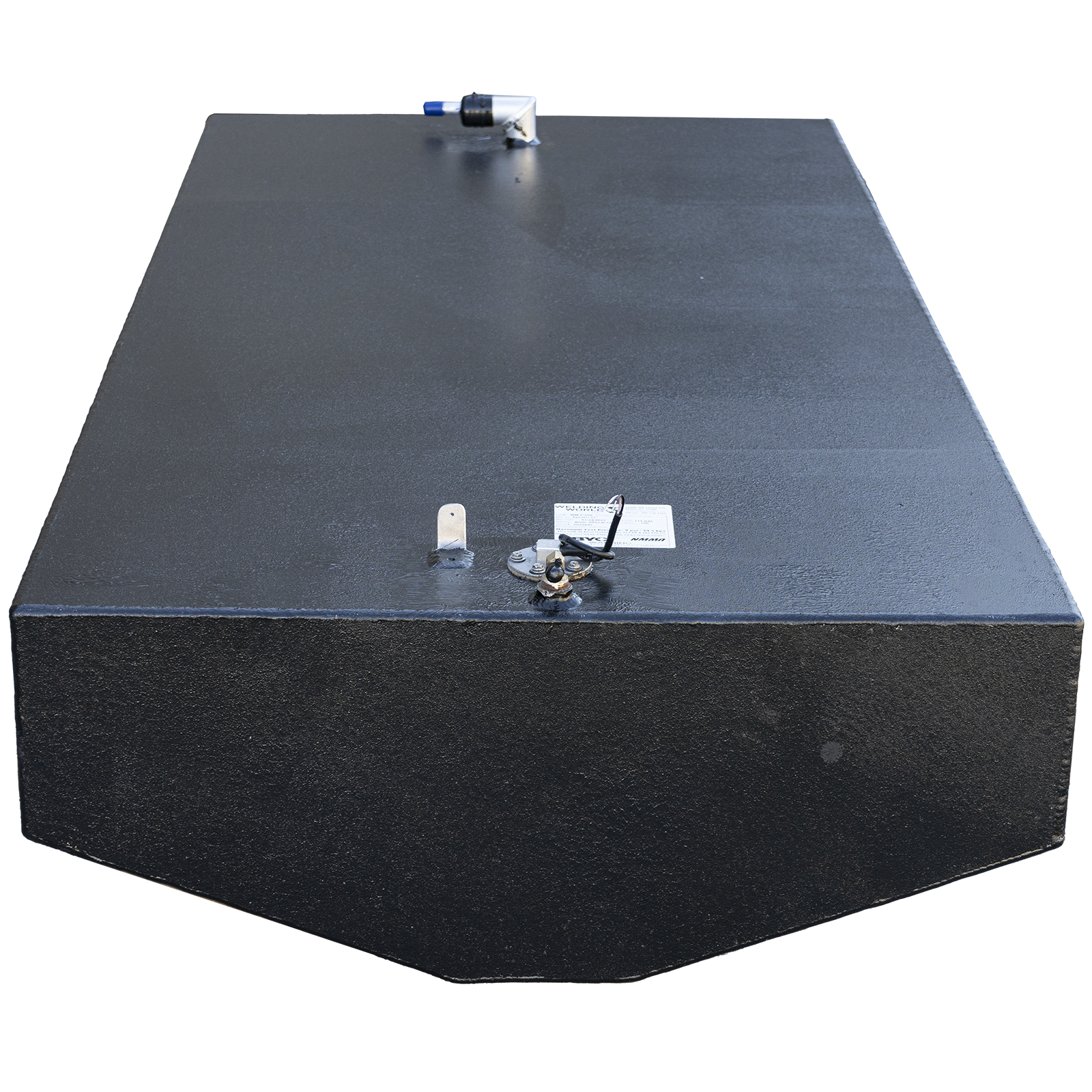

117-gallon aluminum belly fuel tank built for the 2005 Edgewater 23 center console. Finished in matte black, the rectangular tank features a capped blue-handled shutoff valve near the front, a centrally mounted sensor unit with a black wire harness, and a white compliance label positioned near the lower edge. The layout supports OEM fuel routing, electrical integration, and USCG/ABYC certification standards. Compact geometry ensures balanced centerline placement within the vessel’s underdeck cavity

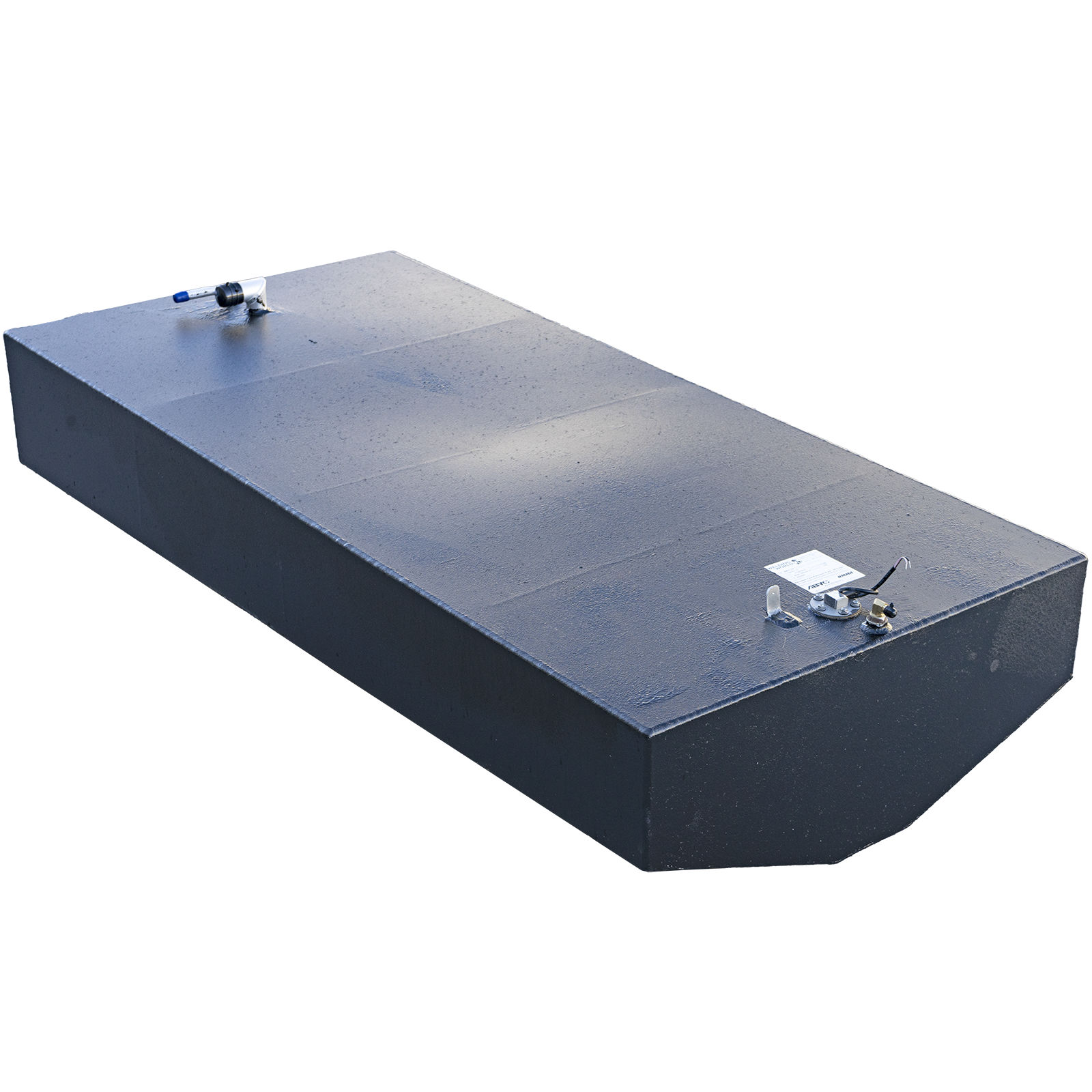

117-gallon aluminum belly fuel tank designed for the 2005 Edgewater 23 center console. The tank features a matte black finish and a rectangular form with a flat top surface. Top-mounted hardware includes a capped blue-handled shutoff valve near the front left corner, a dual brass fitting at the rear, and a white certification label positioned close to the front edge. This label confirms .190″ 5052-H32 marine-grade aluminum construction and 9 psi pressure testing to 33 CFR § 183.510(a)
Certification label for the 117-gallon aluminum belly fuel tank installed in the 2005 Edgewater 23 center console. Issued by Welding World Inc. (Part #WW-T-250, Serial #2022047), the label confirms .190″ 5052-H32 marine-grade aluminum construction and specifies compatibility with gasoline. It documents a manufacturing date of 01/24/2022 and lists a 9 psi max test pressure under 33 CFR § 183.510(a). The tank meets ISO 8846 and 10088 standards and includes ABYC and NMMA compliance logos
117-gallon aluminum belly fuel tank designed for the 2005 Edgewater 23 center console. The tank features a matte black finish and rectangular profile with a flat top surface. Topside hardware includes a blue-handled shutoff valve, dual brass return fittings, and a central electrical sender unit with attached harness wiring. A compliance label confirms .190″ 5052-H32 marine-grade aluminum construction and 9 psi test certification under 33 CFR § 183.510(a). Layout supports balanced weight distribution
Diagram of a 117-gallon aluminum belly fuel tank engineered for the 2005 Edgewater 23 center console. Tank dimensions are specified as 70.5″ (L) × 34″ (W) × 15.5″ (H), supporting a low-profile installation within the hull. The drawing shows key top-mounted hardware locations, including fittings for fuel supply and return. Fabricated from .190″ 5052-H32 marine-grade aluminum, the design adheres to ABYC and USCG fuel system standards. A lower-right emblem from Welding World Inc. confirms OEM specification
Simplified 3D model of the 117-gallon belly fuel tank designed for the 2005 Edgewater 23. The rendering shows a matte black rectangular tank with a distinct hexagonal front face. Two primary features are visible on the flat top surface: a small cylindrical protrusion toward the rear and a centrally mounted funnel-like fitting with an extended pipe. The layout supports spatial validation, cavity fitment, and planning for fuel line routing in OEM-aligned installations
117-gallon aluminum belly fuel tank engineered for the 2005 Edgewater 23 center console. The tank’s matte black surface hosts a capped blue-handled shutoff valve at the front left, a central cylindrical sensor unit with attached black wiring, and a dual-threaded brass fitting near the rear. A white compliance label located near the rear hardware confirms construction from .190″ 5052-H32 marine-grade aluminum and certification under ABYC and USCG regulations. Layout supports factory-aligned installation
117-gallon aluminum belly fuel tank built for the 2005 Edgewater 23 center console. Finished in matte black, the rectangular tank features a capped blue-handled shutoff valve near the front, a centrally mounted sensor unit with a black wire harness, and a white compliance label positioned near the lower edge. The layout supports OEM fuel routing, electrical integration, and USCG/ABYC certification standards. Compact geometry ensures balanced centerline placement within the vessel’s underdeck cavity
117-gallon aluminum belly fuel tank designed for the 2005 Edgewater 23 center console. The tank features a matte black finish and a rectangular form with a flat top surface. Top-mounted hardware includes a capped blue-handled shutoff valve near the front left corner, a dual brass fitting at the rear, and a white certification label positioned close to the front edge. This label confirms .190″ 5052-H32 marine-grade aluminum construction and 9 psi pressure testing to 33 CFR § 183.510(a)
Certification label for the 117-gallon aluminum belly fuel tank installed in the 2005 Edgewater 23 center console. Issued by Welding World Inc. (Part #WW-T-250, Serial #2022047), the label confirms .190″ 5052-H32 marine-grade aluminum construction and specifies compatibility with gasoline. It documents a manufacturing date of 01/24/2022 and lists a 9 psi max test pressure under 33 CFR § 183.510(a). The tank meets ISO 8846 and 10088 standards and includes ABYC and NMMA compliance logos

Edgewater 23 2005 - 117 gal. OEM Replacement Belly Fuel Tank

$ 1,650.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.

  • IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 2 work weeks. The finished tank pickup window is also 2 work weeks, so make sure you will be able to take delivery of your finished tank within that timeframe.

  • Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.

  • .190 thickness Alcoa® 5052 H32 Series aluminum construction.

  • Hand welded GTAW (TIG) welded to exceed ASME / ASW D3.7:2004 standards.

  • Sherwin Williams® TarGard® Epoxy painted for the best marine environment protection.

  • KUS® (ex-WEMA USA®) reed switch sender with NBR float fuel level.

 NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!

Fabrication lead time (before shipping): 2 work weeks.

Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.



Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
