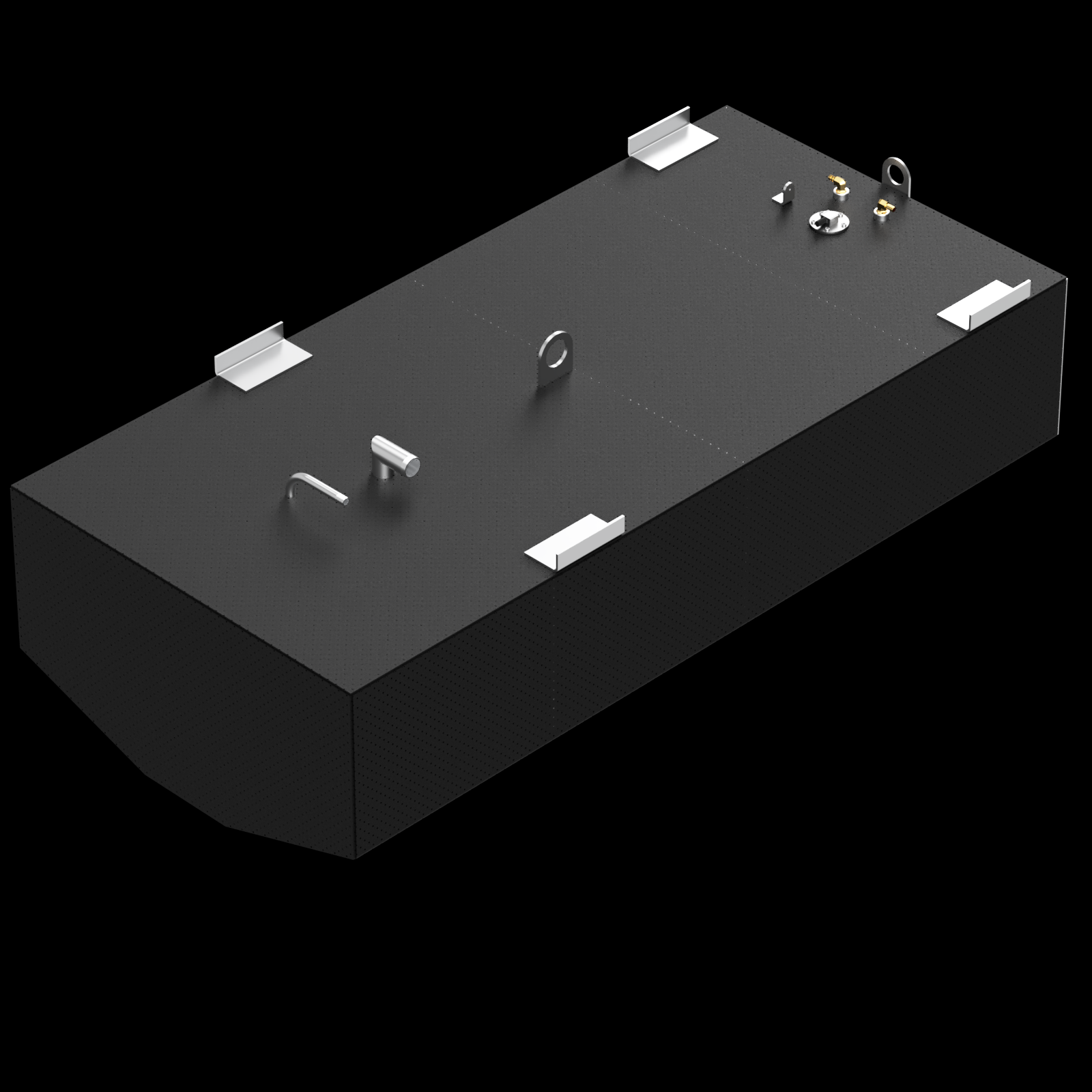

A black, rectangular Mako 253 Walkaround 2002 - 140 gal. OEM Replacement Belly Fuel Tank is shown from an elevated perspective against a dark background. The top surface of the tank features several metal components: four L-shaped brackets at each corner, two circular rings, a short, curved pipe, a cylindrical pipe, two brass-colored fittings, and a circular cap. The tank has a slightly textured finish

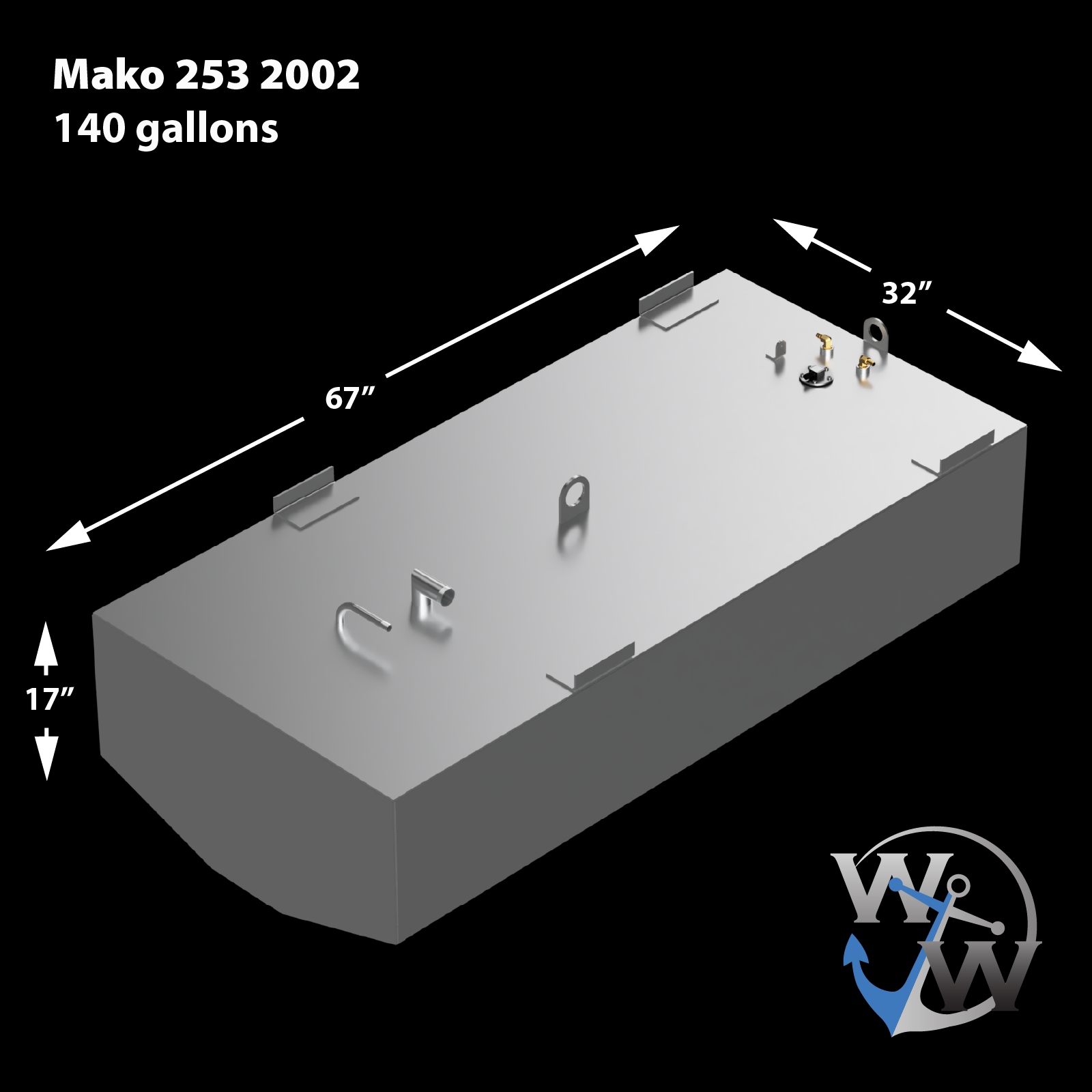

A silver Mako 253 2002 fuel tank with a 140-gallon capacity is shown against a black background. The image provides dimensions: 67 inches in length, 32 inches in width, and 17 inches in height. Various fittings, including eye bolts, pipes, and connectors, are visible on the top surface. The logo "W W" with a blue anchor is in the bottom right

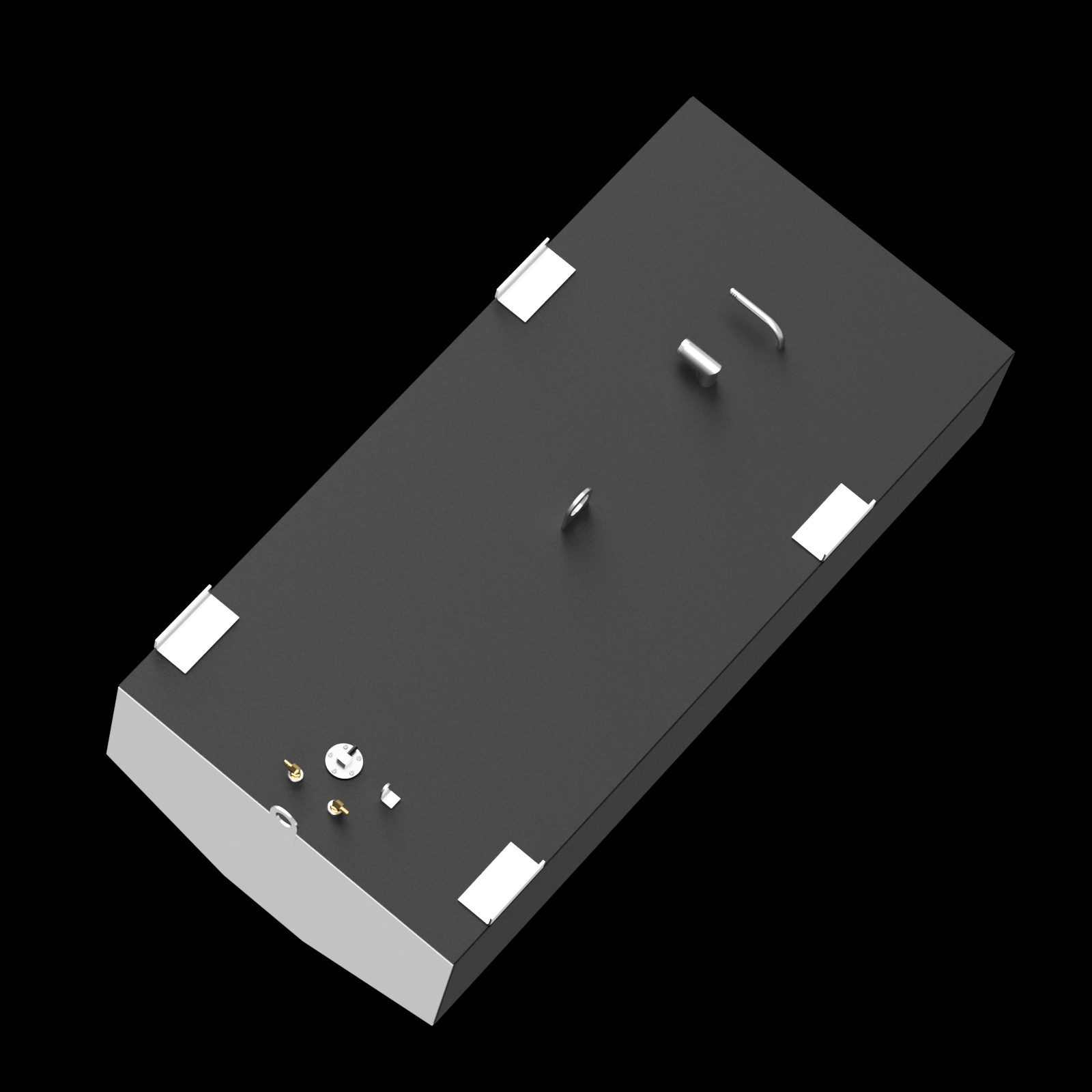

An overhead view of a black, rectangular Mako 253 Walkaround 2002 - 140 gal. OEM Replacement Belly Fuel Tank, shown against a solid black background. The top surface of the tank is equipped with various silver-colored metal fittings, including four L-shaped mounting brackets at the corners, a circular eye bolt, a short curved pipe, a cylindrical pipe, and a circular cap with two brass-colored connectors. The tank has angled cut-outs at its bottom corners

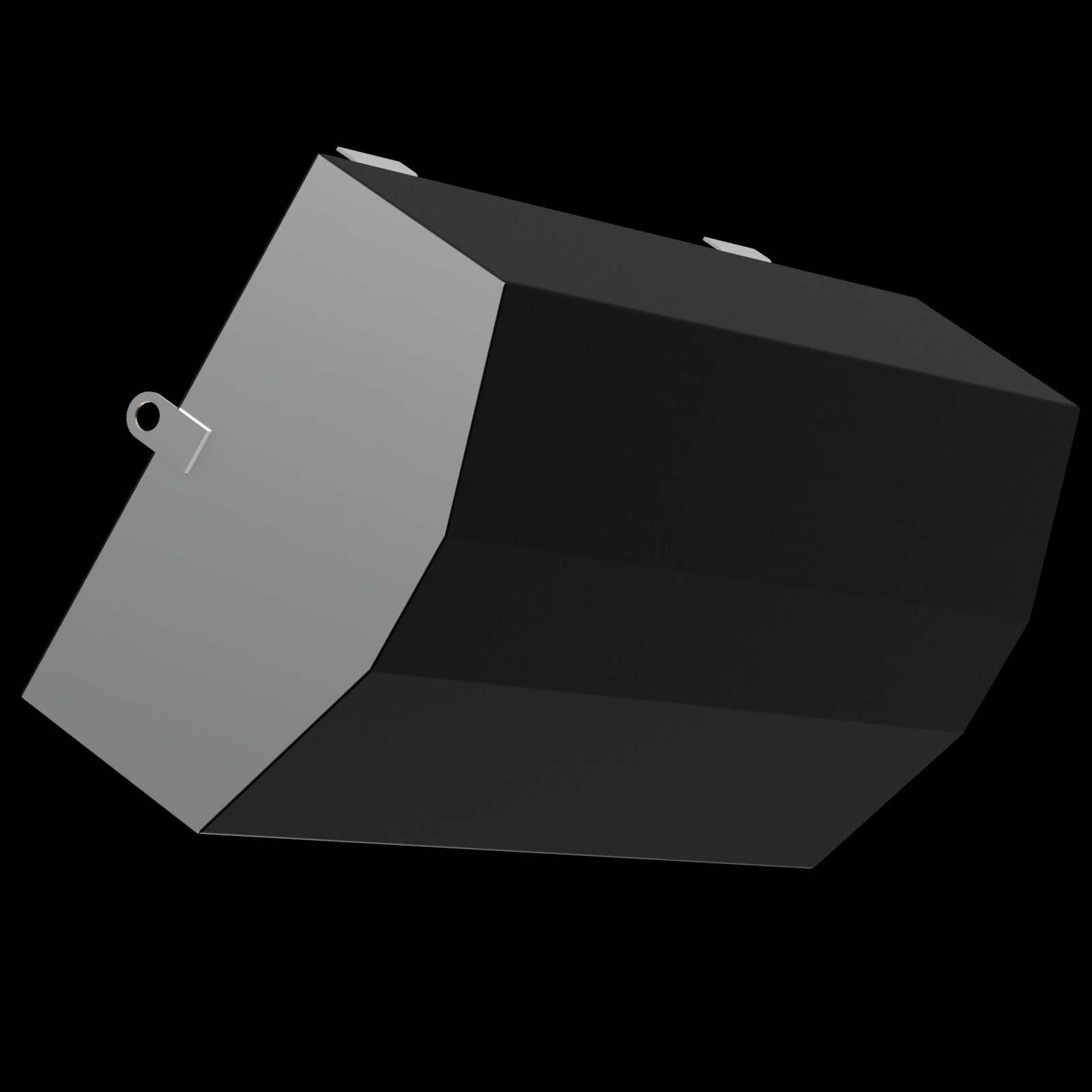

A Mako 253 Walkaround 2002 - 140 gal. OEM Replacement Belly Fuel Tank is depicted from an angled perspective against a black background. The tank is predominantly dark gray with lighter gray sections on the side and end, indicating its polygonal shape. Visible on the lighter gray end is a circular eye bolt attached to an L-shaped bracket. Two additional small, light gray brackets are on the top surface

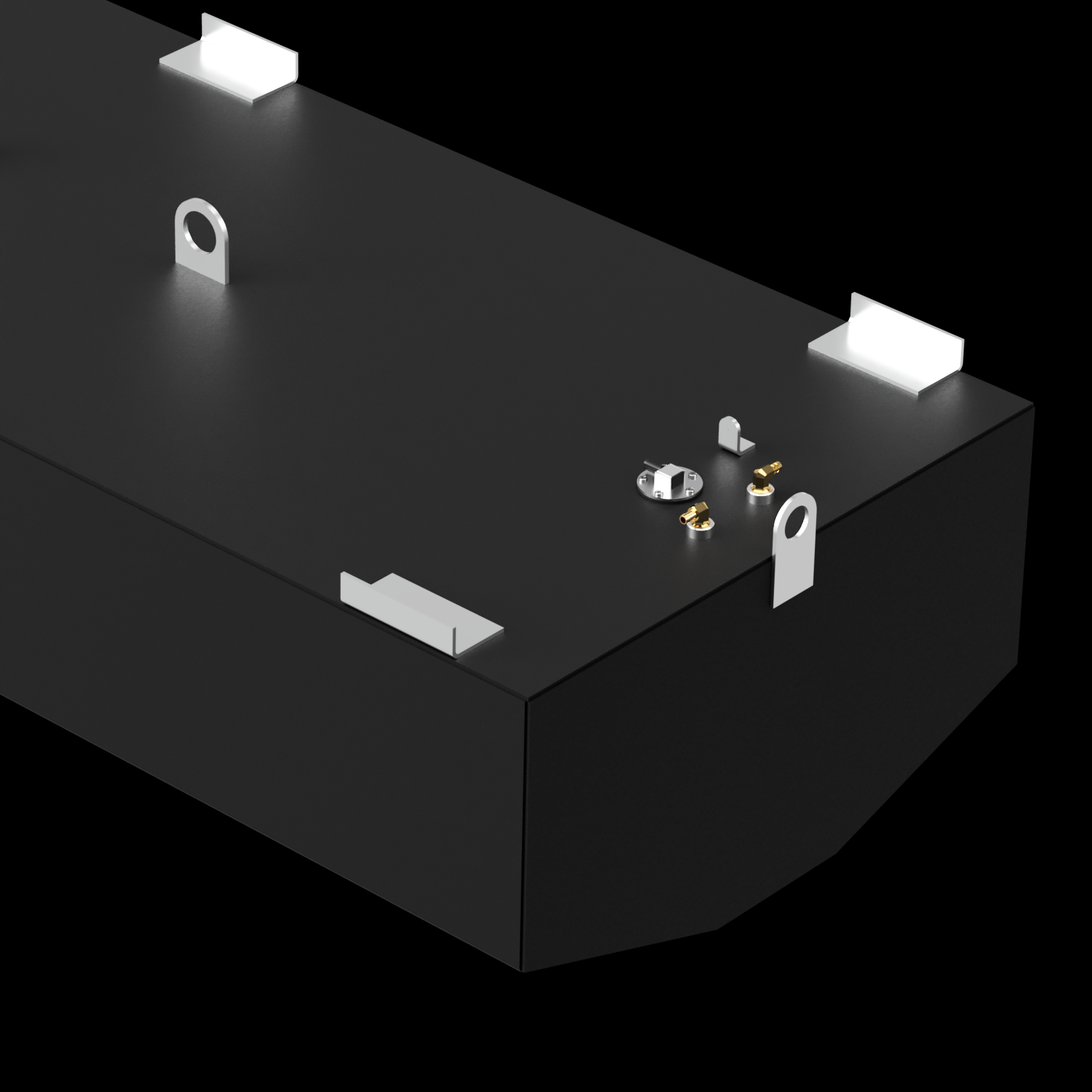

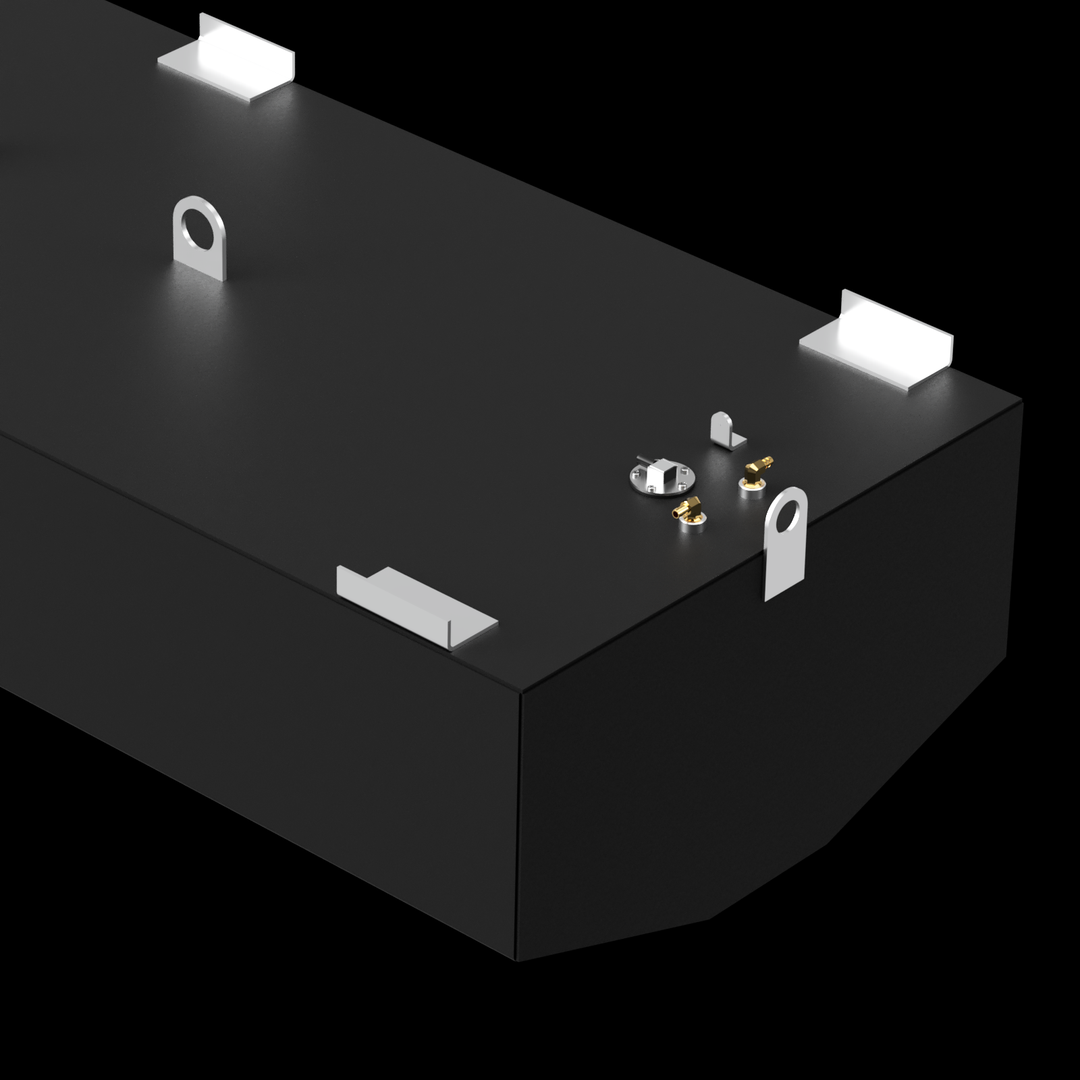

A Mako 253 Walkaround 2002 - 140 gal. OEM Replacement Belly Fuel Tank is shown from an elevated angle, against a black background. The tank is black with a light gray end, and features various metal components on its top surface, including four white L-shaped mounting brackets, a circular eye bolt, a short curved pipe, a cylindrical pipe, two brass-colored fittings, and a circular cap. The light gray end of the tank is rounded
A black, rectangular Mako 253 Walkaround 2002 - 140 gal. OEM Replacement Belly Fuel Tank is shown from an elevated perspective against a dark background. The top surface of the tank features several metal components: four L-shaped brackets at each corner, two circular eye bolts, two brass-colored fittings, and a circular cap. The tank has angled bottom corners and a smooth, matte finish
A black, rectangular Mako 253 Walkaround 2002 - 140 gal. OEM Replacement Belly Fuel Tank is shown from an elevated perspective against a dark background. The top surface of the tank features several metal components: four L-shaped brackets at each corner, two circular rings, a short, curved pipe, a cylindrical pipe, two brass-colored fittings, and a circular cap. The tank has a slightly textured finish
A silver Mako 253 2002 fuel tank with a 140-gallon capacity is shown against a black background. The image provides dimensions: 67 inches in length, 32 inches in width, and 17 inches in height. Various fittings, including eye bolts, pipes, and connectors, are visible on the top surface. The logo "W W" with a blue anchor is in the bottom right

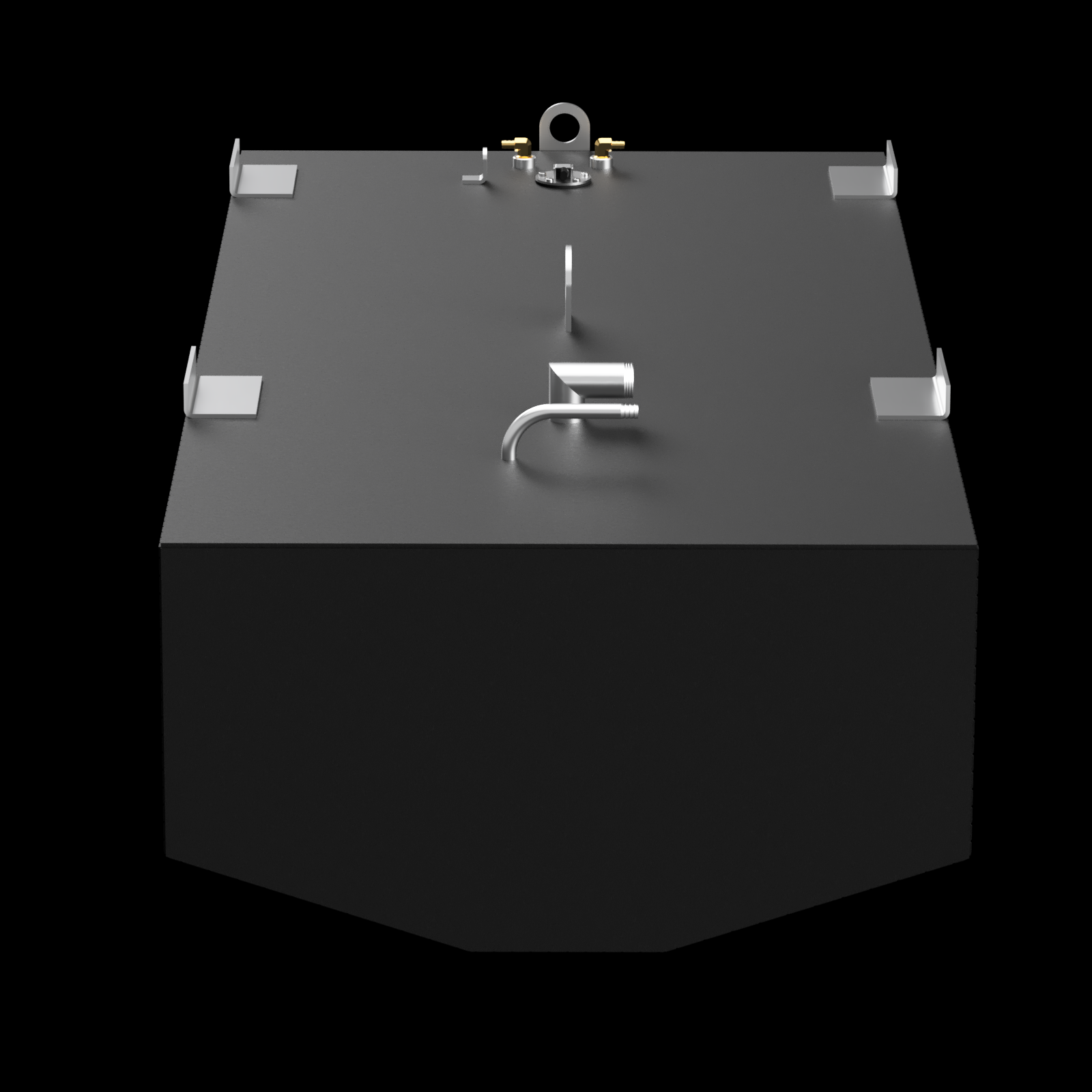

A light gray, rectangular Mako 253 2002 - 140 gal. OEM Replacement Belly Fuel Tank is viewed from the front, angled slightly to the right. The top surface of the tank features several fittings, including two brass-colored connectors, a circular cap, a curved pipe, a cylindrical pipe, and four L-shaped mounting brackets. The tank has angled bottom corners, and the background is solid black
An overhead view of a black, rectangular Mako 253 Walkaround 2002 - 140 gal. OEM Replacement Belly Fuel Tank, shown against a solid black background. The top surface of the tank is equipped with various silver-colored metal fittings, including four L-shaped mounting brackets at the corners, a circular eye bolt, a short curved pipe, a cylindrical pipe, and a circular cap with two brass-colored connectors. The tank has angled cut-outs at its bottom corners
A Mako 253 Walkaround 2002 - 140 gal. OEM Replacement Belly Fuel Tank is depicted from an angled perspective against a black background. The tank is predominantly dark gray with lighter gray sections on the side and end, indicating its polygonal shape. Visible on the lighter gray end is a circular eye bolt attached to an L-shaped bracket. Two additional small, light gray brackets are on the top surface
A Mako 253 Walkaround 2002 - 140 gal. OEM Replacement Belly Fuel Tank is shown from an elevated angle, against a black background. The tank is black with a light gray end, and features various metal components on its top surface, including four white L-shaped mounting brackets, a circular eye bolt, a short curved pipe, a cylindrical pipe, two brass-colored fittings, and a circular cap. The light gray end of the tank is rounded
A black, rectangular Mako 253 Walkaround 2002 - 140 gal. OEM Replacement Belly Fuel Tank is shown from an elevated perspective against a dark background. The top surface of the tank features several metal components: four L-shaped brackets at each corner, two circular eye bolts, two brass-colored fittings, and a circular cap. The tank has angled bottom corners and a smooth, matte finish

Mako 253 Walkaround 2002 - 140 gal. OEM Replacement Belly Fuel Tank

$ 1,960.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.

  • IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 2 work weeks. The finished tank pickup window is also 2 work weeks, so make sure you will be able to take delivery of your finished tank within that timeframe.

  • Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.

  • .190 thickness Alcoa® 5052 H32 Series aluminum construction.

  • Hand welded GTAW (TIG) welded to exceed ASME / ASW D3.7:2004 standards.

  • Sherwin Williams® TarGard® Epoxy painted for the best marine environment protection.

  • KUS® (ex-WEMA USA®) reed switch sender with NBR float fuel level.

 NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!

Fabrication lead time (before shipping): 2 work weeks.

Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.



Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
