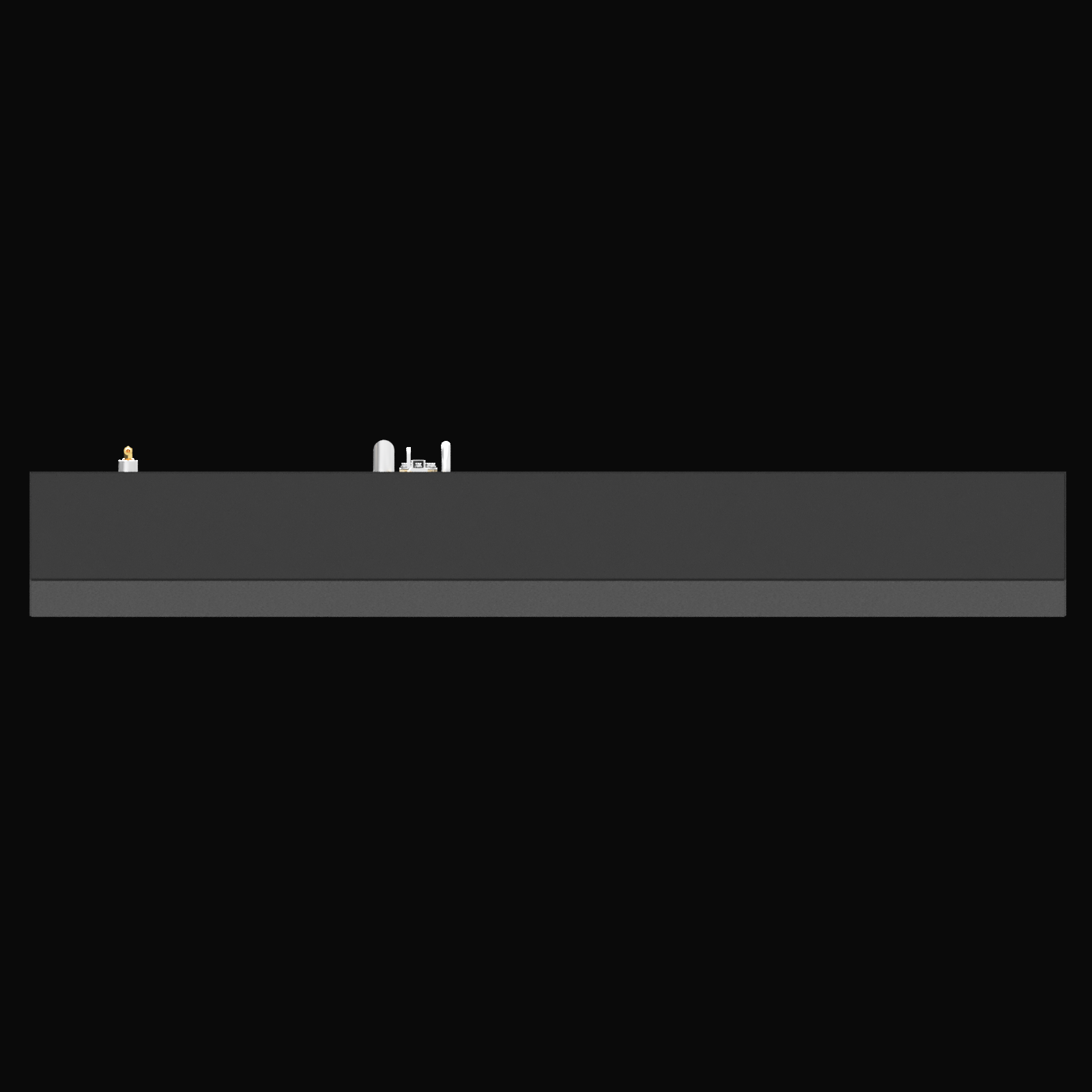

Side profile of a 61-gallon McKee Craft 195 OEM replacement fuel tank showcasing its low-profile rectangular design. The image highlights the high-build Coal Tar Epoxy coating for maximum corrosion protection and the .125-gauge marine-grade aluminum construction. This direct-fit tank is engineered to meet all USCG and ABYC safety standards, featuring precise weld points and integrated mounting tabs for a secure installation in the center stringer.
Detail view of the 1.5-inch aluminum fuel fill and vent fittings on a McKee Craft 195 OEM replacement tank. The image highlights the heavy-duty TIG welding and the thick Coal Tar Epoxy coating, ensuring long-term durability in marine environments. These ports are precisely positioned to align with factory deck fill hoses for a guaranteed "drop-in" installation that meets all USCG and ABYC safety standards.
Underside view of the McKee Craft 195 OEM replacement fuel tank showing the seamless, precision-welded construction of the .125-gauge aluminum. The image highlights the uniform coverage of the Coal Tar Epoxy coating, which prevents corrosion in high-moisture bilge areas. This view demonstrates the clean profile and high-quality TIG welds required for USCG-compliant marine fuel systems.

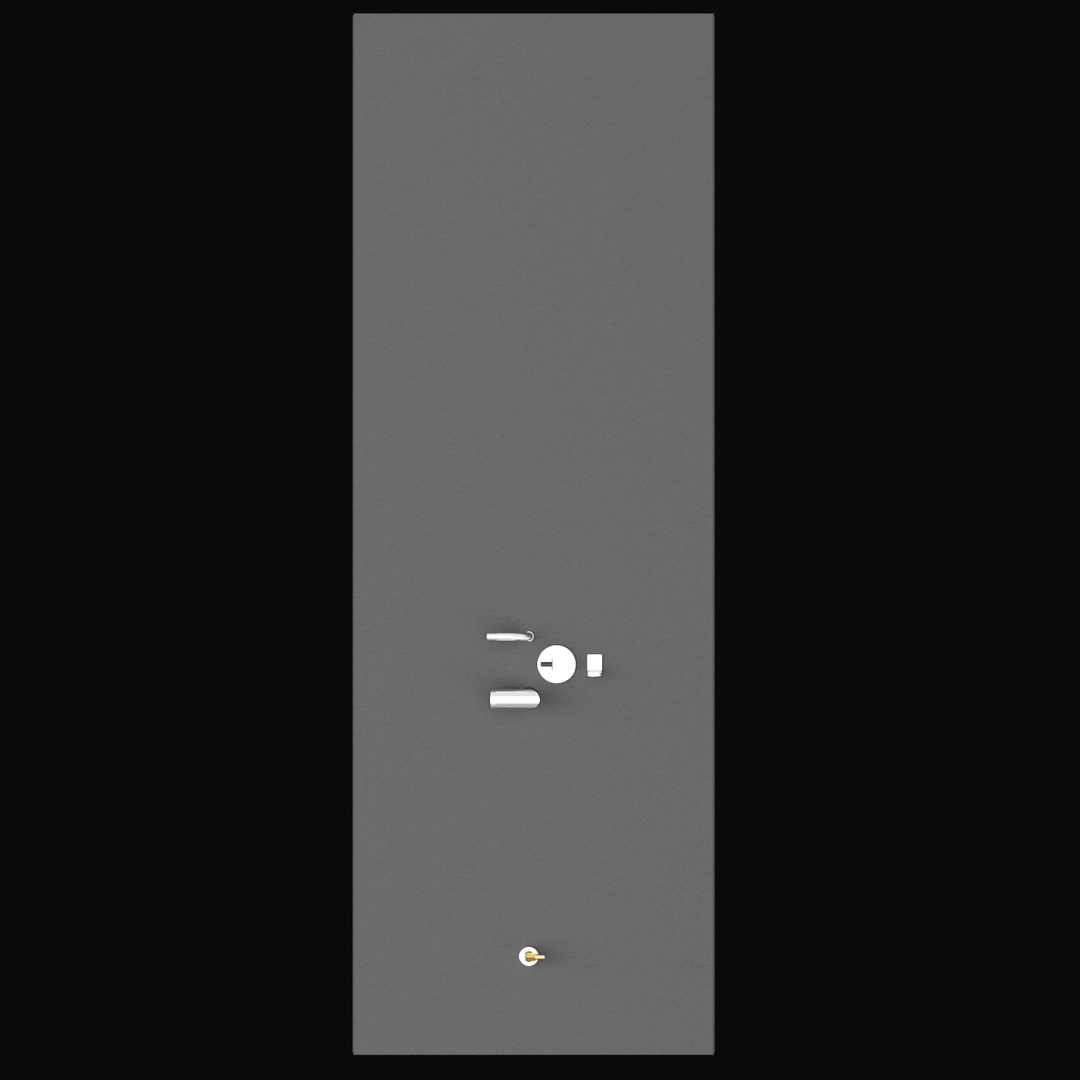

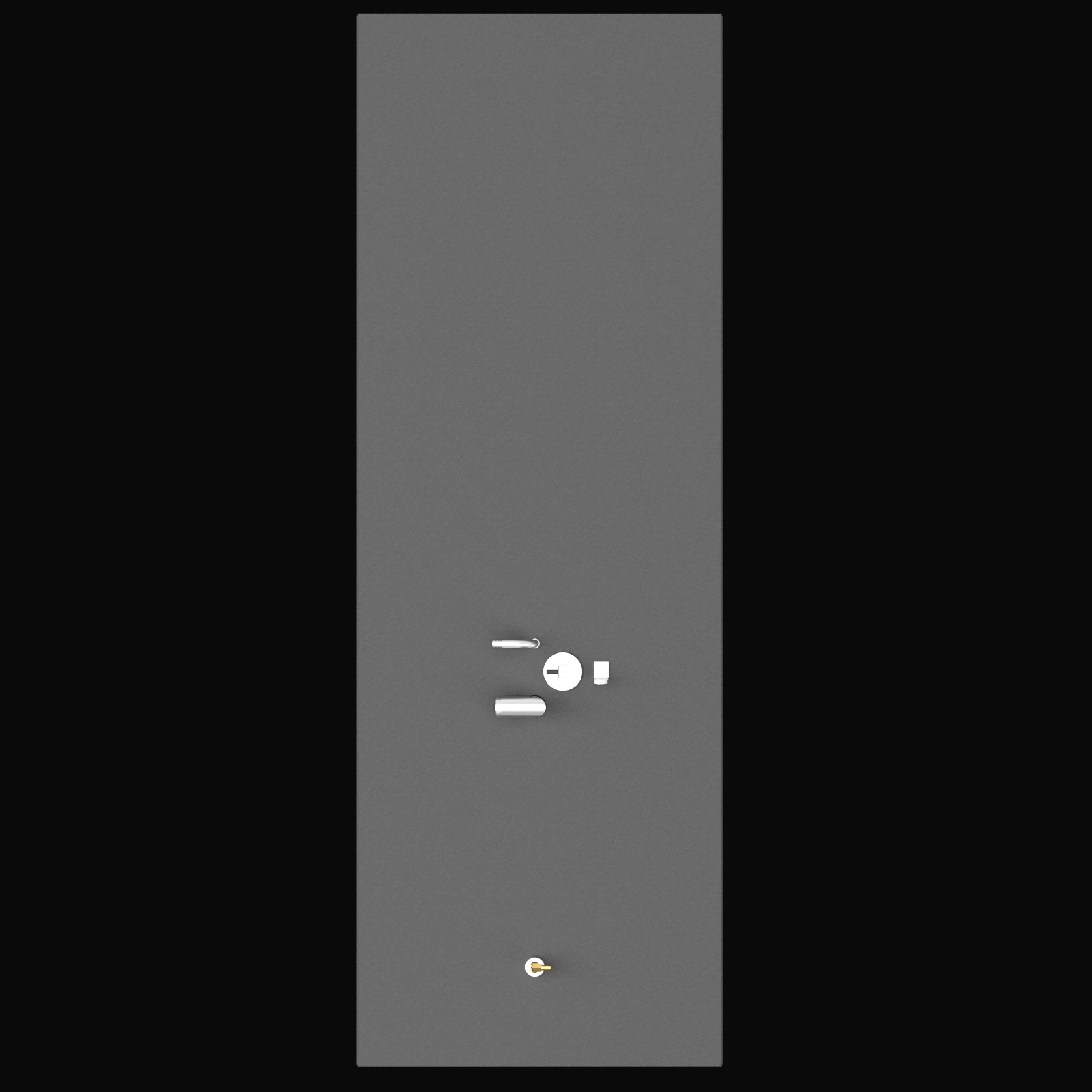

Complete overhead layout of the 61-gallon McKee Craft 195 OEM replacement fuel tank. The image provides a clear view of the hardware configuration, including the offset 1.5-inch fuel fill, 0.625-inch vent fitting, and the centrally located fuel sending unit with its grounding tab. Finished in a rugged Coal Tar Epoxy, this tank is designed with a specific length-to-width ratio to fit the McKee Craft 195 center console stringer layout perfectly while meeting all USCG marine standards.

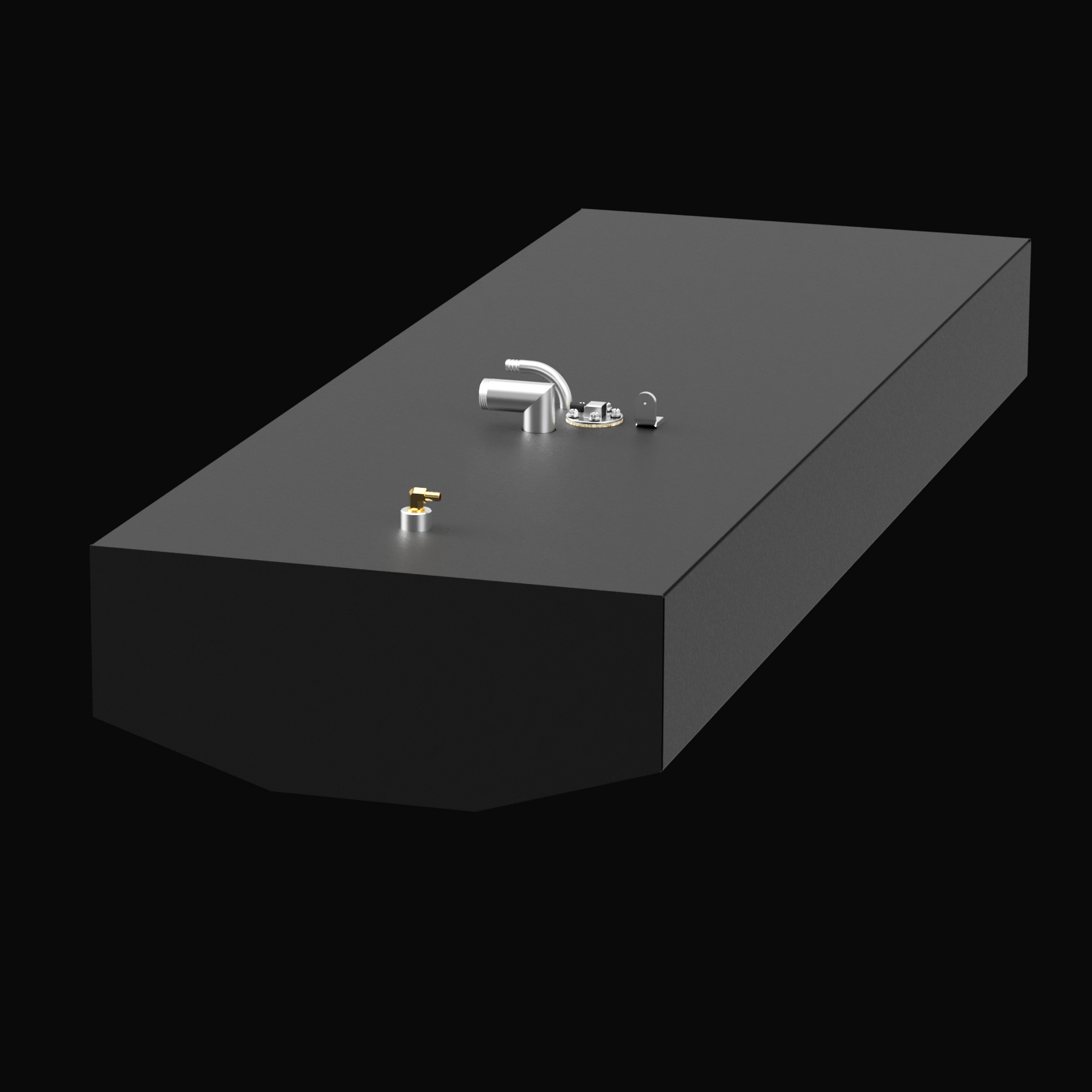

Perspective view of the McKee Craft 195 OEM replacement fuel tank highlighting the durable Coal Tar Epoxy finish and precision-welded aluminum construction. This 61-gallon tank features a 1.5-inch fuel fill neck, high-quality brass pickups, and an integrated fuel sending unit for accurate level monitoring. Engineered as a direct fit for the McKee Craft 195, this tank ensures a rugged, corrosion-resistant solution that meets all USCG and ABYC marine fuel system requirements.

Mckee Craft 195 Fuel Tank (79 gal) | OEM Replacement

$ 1,600.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.

Restore your McKee Craft 195 with a fuel system built to handle its rugged, unsinkable reputation. This OEM replacement fuel tank is precision-engineered to the exact factory specifications of the 195 model, ensuring a seamless "drop-in" fit into the original stringer cavity without the need for costly hull modifications. Fabricated from premium .125-gauge 5052-H32 marine-grade aluminum, this tank offers superior structural integrity and longevity compared to standard retail alternatives. Each unit features a high-build Coal Tar Epoxy coating for maximum corrosion resistance in the bilge, is pressure-tested for safety, and remains fully USCG and ABYC compliant, giving you total confidence for every offshore run.



  • Guaranteed to Fit Your Mckee Craft
    Every tank is engineered using OEM drawings and/or reverse-engineered from an original unit to ensure a precise, 100% guaranteed fit.



  • Fully Certified Manufacturing
    Our tanks are built by an NMMA-type certified manufacturer and produced in accordance with all ABYC standards.



  • USCG Compliant & Pressure Tested
    Each tank meets all USCG requirements and is individually pressure-tested in house. All federal regulations are followed throughout our manufacturing process to ensure maximum safety and reliability.



  • .125-Thickness 5052 H32 Aluminum Construction
    Built from premium marine-grade 5052 H32 aluminum at .125 thickness for exceptional strength and long-term durability.



  • Complete, Ready-to-Install System
    Each tank comes fully equipped with all required components, including the sender, fittings, and hardware.



  • Precision Hand-Welded Construction
    Every tank is hand-crafted using GTAW (TIG) welding, exceeding ASME and AWS D3.7:2004 standards for marine aluminum fabrication.



  • Sherwin-Williams® TarGard® Epoxy Coating
    Finished with Sherwin-Williams® TarGard® Epoxy to provide added protection against corrosion and harsh marine environments, extending the overall life of the tank.



  • KUS® (formerly WEMA USA®) Reed-Switch Fuel Level Sender
    Features a high-quality KUS® reed-switch sender with an NBR float, providing accurate and reliable fuel-level measurement.



Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.



IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 1-2 work weeks. The finished tank pickup window is also 1-2 work weeks, so make sure you will be able to take delivery of your finished tank within that timeframe.



NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!



Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.



Return Policy: No refunds are accepted, as all of our products are made to order. Our policy is strictly limited to the repair or replacement of qualifying defective or damaged goods. Please note that shipping costs are non-refundable.



Fabrication lead time (before shipping): 1-2 work weeks.

Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
