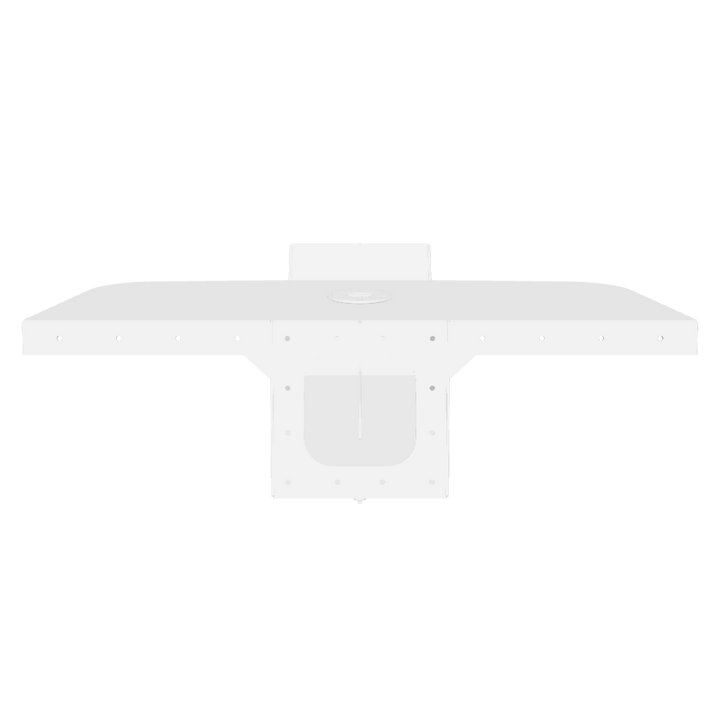

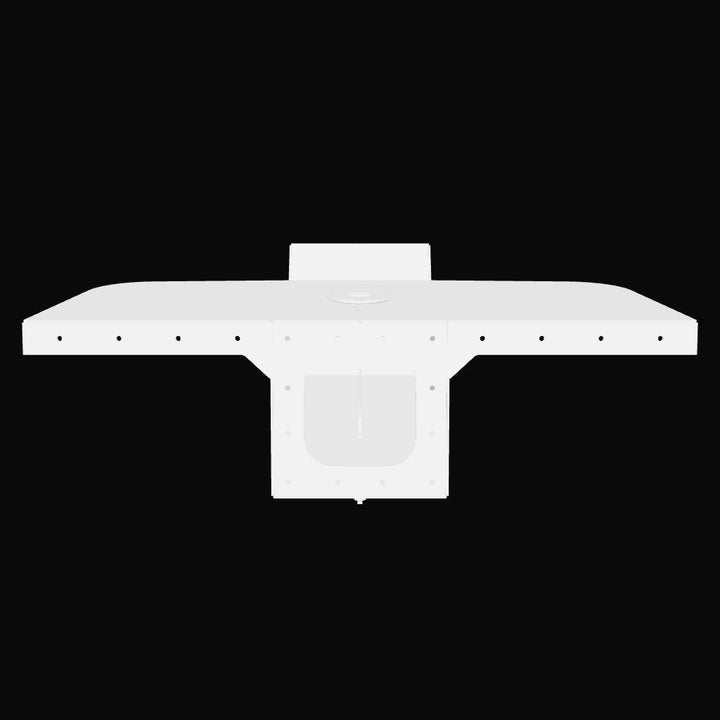

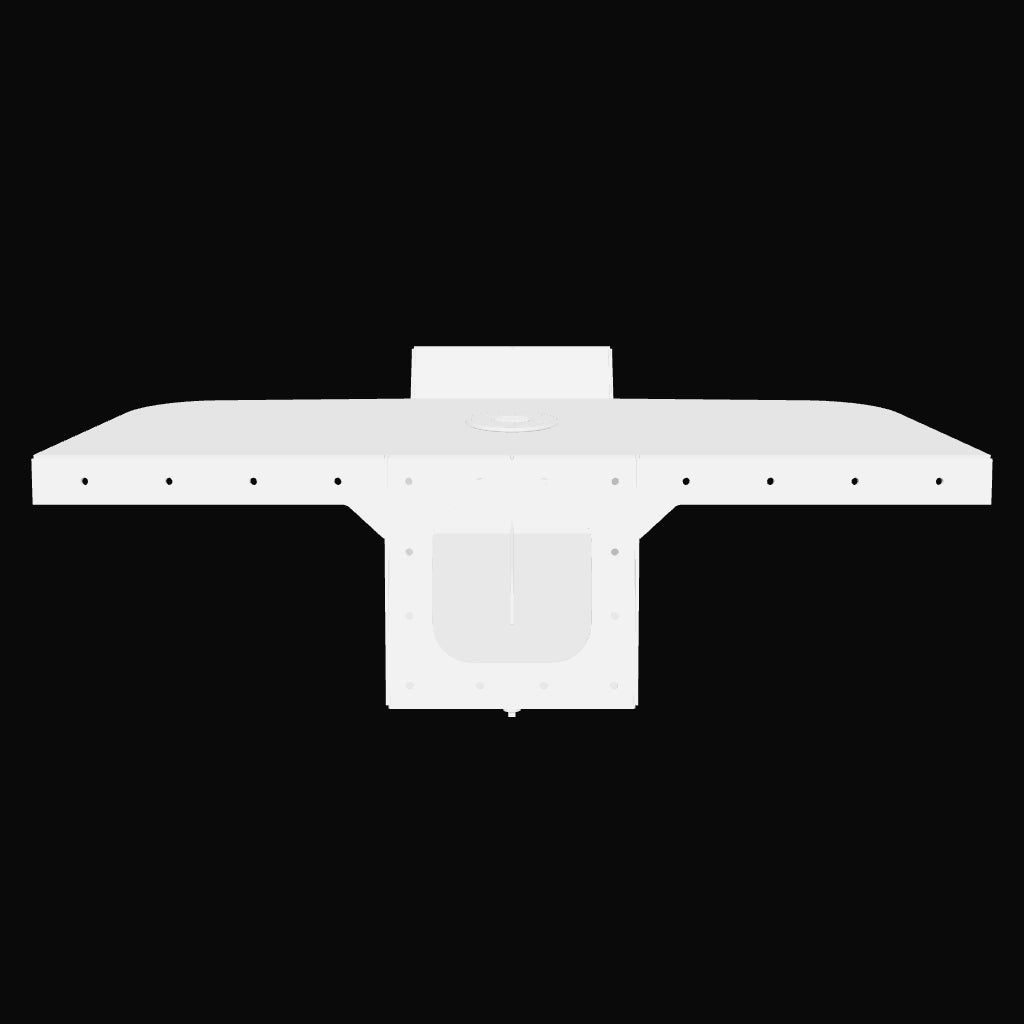

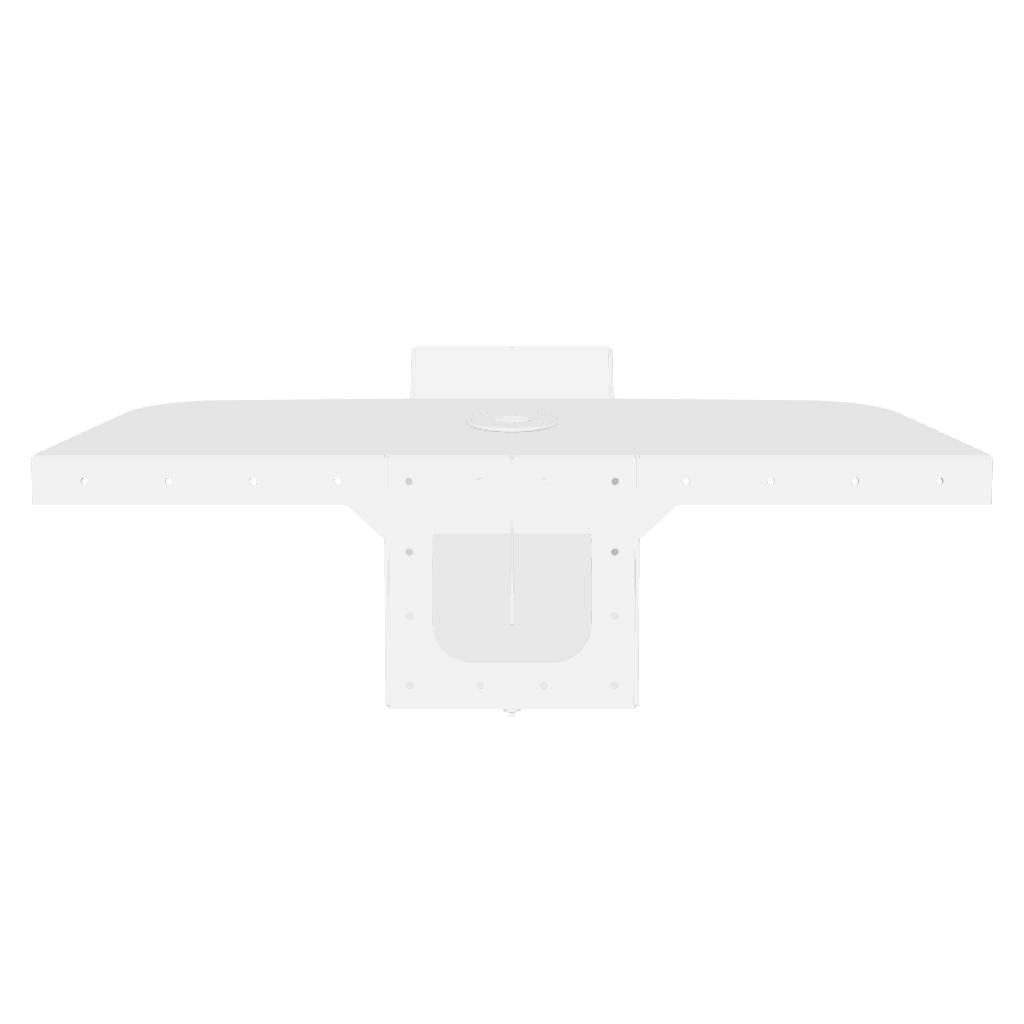

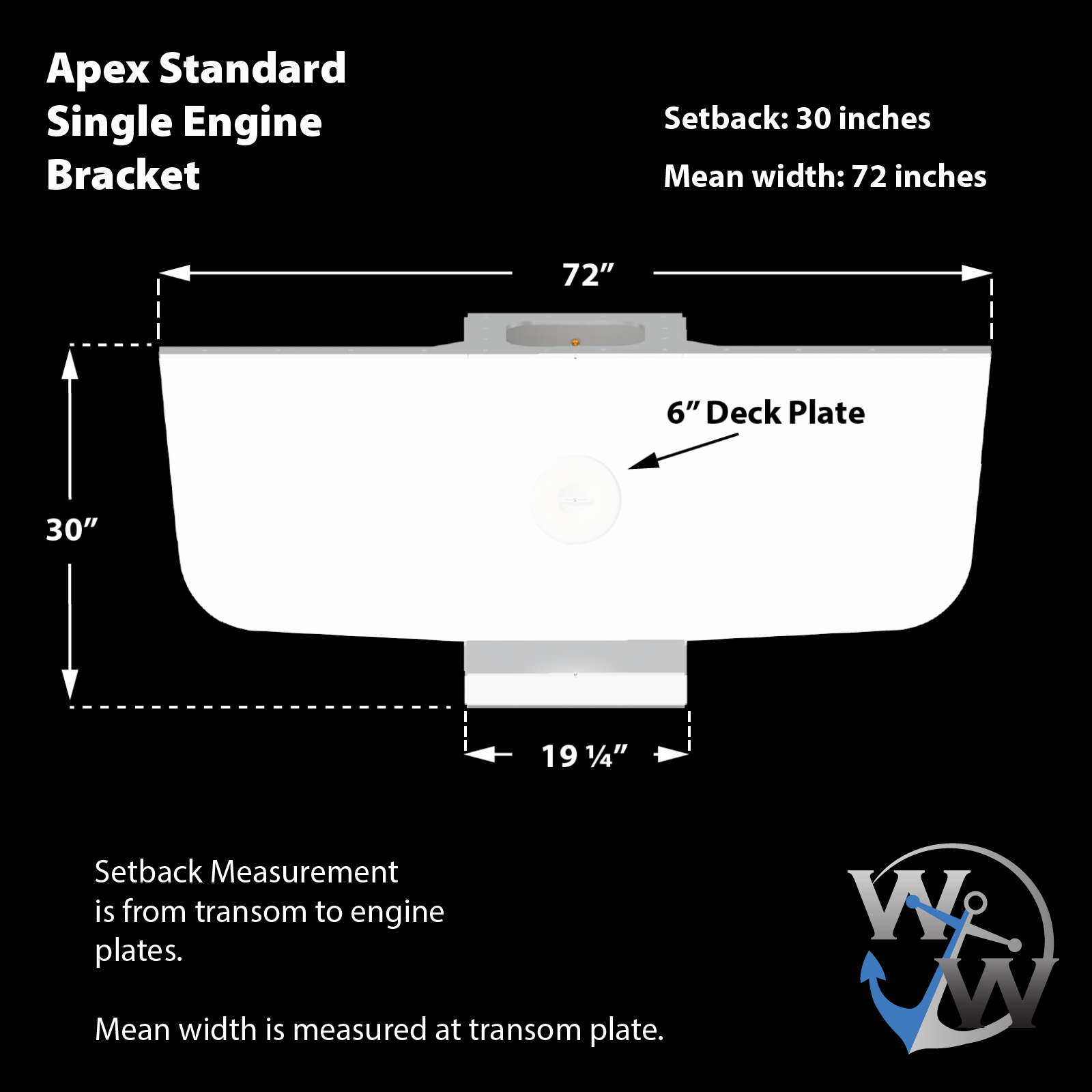

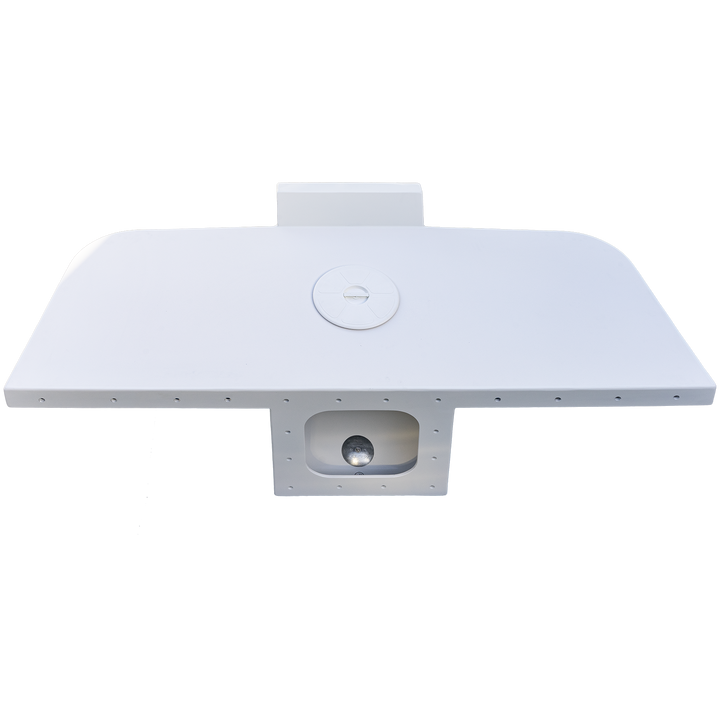

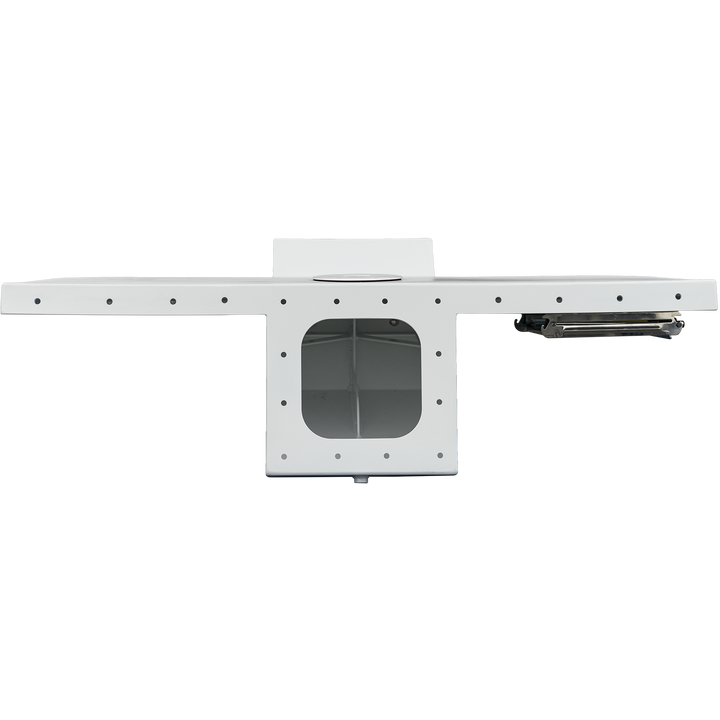

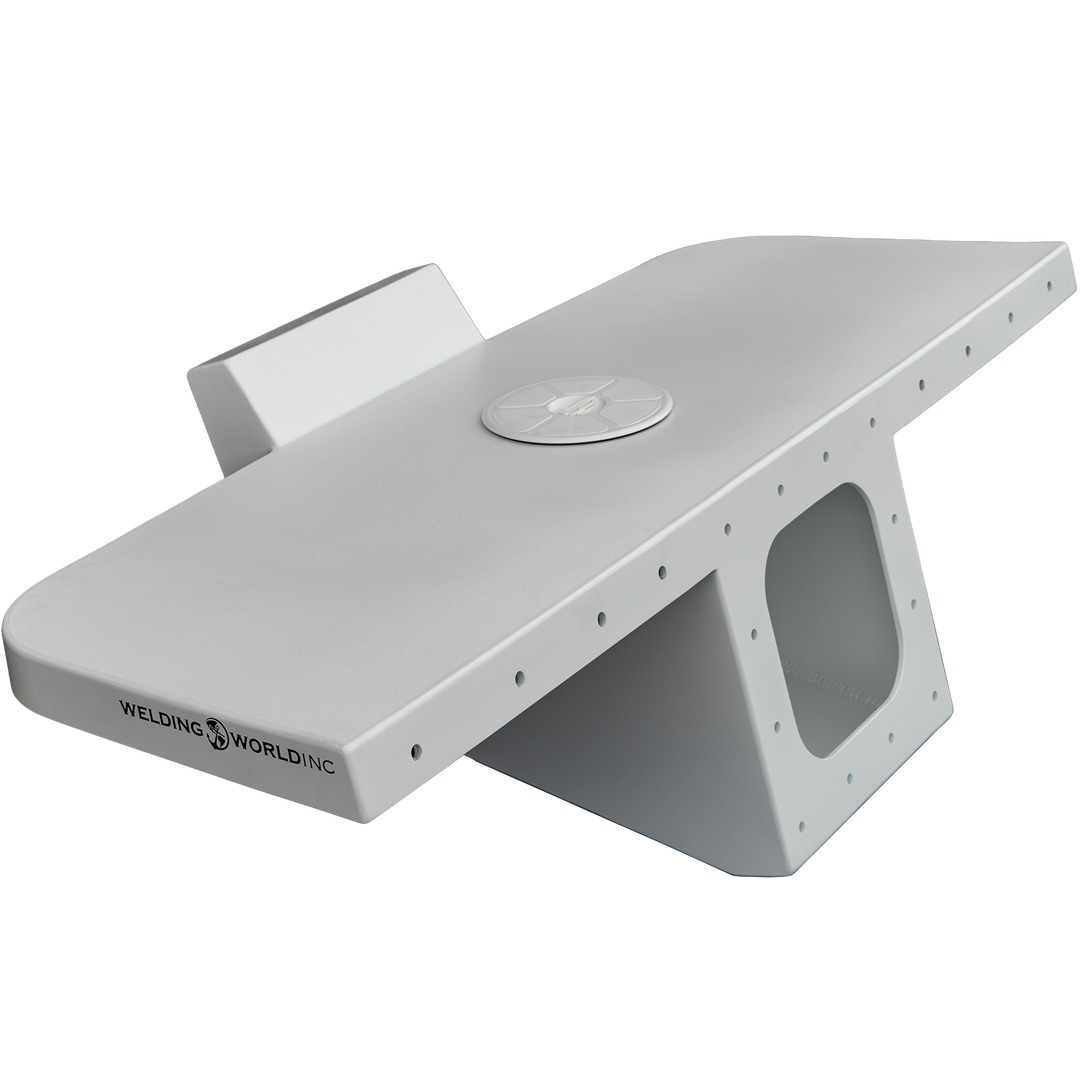

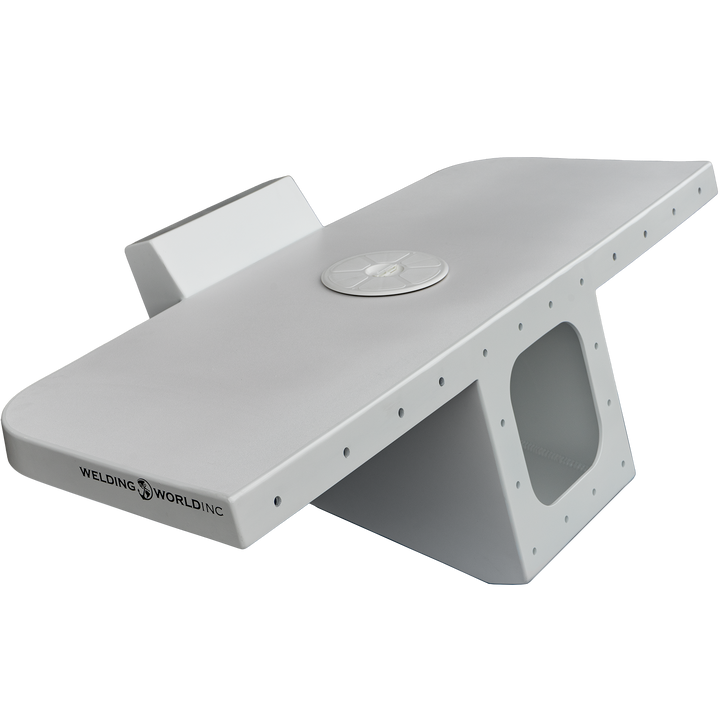

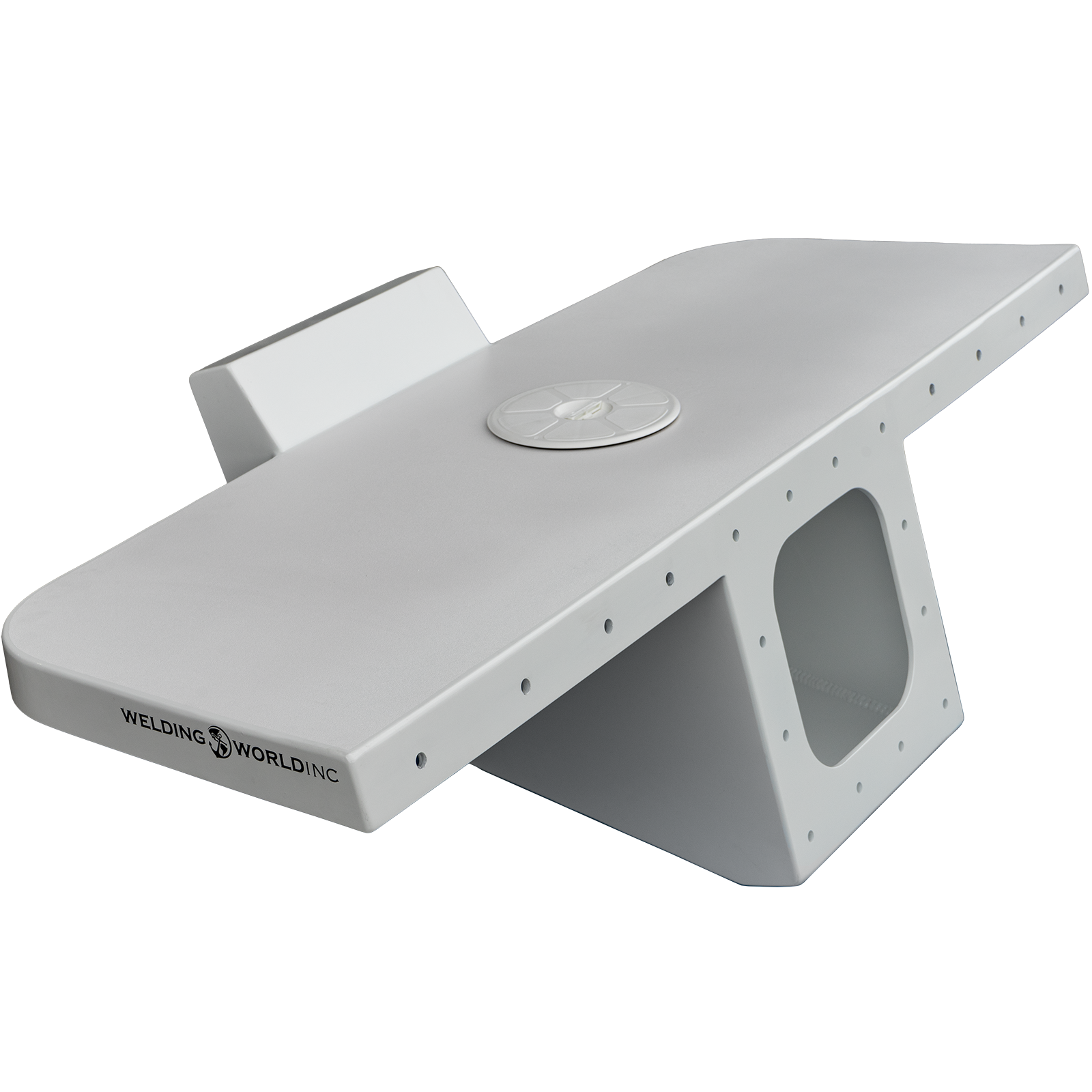

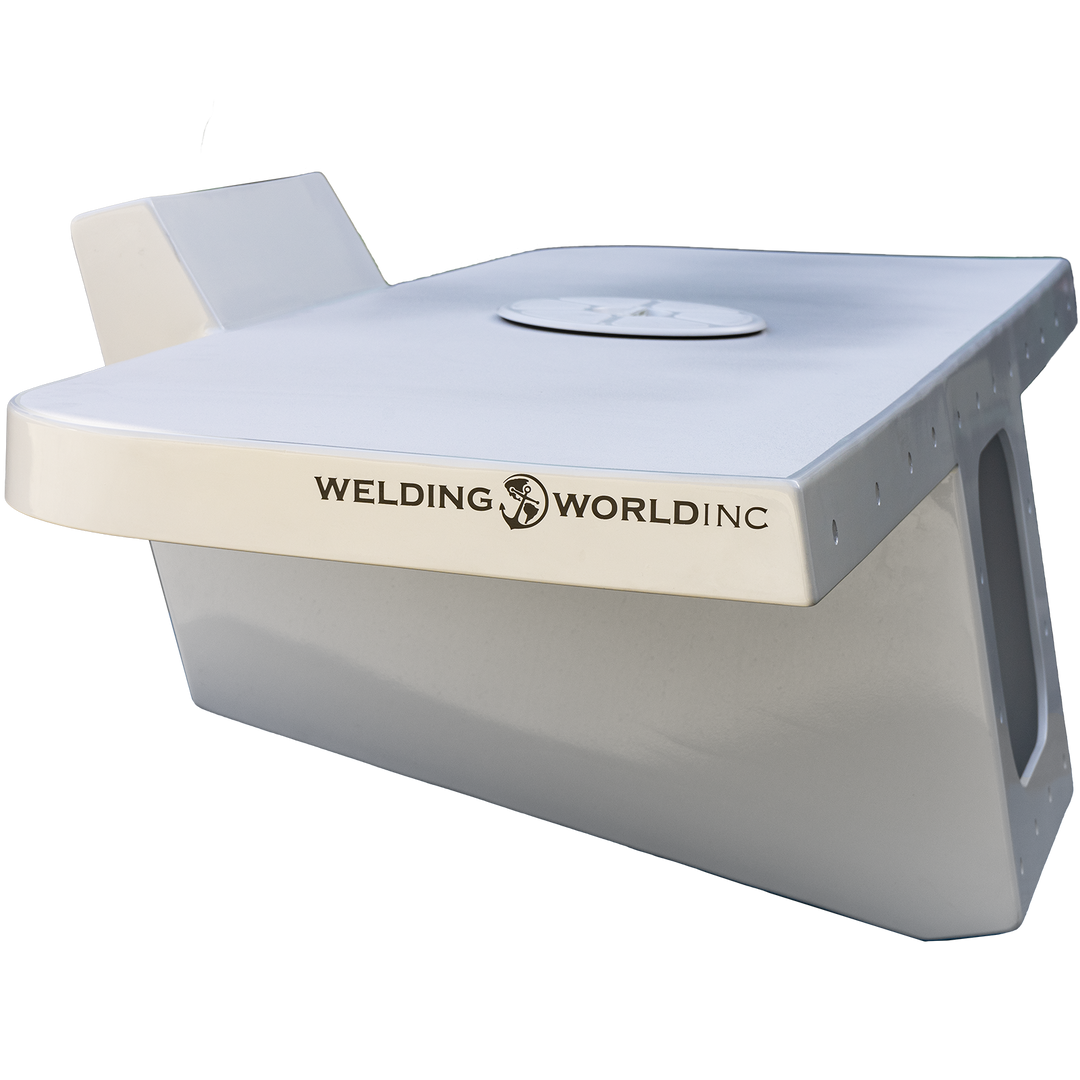

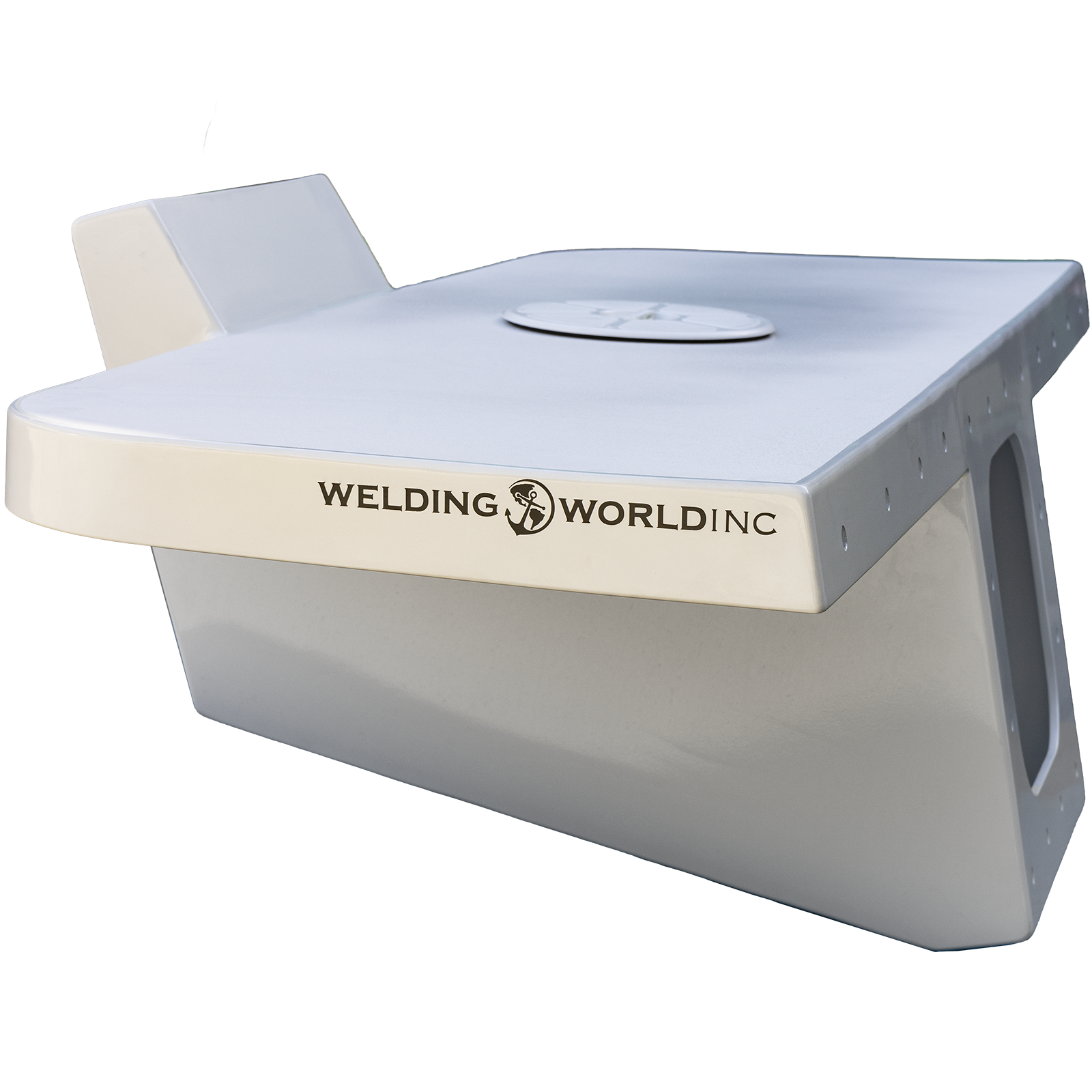

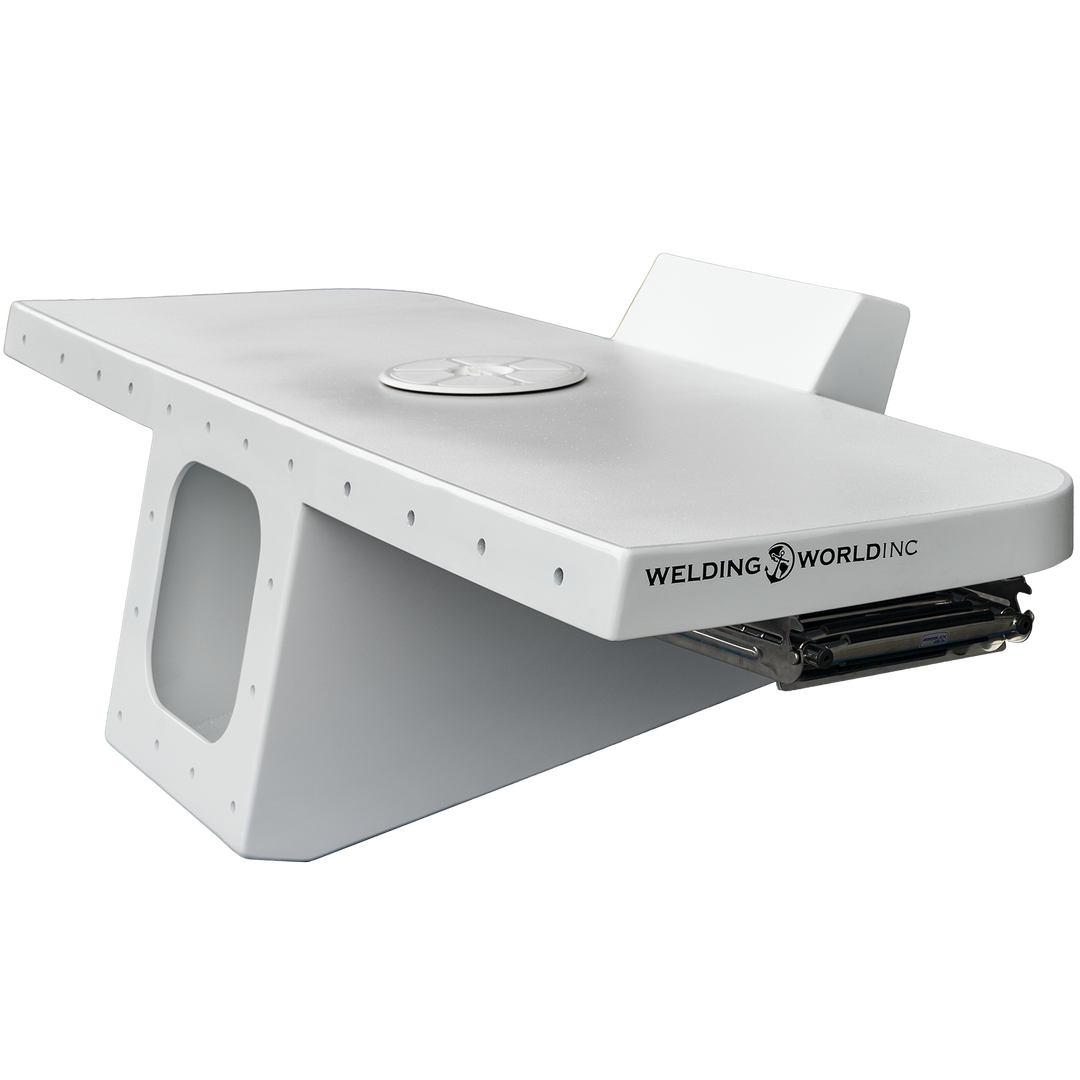

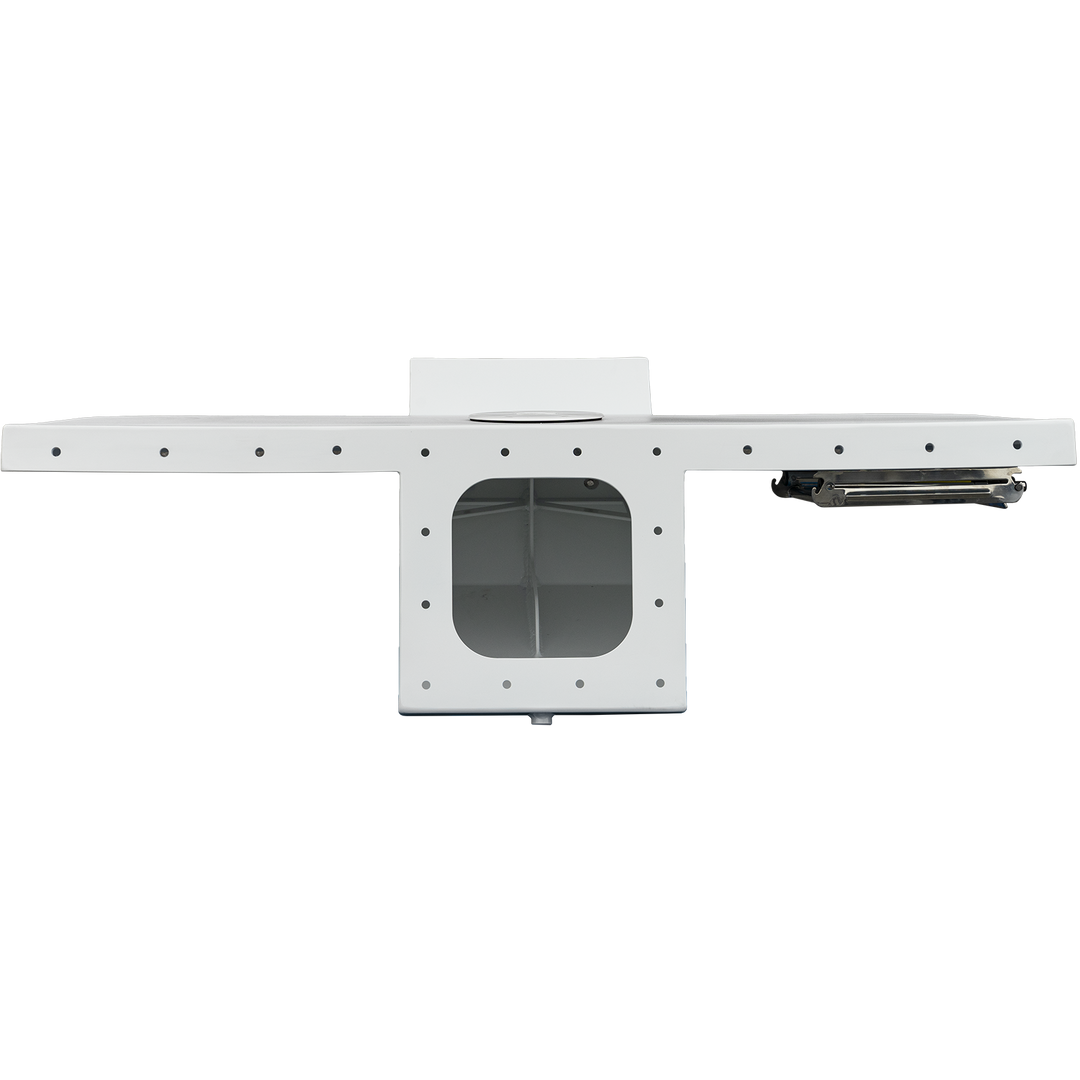

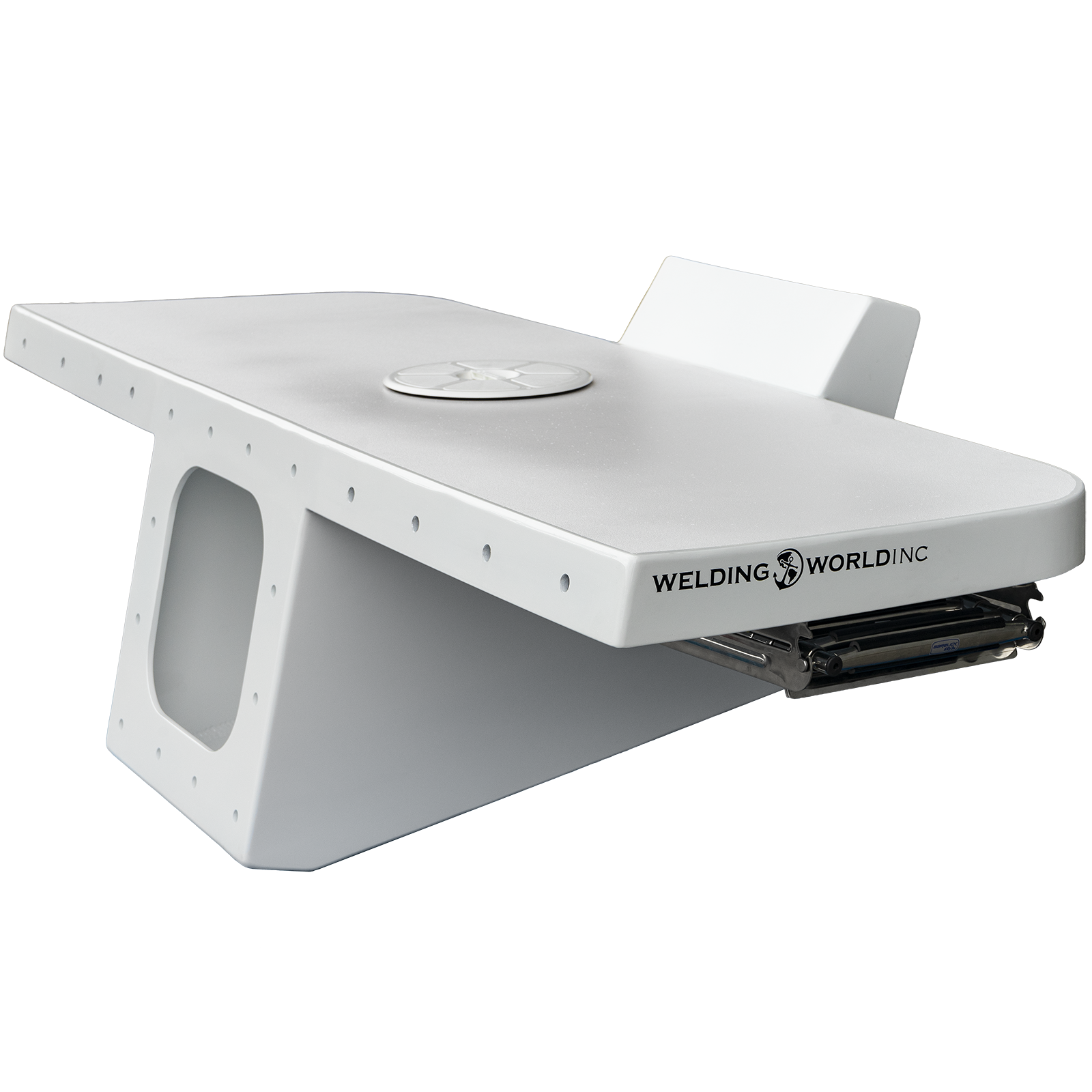

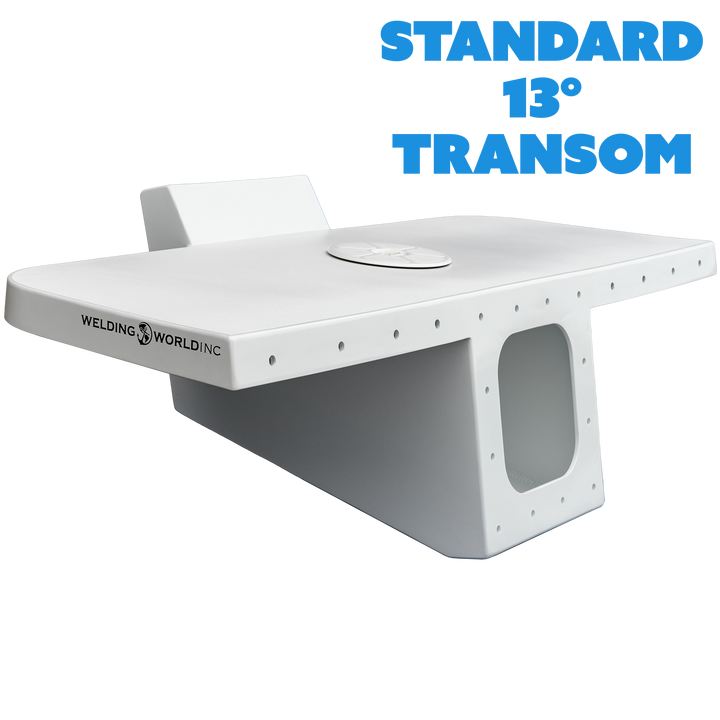

Standard Apex Single Engine 13° Transom Bracket

You could safely say that an outboard engine bracket is the ultimate add-on for almost any outboard equipped boat. Almost all of the boat styles out there can benefit from an engine bracket but most especially those that put a premium on a substantial increment in speed and fuel range without having to replace costly outboard engines.

You can benefit from also having an overall better handling boat and one that can shoot out of the hole usually in half the time it used to take with the old engine placement as well as cruising dryer and at a flatter angle. It will also make your boat safer offering a way lower platform from which to push yourself up to the deck when in the water as well as the ideal place where to affix a swim ladder.

Our fabricators have been putting together engine brackets almost since they become a thing in deep-V offshore racing boats, whose roots can be followed back to our base in sunny Miami, arguably the US cradle of the class. We learned the ropes at the elbow of the greats back when Thunder Alley (NE 188th St.) was a barren expanse and three large warehouses where the fastest and meanest boats in the world were hand-built, and have maintained, through different iterations, an uninterrupted presence in the Southern Florida boating scene ever since.

And there’s nothing small-time about our outboard engine bracket products as our stuff is sold as OEM to most of all Miami-based boat manufacturers and we have type certifications from the NMMA and the ABYC. If you have outboard engine bracket questions don’t hesitate and do contact us for a no-compromise consultation.

Note: Please be advised that all of our brackets are made to order and ship via expensive LTL freight so we won't accept returns. Check your boat's measurements carefully and make sure your order perfectly reflects what you want.

Highlights:

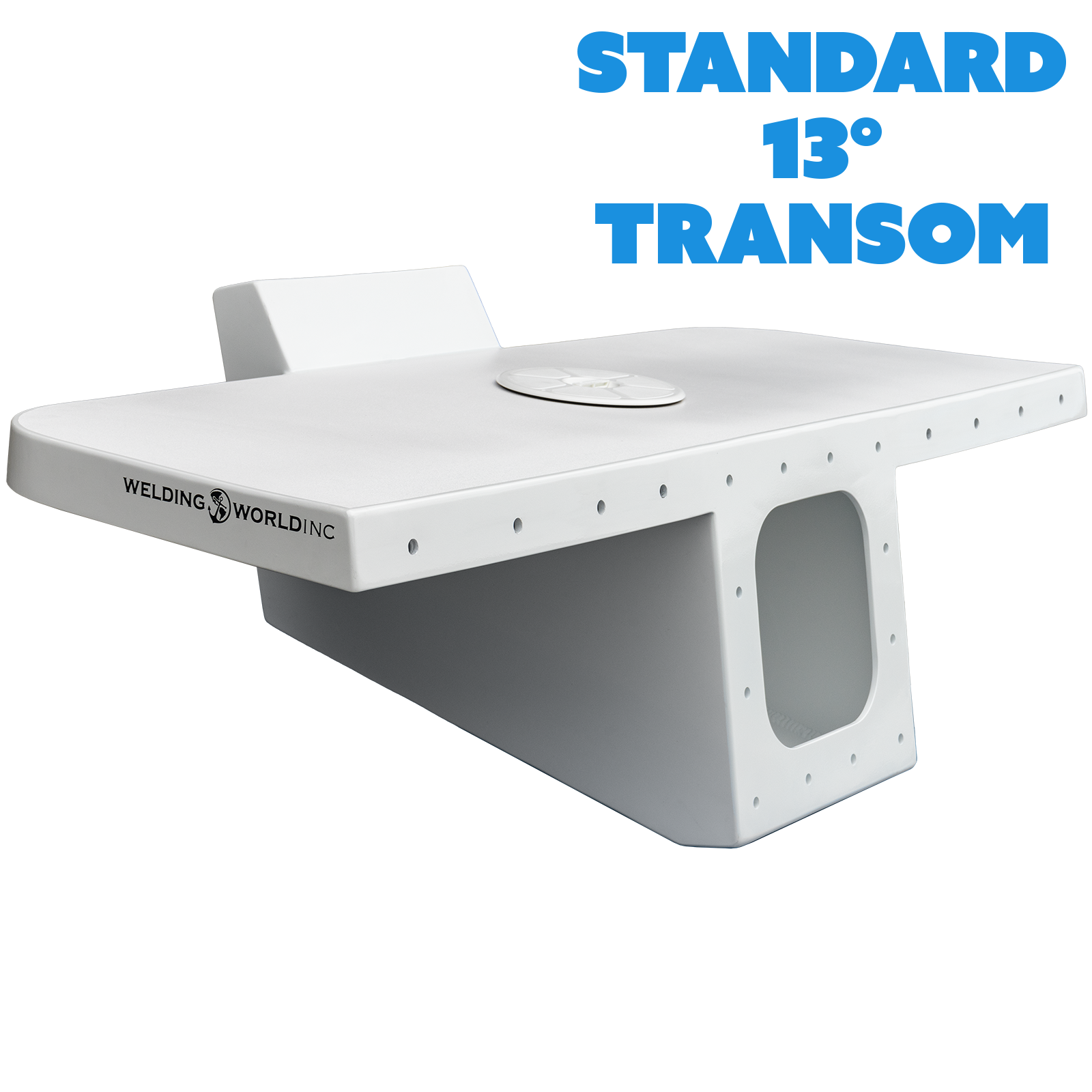

• This standard bracket's design is optimized for 13-degree transom angles.
• All of the standard bracket models are typically in stock and ship faster than the custom models. Average door-to-door transit times to the contiguous US should be within the 3 weeks time frame. This item ships freight only, and we can only ship it to commercial addresses for this reason.

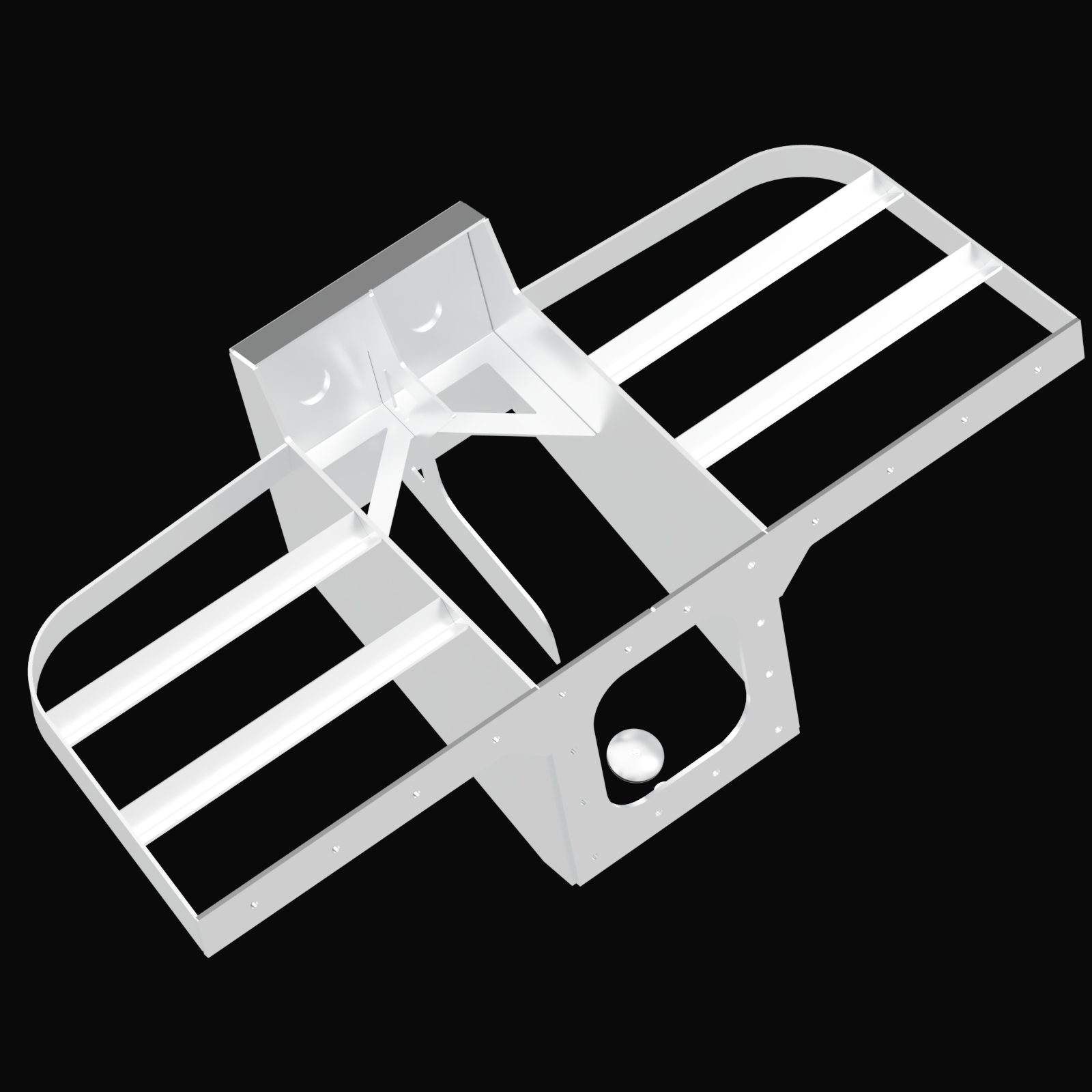

• All-aluminum construction using 0.250 thick cold-formed Alcoa 5052 H32 series sheets and schedule 40 6061-T6 series aluminum tubing for our standard rounded wrap-around edge design.
• Exclusive dual-electrostatic powdered-coatings: primer + gloss powder coating for the ultimate in marine environment protection. We first apply an electrostatic primer coat, oven-cure it, and then apply a thick, high mil powder coating for the final external coating. No other competitor in the market goes that far to ensure your new bracket's appearance and durability.

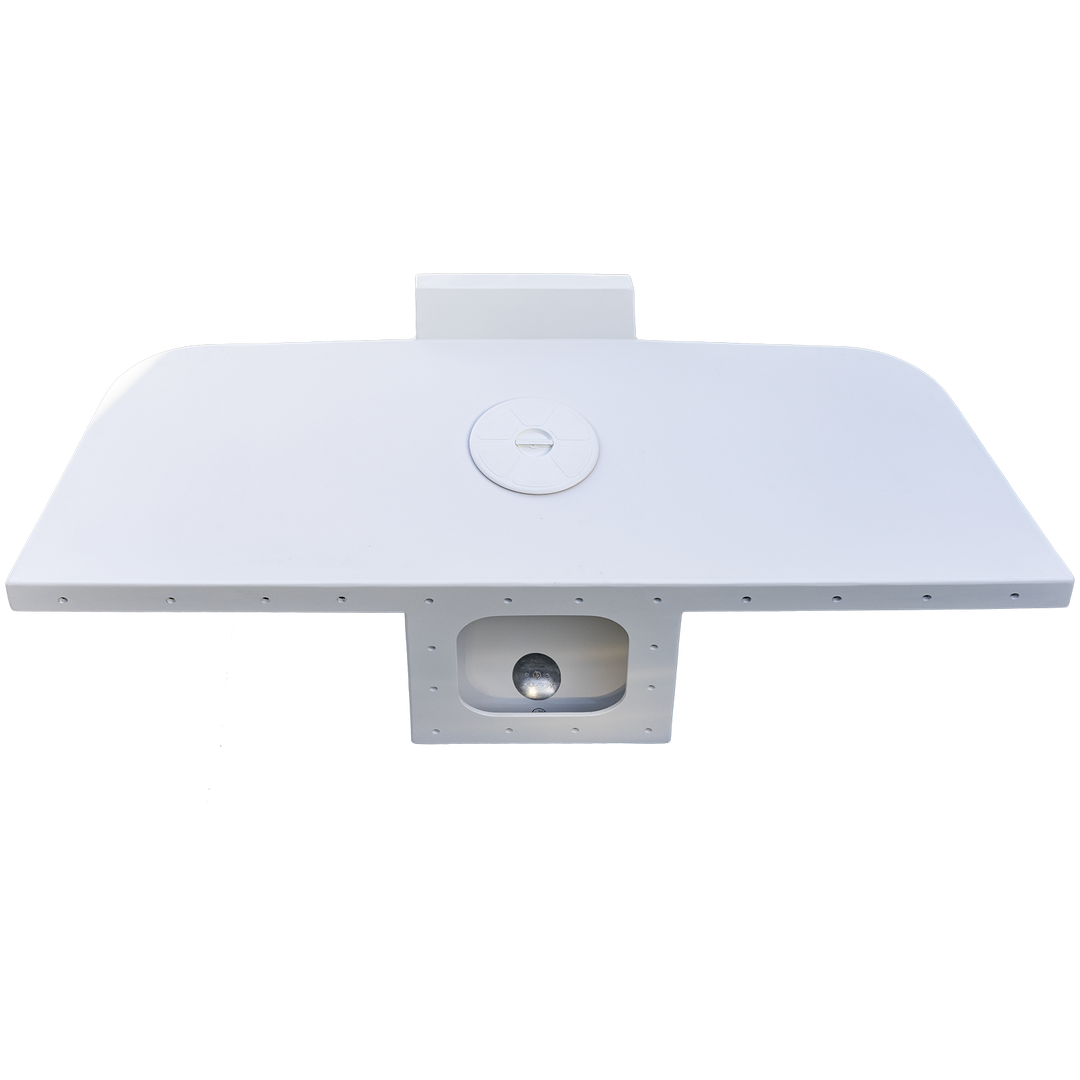

• Sand textured, anti-slip treatment to the platform's top surface to ensure traction and safety when wet.

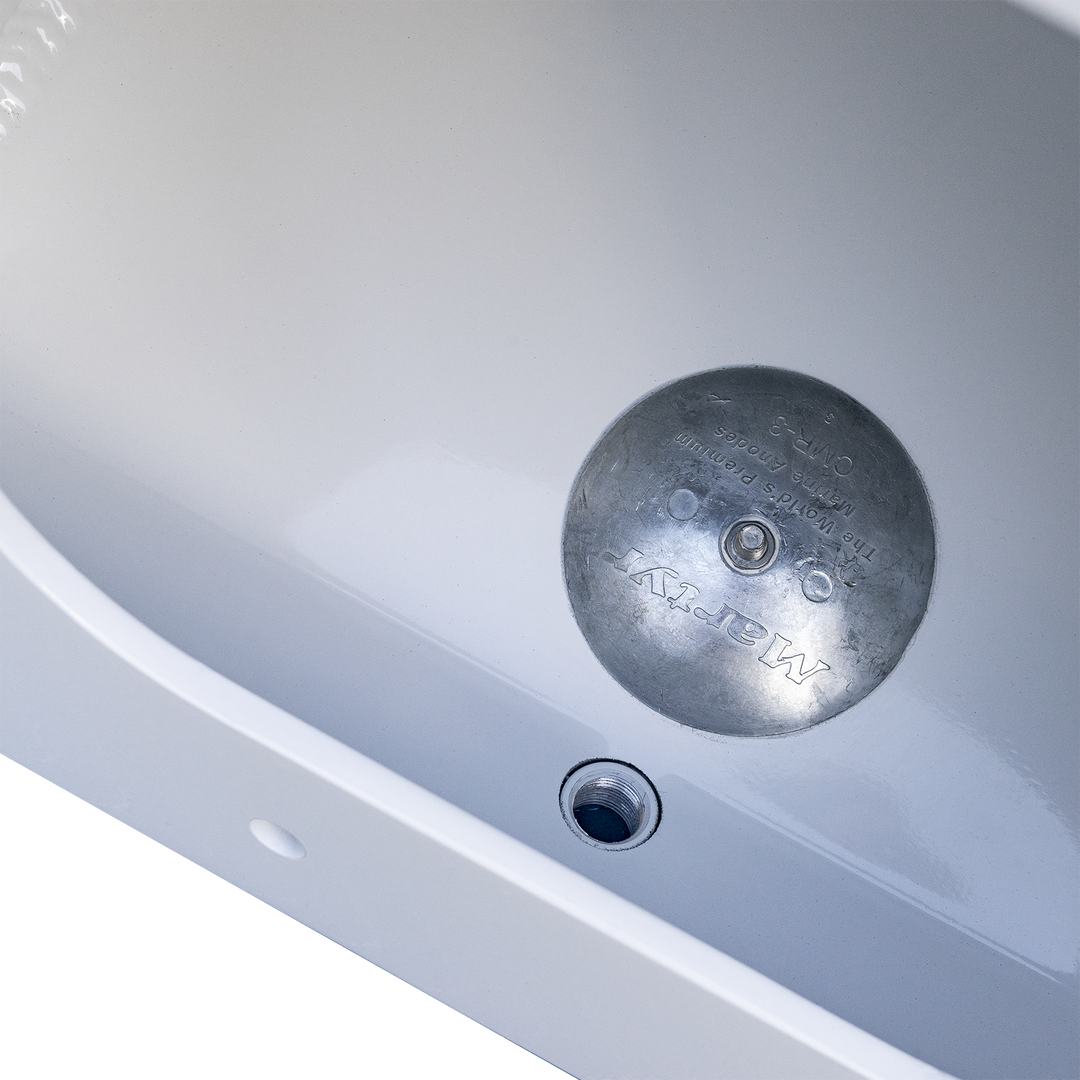

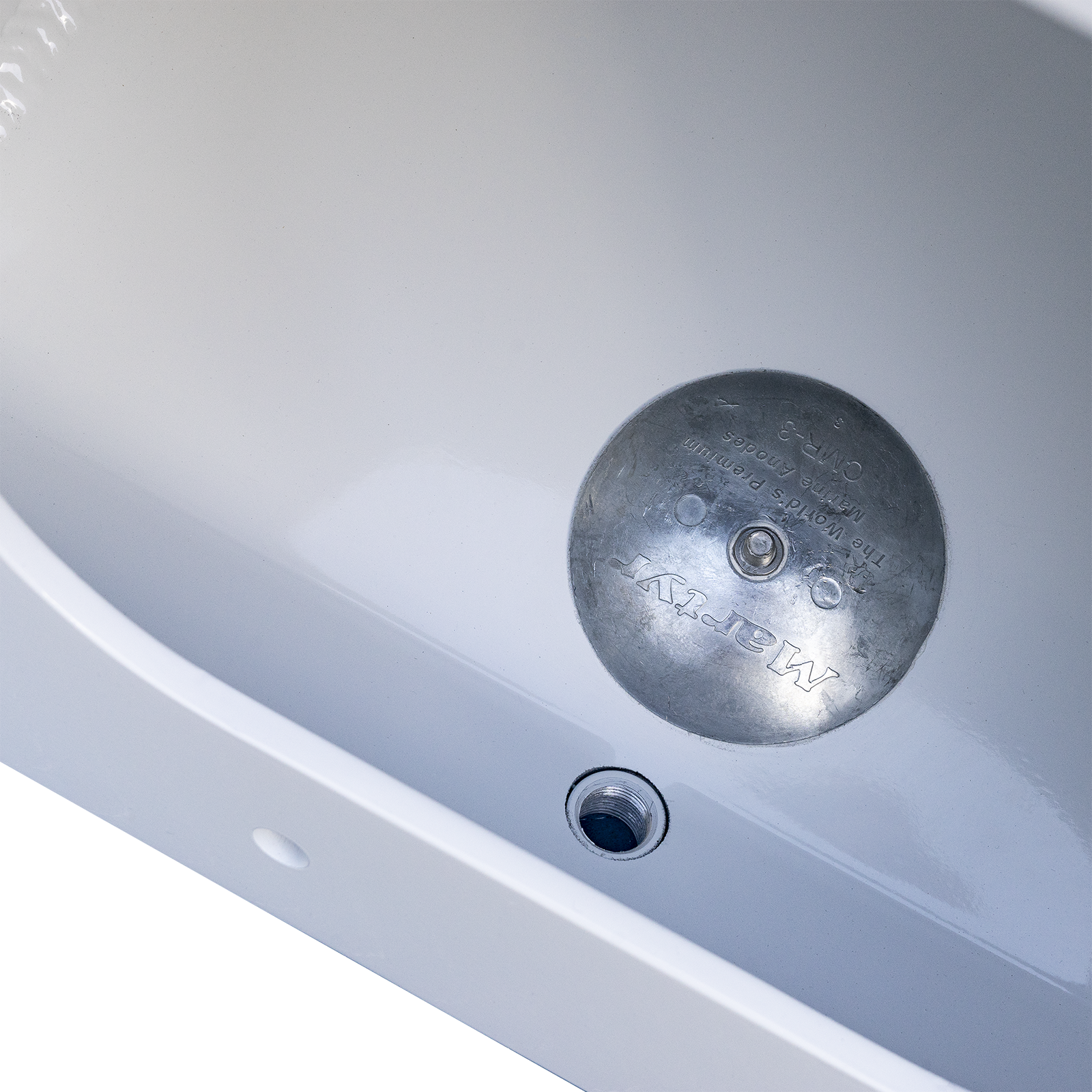

• Standard 1 x 3.75 inch saltwater specific sacrificial anodes (zincs).

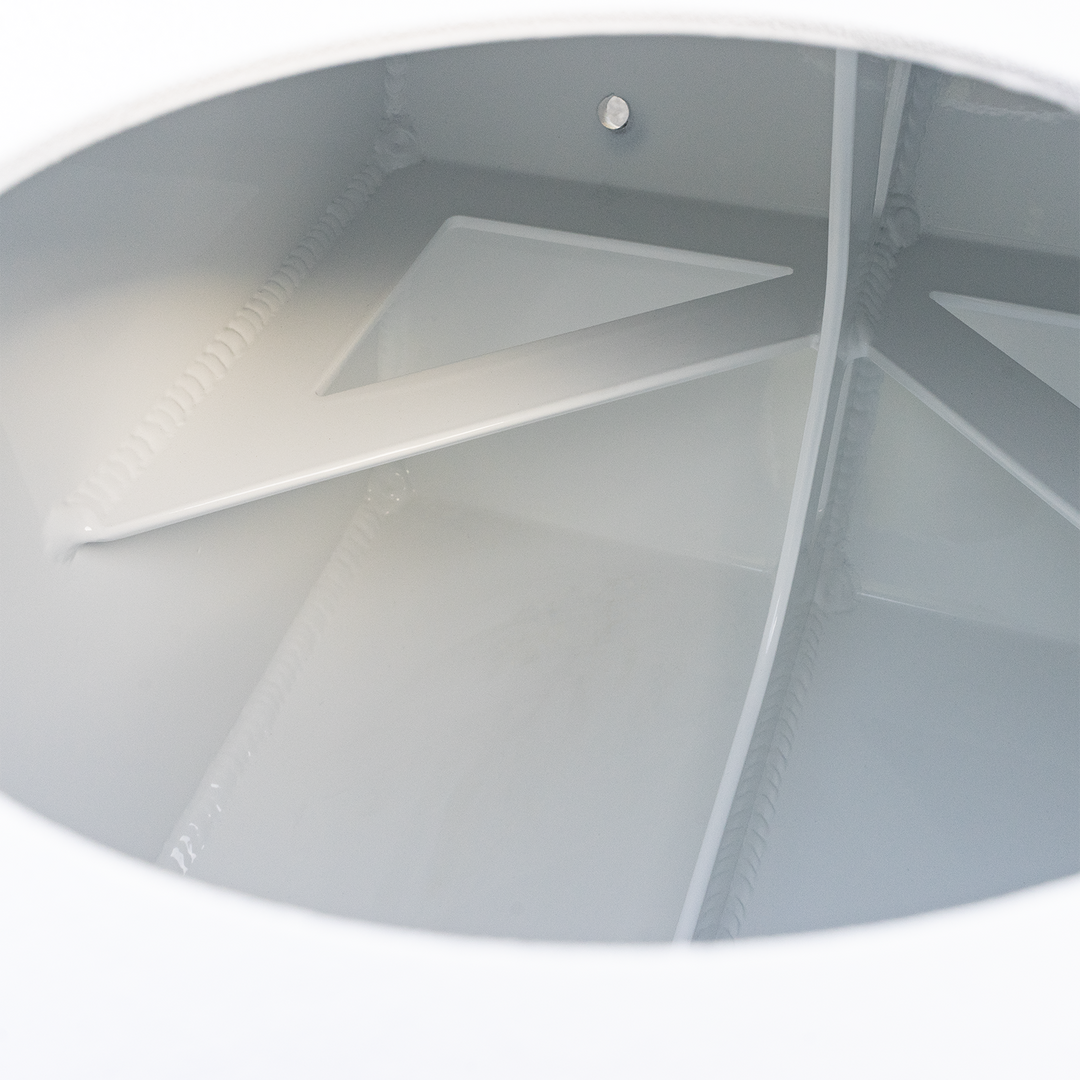

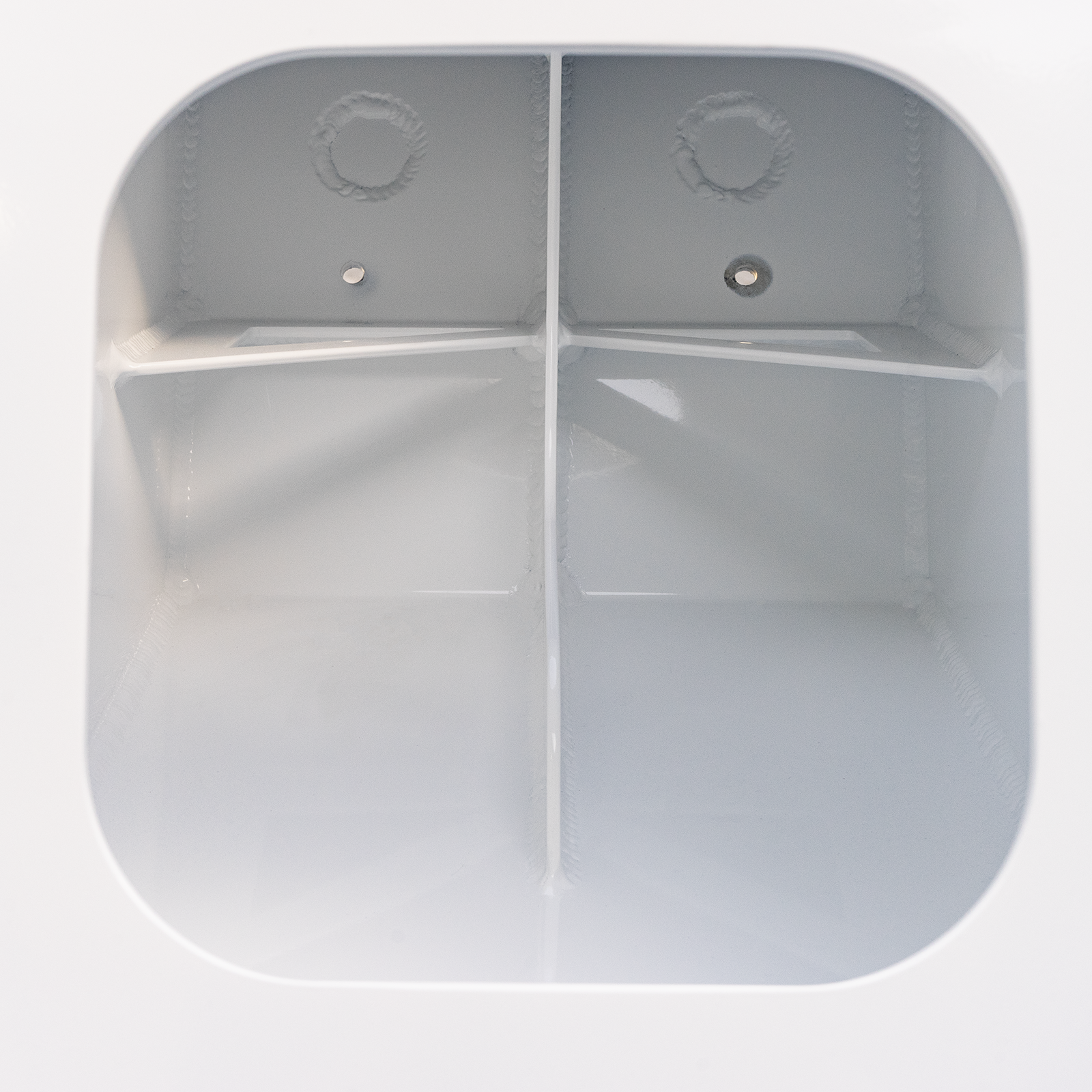

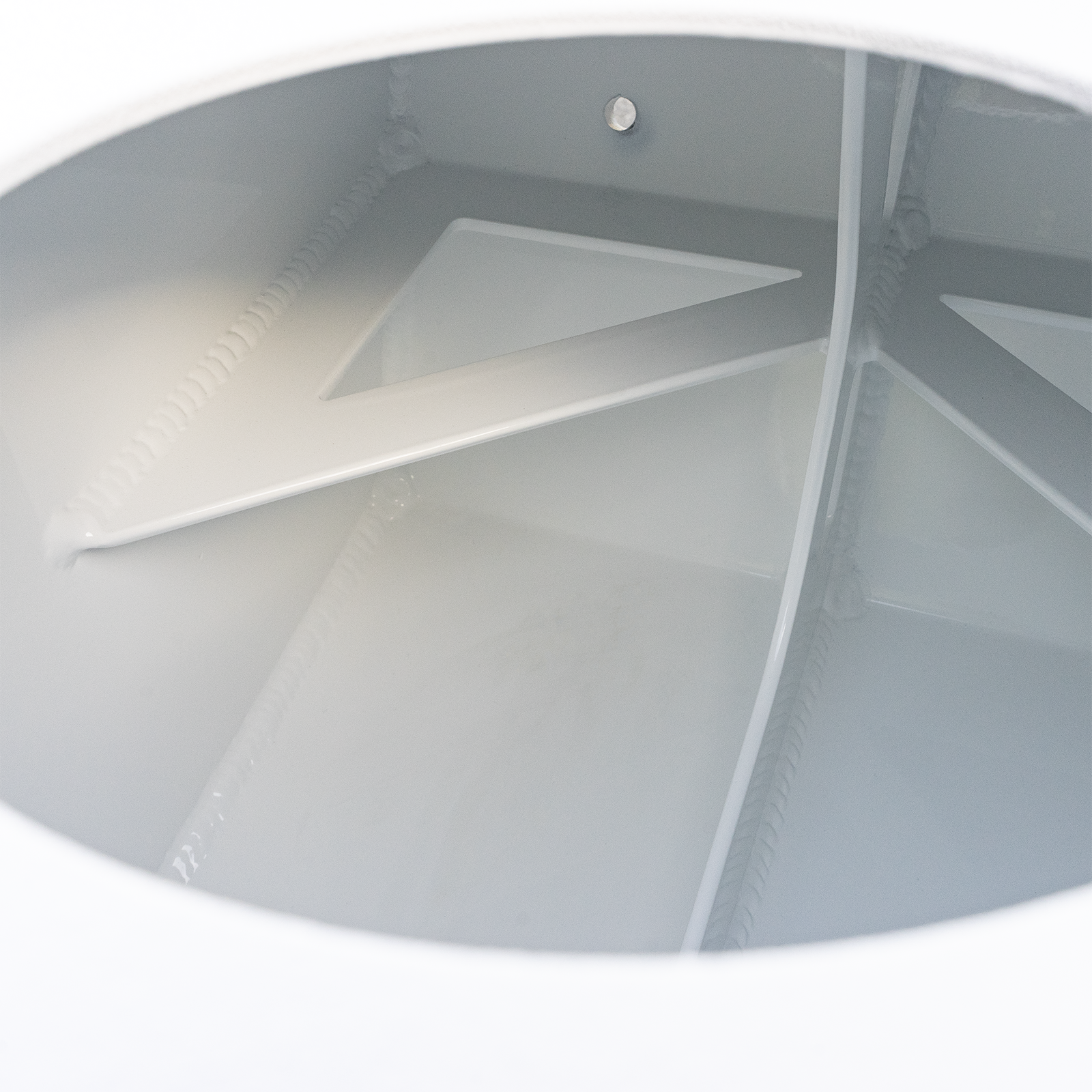

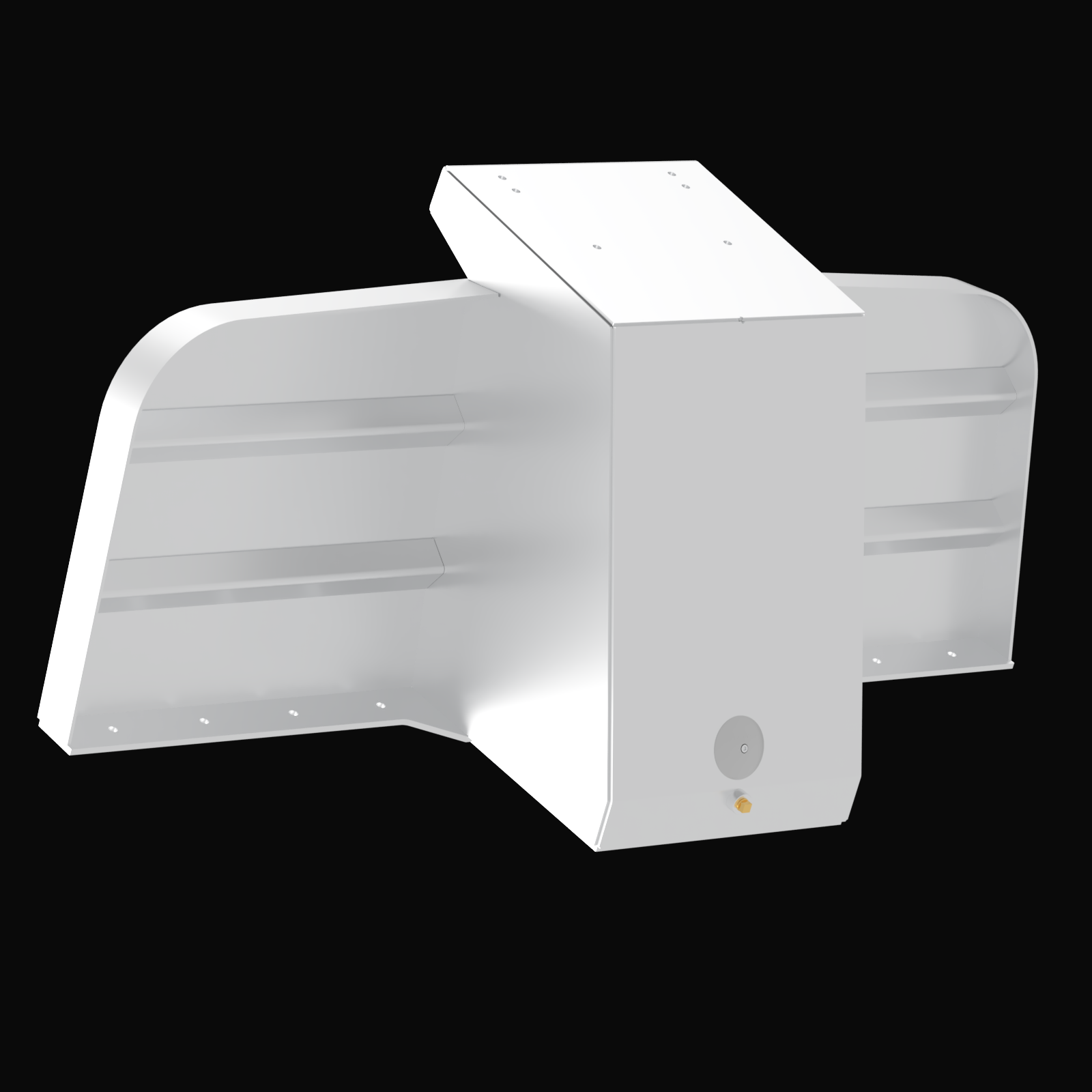

• Large volume flotation box.

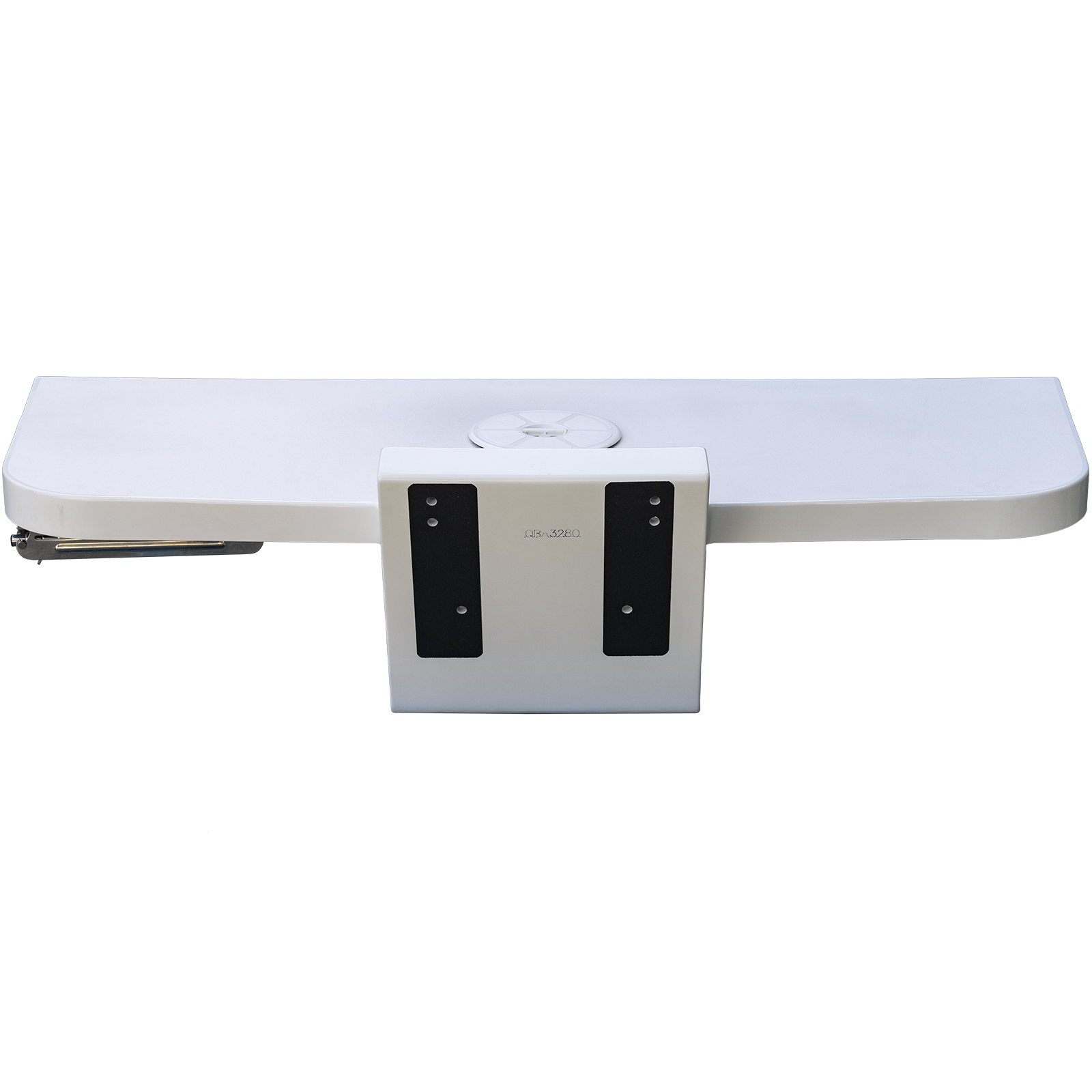

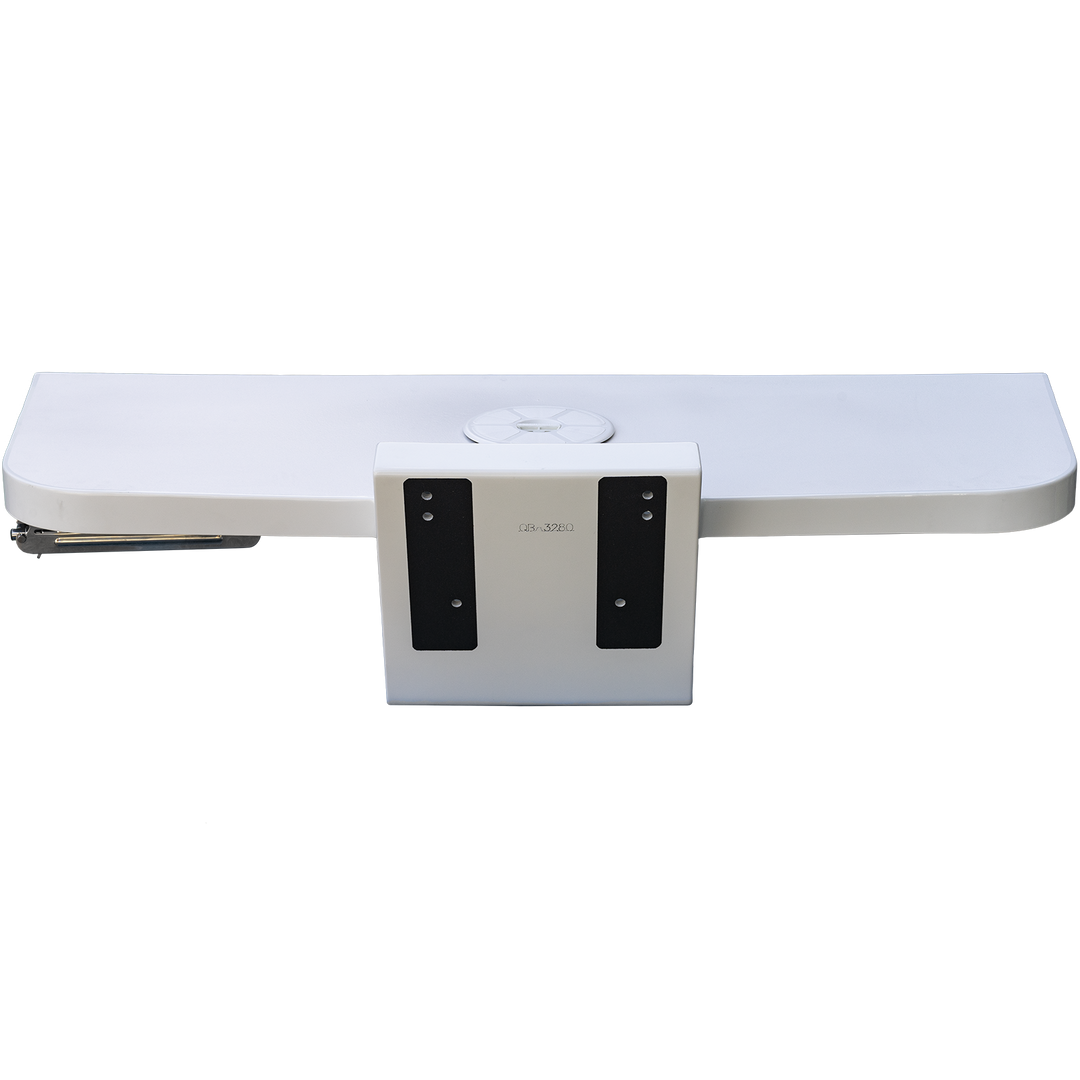

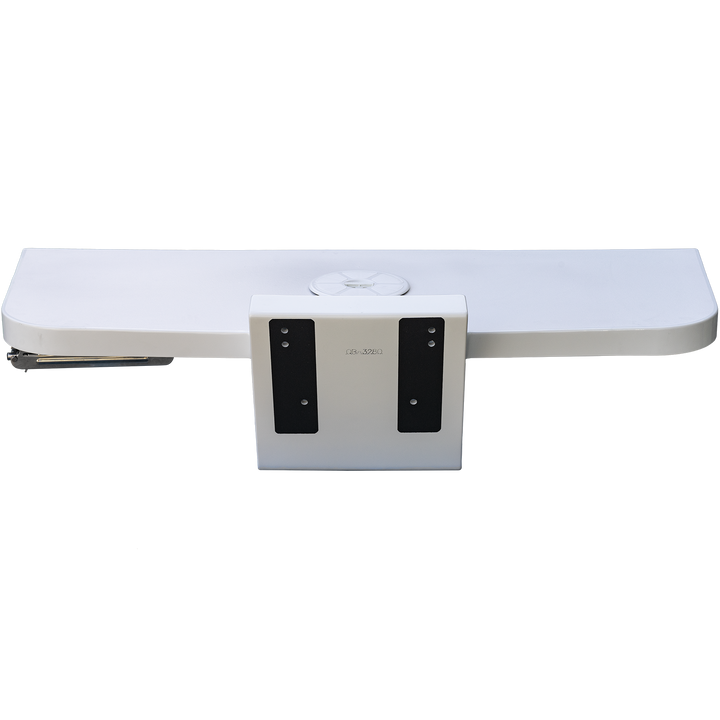

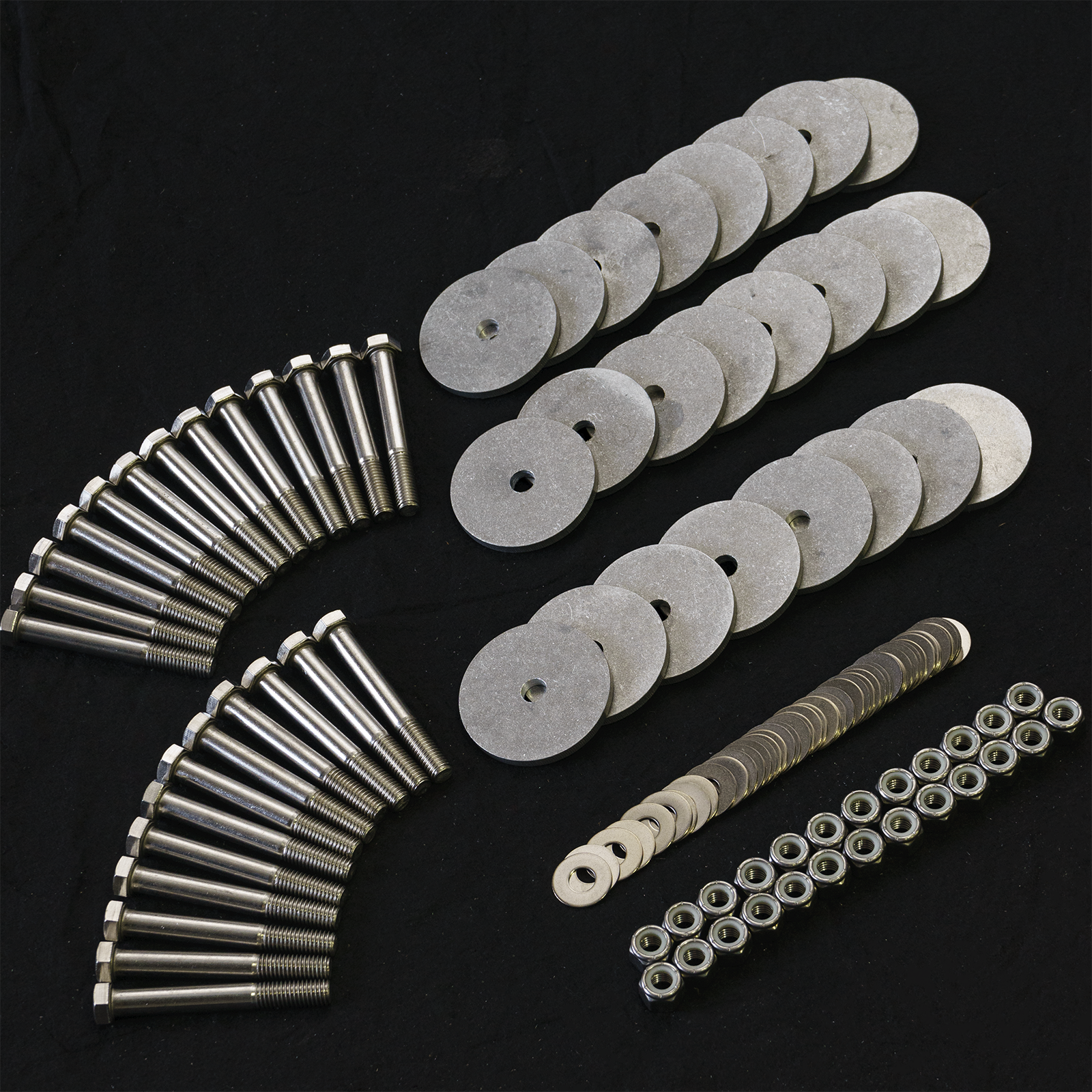

• Includes all mounting aluminum backing plates, SS screws and SS nuts.
• 3-year limited warranty.

Manufacturing & Delivery Timeframe: All of our engine brackets are professionally fabricated to order. The standard lead time for manufacturing is 3-4 weeks. Following production, please allow an additional 5-8 days for shipping. The total estimated time from placing your order to delivery at your door is typically between 4 and 5 weeks. Please note that manufacturing may be completed sooner depending on seasonal demand.

Return Policy: No refunds are accepted, as all of our products are made to order. Our policy is strictly limited to the repair or replacement of qualifying defective or damaged goods. Please note that shipping costs are non-refundable.
