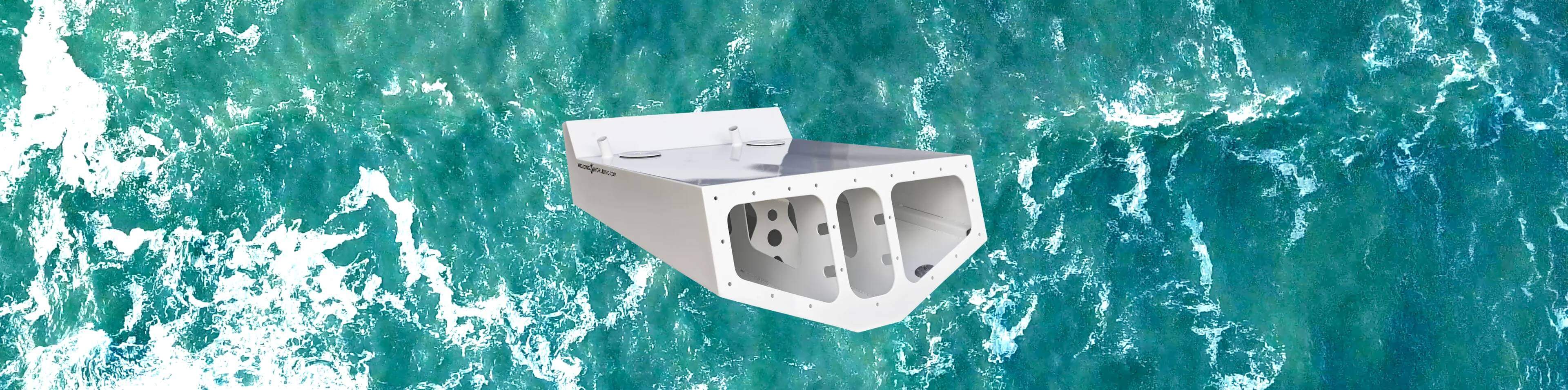

Standard High Flotation Twin Outboard Engine Bracket 11° Transom

If an outboard engine bracket is the ultimate add-on for most outboard-equipped boats, this particular one will up the ante in almost all respects. You will not only benefit from a substantial increment in speed and fuel range without having to replace your existing twin outboard engines but you’ll also get away with repowering with much more powerful ones, and potentially heavier, if you choose to. Your stance at rest will be at a flatter angle as the extra flotation volume, applied just at the right spot for maximum leverage, could help compensate for the extra weight of the bigger engines, but more than that you will indeed gain a flatter running angle, mostly due to the generous setback of this bracket. With that, you will gain a more efficiently running hull and a considerably drier cockpit

You will benefit from also having an overall better handling boat and one that can shoot out of the hole usually in half the time it used to take with the placement of the old engine. It will also make your boat safer offering a way lower platform from which to push yourself up to the deck when in the water as well as the ideal place where to affix an available as an option swim ladder.

Our fabricators have been putting together engine brackets almost since they become a thing in deep-V offshore racing boats, whose roots can be followed back to our base in sunny Miami, arguably the US cradle of the class. We learned the ropes at the elbow of the greats back when Thunder Alley (NE 188th St.) was a barren expanse and three large warehouses where the fastest and meanest boats in the world were hand-built, and have maintained, through different iterations, an uninterrupted presence in the Southern Florida boating scene ever since.

And there’s nothing small-time about our outboard engine bracket products as our stuff is sold as OEM to most of all Greater Miami-based boat manufacturers and some of the biggest in upstate Florida, and we have type certifications from the NMMA, and the ABYC. If you have outboard engine bracket questions don’t hesitate and do contact us for a no-compromise consultation.

Note: Please be advised that all of our brackets are made to order and ship via expensive LTL freight so we won't accept returns. Check your boat's measurements carefully and make sure your order perfectly reflects what you want.

Highlights:

• All-aluminum construction using 0.375” (transom and engine plates) and 0.250” (rest of the structure) thick cold-formed Alcoa 5052 H32 series sheets and schedule 40 6061-T6 series aluminum tubing for our optional wrap-around handlebar.
• 124 gallons of added flotation volume in the deep-vee-shaped airbox for added dynamic stability.
• Exclusive dual-electrostatic powder-coatings: primer + gloss powder coating for the ultimate in marine environment protection. We first apply an electrostatic primer coat, oven-cure it, and then apply a thick, high-mil powder coating for the final external coating. No other competitor in the market goes that far to ensure your new bracket's appearance and durability.
• Awlgrip Sandtex textured, anti-slip treatment to the platform's top surface ensures perfect traction, safety, and durability when wet.
• Standard 2 x 3.75-inch saltwater specific sacrificial anodes (zincs).
• Twist-off, wide 8-inch easy access marine spec hatch.
• Includes all mounting aluminum backing plates, SS screws, and SS nuts.
• 3-year limited warranty.

Manufacturing & Delivery Timeframe: All of our engine brackets are professionally fabricated to order. The standard lead time for manufacturing is 3-4 weeks. Following production, please allow an additional 5-8 days for shipping. The total estimated time from placing your order to delivery at your door is typically between 4 and 5 weeks. Please note that manufacturing may be completed sooner depending on seasonal demand.

Return Policy: Under no circumstances do we offer refunds. Our policy is strictly limited to the repair or replacement of qualifying defective or damaged goods. Shipping costs are non-refundable.
