A three-tank combo kit for a Yellowfin 34 2008, consisting of one 151-gallon belly tank and two 112-gallon saddle tanks, all in a dark, textured finish. The belly tank is rectangular and positioned centrally, while the two saddle tanks are trapezoidal, angled, and placed on either side. All tanks feature various fittings, sensors, and connections on their top surfaces, suitable for marine fuel systems
A diagram of a Yellowfin 34 2008 Center Fuel Tank, 150 gallons nominal - 151.72 gallons net, rendered in a light gray color against a black background. The rectangular tank has dimensions indicated by arrows: 94 inches in length, 15 inches in height, and 26 inches in width. Various fittings are visible on its top surface, including several small golden cylindrical components, a circular cap with a central bolt, and a few small loops. A logo with two 'W's and an anchor is located in the bottom right corner
A diagram of a Yellowfin 34 2008 Port Saddle Fuel Tank, 112 gallons nominal, rendered in light gray against a black background. The tank has an elongated, somewhat irregular shape, with dimensions indicated by arrows: 131 inches in length, 14 3/4 inches in height at one end, and 25 1/2 inches in width at the wider end. The top surface features several small rectangular protrusions, two cylindrical fittings, a small brass-colored component, and a circular cap with a central bolt
A diagram of a Yellowfin 34 2008 Starboard Saddle Fuel Tank, 112 gallons nominal, rendered in a light gray against a black background. The tank has an elongated, irregular shape with a section cut out along one side. Dimensions are indicated: 131 inches in length, 14 3/4 inches in height at one end, and 25 1/2 inches in width at the wider section. Various fittings are visible on its top surface, including several small rectangular protrusions, a cylindrical fitting
A set of three dark-colored, textured fuel tanks for a Yellowfin 34 2008. The central tank is a rectangular 'belly' tank with a capacity of 151 gallons. On either side are two elongated, irregularly shaped 'saddle' tanks, each with a capacity of 112 gallons. All tanks feature various fittings, sensors, and connections on their top surfaces, suggesting they are part of a complete marine fuel system
A set of three dark-colored, textured fuel tanks for a Yellowfin 34 2008 boat. One tank is a rectangular 'belly' tank, and the other two are elongated, irregularly shaped 'saddle' tanks, each with angled ends. All tanks are equipped with various marine fittings and connections on their top surfaces, including fill ports, vents, and fuel level sensors
A long, black, rectangular fuel tank with a textured finish. The tank has an L-shaped cutout on one end and features several components on its top surface, including a brass fitting, a sensor with wires, two small cylindrical fittings, and multiple flat mounting brackets. The tank appears robust and designed for marine use
A long, black, rectangular fuel tank with a textured surface, shown from a slightly elevated, front-facing angle. The top of the tank features several components: three brass-colored fittings along the front edge, a small white label, a circular sensor with wires, a small rectangular component, and two curved metal mounting brackets. A blue-capped vent is visible at the far end of the tank
A long, black, textured fuel tank with an irregular, stepped design on one side. The tank features various components on its top surface, including a brass-colored fitting, a circular sensor with attached wires, a small white rectangular label, multiple flat mounting brackets, and two small cylindrical fittings, one with a blue cap. The tank has angled bottom edges
A close-up view of a product label from 'Welding World Inc.' attached to a textured black surface. The label details specifications for a 'Yellowfin 34' STBD Fuel Tank,' including Part # WW-T-250, Mfg. Date 08/31/2022, Capacity 112 GAL, Material Alum. 5052-H-32, Thickness .190, and Serial # 2022540. It also specifies the tank is recommended for Gasoline, has a Maximum Test Pressure of 9 psi / 34.5 kpa, and meets ISO 8846 and 10088 specifications. Logos for ABYC and NMMA are present
A close-up view of a product label from 'Welding World Inc.' affixed to a textured black surface. The label provides detailed specifications for a 'Yellow Fin 34 2008' fuel tank, including Part # WW-T-250, Mfg. Date 08/25/2022, Capacity 150 GAL, Material Alum. 5052-H-32, Thickness .190, and Serial # 2022533. It also states the tank is recommended for Gasoline, has a Maximum Test Pressure of 9 psi / 34.5 kpa, and meets ISO 8846 and 10088 specifications. Logos for ABYC and NMMA are present
A close-up view of a product label from 'Welding World Inc.' attached to a textured black surface. The label provides detailed specifications for a 'Yellowfin 34' Port Fuel Tank,' including Part # WW-T-250, Mfg. Date 08/31/2022, Capacity 112 GAL, Material Alum. 5052-H-32, Thickness .190, and Serial # 2022539. It also states the tank is recommended for Gasoline, has a Maximum Test Pressure of 9 psi / 34.5 kpa, and meets ISO 8846 and 10088 specifications. Logos for ABYC and NMMA are present
A three-tank combo kit for a Yellowfin 34 2008, consisting of one 151-gallon belly tank and two 112-gallon saddle tanks, all in a dark, textured finish. The belly tank is rectangular and positioned centrally, while the two saddle tanks are trapezoidal, angled, and placed on either side. All tanks feature various fittings, sensors, and connections on their top surfaces, suitable for marine fuel systems
A diagram of a Yellowfin 34 2008 Center Fuel Tank, 150 gallons nominal - 151.72 gallons net, rendered in a light gray color against a black background. The rectangular tank has dimensions indicated by arrows: 94 inches in length, 15 inches in height, and 26 inches in width. Various fittings are visible on its top surface, including several small golden cylindrical components, a circular cap with a central bolt, and a few small loops. A logo with two 'W's and an anchor is located in the bottom right corner
A diagram of a Yellowfin 34 2008 Port Saddle Fuel Tank, 112 gallons nominal, rendered in light gray against a black background. The tank has an elongated, somewhat irregular shape, with dimensions indicated by arrows: 131 inches in length, 14 3/4 inches in height at one end, and 25 1/2 inches in width at the wider end. The top surface features several small rectangular protrusions, two cylindrical fittings, a small brass-colored component, and a circular cap with a central bolt
A diagram of a Yellowfin 34 2008 Starboard Saddle Fuel Tank, 112 gallons nominal, rendered in a light gray against a black background. The tank has an elongated, irregular shape with a section cut out along one side. Dimensions are indicated: 131 inches in length, 14 3/4 inches in height at one end, and 25 1/2 inches in width at the wider section. Various fittings are visible on its top surface, including several small rectangular protrusions, a cylindrical fitting
A set of three dark-colored, textured fuel tanks for a Yellowfin 34 2008. The central tank is a rectangular 'belly' tank with a capacity of 151 gallons. On either side are two elongated, irregularly shaped 'saddle' tanks, each with a capacity of 112 gallons. All tanks feature various fittings, sensors, and connections on their top surfaces, suggesting they are part of a complete marine fuel system
A set of three dark-colored, textured fuel tanks for a Yellowfin 34 2008 boat. One tank is a rectangular 'belly' tank, and the other two are elongated, irregularly shaped 'saddle' tanks, each with angled ends. All tanks are equipped with various marine fittings and connections on their top surfaces, including fill ports, vents, and fuel level sensors
A long, black, rectangular fuel tank with a textured finish. The tank has an L-shaped cutout on one end and features several components on its top surface, including a brass fitting, a sensor with wires, two small cylindrical fittings, and multiple flat mounting brackets. The tank appears robust and designed for marine use
A long, black, rectangular fuel tank with a textured surface, shown from a slightly elevated, front-facing angle. The top of the tank features several components: three brass-colored fittings along the front edge, a small white label, a circular sensor with wires, a small rectangular component, and two curved metal mounting brackets. A blue-capped vent is visible at the far end of the tank
A long, black, textured fuel tank with an irregular, stepped design on one side. The tank features various components on its top surface, including a brass-colored fitting, a circular sensor with attached wires, a small white rectangular label, multiple flat mounting brackets, and two small cylindrical fittings, one with a blue cap. The tank has angled bottom edges
A close-up view of a product label from 'Welding World Inc.' attached to a textured black surface. The label details specifications for a 'Yellowfin 34' STBD Fuel Tank,' including Part # WW-T-250, Mfg. Date 08/31/2022, Capacity 112 GAL, Material Alum. 5052-H-32, Thickness .190, and Serial # 2022540. It also specifies the tank is recommended for Gasoline, has a Maximum Test Pressure of 9 psi / 34.5 kpa, and meets ISO 8846 and 10088 specifications. Logos for ABYC and NMMA are present
A close-up view of a product label from 'Welding World Inc.' affixed to a textured black surface. The label provides detailed specifications for a 'Yellow Fin 34 2008' fuel tank, including Part # WW-T-250, Mfg. Date 08/25/2022, Capacity 150 GAL, Material Alum. 5052-H-32, Thickness .190, and Serial # 2022533. It also states the tank is recommended for Gasoline, has a Maximum Test Pressure of 9 psi / 34.5 kpa, and meets ISO 8846 and 10088 specifications. Logos for ABYC and NMMA are present
A close-up view of a product label from 'Welding World Inc.' attached to a textured black surface. The label provides detailed specifications for a 'Yellowfin 34' Port Fuel Tank,' including Part # WW-T-250, Mfg. Date 08/31/2022, Capacity 112 GAL, Material Alum. 5052-H-32, Thickness .190, and Serial # 2022539. It also states the tank is recommended for Gasoline, has a Maximum Test Pressure of 9 psi / 34.5 kpa, and meets ISO 8846 and 10088 specifications. Logos for ABYC and NMMA are present

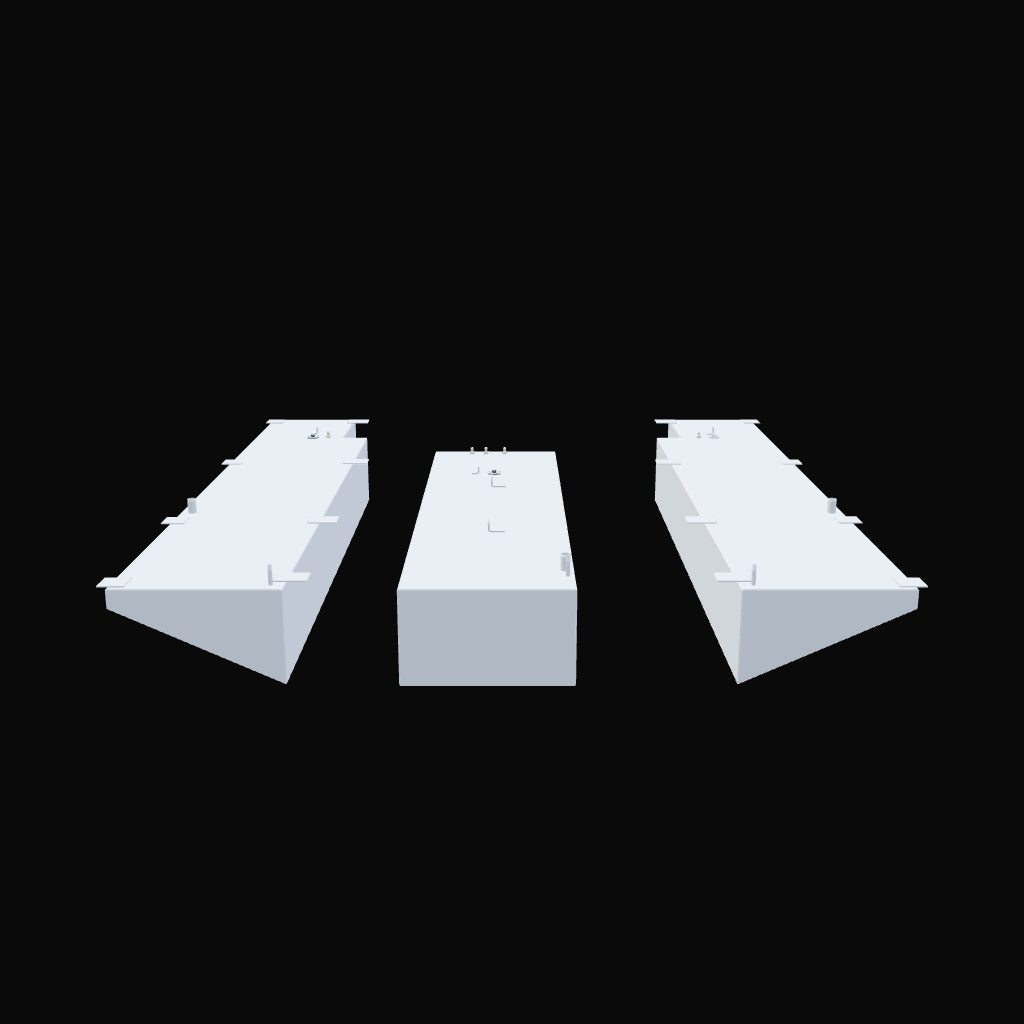

Three light gray fuel tanks are displayed against a black background. The center tank is rectangular. The two tanks on either side are elongated and have angled bottom edges. All three tanks have various small protrusions and fittings on their top surfaces, suggesting they are part of a fuel system

Yellowfin 34 2008 OEM Replacement 3-Tank Combo Kit - 1 Belly (151 gal.) and 2 Saddle Tanks (112 gal.) each

$ 7,400.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.

  • IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 1-2 work weeks. The finished tank pickup window is also 1-2 work weeks, so make sure you will be able to take delivery of your finished tank within that timeframe.

  • Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.

  • .190 thickness Alcoa® 5052 H32 Series aluminum construction.

  • Hand welded GTAW (TIG) welded to exceed ASME / ASW D3.7:2004 standards.

  • Sherwin Williams® TarGard® Epoxy painted for the best marine environment protection.

  • KUS® (ex-WEMA USA®) reed switch sender with NBR float fuel level.

 NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!

Fabrication lead time (before shipping): 1-2 work weeks.

Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.

Return Policy: No refunds are accepted, as all of our products are made to order. Our policy is strictly limited to the repair or replacement of qualifying defective or damaged goods. Please note that shipping costs are non-refundable.

Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
