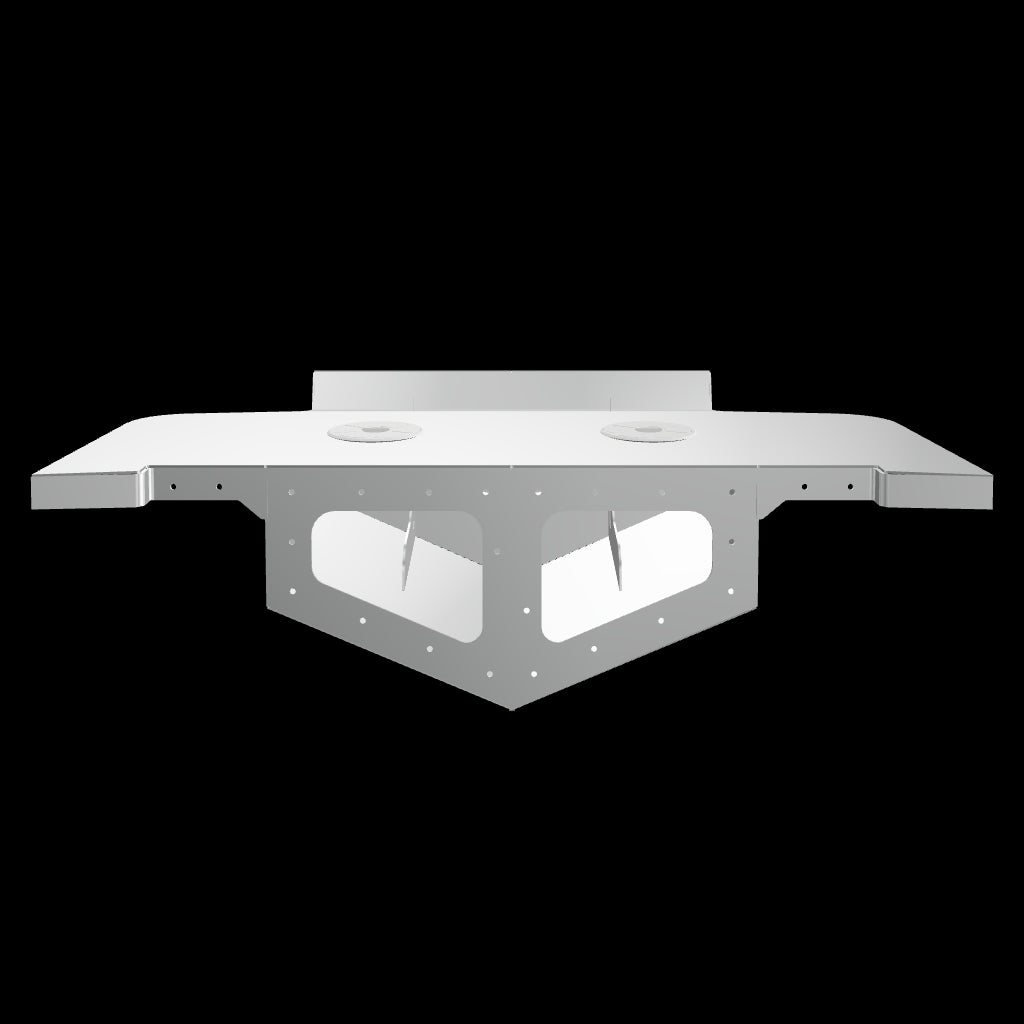

Illustration of the Whitewater/Seavee/Rampone 25 Twin Engine High Flotation Bracket, showing a white, rectangular-shaped bracket with multiple mounting holes along its edges and a stepped design. The bracket is viewed from the front, with a black background

Whitewater/Seavee/Rampone 25 Twin Engine High Flotation Bracket

$ 5,350.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.

Only 100% CAD / CAM Engineered brackets in the US. made to fit over the Whitewater 25 / Seavee 25 / Rampone 25 notorious transom bump. Our precisely adjusted swim platform snugly fits over the sides of the bump to give you the best-fitting bracket experience you'll get anywhere online.

Repower with confidence to up to twin 450 HP outboards with the sturdiest, longest-lasting bracket in the US market. Alcoa 5052-H32 series aluminum construction throughout, expertly TIG welded by gray-haired master welders that have forgotten about their business more than most of our competitors know about, and finally, double powder coated, first with a matte gray primer and last with a bright finish of your choice (black, white or cream) RAL powder coat finish.

This is a 11-degree transom bracket. Always check the angle of your boat for any discrepancies. Remember we cannot be made responsible for possible mismatches if we can't measure your transom in our shop.

It comes complete with 2-aluminum-specific zincs, a fully dressed drain, engine holes, and all mounting hardware, including F593C grade SS screws, SS washers, nuts, and 1/4 thick aluminum backing plates.

And there’s nothing small-time about our outboard engine bracket products as our stuff is sold as OEM to most of all Greater Miami-based boat manufacturers and some of the biggest in upstate Florida, and we have type certifications from the NMMA and the ABYC.

Contact us for a free consultation on your specific boat needs.

Note: Welded ladder bracket, fitting tubes, hydraulic hose holes, and grab rails are not included in the base price. Be sure to select the option in the box above if you need that in your bracket. Please be advised that all of our brackets are made to order and ship via expensive LTL freight so we won't accept returns. Check your boat's measurements carefully and make sure your order perfectly reflects what you want.

Manufacturing & Delivery Timeframe: All of our engine brackets are professionally fabricated to order. The standard lead time for manufacturing is 3-4 weeks. Following production, please allow an additional 5-8 days for shipping. The total estimated time from placing your order to delivery at your door is typically between 4 and 5 weeks. Please note that manufacturing may be completed sooner depending on seasonal demand.

Return Policy: No refunds are accepted, as all of our products are made to order. Our policy is strictly limited to the repair or replacement of qualifying defective or damaged goods. Please note that shipping costs are non-refundable.



Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
