A 3D model of a rectangular black fuel tank with a capacity of 251 gallons, designed for an Ocean Master 29' boat, shown against a black background. The tank features metallic fittings and two outlets on the top
A black background with a 3D illustration of a rectangular fuel tank for an Ocean Master 29' boat from 1987, with a capacity of 251 gallons. The tank measures 120 inches in length, 36 inches in width, and 14 inches in height. The image includes measurements and a logo in the bottom right corner
Ocean Master 29' 1987 251 gal
A digital illustration of a rectangular fuel tank with a capacity of 251 gallons, designed for an Ocean Master 29' boat from 1987. The tank is gray, with metal fittings and two outlets on the top, set against a black background
A tall, rectangular, gray metal panel with three small rectangular openings near the top, a circular opening with a handle near the bottom, and two small circular ports at the very bottom, set against a black background
A black background with a long, horizontal, dark gray panel featuring various small metallic and plastic fittings, ports, and valves arranged along its top edge
A rectangular, metallic tank with various fittings and valves on top, labeled for an Ocean Master 29' boat from 1987 with a capacity of 251 gallons. The tank is shown against a black background
A 3D model of a rectangular black fuel tank with a capacity of 251 gallons, designed for an Ocean Master 29' boat, shown against a black background. The tank features metallic fittings and two outlets on the top
A black background with a 3D illustration of a rectangular fuel tank for an Ocean Master 29' boat from 1987, with a capacity of 251 gallons. The tank measures 120 inches in length, 36 inches in width, and 14 inches in height. The image includes measurements and a logo in the bottom right corner
Ocean Master 29' 1987 251 gal
A digital illustration of a rectangular fuel tank with a capacity of 251 gallons, designed for an Ocean Master 29' boat from 1987. The tank is gray, with metal fittings and two outlets on the top, set against a black background
A tall, rectangular, gray metal panel with three small rectangular openings near the top, a circular opening with a handle near the bottom, and two small circular ports at the very bottom, set against a black background
A black background with a long, horizontal, dark gray panel featuring various small metallic and plastic fittings, ports, and valves arranged along its top edge
A rectangular, metallic tank with various fittings and valves on top, labeled for an Ocean Master 29' boat from 1987 with a capacity of 251 gallons. The tank is shown against a black background

Ocean Master 29' 1987 251 gal

$ 3,260.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.

  • IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 1-2 work weeks. The finished tank pickup window is also 1-2 work weeks, so make sure you will be able to take delivery of your finished tank within that timeframe.

  • Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.

  • .190 thickness Alcoa® 5052 H32 Series aluminum construction.

  • Hand welded GTAW (TIG) welded to exceed ASME / ASW D3.7:2004 standards.

  • Sherwin Williams® TarGard® Epoxy painted for the best marine environment protection.

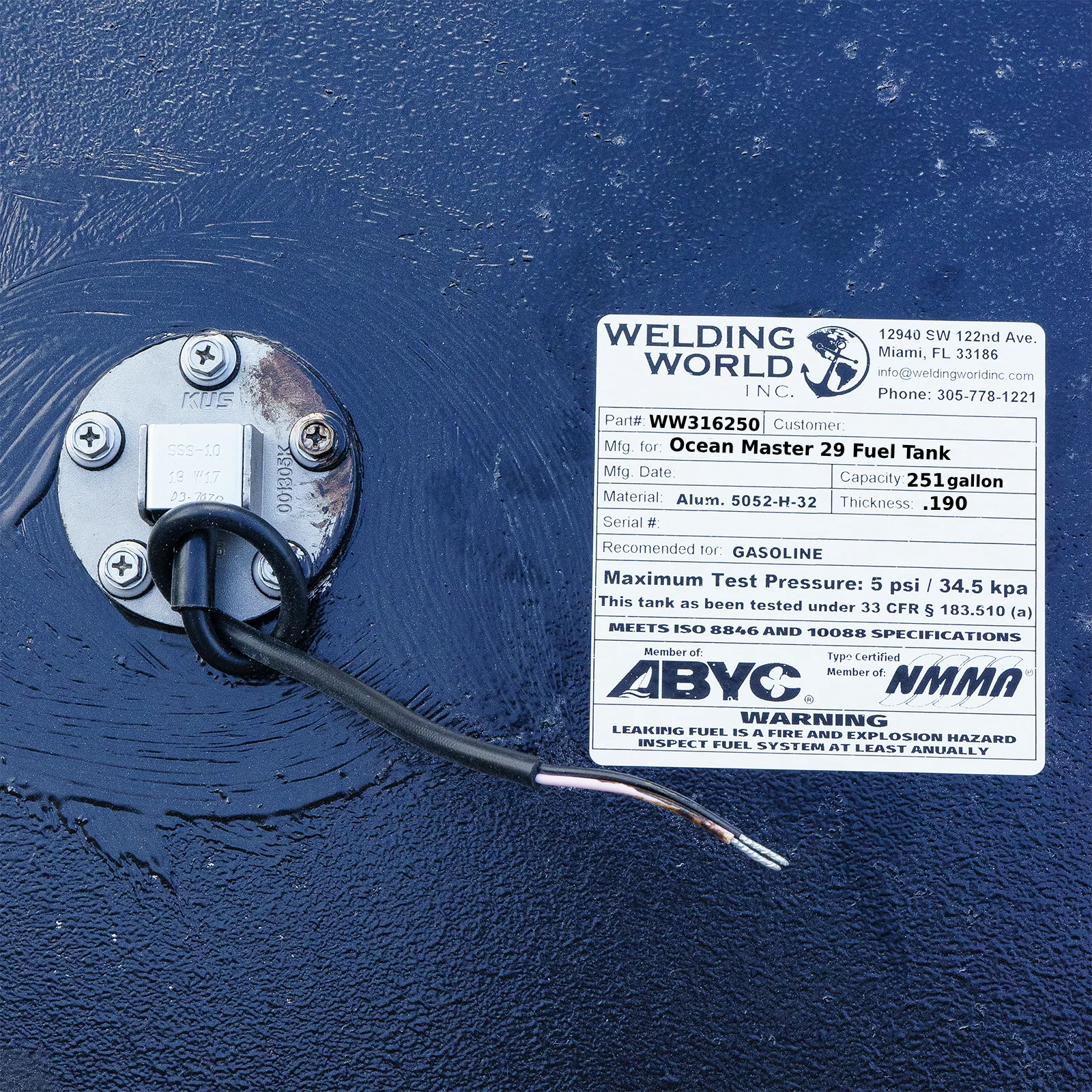

  • KUS® (ex-WEMA USA®) reed switch sender with NBR float fuel level.

 NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!

Fabrication lead time (before shipping): 1-2 work weeks.

Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.

Return Policy: No refunds are accepted, as all of our products are made to order. Our policy is strictly limited to the repair or replacement of qualifying defective or damaged goods. Please note that shipping costs are non-refundable.



Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
