A long, rectangular, black OEM replacement belly fuel tank for a Revenge 22 1988, with a 102-gallon net capacity. The tank has a slightly textured surface and features various metal fittings on top, including a hose connection with a blue cap and a sensor or gauge with attached wires
A light gray, rectangular Revenge 22 1988 Fuel Tank with a capacity of 102 gallons net. The tank measures 84" in length, 27" in width, and 13" in height, with a curved bottom on one end. It features a few small fittings on its top surface, including a curved pipe and a small golden post
A long, rectangular, black fuel tank with a textured surface, shown against a checkered background. The top surface features various metal fittings, including a white and blue hose connection, a circular gauge with wires and a white label, and a small brass-colored post. The tank has a slight curve along its bottom edge
A long, rectangular, black boat fuel tank with a textured surface. Various metal fittings are visible on its top, including a hose connection with a blue cap, a small U-shaped bracket, a circular sensor with wires and a white label, and a small golden post. The bottom of the tank has a curved edge
A long, rectangular, black fuel tank with a textured surface. Various metal fittings are visible on its top, including a hose connection with a blue cap, a circular sensor with wires and a white label, and a small golden post. The bottom of the tank has a curved, tapered shape
A white product label from "Welding World Inc." affixed to a textured black surface. The label provides details for a "Revenge 22'" fuel tank, including Part# WW-T-250, a manufacturing date of 04/06/22, material of Alum. 5052-H-32, a capacity of 100 gallons, and a thickness of .190. It also specifies a maximum test pressure of 9 psi / 34.5 kpa, and indicates compliance with ISO 8846 and 10088 specifications, as well as ABYC and NMMA memberships. A circular metallic component with wires and screws is visible
A long, rectangular, black OEM replacement belly fuel tank for a Revenge 22 1988, with a 102-gallon net capacity. The tank has a slightly textured surface and features various metal fittings on top, including a hose connection with a blue cap and a sensor or gauge with attached wires
A light gray, rectangular Revenge 22 1988 Fuel Tank with a capacity of 102 gallons net. The tank measures 84" in length, 27" in width, and 13" in height, with a curved bottom on one end. It features a few small fittings on its top surface, including a curved pipe and a small golden post
A long, rectangular, black fuel tank with a textured surface, shown against a checkered background. The top surface features various metal fittings, including a white and blue hose connection, a circular gauge with wires and a white label, and a small brass-colored post. The tank has a slight curve along its bottom edge
A long, rectangular, black boat fuel tank with a textured surface. Various metal fittings are visible on its top, including a hose connection with a blue cap, a small U-shaped bracket, a circular sensor with wires and a white label, and a small golden post. The bottom of the tank has a curved edge
A long, rectangular, black fuel tank with a textured surface. Various metal fittings are visible on its top, including a hose connection with a blue cap, a circular sensor with wires and a white label, and a small golden post. The bottom of the tank has a curved, tapered shape
A white product label from "Welding World Inc." affixed to a textured black surface. The label provides details for a "Revenge 22'" fuel tank, including Part# WW-T-250, a manufacturing date of 04/06/22, material of Alum. 5052-H-32, a capacity of 100 gallons, and a thickness of .190. It also specifies a maximum test pressure of 9 psi / 34.5 kpa, and indicates compliance with ISO 8846 and 10088 specifications, as well as ABYC and NMMA memberships. A circular metallic component with wires and screws is visible

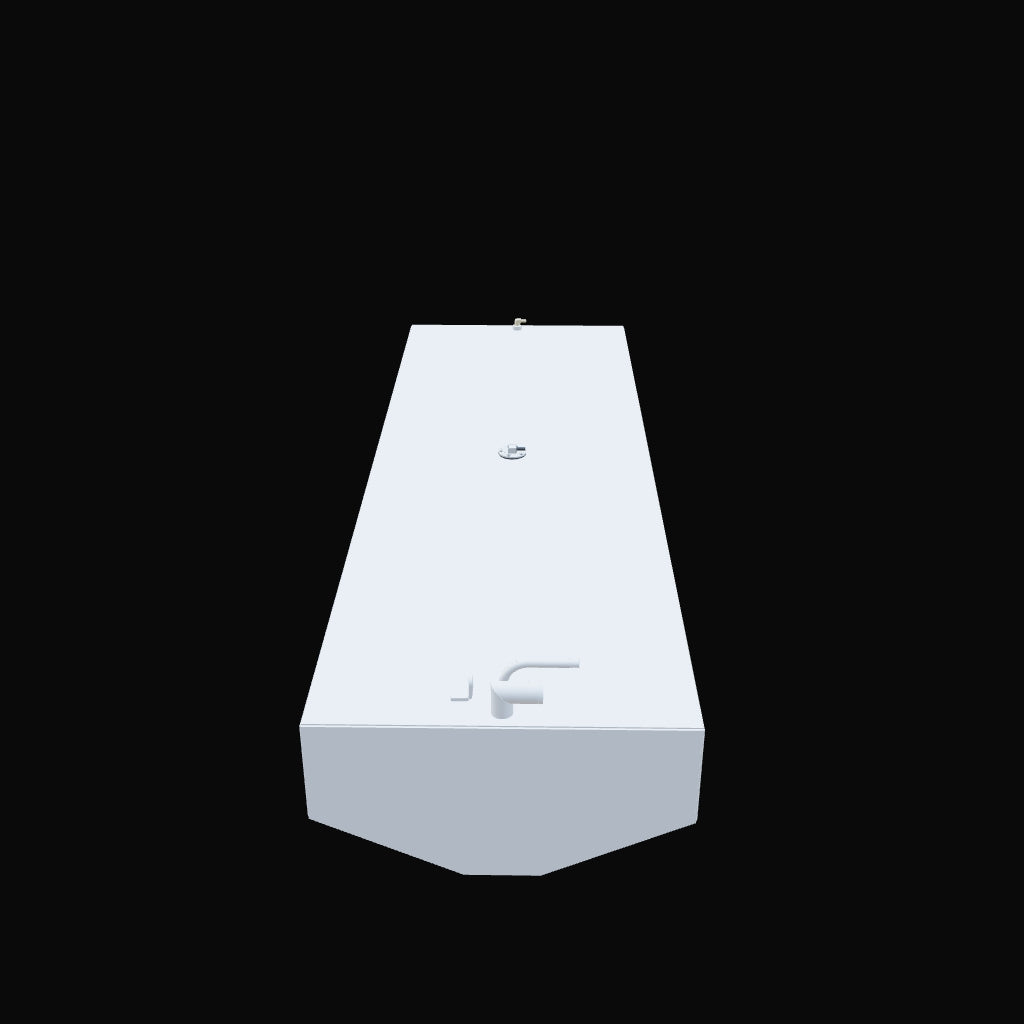

A minimalist 3D rendering of a long, rectangular, light gray fuel tank with angled corners on one end. The top surface features a small, L-shaped fitting, a curved pipe extending from a base, and a small, round opening

Venganza 22 1988 102 gal. Tanque de combustible de repuesto OEM neto

$ 1,700.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.
  • NOTA IMPORTANTE: El precio base es para retiro local en nuestra SW Miami Shop. Consulte las opciones de embalaje y envío a los 48 estados contiguos. Todos los tanques se fabrican por encargo y el plazo de fabricación es de 2 semanas laborales. La ventana de recolección del tanque terminado también es de 2 semanas laborales, así que asegúrese de poder recibir su tanque terminado dentro de ese plazo.

  • Comprar con confianza. Poco después de que se acredite su pago, se le enviará por correo electrónico un conjunto completo de dibujos para que verifique todas las dimensiones y las posiciones de los accesorios. Si hay alguna diferencia con su antiguo tanque, podemos hacer cualquier modificación razonable para satisfacer sus necesidades.

  • Esta versión de este popular barco es la que tiene los puertos de llenado y ventilación hacia adelante. Asegúrese de verificar la versión de 2005 que los tiene mirando hacia el lado de babor,

      • Construcción de aluminio serie Alcoa ® 5052 H32 de .190 de espesor.

        • Soldado GTAW (TIG) soldado a mano para superar los estándares ASME / ASW D3.7:2004.

          • Sherwin Williams® TarGard® Epoxi pintado para la mejor protección del medio ambiente marino.

            • Interruptor de láminas KUS® (ex-WEMA USA) y transmisor de nivel de combustible de flotador NBR.

              NOTA: ¡Compruebe minuciosamente las dimensiones de su tanque! Una vez que se fabrica y / o envía un tanque, no podemos ser responsables de los desajustes y no se aceptarán reembolsos o devoluciones. ¡Todas las ventas son finales!

              Plazo de ejecución de la fabricación (antes del envío): 2 semanas laborales.

              Envío: Solo flete a los 48 estados contiguos. Contáctenos para conocer las opciones de envío con costo adicional para HI y AK. Se aceptan envíos internacionales de transportistas con sede en EE. UU., pero contáctenos primero para coordinar los detalles.

              Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

              For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

              All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

              In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
