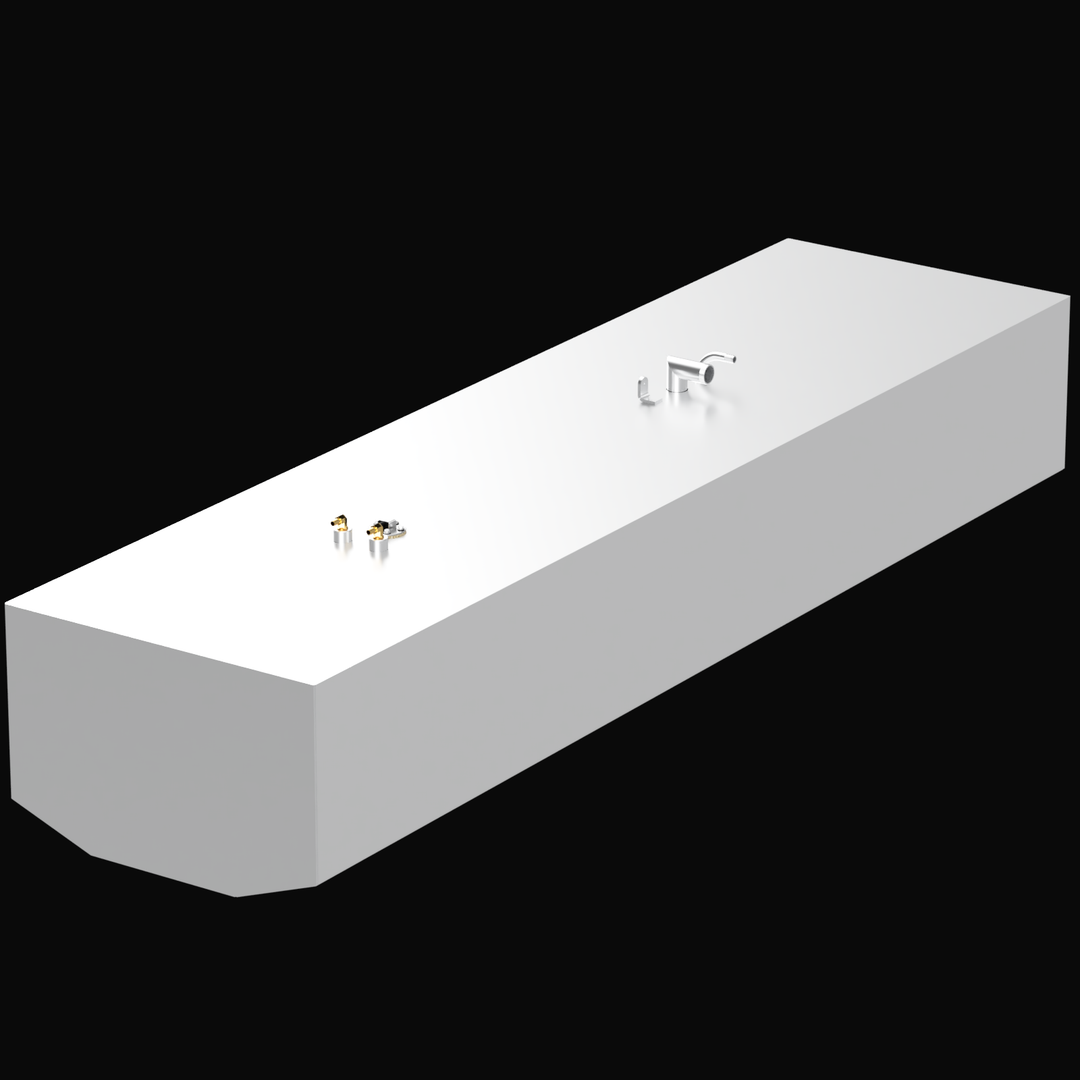

A 3D render of the Hydra Sport 33 162-gallon OEM replacement fuel tank, showing the very long, light grey tank with two sets of silver and brass fittings on its top surface, against a black background.

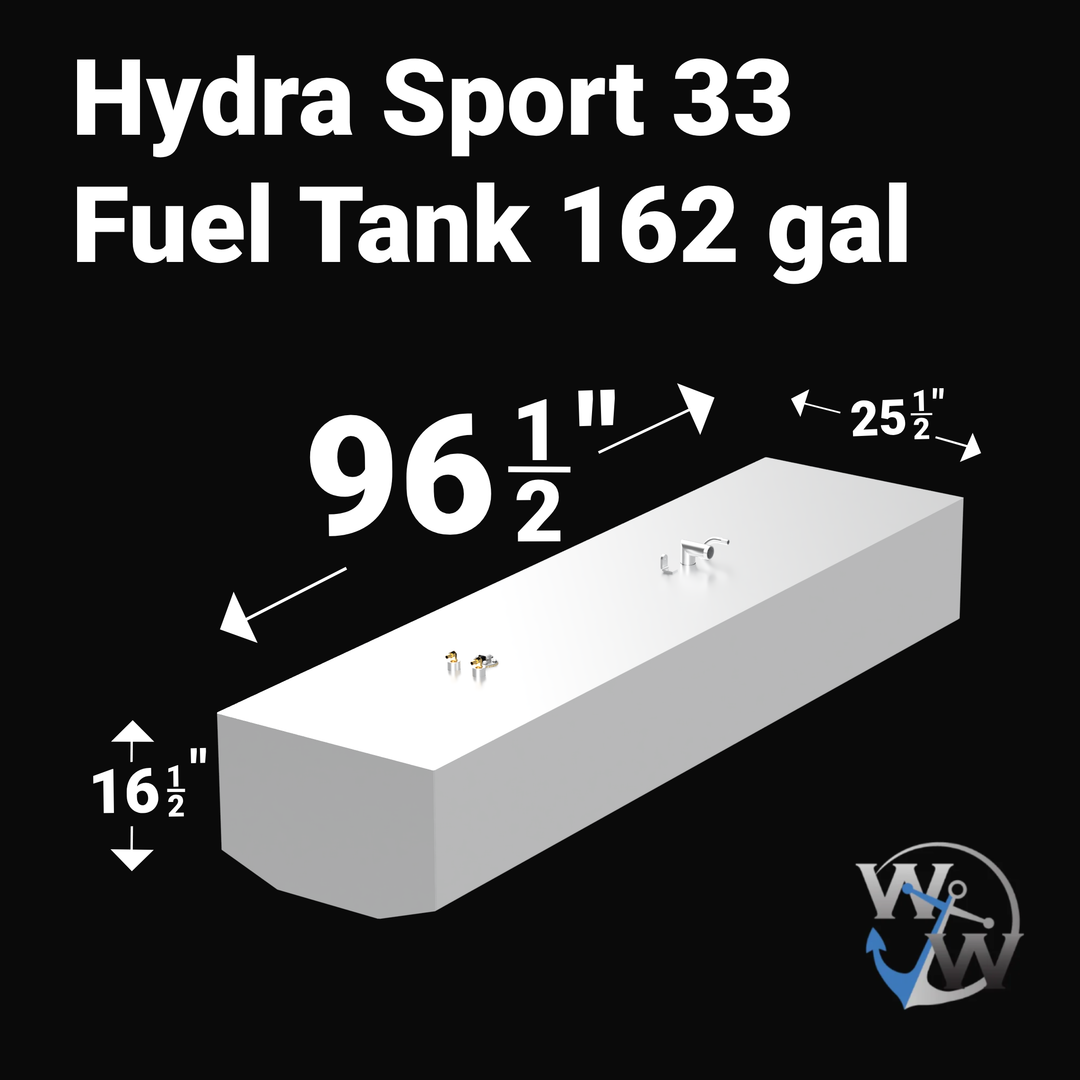

A 3D render of a boat fuel tank against a black background, labeled "Hydra Sport 33 Fuel Tank 162 gal". Arrows indicate the tank's dimensions: 16 1/2 inches high, 96 1/2 inches long, and 25 1/2 inches wide. A blue "WW" logo is in the bottom right corner.

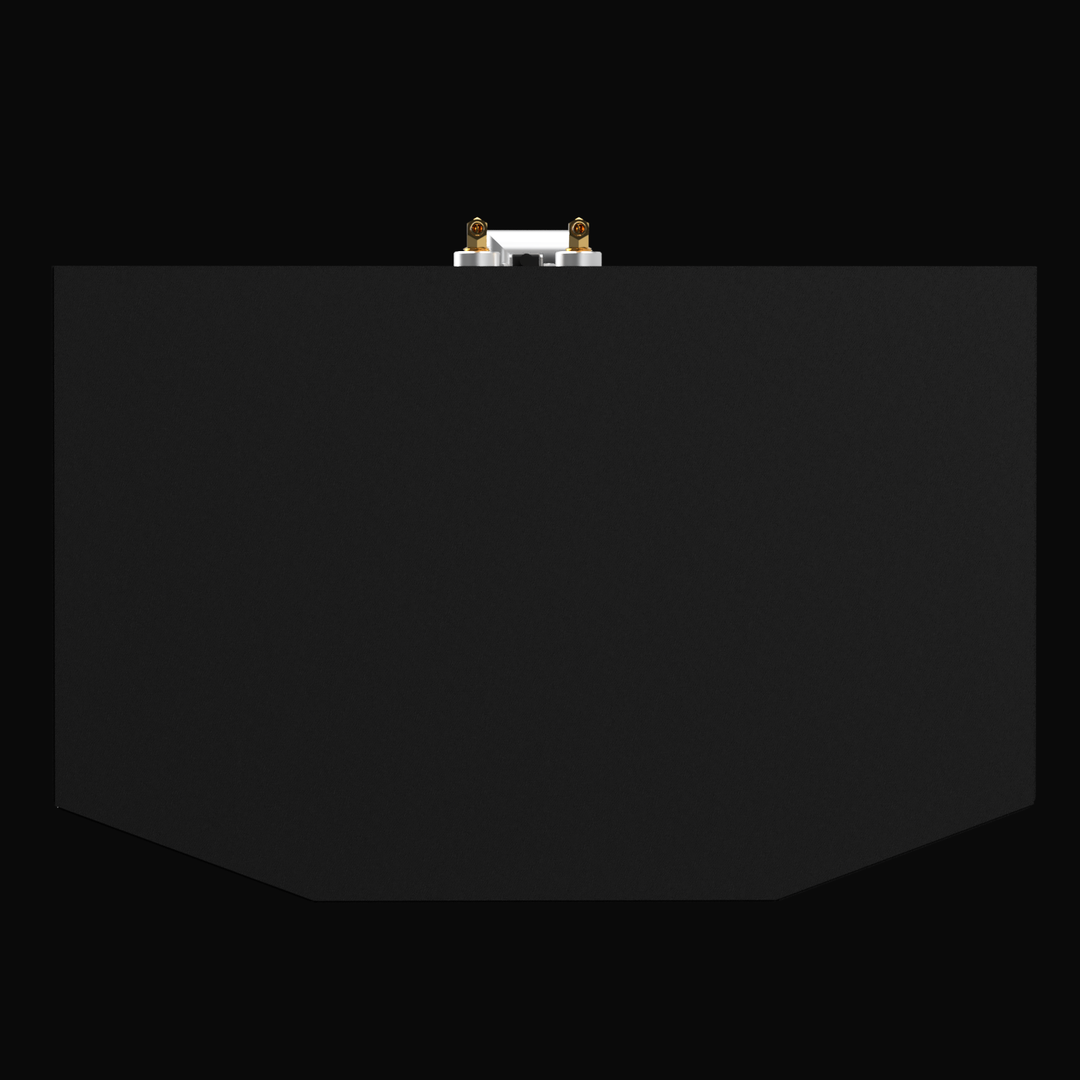

A 3D render showing the profile view of a dark grey boat fuel tank with a V-shaped or faceted bottom. A prominent cluster of brass and silver fittings is visible on the top center edge, against a black background.

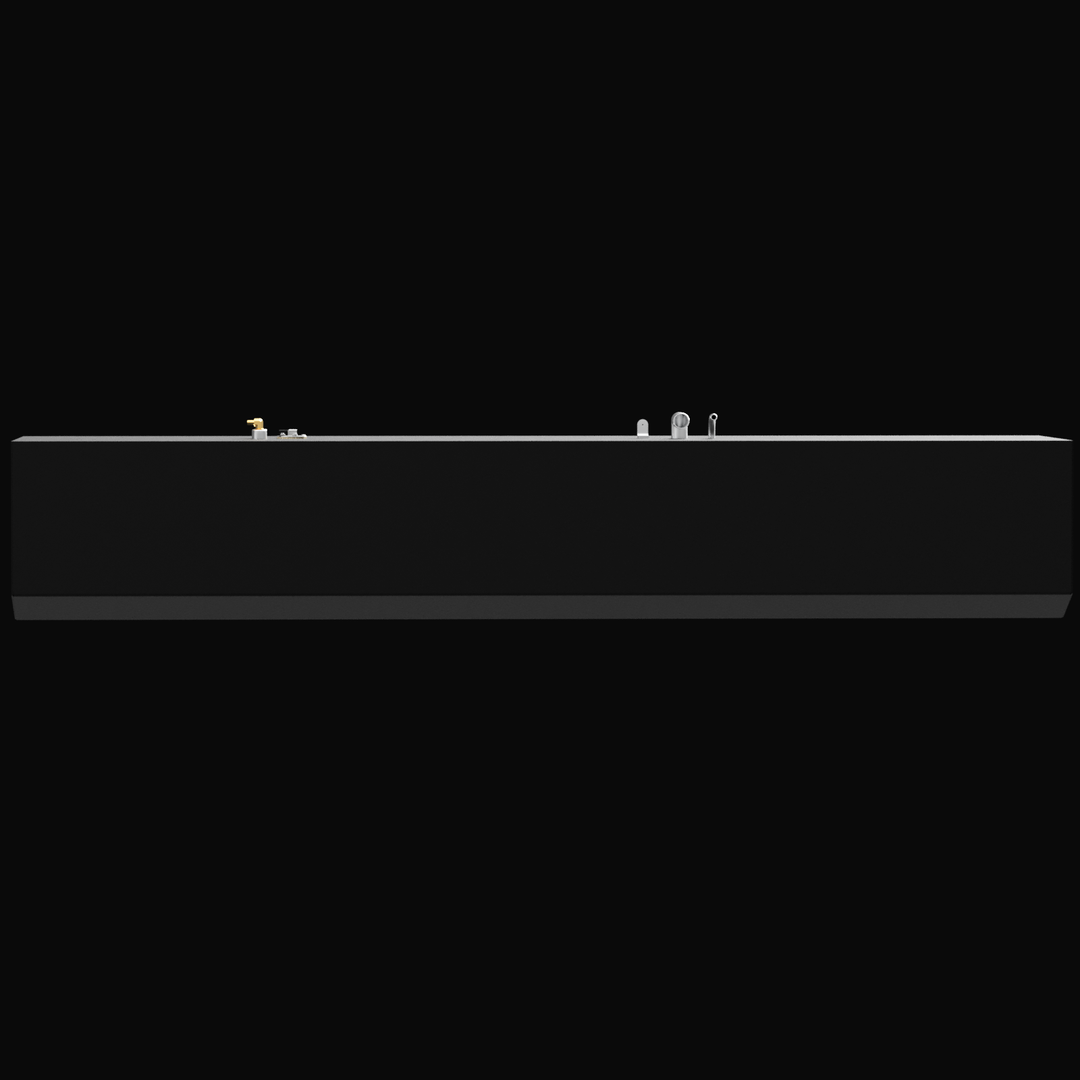

A 3D render showing a long side profile of a dark grey boat fuel tank, highlighting the two clusters of brass and silver fittings visible on the top edge, against a black background.

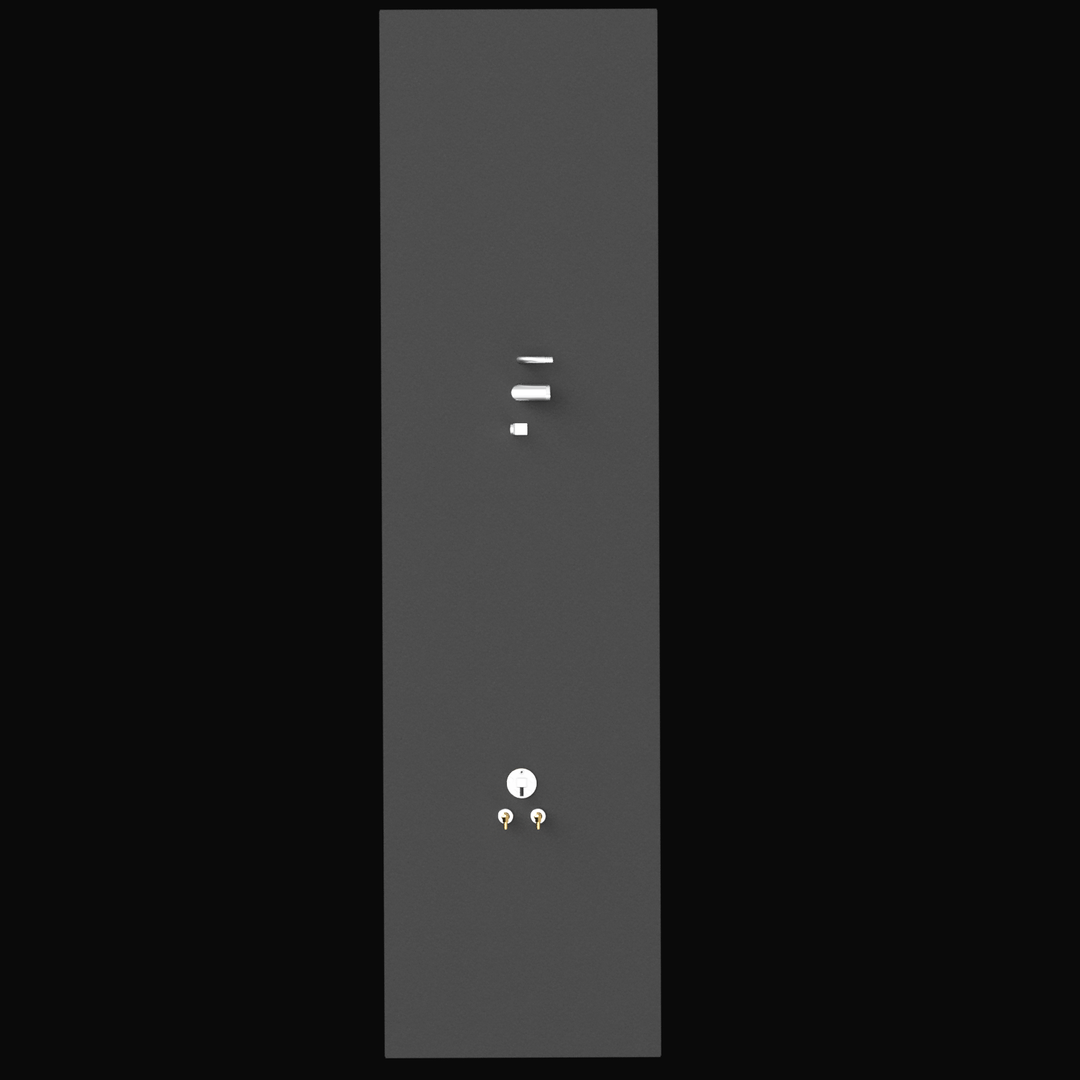

A direct top-down 3D render of a very long, rectangular, dark grey boat fuel tank, showing two clusters of fittings on its top surface: brass and silver fittings at the bottom end, and silver pipe fittings towards the top end, all against a black background.

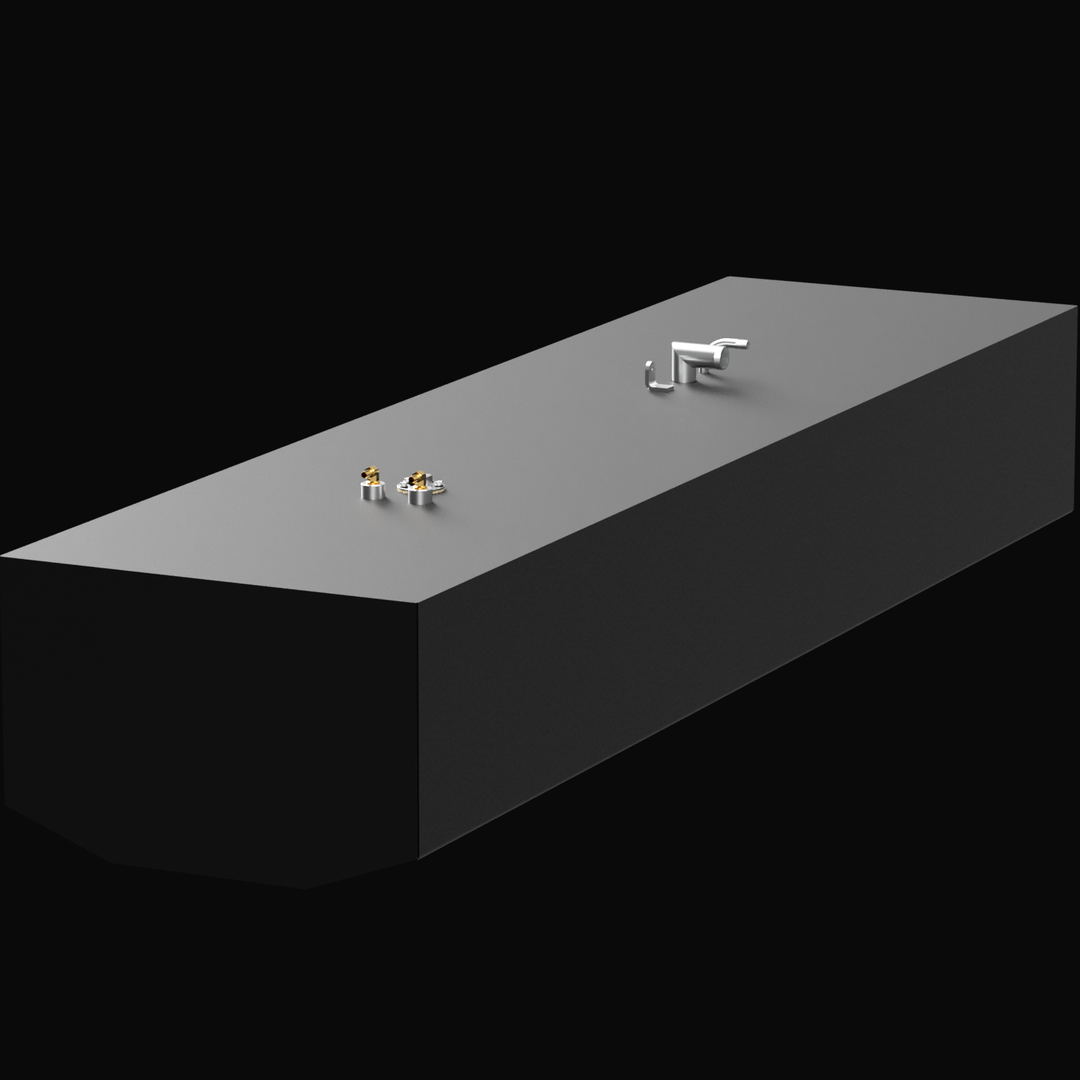

A 3D render of a long, rectangular, dark grey boat fuel tank, shown at an angle. The tank features two clusters of silver and brass fittings on its top surface, against a black background.

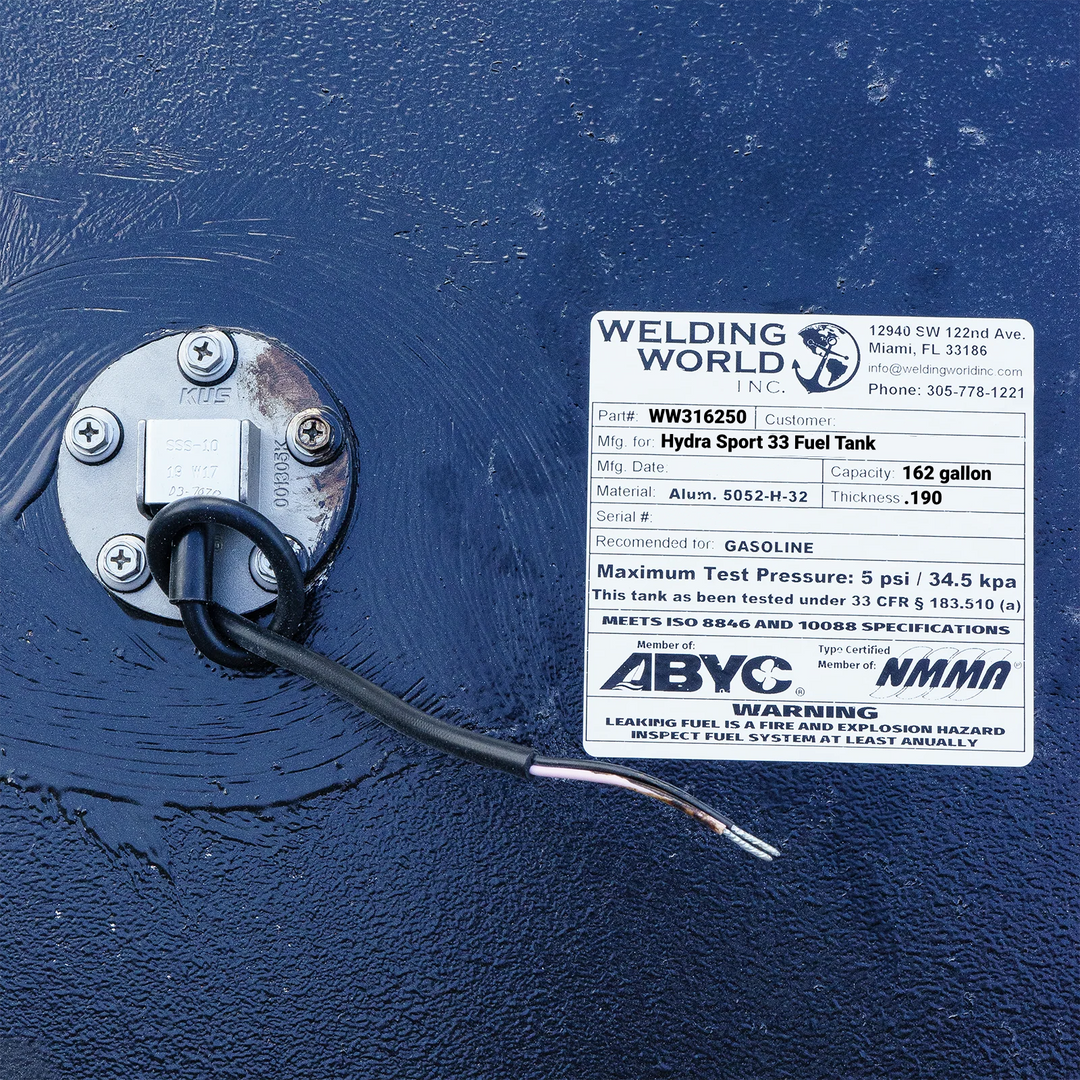

A close-up of a fuel sending unit and the white specification label on a dark textured boat fuel tank. The Welding World Inc. label lists the part as WW316250, manufactured for a "Hydra Sport 33 Fuel Tank," with a 162-gallon capacity.
A 3D render of the Hydra Sport 33 162-gallon OEM replacement fuel tank, showing the very long, light grey tank with two sets of silver and brass fittings on its top surface, against a black background.
A 3D render of a boat fuel tank against a black background, labeled "Hydra Sport 33 Fuel Tank 162 gal". Arrows indicate the tank's dimensions: 16 1/2 inches high, 96 1/2 inches long, and 25 1/2 inches wide. A blue "WW" logo is in the bottom right corner.
A 3D render showing the profile view of a dark grey boat fuel tank with a V-shaped or faceted bottom. A prominent cluster of brass and silver fittings is visible on the top center edge, against a black background.
A 3D render showing a long side profile of a dark grey boat fuel tank, highlighting the two clusters of brass and silver fittings visible on the top edge, against a black background.
A direct top-down 3D render of a very long, rectangular, dark grey boat fuel tank, showing two clusters of fittings on its top surface: brass and silver fittings at the bottom end, and silver pipe fittings towards the top end, all against a black background.
A 3D render of a long, rectangular, dark grey boat fuel tank, shown at an angle. The tank features two clusters of silver and brass fittings on its top surface, against a black background.
A close-up of a fuel sending unit and the white specification label on a dark textured boat fuel tank. The Welding World Inc. label lists the part as WW316250, manufactured for a "Hydra Sport 33 Fuel Tank," with a 162-gallon capacity.

Hydra Sport 33 Fuel Tank (162 gallon) | oem replacement

$ 2,350.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.

Get your legendary Hydra-Sport 33 back to its bluewater best with our 162-gallon, exact-fit replacement fuel tank. Engineered as a perfect drop-in for this iconic deep-V hull, this tank restores the full, long-range capacity you need for those serious offshore trips to the canyon. Built to exceed original specs from heavy-duty, TIG-welded .190" aluminum, this is the ultimate upgrade for safety and reliability when you're 100 miles from the dock. Don't just replace your tank—invest in total peace of mind



  • IMPORTANT NOTE: The base price is for local pickup in our SW Miami Shop. Check options above for crating and shipping to the contiguous 48 States. All tanks are made to order and the fabrication lead time is 1-2 workweeks. The finished tank pickup window is also 1-2 workweeks, so make sure you will be able to take delivery of your finished tank within that timeframe.

  • Buy with confidence. Shortly after your payment clears you'll be sent via e-mail a complete set of detailed drawings for you to check all dimensions and fittings positions. If there's any difference from your old tank we can make any reasonable modifications to accommodate your needs. Fabrication of your new tank won't start until you send us your specs confirmation.

  • .190 thickness Alcoa® 5052 H32 Series aluminum construction.

  • Hand welded GTAW (TIG) welded to exceed ASME / ASW D3.7:2004 standards.

  • Sherwin Williams® TarGard® Epoxy painted for the best marine environment protection.


  • KUS® (ex-WEMA USA®) reed switch sender with NBR float fuel level.


 NOTE: Check your tank dimensions thoroughly! Once a tank is manufactured and/or shipped we can't be responsible for mismatches and refunds or returns won't be accepted. All sales are final!

Fabrication lead time (before shipping): 1-2 workweeks.

Shipping: Only freight to the 48 contiguous states. Contact us for extra-cost shipping options for HI and AK. Orders for international shipping from US-based carriers are welcome but contact us first to coordinate details.

Return Policy: No refunds are accepted, as all of our products are made to order. Our policy is strictly limited to the repair or replacement of qualifying defective or damaged goods. Please note that shipping costs are non-refundable.

Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
