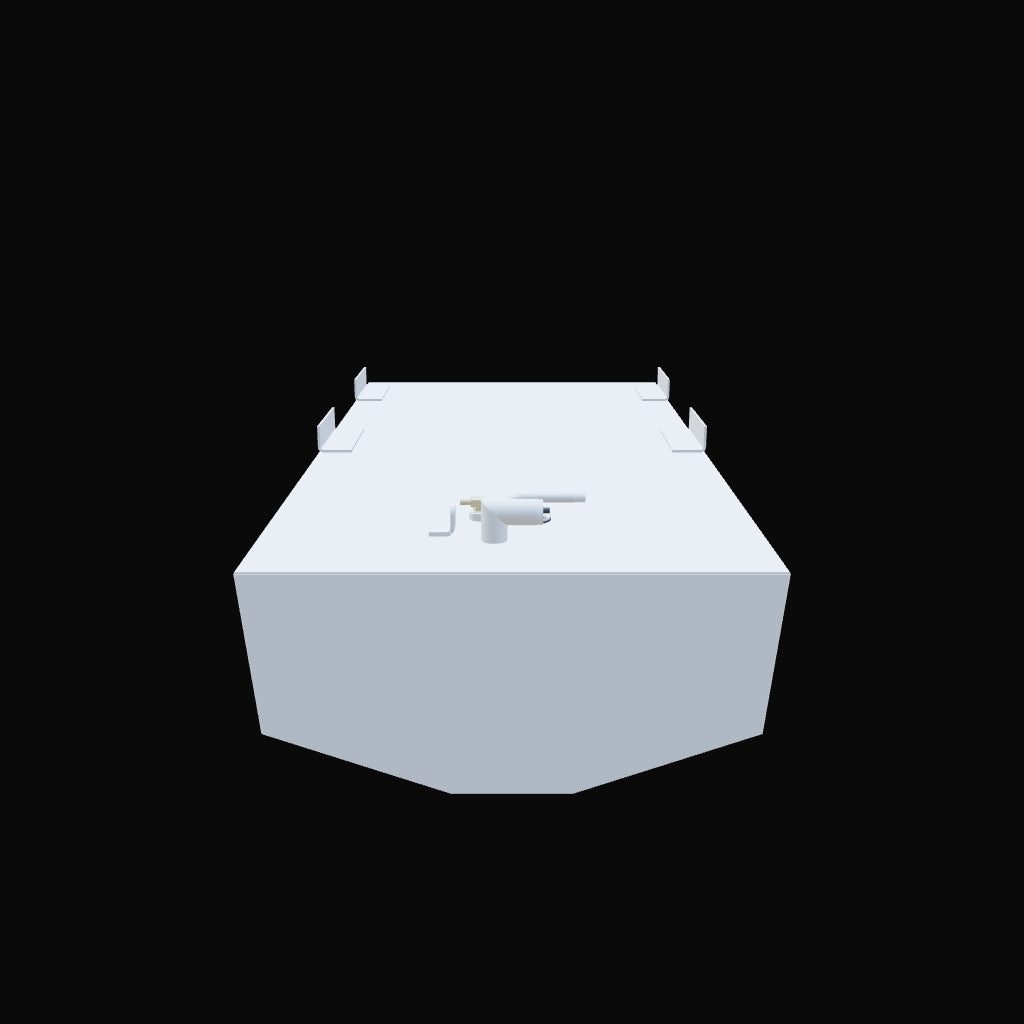

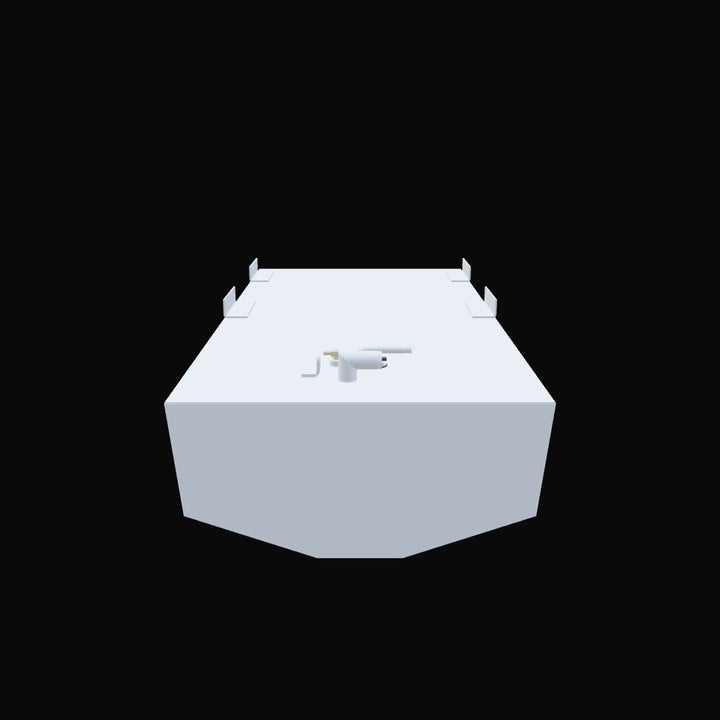

A frontal view of a 3D schematic for a boat's belly fuel tank, shown against a solid black background. The image highlights the tank's wide, curved front face, the bottom of which is cut into a shallow V-shape. The light-grey schematic shows four angled mounting tabs on its top corners and a fuel valve assembly on its top surface

Hydra-Sports Bay 24 2003 - 69 gal. Tanque de combustible de repuesto OEM

$ 1,200.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.
  • NOTA IMPORTANTE: El precio base es para retiro local en nuestra SW Miami Shop. Consulte las opciones de embalaje y envío a los 48 estados contiguos. Todos los tanques se fabrican por encargo y el plazo de fabricación es de 2 semanas laborales. La ventana de recolección del tanque terminado también es de 2 semanas laborales, así que asegúrese de que puede recibir su tanque terminado dentro de ese plazo.

    • Comprar con confianza. Poco después de que se acredite su pago, se le enviará por correo electrónico un conjunto completo de dibujos para que verifique todas las dimensiones y las posiciones de los accesorios. Si hay alguna diferencia con su antiguo tanque, o si necesita algunas modificaciones menores, podemos hacer los cambios razonables para satisfacer sus necesidades.

      • Construcción de aluminio serie Alcoa ® 5052 H32 de .125 de espesor.

        • Soldado GTAW (TIG) soldado a mano para superar los estándares ASME / ASW D3.7:2004.

          • Sherwin Williams® TarGard® Epoxi pintado para la mejor protección del medio ambiente marino.

              • Interruptor de láminas KUSA® (ex-WEMA USA) y transmisor de nivel de combustible de flotador NBR.

                NOTA: ¡Compruebe minuciosamente las dimensiones de su tanque! Una vez que se fabrica y / o envía un tanque, no podemos ser responsables de los desajustes y no se aceptarán reembolsos o devoluciones. ¡Todas las ventas son finales!

                Plazo de ejecución de la fabricación (antes del envío): 2 semanas laborales.

                Envío: Solo flete a los 48 estados contiguos. Comuníquese con nosotros para conocer las opciones de envío con costo adicional para HI y AK. Se aceptan envíos internacionales de transportistas con sede en EE. UU., pero contáctenos primero para coordinar los detalles.

                Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

                For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

                All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

                In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
