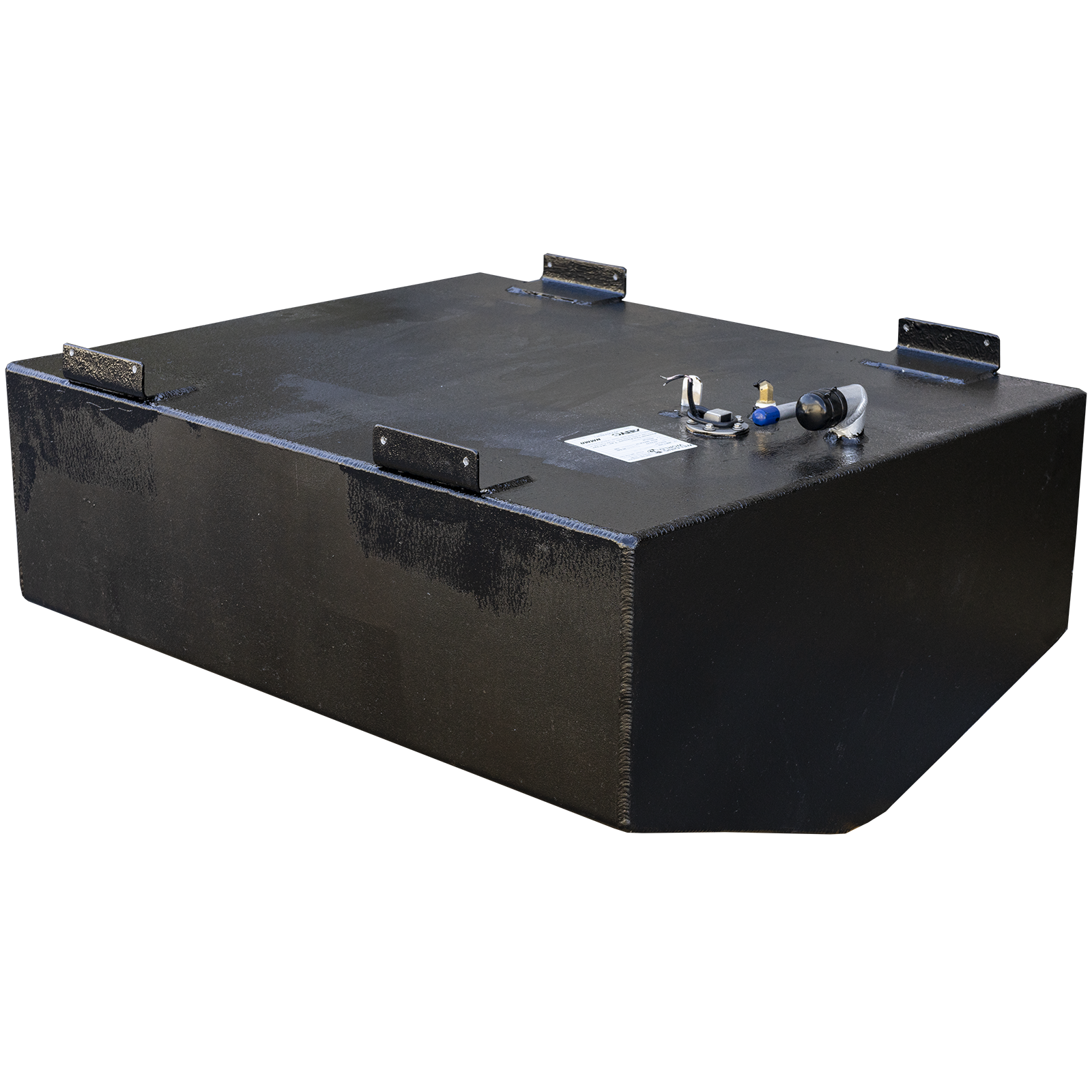

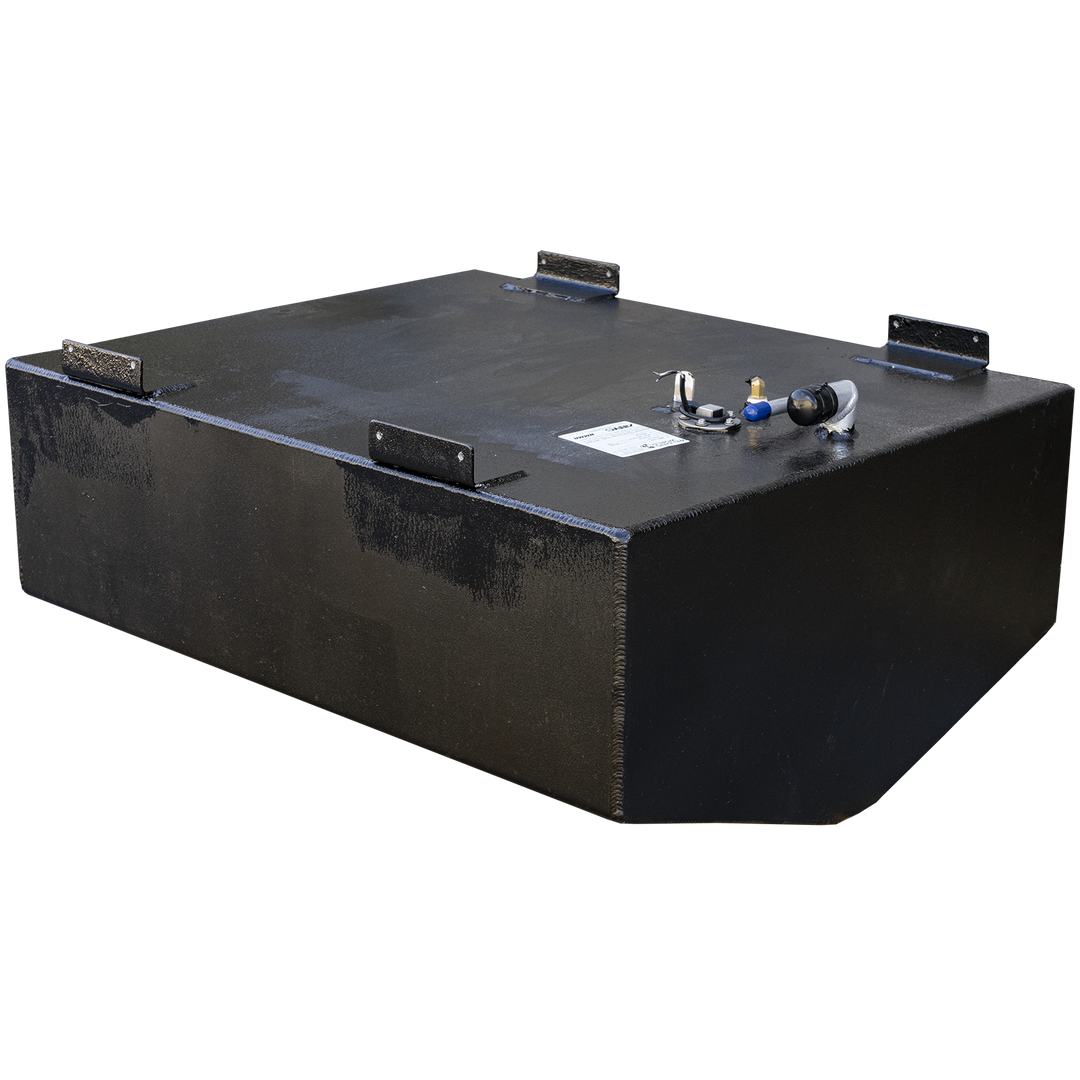

OEM-style belly tank replacement for Dusky 23, upgrading original 47-gallon plastic tank to a 69-gallon aluminum model. Fabricated from corrosion-resistant, black-finished marine-grade aluminum with multiple top-mounted fittings—blue-handled valve, grounding lug, and capped access port. Includes integrated mounting brackets and compliance labeling for traceability. Design optimizes fuel storage while preserving original hull cavity constraints

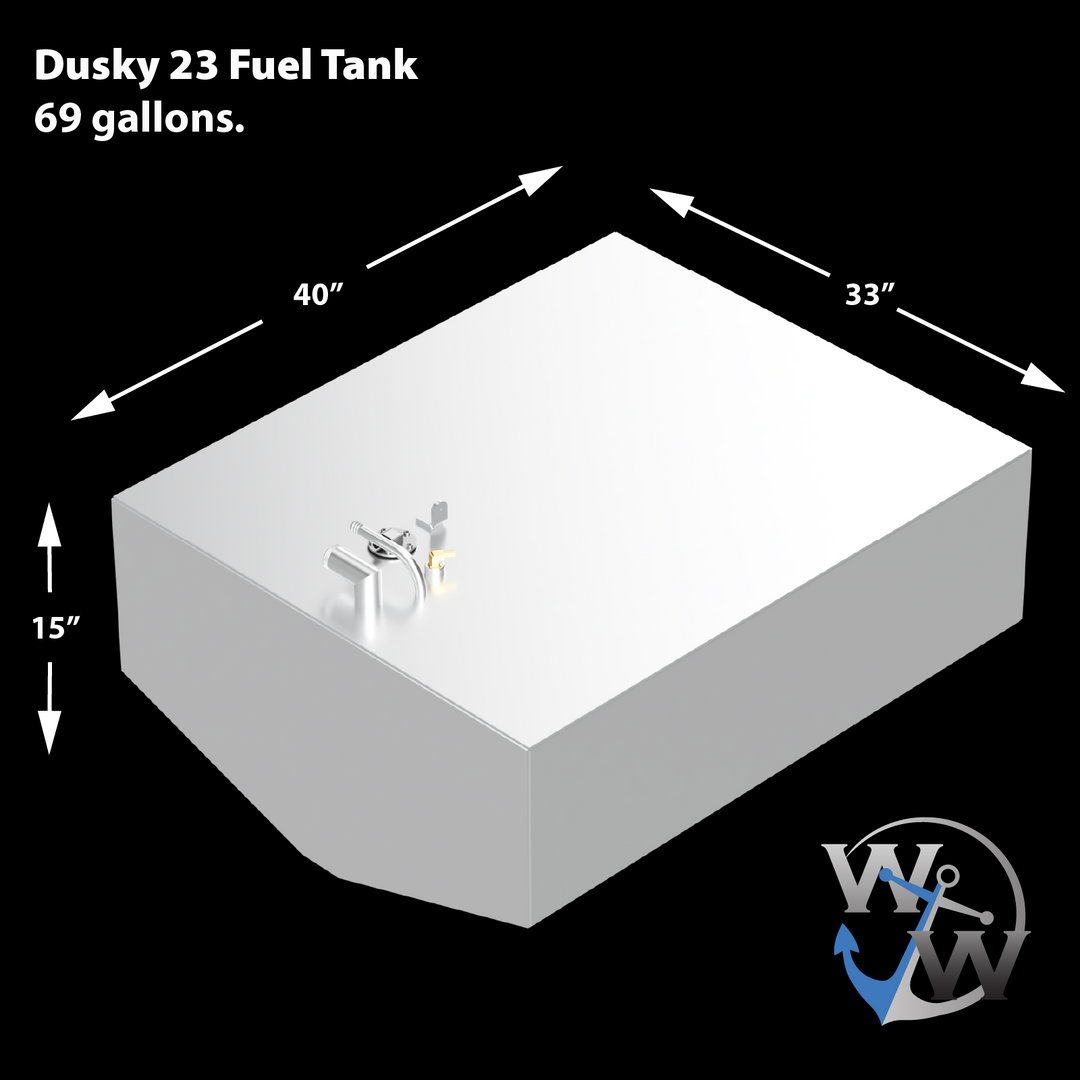

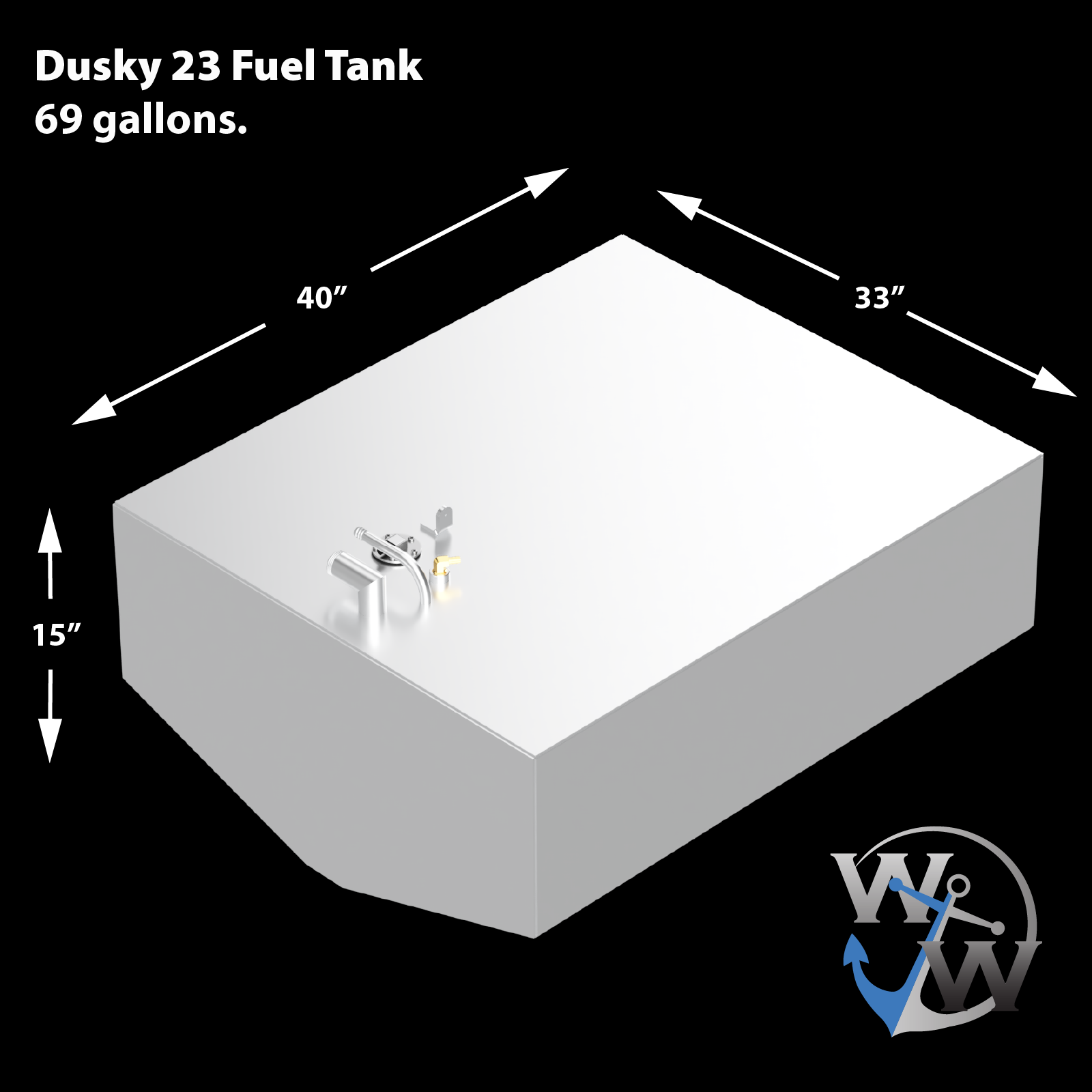

3D rendered model of 69-gallon aluminum belly fuel tank for Dusky 23, showcasing dimensional callouts: 40" length × 33" width × 15" height. Features metallic surface finish with top-mounted ports and inspection fittings. Render includes manufacturer branding for traceability and schematic use. Form confirms compatibility with original hull cavity while supporting increased capacity over prior 47-gallon plastic design

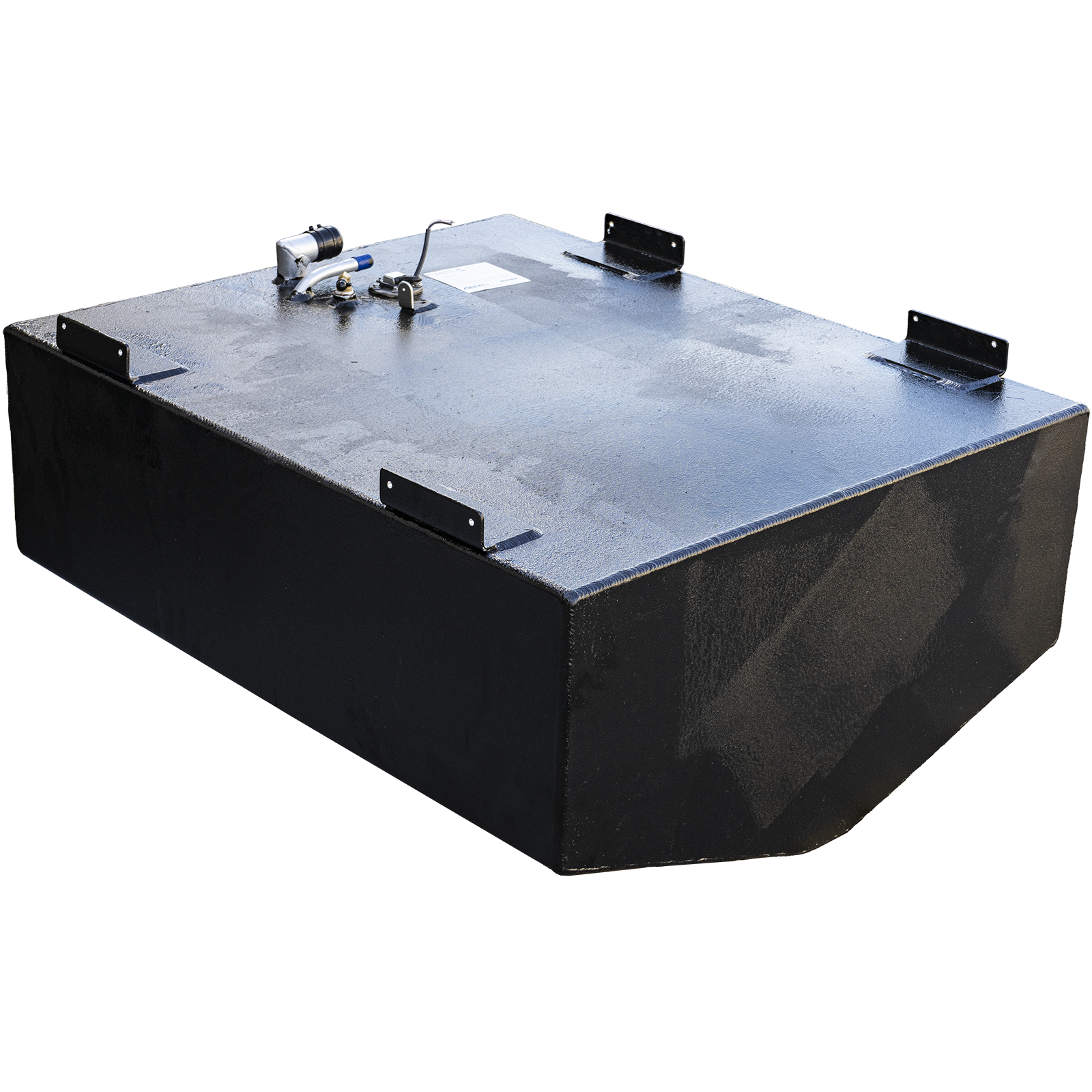

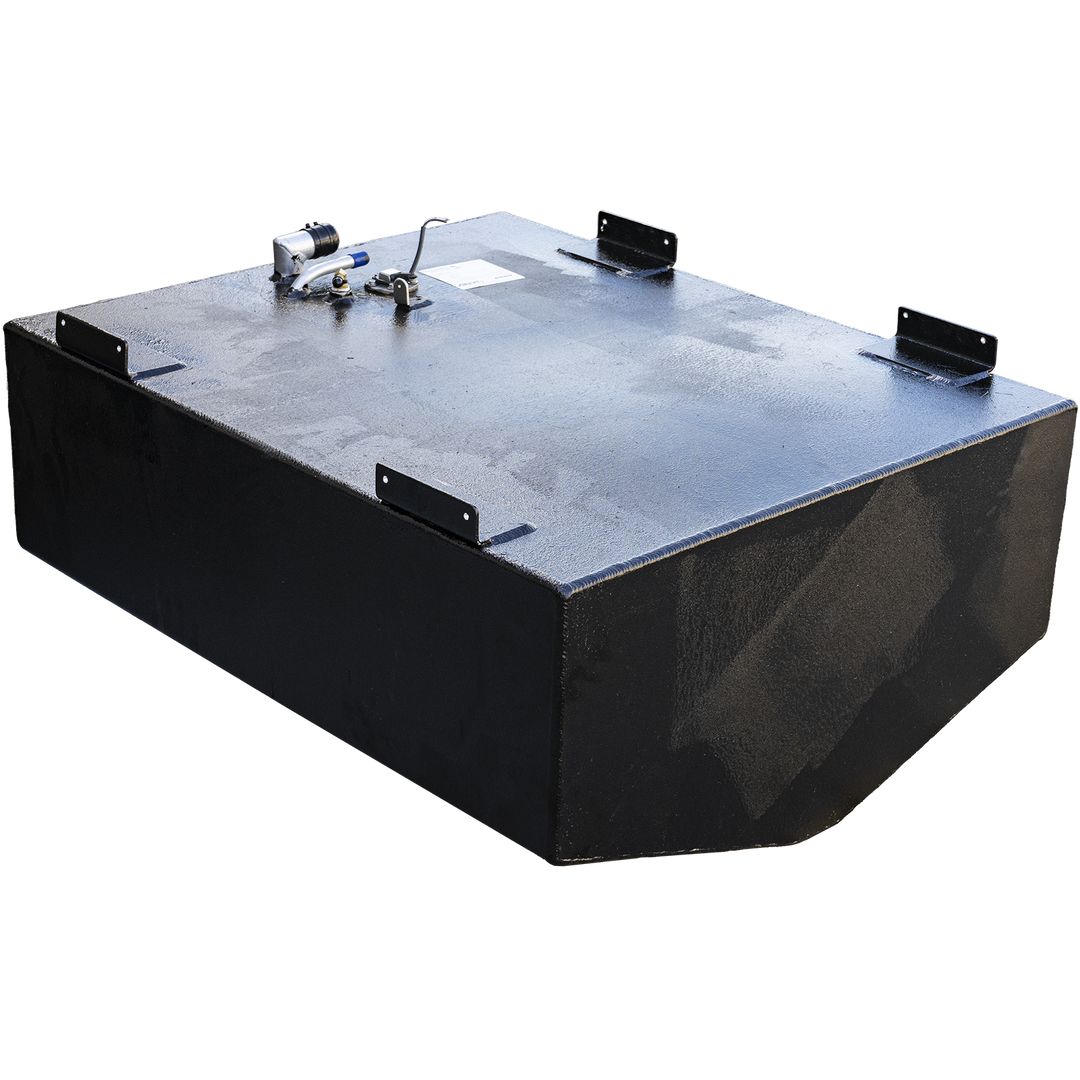

Fully assembled 69-gallon aluminum replacement belly tank for Dusky 23, featuring black powder-coated finish, four corner mounting brackets, and top-mounted components: blue-handled shutoff valve, capped vent/fill port, and precision-level sensor unit. Layout supports optimal deck access, mechanical servicing, and marine system integration. Label affixed for specification traceability and compliance verification

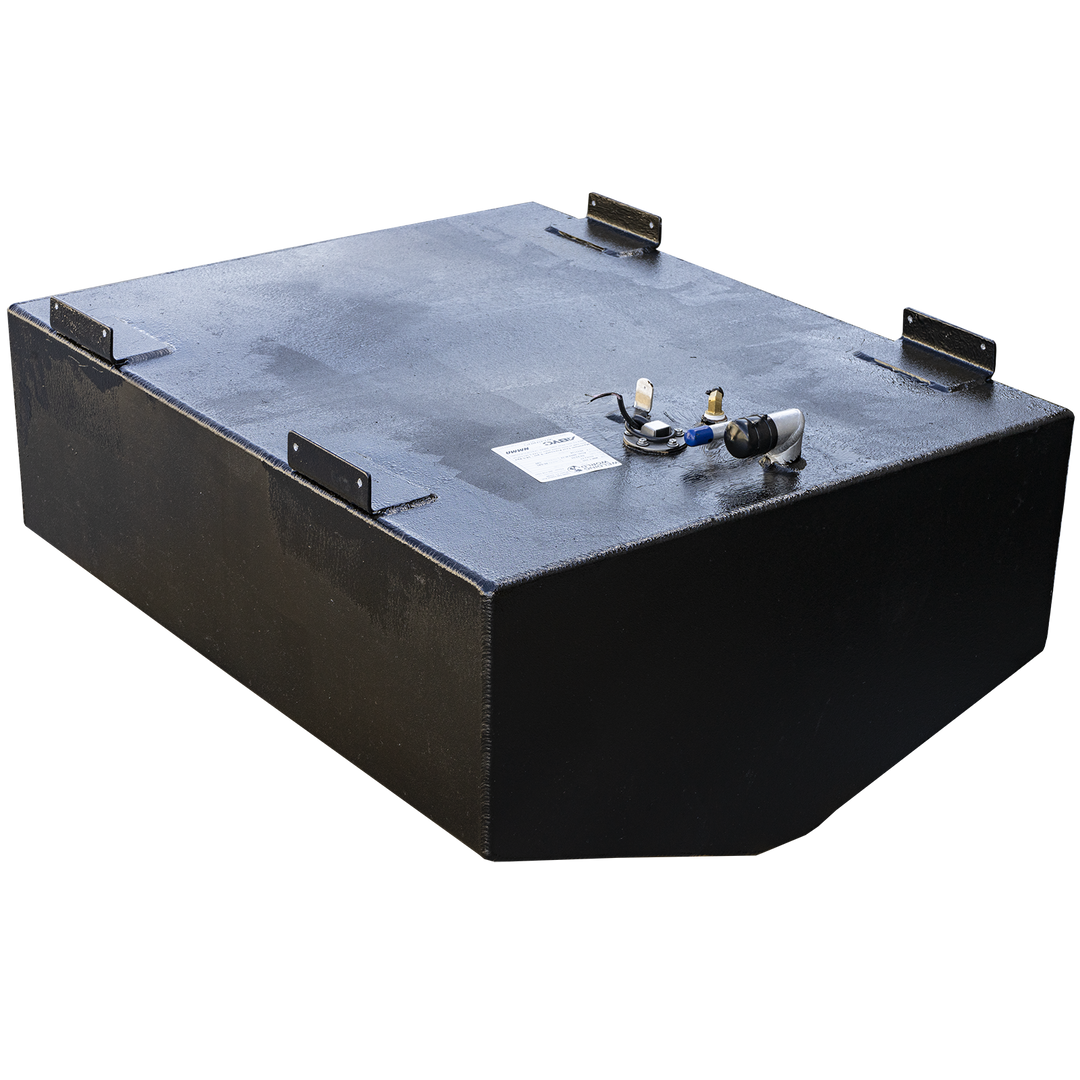

69-gallon aluminum belly fuel tank upgrade for Dusky 23, featuring black powder-coated finish, four welded mounting brackets, and fully installed top-mounted hardware. Includes circular sender unit with attached wiring harness, capped auxiliary port, and threaded vent or return fitting. Wiring is routed and secured, supporting level sensing and integration with monitoring systems. Label affixed for traceability and compliance with marine fuel standards

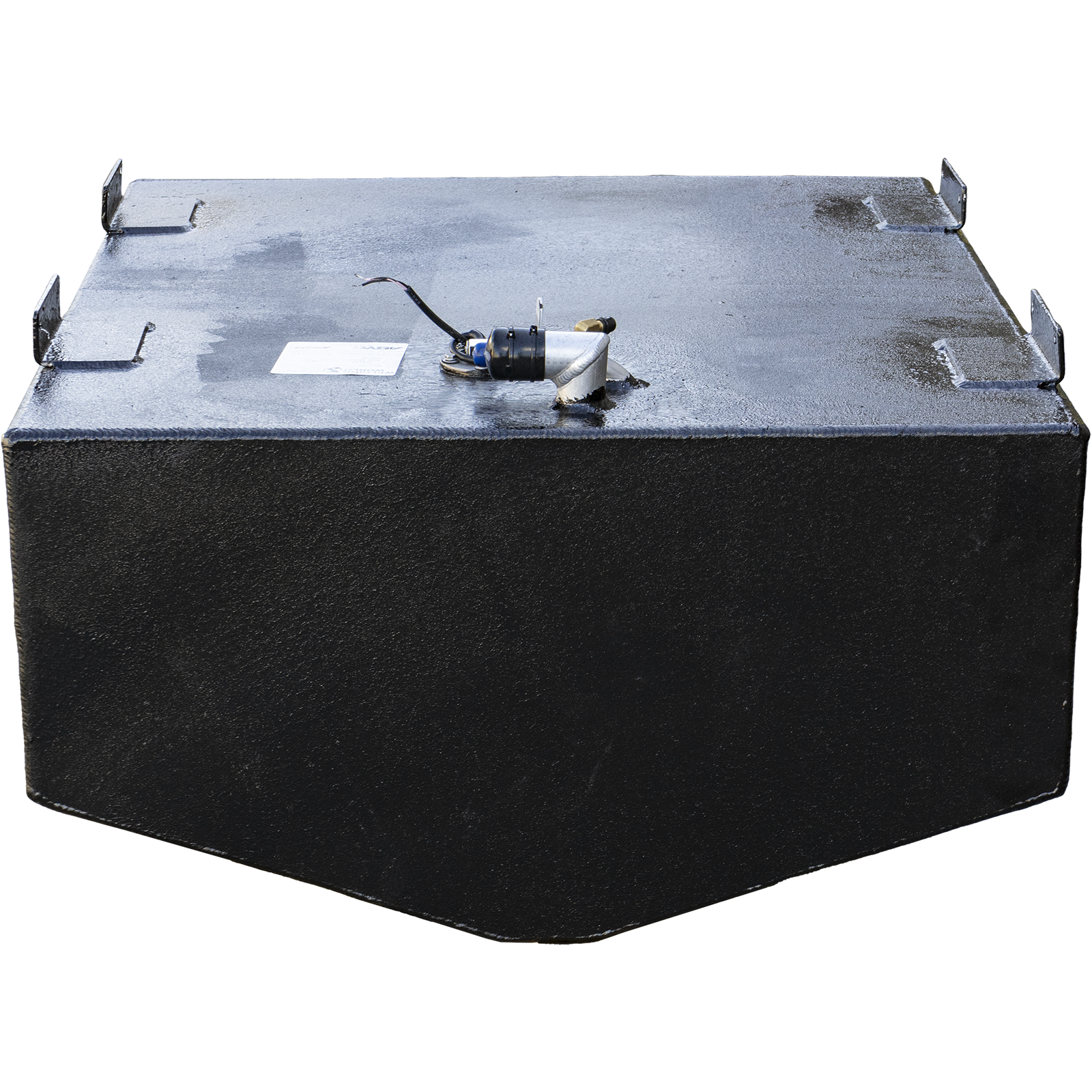

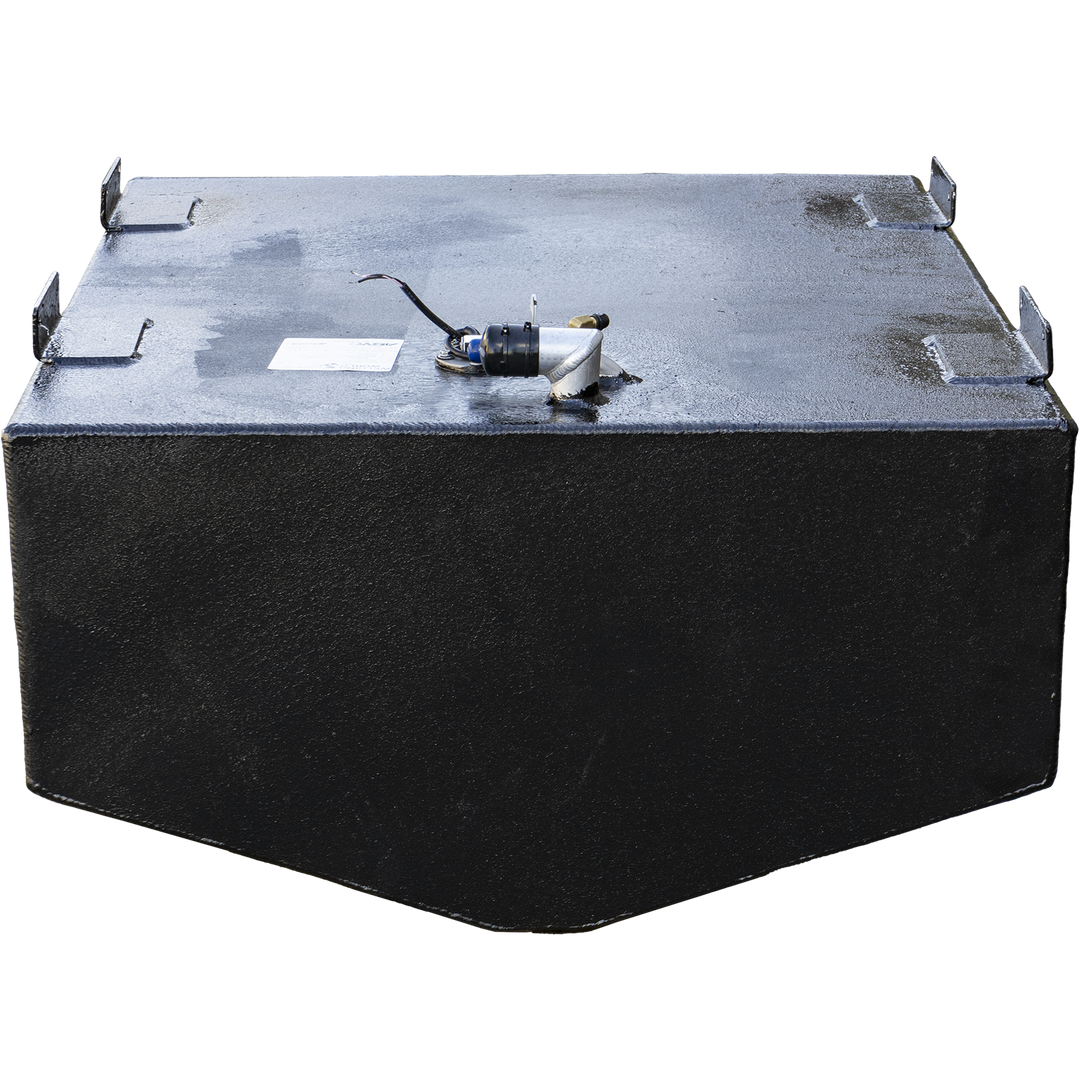

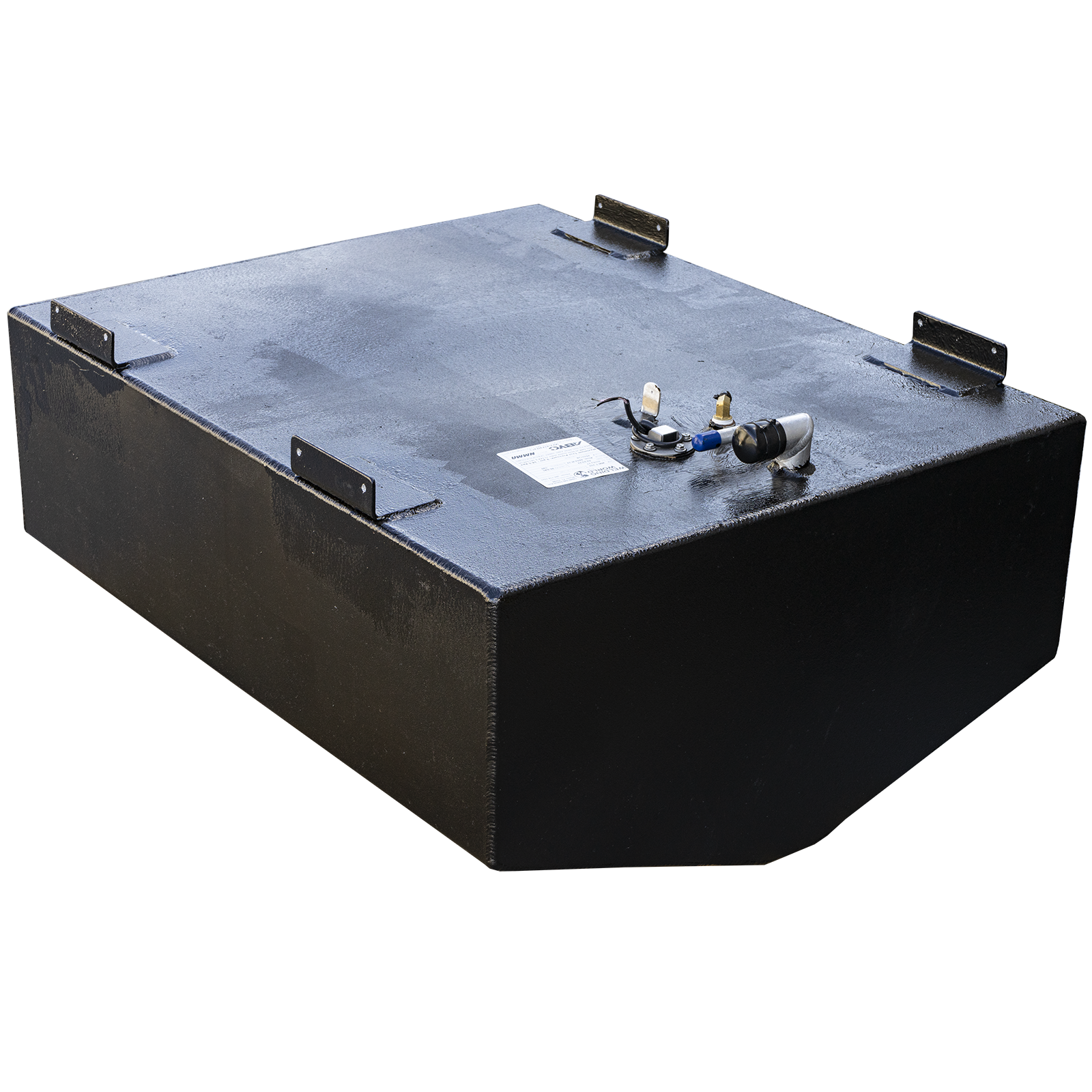

Fully assembled 69-gallon aluminum belly tank for Dusky 23, shown with matte black finish and four welded corner brackets for secure installation. Top-mounted sender unit features integrated wiring harness, routed cleanly across the tank's surface. Tank exterior exhibits minor fluid sheen—possibly from leak testing or finishing process. Affixed white label indicates manufacturing specs and regulatory compliance
Affixed manufacturer label for 69-gallon aluminum belly fuel tank fabricated by Welding World Inc. for Dusky 23. Label confirms model WW-T-250, serial number 2022128, and February 2022 production date. Constructed from .190" thick 5052-H32 marine-grade aluminum, rated for gasoline use. Tank tested to a maximum pressure of 9 psi (34.5 kPa) in compliance with 33 CFR § 183.510(a), and certified to ISO 8846/10088 standards. Label visibility ensures traceability, inspection readiness, and conformance with ABYC
Component layout for pressure-rated fluid enclosure, model UWWM, fabricated by Welding World. Topside fittings include metallic sensor with electrical lead, dual hose ports with distinct connectors, and a threaded valve fitting. Affixed ABYC-compliant label confirms operational range: 150 PSI maximum pressure, temperature limits from -20°F to 200°F, and manufacture date of 01/01/2023. Configuration supports monitored pressurization and regulated flow for marine or industrial systems
OEM-style belly tank replacement for Dusky 23, upgrading original 47-gallon plastic tank to a 69-gallon aluminum model. Fabricated from corrosion-resistant, black-finished marine-grade aluminum with multiple top-mounted fittings—blue-handled valve, grounding lug, and capped access port. Includes integrated mounting brackets and compliance labeling for traceability. Design optimizes fuel storage while preserving original hull cavity constraints
3D rendered model of 69-gallon aluminum belly fuel tank for Dusky 23, showcasing dimensional callouts: 40" length × 33" width × 15" height. Features metallic surface finish with top-mounted ports and inspection fittings. Render includes manufacturer branding for traceability and schematic use. Form confirms compatibility with original hull cavity while supporting increased capacity over prior 47-gallon plastic design
Fully assembled 69-gallon aluminum replacement belly tank for Dusky 23, featuring black powder-coated finish, four corner mounting brackets, and top-mounted components: blue-handled shutoff valve, capped vent/fill port, and precision-level sensor unit. Layout supports optimal deck access, mechanical servicing, and marine system integration. Label affixed for specification traceability and compliance verification
69-gallon aluminum belly fuel tank upgrade for Dusky 23, featuring black powder-coated finish, four welded mounting brackets, and fully installed top-mounted hardware. Includes circular sender unit with attached wiring harness, capped auxiliary port, and threaded vent or return fitting. Wiring is routed and secured, supporting level sensing and integration with monitoring systems. Label affixed for traceability and compliance with marine fuel standards
Fully assembled 69-gallon aluminum belly tank for Dusky 23, shown with matte black finish and four welded corner brackets for secure installation. Top-mounted sender unit features integrated wiring harness, routed cleanly across the tank's surface. Tank exterior exhibits minor fluid sheen—possibly from leak testing or finishing process. Affixed white label indicates manufacturing specs and regulatory compliance
Affixed manufacturer label for 69-gallon aluminum belly fuel tank fabricated by Welding World Inc. for Dusky 23. Label confirms model WW-T-250, serial number 2022128, and February 2022 production date. Constructed from .190" thick 5052-H32 marine-grade aluminum, rated for gasoline use. Tank tested to a maximum pressure of 9 psi (34.5 kPa) in compliance with 33 CFR § 183.510(a), and certified to ISO 8846/10088 standards. Label visibility ensures traceability, inspection readiness, and conformance with ABYC
Component layout for pressure-rated fluid enclosure, model UWWM, fabricated by Welding World. Topside fittings include metallic sensor with electrical lead, dual hose ports with distinct connectors, and a threaded valve fitting. Affixed ABYC-compliant label confirms operational range: 150 PSI maximum pressure, temperature limits from -20°F to 200°F, and manufacture date of 01/01/2023. Configuration supports monitored pressurization and regulated flow for marine or industrial systems
3D model of OEM-style aluminum belly tank upgrade for Dusky 23, featuring four top-mounted L-brackets at each corner for secure hull fastening. Central curved pipe fitting protrudes from a cylindrical boss, positioned for venting or fill line access. Flat-top layout accommodates auxiliary porting while preserving streamlined install within original cavity footprint. Geometry confirms alignment with deck clearance and structural tie-down points

Oscuro 23 - 47 gal. Plástico a Aluminio 69 gal. Depósito de combustible de repuesto

$ 1,180.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.
  • NOTA IMPORTANTE: El precio base es para retiro local en nuestra SW Miami Shop. Consulte las opciones de embalaje y envío a los 48 estados contiguos. Todos los tanques se fabrican por encargo y el plazo de fabricación es de 2 semanas laborales. La ventana de recolección del tanque terminado también es de 2 semanas laborales, así que asegúrese de poder recibir su tanque terminado dentro de ese plazo.

    • Comprar con confianza. Poco después de que se acredite su pago, se le enviará por correo electrónico un conjunto completo de dibujos para que verifique todas las dimensiones y las posiciones de los accesorios. Si hay alguna diferencia con su antiguo tanque, podemos hacer cualquier modificación razonable para satisfacer sus necesidades.

    • Este es un tanque de vientre de conversión de poli/plástico a aluminio, modificado para aumentar el volumen del tanque de polietileno OEM y también ganar la durabilidad constante bajo el sol/alta temperatura de almacenamiento del barco del aluminio.

      • Construcción de aluminio serie Alcoa ® 5052 H32 de .190 de espesor.

        • Soldado GTAW (TIG) soldado a mano para superar los estándares ASME / ASW D3.7:2004.

          • Sherwin Williams® TarGard® Epoxi pintado para la mejor protección del medio ambiente marino.

              • Interruptor de láminas KUSA® (ex-WEMA USA) y transmisor de nivel de combustible de flotador NBR.

                NOTA: ¡Compruebe minuciosamente las dimensiones de su tanque! Una vez que se fabrica y / o envía un tanque, no podemos ser responsables de los desajustes y no se aceptarán reembolsos o devoluciones. ¡Todas las ventas son finales!

                Plazo de ejecución de la fabricación (antes del envío): 2 semanas laborales.

                Envío: Solo flete a los 48 estados contiguos. Contáctenos para conocer las opciones de envío con costo adicional para HI y AK. Se aceptan envíos internacionales de transportistas con sede en EE. UU., pero contáctenos primero para coordinar los detalles.

                Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

                For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

                All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

                In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
