Actual photo of a black OEM replacement fuel tank for a 2000 Grady-White 204 Fisherman boat with a 75.8-gallon net capacity. The tank features a textured anti-corrosion coating, welded mounting tabs, and pre-installed fittings including fuel pickup, sender unit, and wiring components. A manufacturer label is visible on the top surface

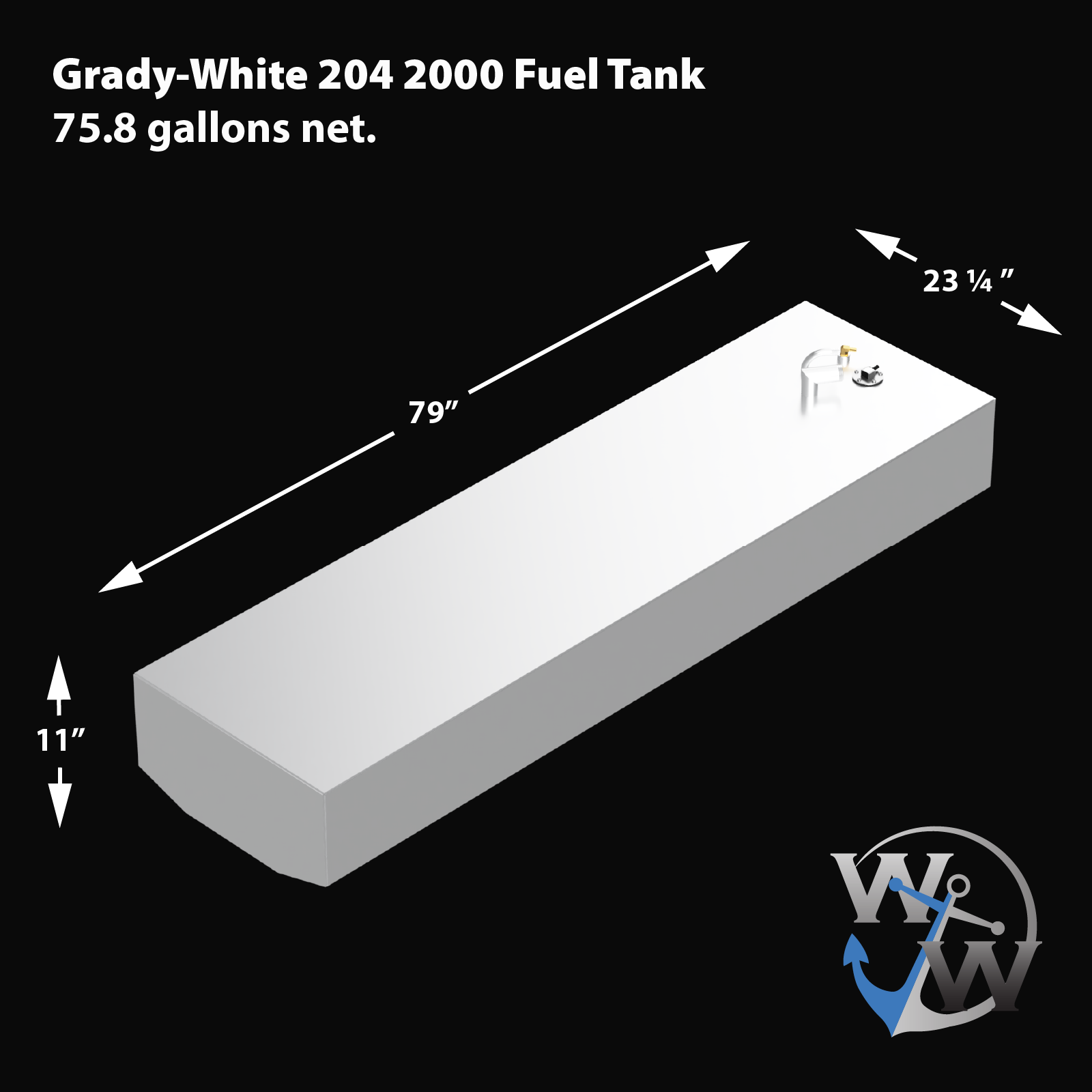

3D render of an OEM replacement fuel tank for a 2000 Grady-White 204 Fisherman boat with a 75.8-gallon net capacity. Tank dimensions are 79 inches long, 23.25 inches wide, and 11 inches high. The tank features top-mounted fittings for fill, vent, and sender unit, with a chamfered front edge and WW anchor logo in the bottom right corner

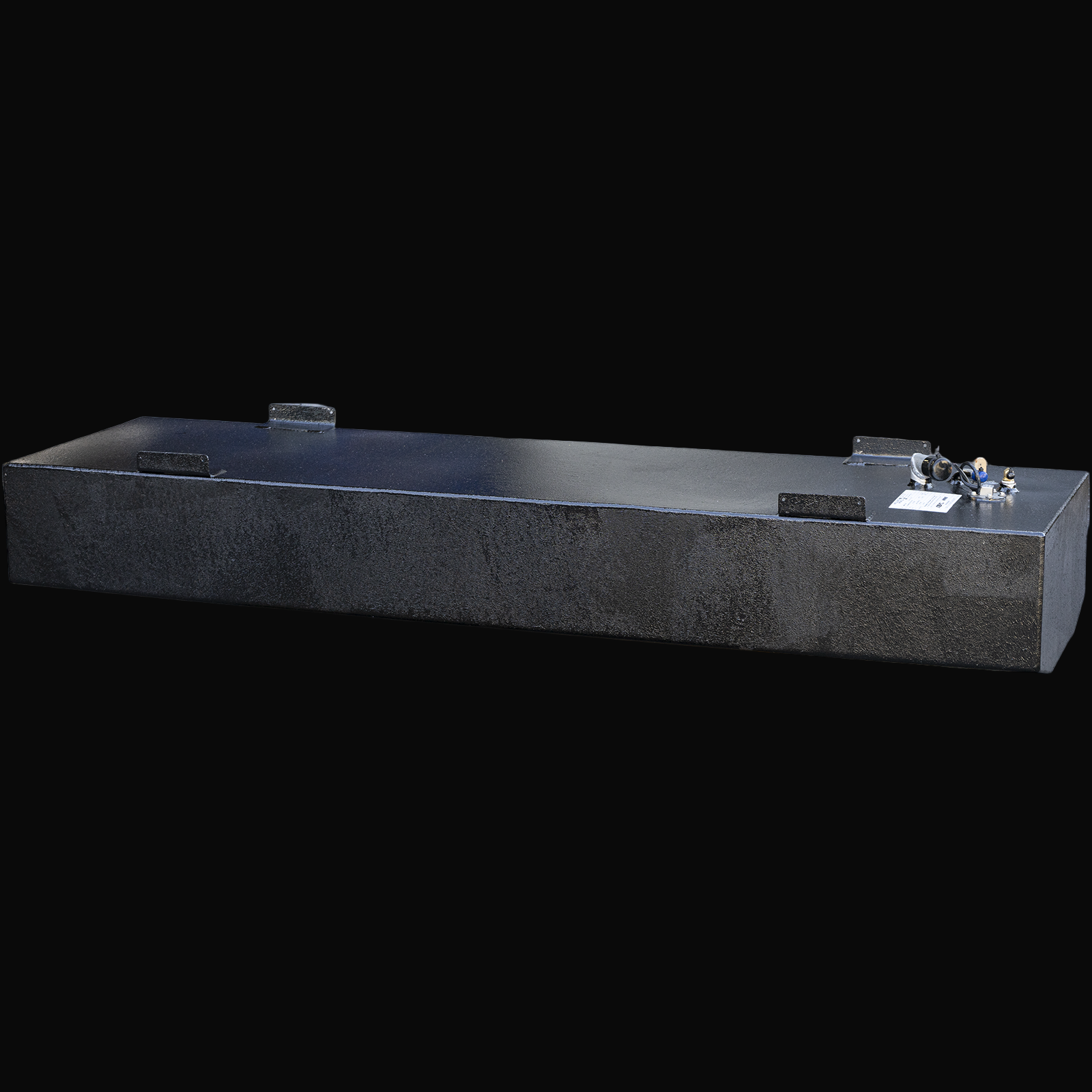

Isolated photo of a black OEM replacement fuel tank for a 2000 Grady-White 204 Fisherman boat, featuring a textured corrosion-resistant coating, top-mounted fuel fittings, a sender unit, vent, fill neck, and welded mounting tabs on a transparent background

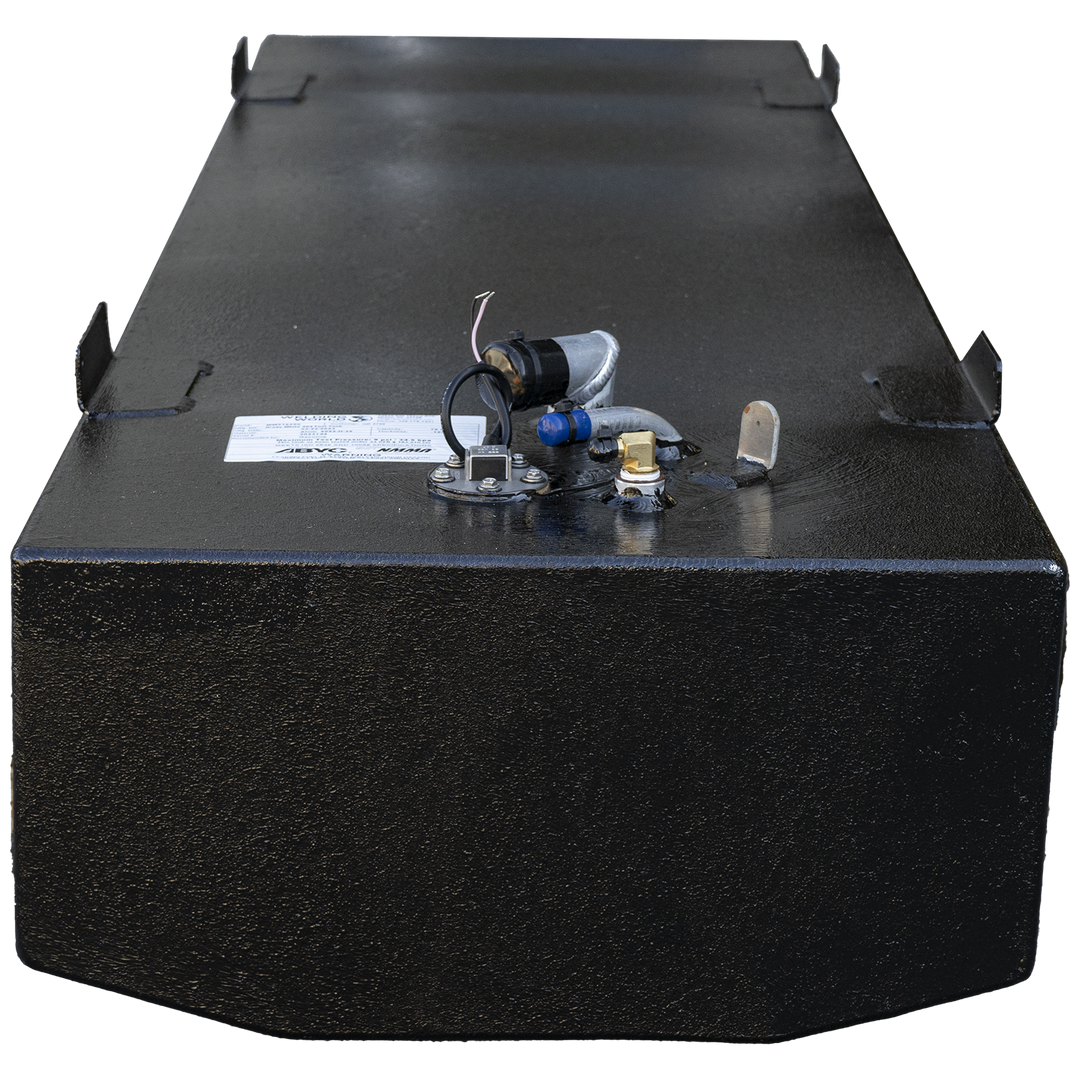

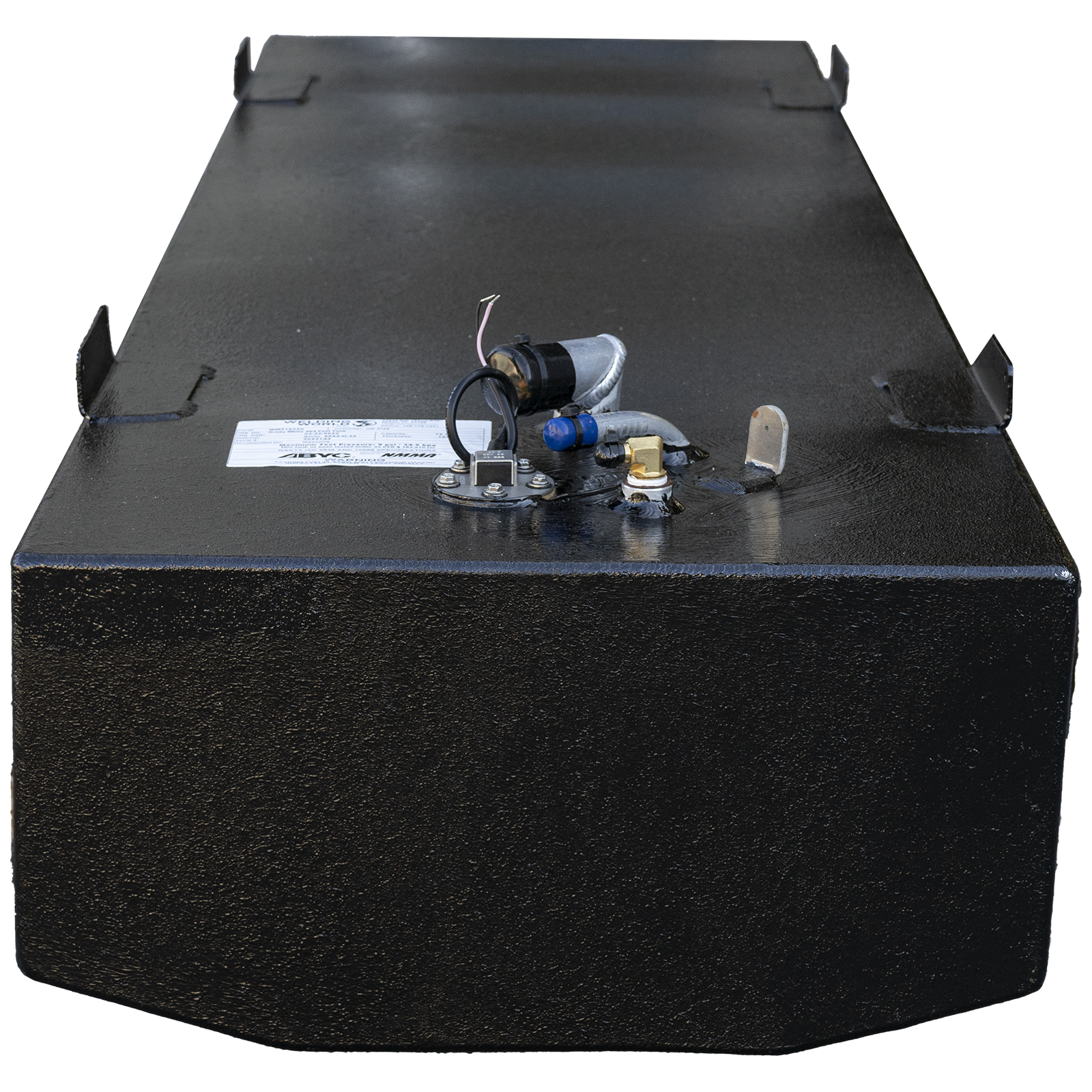

Close-up front view of a black OEM replacement fuel tank for a 2000 Grady-White 204 Fisherman boat, featuring a textured anti-corrosion coating, welded mounting tabs, and top fittings including fuel sender, fuel pickup, vent, and wiring. Manufacturer label is visible on the tank surface, background is transparent

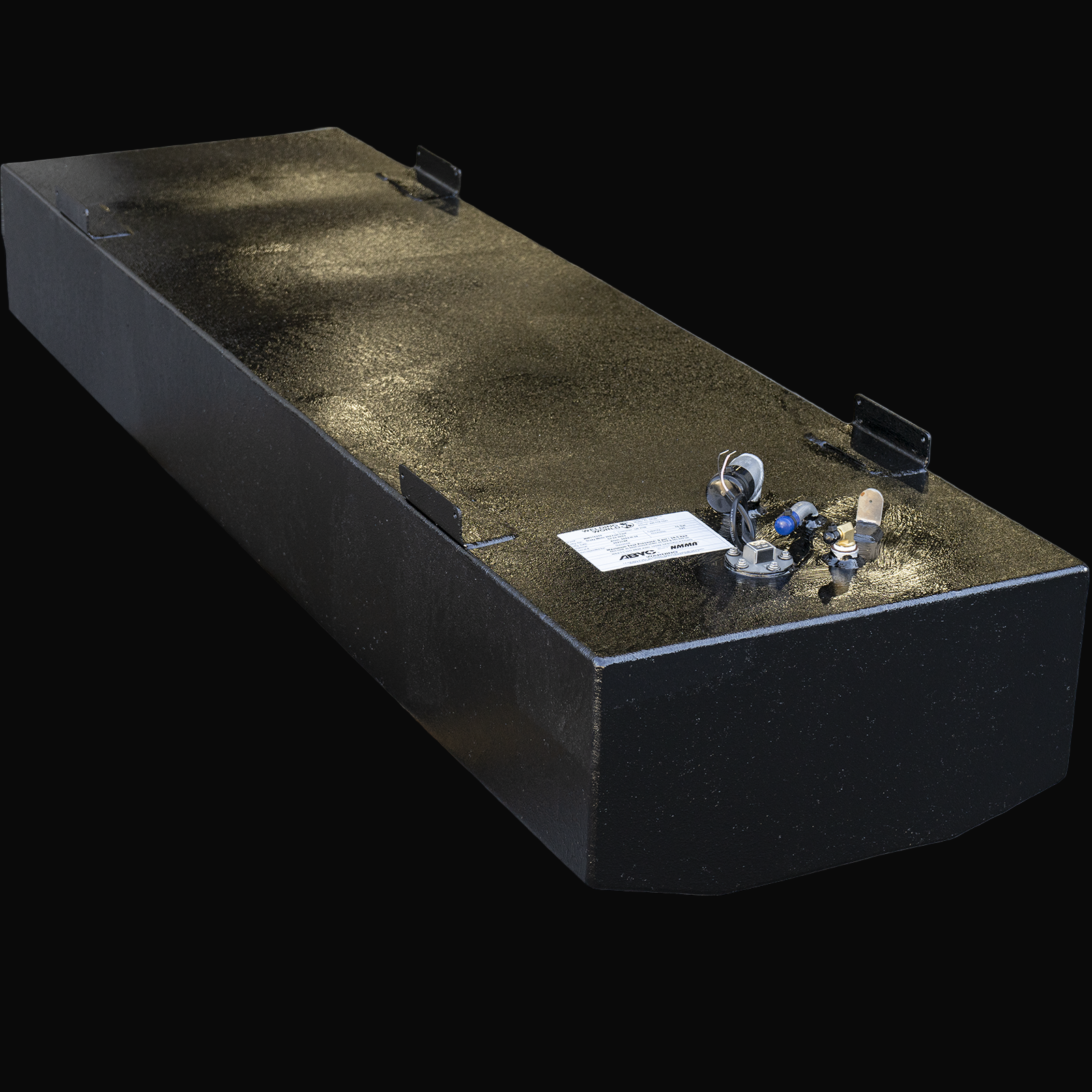

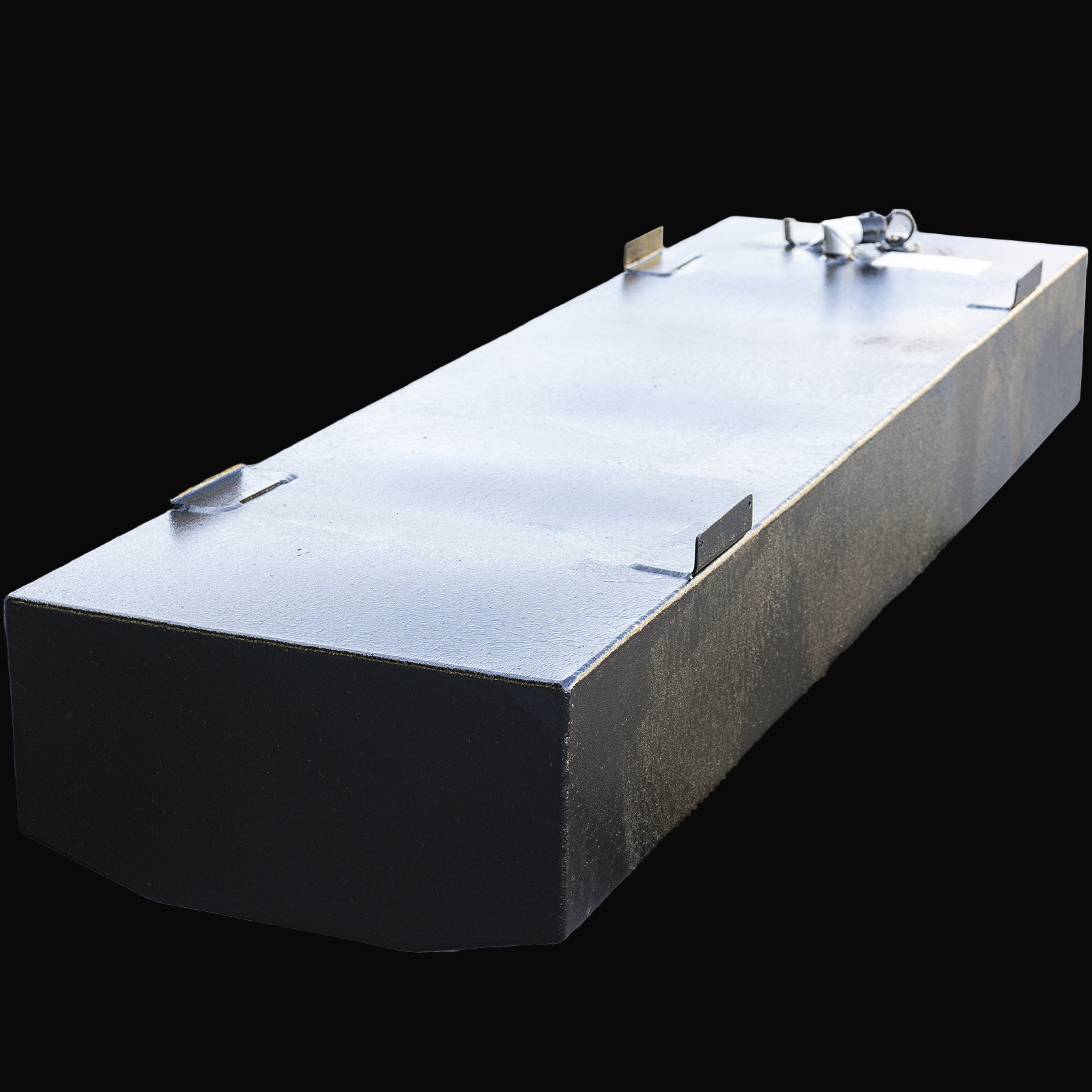

Angled rear-to-front view of a black OEM replacement fuel tank for a 2000 Grady-White 204 Fisherman boat. The tank features a textured anti-corrosion coating, welded mounting tabs along the top, and visible top fittings including fuel lines and sender. Rendered with a transparent background

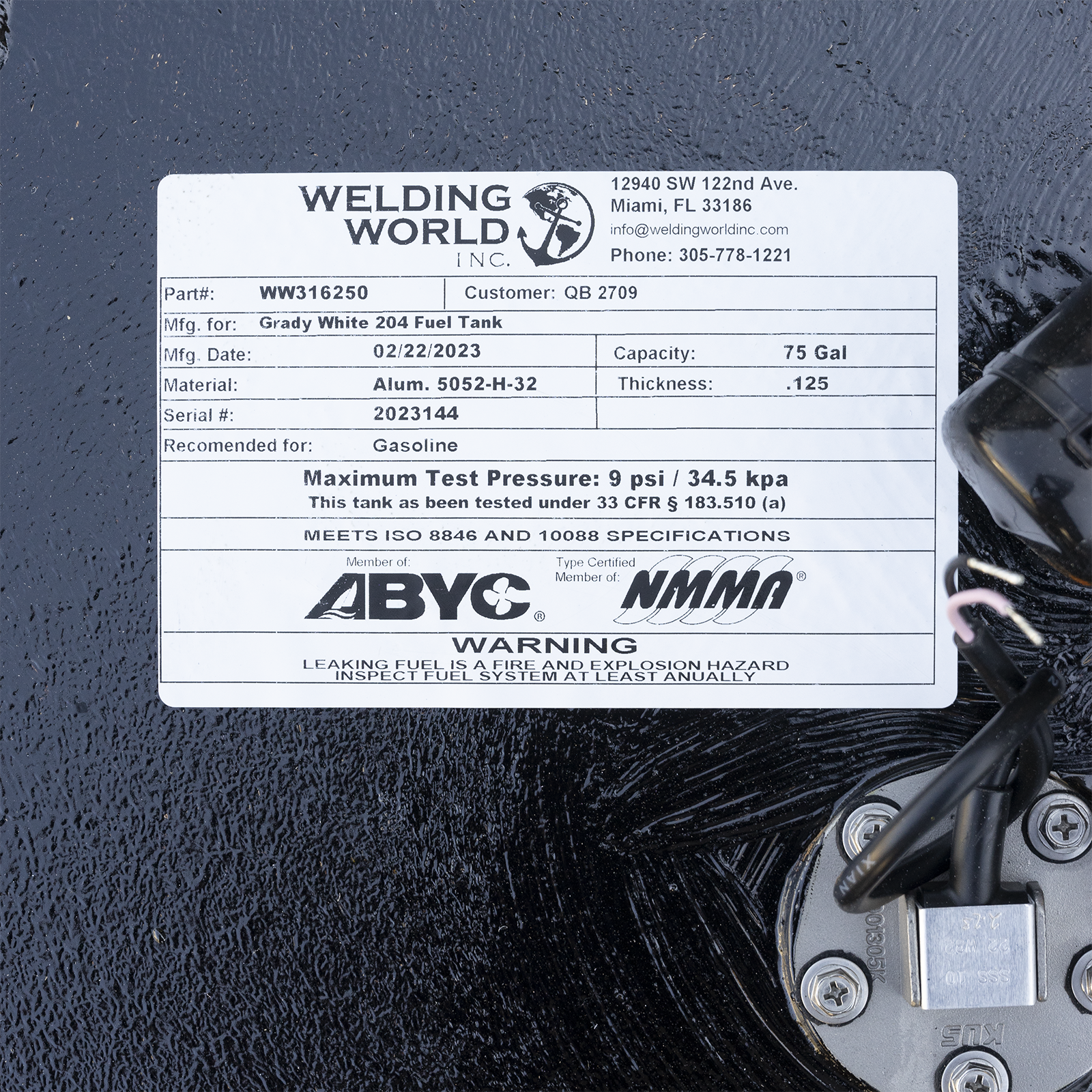

Close-up of the manufacturer's label on a Grady White 204 fuel tank by Welding World Inc., showing part number WW316250, customer QB 2709, 75-gallon capacity, manufactured on 02/22/2023. Made from 0.125-inch thick aluminum 5052-H-32, recommended for gasoline. Maximum test pressure is 9 psi. Complies with ISO 8846 and 10088, certified by ABYC and NMMA. Contact info and warning about fuel system inspection also visible
Actual photo of a black OEM replacement fuel tank for a 2000 Grady-White 204 Fisherman boat with a 75.8-gallon net capacity. The tank features a textured anti-corrosion coating, welded mounting tabs, and pre-installed fittings including fuel pickup, sender unit, and wiring components. A manufacturer label is visible on the top surface
3D render of an OEM replacement fuel tank for a 2000 Grady-White 204 Fisherman boat with a 75.8-gallon net capacity. Tank dimensions are 79 inches long, 23.25 inches wide, and 11 inches high. The tank features top-mounted fittings for fill, vent, and sender unit, with a chamfered front edge and WW anchor logo in the bottom right corner
Front view of a light gray 3D-rendered OEM replacement fuel tank for a 2000 Grady-White 204 Fisherman boat with a 75.8-gallon net capacity. The tank features a chamfered front edge and visible top fittings including a fuel fill neck, sender port, and vent
Isolated photo of a black OEM replacement fuel tank for a 2000 Grady-White 204 Fisherman boat, featuring a textured corrosion-resistant coating, top-mounted fuel fittings, a sender unit, vent, fill neck, and welded mounting tabs on a transparent background
Close-up front view of a black OEM replacement fuel tank for a 2000 Grady-White 204 Fisherman boat, featuring a textured anti-corrosion coating, welded mounting tabs, and top fittings including fuel sender, fuel pickup, vent, and wiring. Manufacturer label is visible on the tank surface, background is transparent
Angled rear-to-front view of a black OEM replacement fuel tank for a 2000 Grady-White 204 Fisherman boat. The tank features a textured anti-corrosion coating, welded mounting tabs along the top, and visible top fittings including fuel lines and sender. Rendered with a transparent background
Close-up of the manufacturer's label on a Grady White 204 fuel tank by Welding World Inc., showing part number WW316250, customer QB 2709, 75-gallon capacity, manufactured on 02/22/2023. Made from 0.125-inch thick aluminum 5052-H-32, recommended for gasoline. Maximum test pressure is 9 psi. Complies with ISO 8846 and 10088, certified by ABYC and NMMA. Contact info and warning about fuel system inspection also visible

Grady-White 24 'en alta mar 1989 - 118 gal. auxiliar Tanque Eliminar Tanque de Combustible Modificado

$ 1,489.00
/
  • Local pickup available
  • Over-sized & over-weight item.
  • Only Ships LTL Freight.
  • Call us Mon.-Fri. 8:30 a.m. to 4:40 p.m. if in any doubt.
  • NOTA IMPORTANTE: El precio base es para retiro local en nuestra SW Miami Shop. Consulte las opciones de embalaje y envío a los 48 estados contiguos. Todos los tanques se fabrican por encargo y el plazo de fabricación es de 2 semanas laborales. La ventana de recolección del tanque terminado también es de 2 semanas laborales, así que asegúrese de poder recibir su tanque terminado dentro de ese plazo.

  • Comprar con confianza. Poco después de que se acredite su pago, se le enviará por correo electrónico un conjunto completo de dibujos para que verifique todas las dimensiones y las posiciones de los accesorios. Si hay alguna diferencia con su antiguo tanque, podemos hacer cualquier modificación razonable para satisfacer sus necesidades.

  • Este es un tanque de modificación popular que une los tanques de combustible principal y auxiliar en un tanque de 118 galones más largo y de mayor capacidad.

    • Construcción de aluminio serie Alcoa ® 5052 H32 de .190 de espesor.

      • Soldado GTAW (TIG) soldado a mano para superar los estándares ASME / ASW D3.7:2004.

        • Sherwin Williams® TarGard® Epoxi pintado para la mejor protección del medio ambiente marino.

          • Interruptor de láminas KUSA® (ex-WEMA) y transmisor de nivel de combustible de flotador NBR.

            NOTA: ¡Compruebe minuciosamente las dimensiones de su tanque! Una vez que se fabrica y / o envía un tanque, no podemos ser responsables de los desajustes y no se aceptarán reembolsos o devoluciones. ¡Todas las ventas son finales!

            Plazo de ejecución de la fabricación (antes del envío): 2 semanas laborales.

            Envío: Solo flete a los 48 estados contiguos. Contáctenos para conocer las opciones de envío con costo adicional para HI y AK. Se aceptan envíos internacionales de transportistas con sede en EE. UU., pero contáctenos primero para coordinar los detalles.

            Due to this item's size and weight we can only ship it in an economical way via Less Than Truckload (LTL) consolidated land shipping, and only to the contiguous 48 States.

            For shipping inquiries to AK, HI, PR, US-VI, and international shipping, please contact us first at sales@weldingworldinc.com.

            All of the destinations above we can only serve as a Free Carrier (or FCA) modality, that requires the customer to contract and pay for their carrier service of choice. We can still ship the item, but only to a warehouse/receiving office within the 48-contiguous States.

            In plain terms what this means is that if you want to ship your product to any non-contiguous US territory or internationally, you, the customer, has to provide us with the warehouse address of the carrier that serves your locality with an address within the contiguous 48-US States, as we do not ship overseas on our own.
